Square D

HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Category Load Centers & Accessories

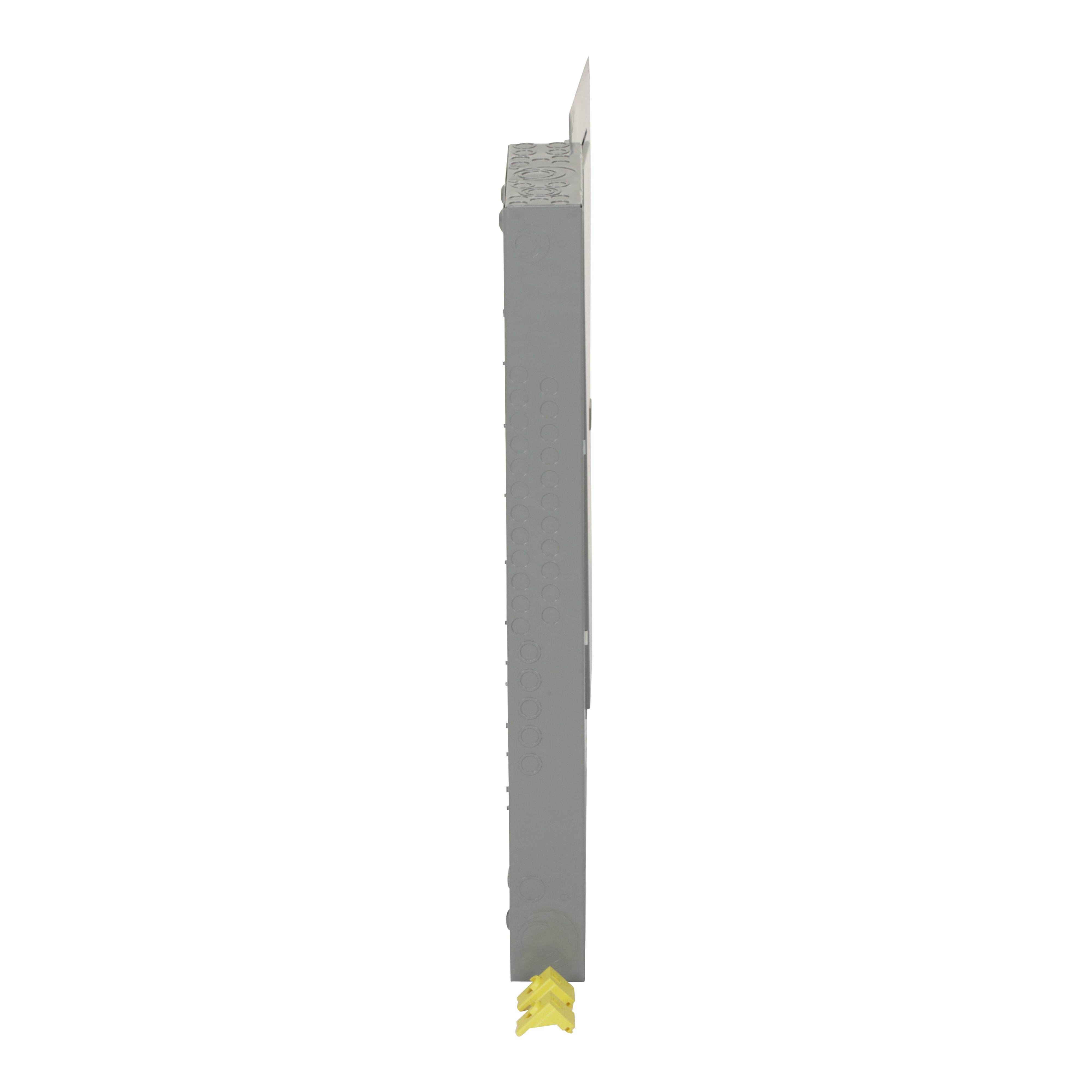

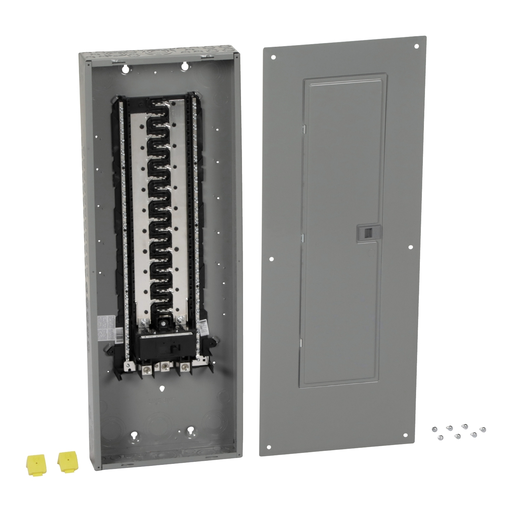

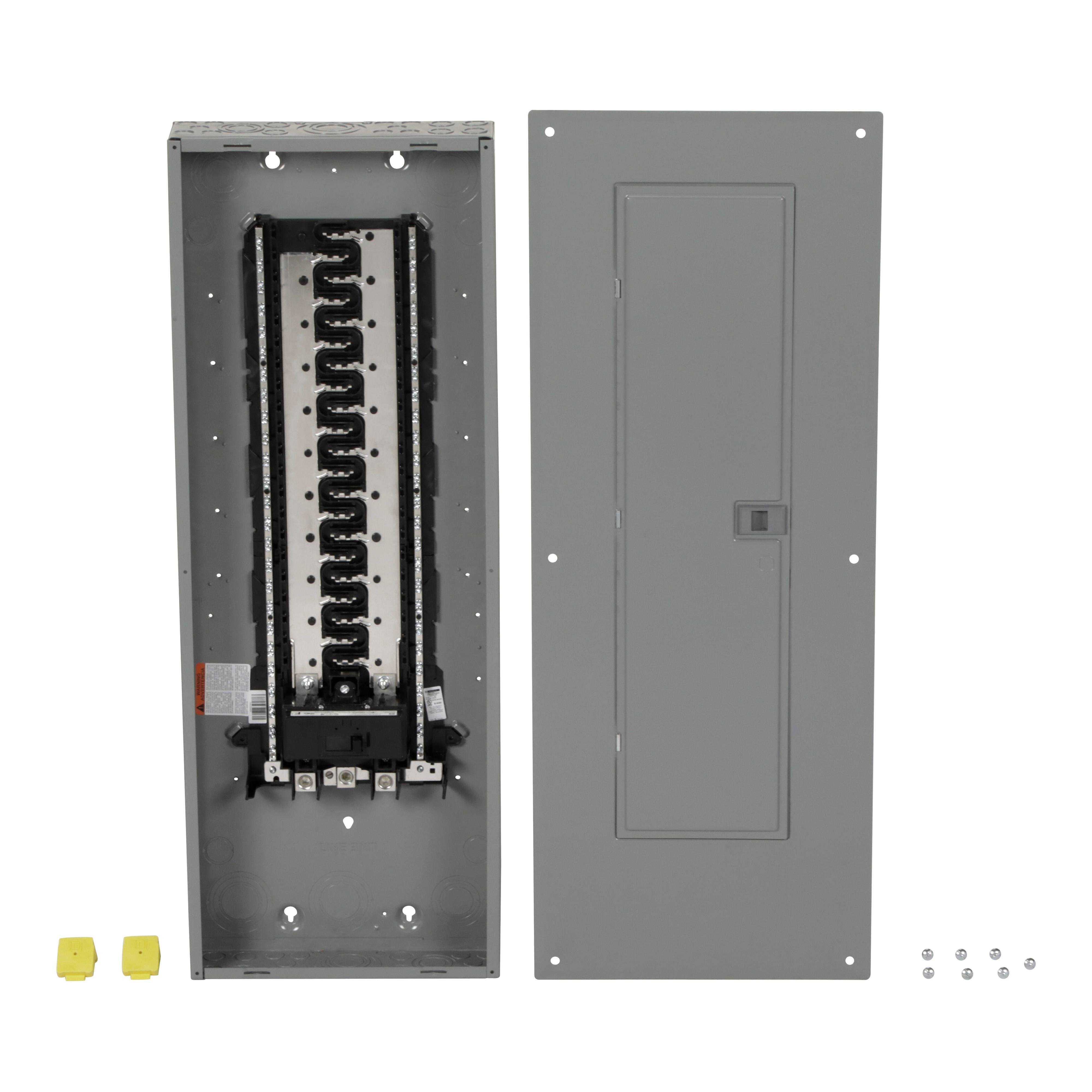

Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Square D

HOM4284M200PC - Load center, Homeline, 1 phase, 42 spaces, 84 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Item Code: 884837
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM4284M200PC

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 42 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

37.66lb

Height

1000mm

Width

15.95mm

Length

41.8mm

Depth

95mm

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Combination Flush/surface Cover

AD Invoice Description

CENTER LOAD BRKR CKT MAIN 120/240VAC

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Item Features 06

The load center works with Wiser Energy Smart Home Monitor to monitor and manage your energy usage

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

41.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.6600

AD Package Weight UOM

LB

AD Package Width

15.9500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/Roe3J3d1ca8

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

84

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

42

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Convertible Neutral

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 250 kcmil

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.25 in W x 3.75 in D x 39.37 in H

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

NEMA 12

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Flush/Plug-On
