Square D

HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover

Category Load Centers & Accessories

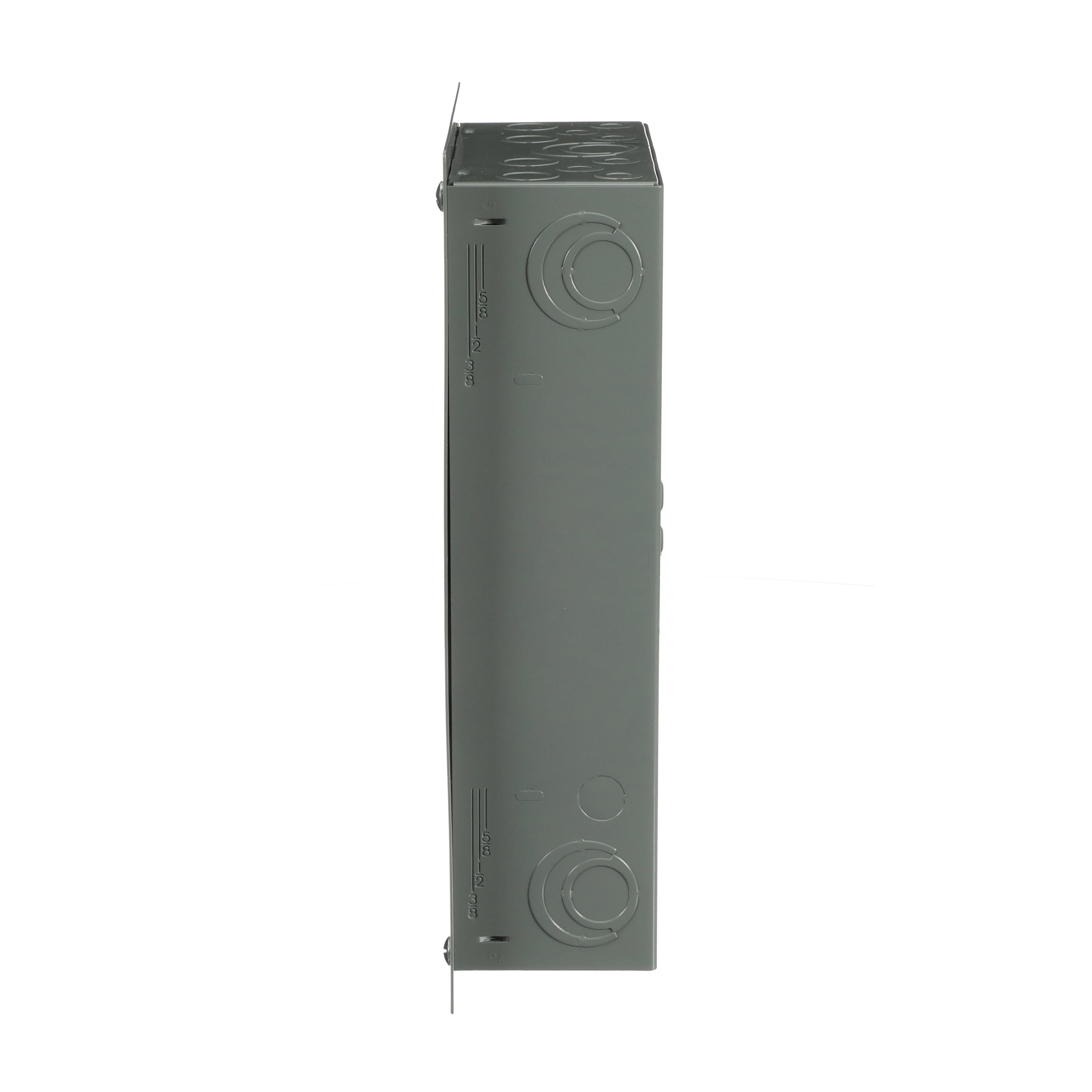

Picture of HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover Picture of HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover
Picture of HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover Picture of HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover
Square D

HOM48L125GC - Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover

Item Code: 1307431
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM48L125GC

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 2/0 copper or 12 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. This Homeline load center has a height of 14.80 inches, a width of 8.89 inches, and depth of 3.81 inches. Homeline load centers are UL Listed.

Specifications

Weight

9.48lb

Height

376mm

Width

10.4mm

Length

16.44mm

Depth

97mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Field Installed Grounding Bar and Combination Flush/Surface Cover

AD Invoice Description

LOADCENTER MAIN LUG 120/240VAC 125A 1 8

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

16.4400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

9.4800

AD Package Weight UOM

LB

AD Package Width

10.4000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/OzhrOM1k150

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Flush

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

8

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

4

Spec 14 Attribute

Type

Spec 14 Attribute Value

1-Phase Fixed

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120/240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

12 to 2/0 AWG, 14 to 2/0 AWG

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

HOM

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.88 in W x 3.8 in D x 14.8 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

21

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

10
