Square D

HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Category Load Centers & Accessories

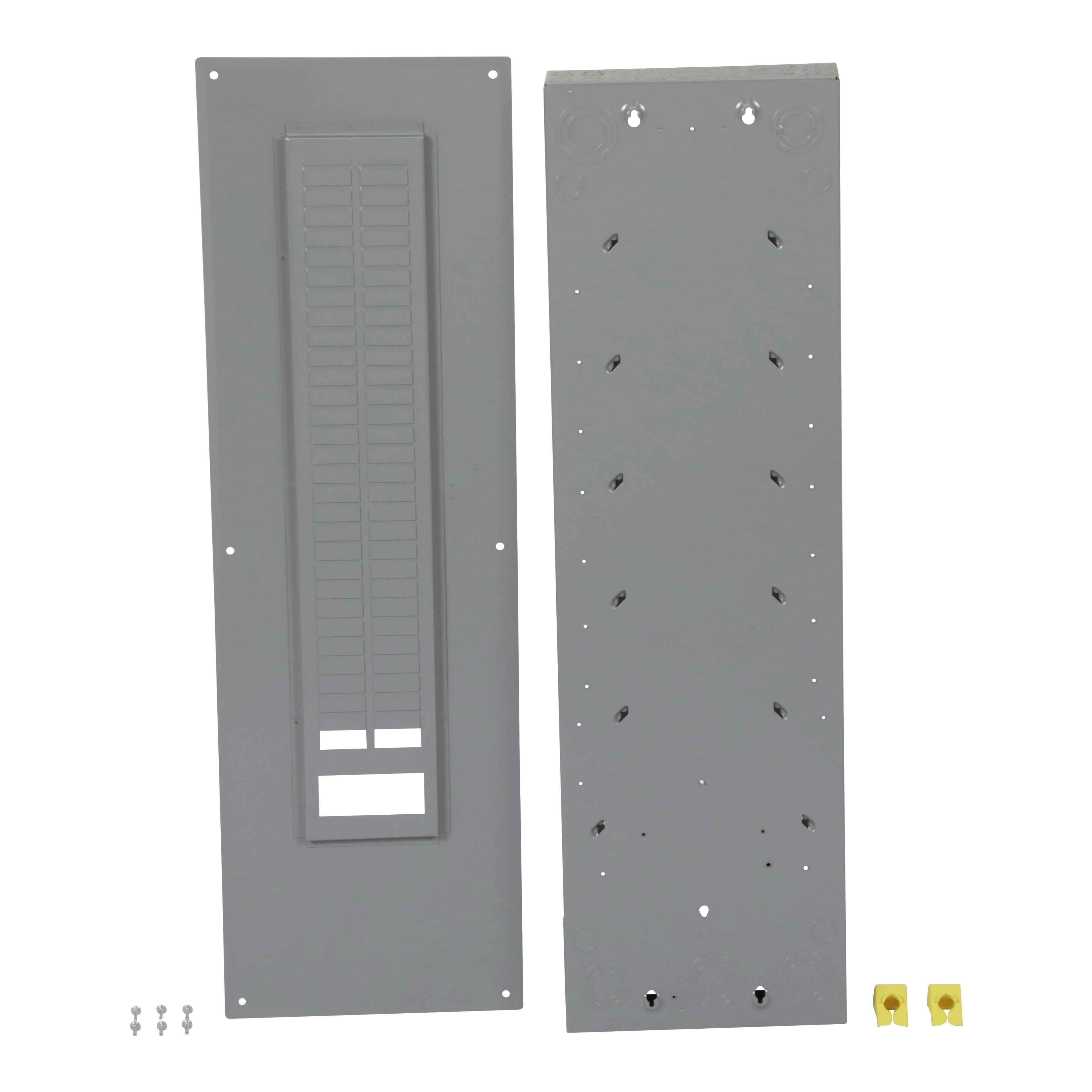

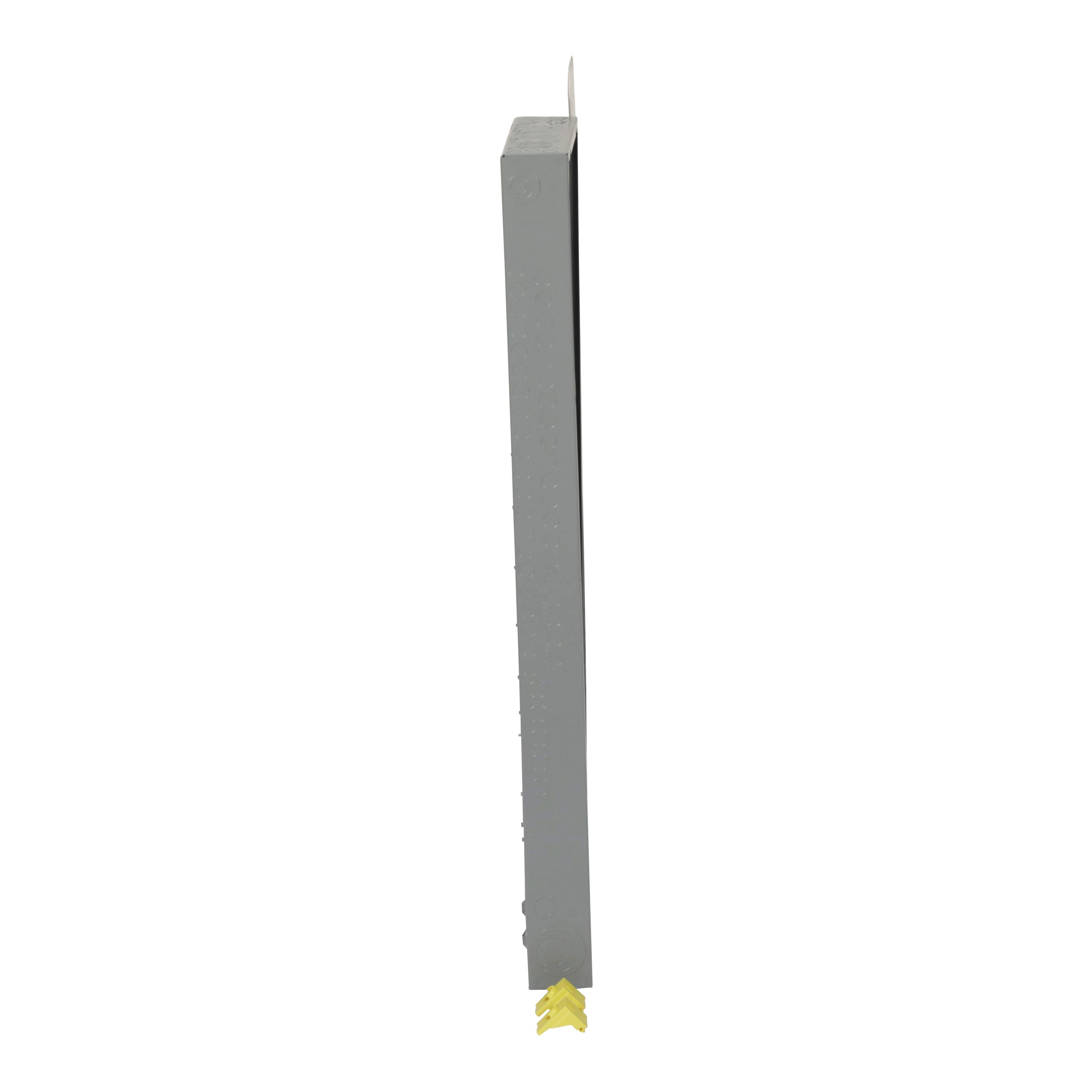

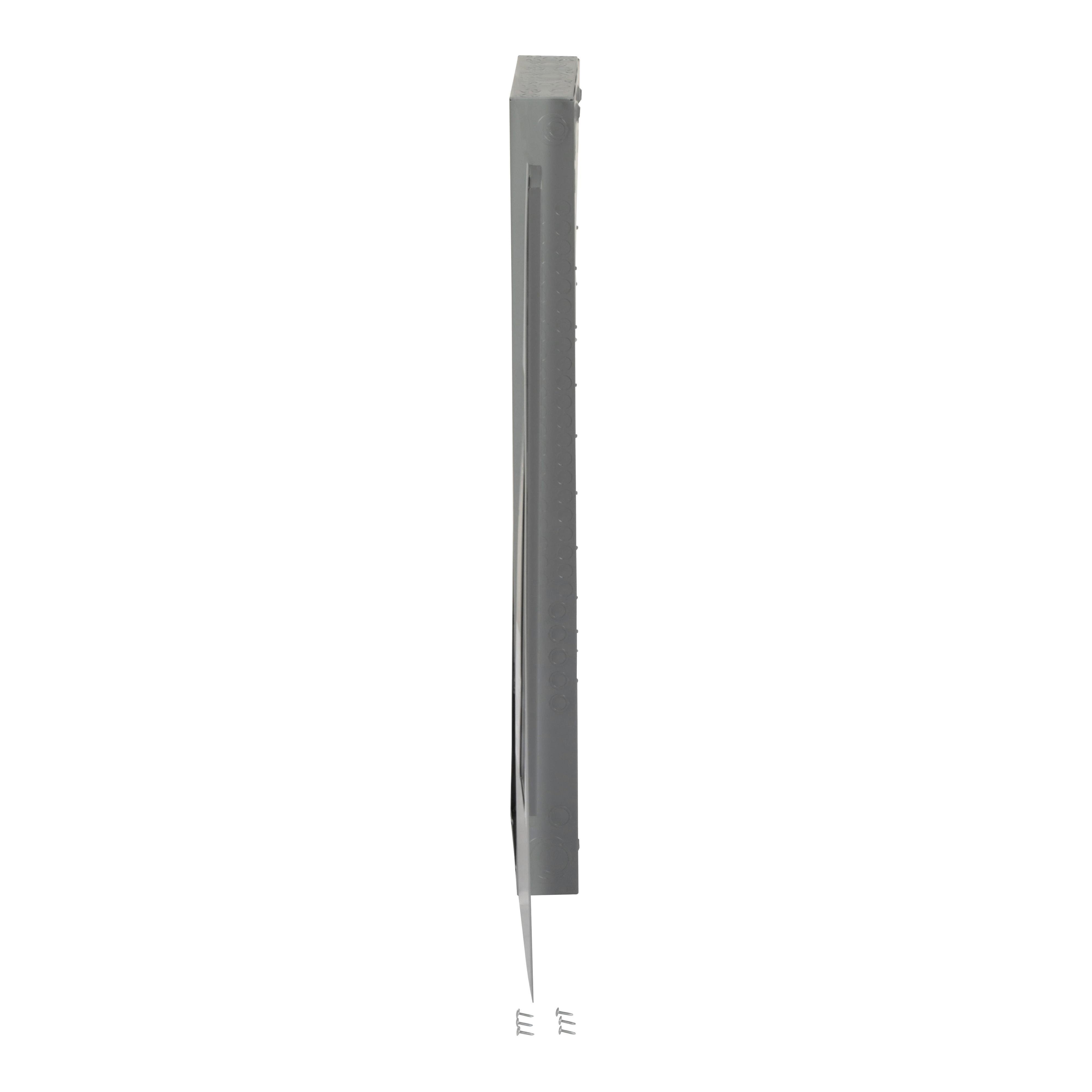

Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover
Square D

HOM60120M200PC - Load center, Homeline, 1 phase, 60 spaces, 120 circuits, 200A convertible main breaker, PoN, NEMA1, combo cover

Item Code: 885176
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM60120M200PC

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

43.51lb

Height

1235mm

Width

16.46mm

Length

51.32mm

Depth

95mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Combination Flush/surface Cover

AD Invoice Description

CENTER LOAD BRKR CKT MAIN 120/240VAC

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

51.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

43.5100

AD Package Weight UOM

LB

AD Package Width

16.4600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/Roe3J3d1ca8

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

120

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

60

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Convertible Neutral

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 250 kcmil, 4 AWG to 300 kcmil

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

38 mm W x 143 mm D x 485 mm H

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

NEMA 25

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Flush/Plug-On
