Square D

HOM816L125PC - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 125A convertible main lugs, PoN, NEMA1, combo cover

Category Load Centers & Accessories

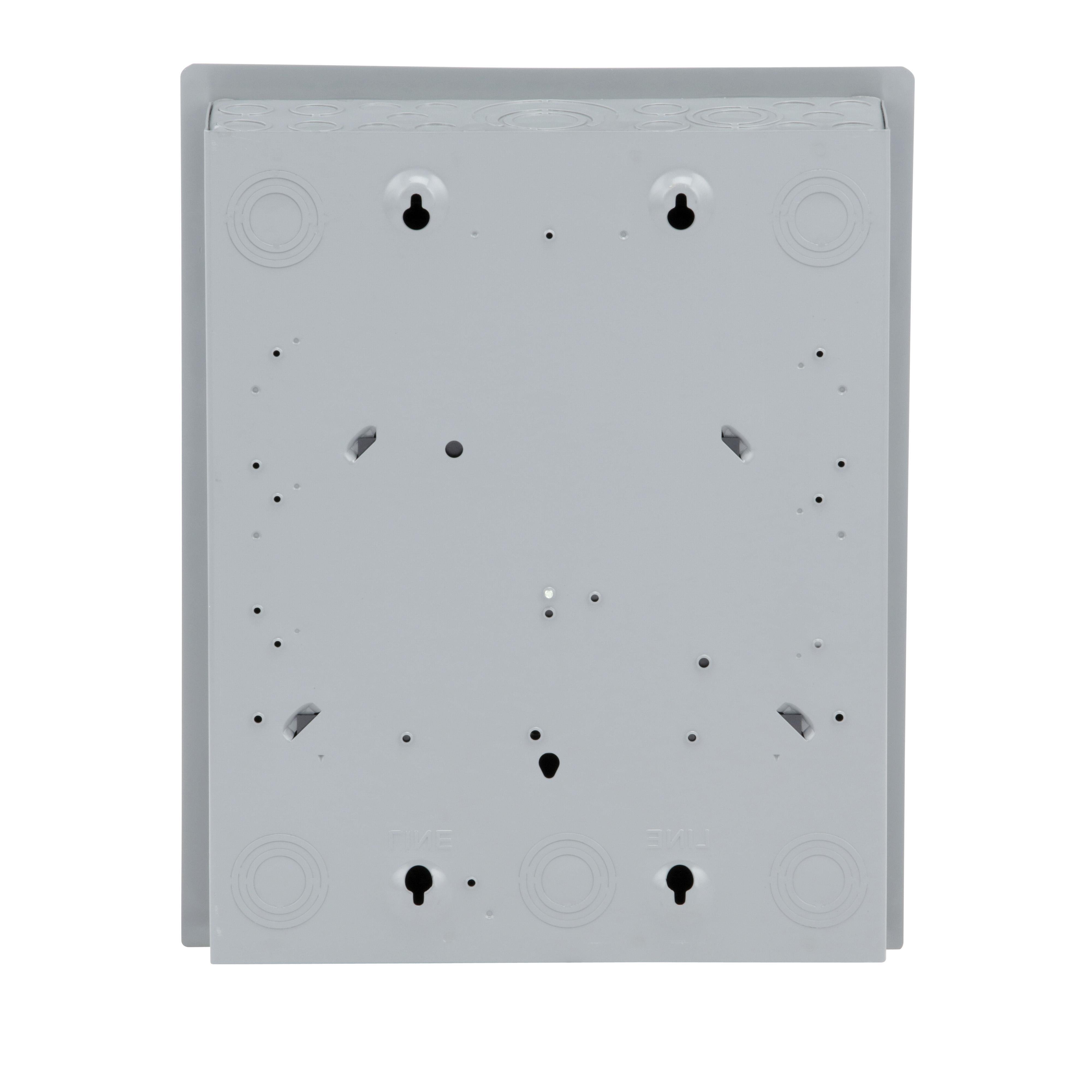

Picture of HOM816L125PC - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 125A convertible main lugs, PoN, NEMA1, combo cover
Square D

HOM816L125PC - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 125A convertible main lugs, PoN, NEMA1, combo cover

Item Code: 884817
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM816L125PC

RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 8 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

17.16lb

Height

455mm

Width

15.95mm

Length

20.41mm

Depth

95mm

Amperage Rating

125 A

Brand

Square D

Breaker Mounting

Panel

Breaker Type

HOM

Category

Load Centers & Accessories

Dimensions

14.25 in W x 3.75 in D x 17.92 in H

Enclosure Box Size

6

Enclosure Type

NEMA 1

Frequency Rating

50/60 Hz

Housing Material

Steel

Interrupt Rating

10 kA

Mounting Type

Flush/Plug-On/Surface

Number of Circuits

16

Number Of Poles

1

Number of Spaces

8

Type

1-Phase Convertible Neutral

Voltage Rating

120/240 V AC

Wire Size

4 AWG to 250 kcmil, 4 AWG to 300 kcmil

Wiring Configuration

3-Wire
