Square D™

HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru

Category Miscellaneous

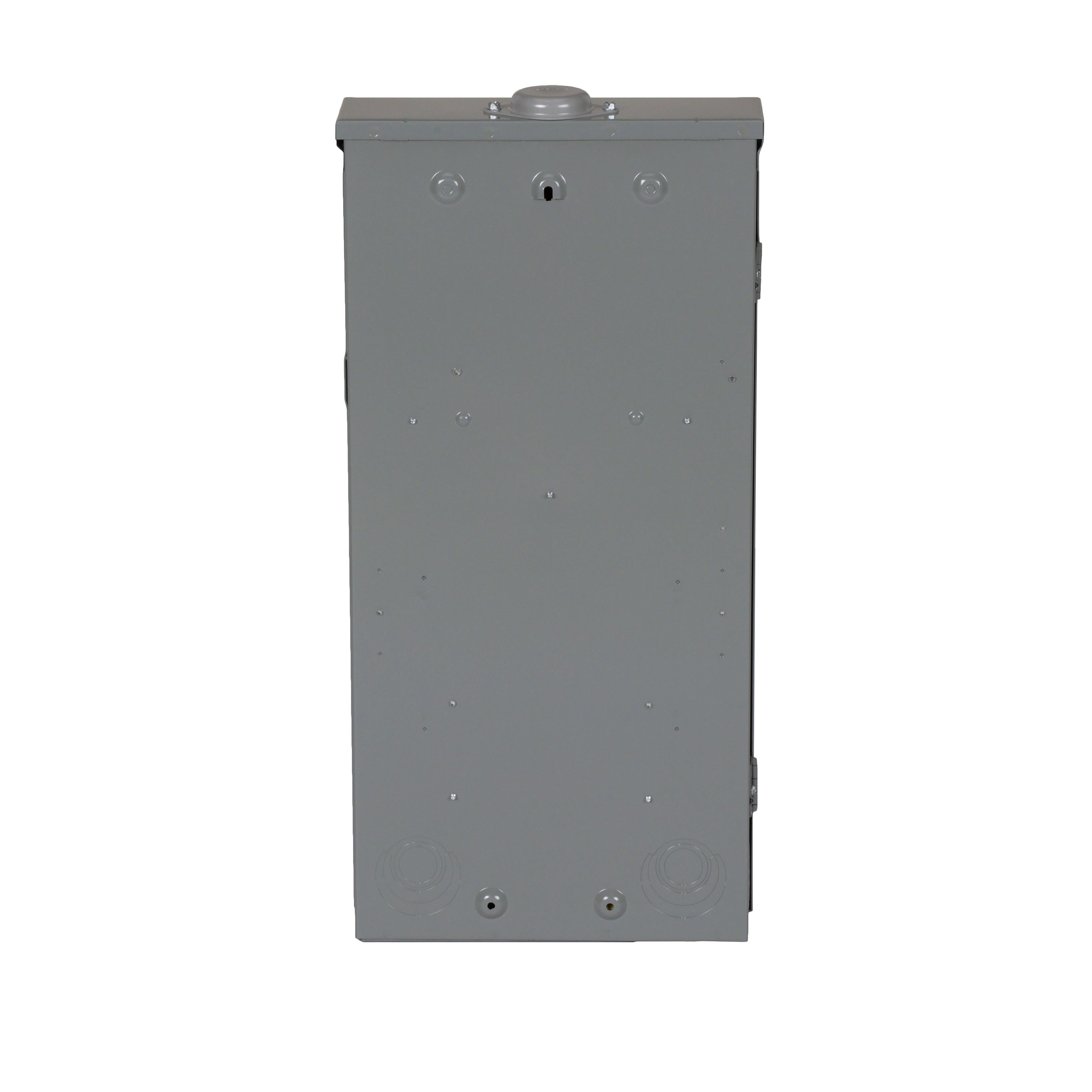

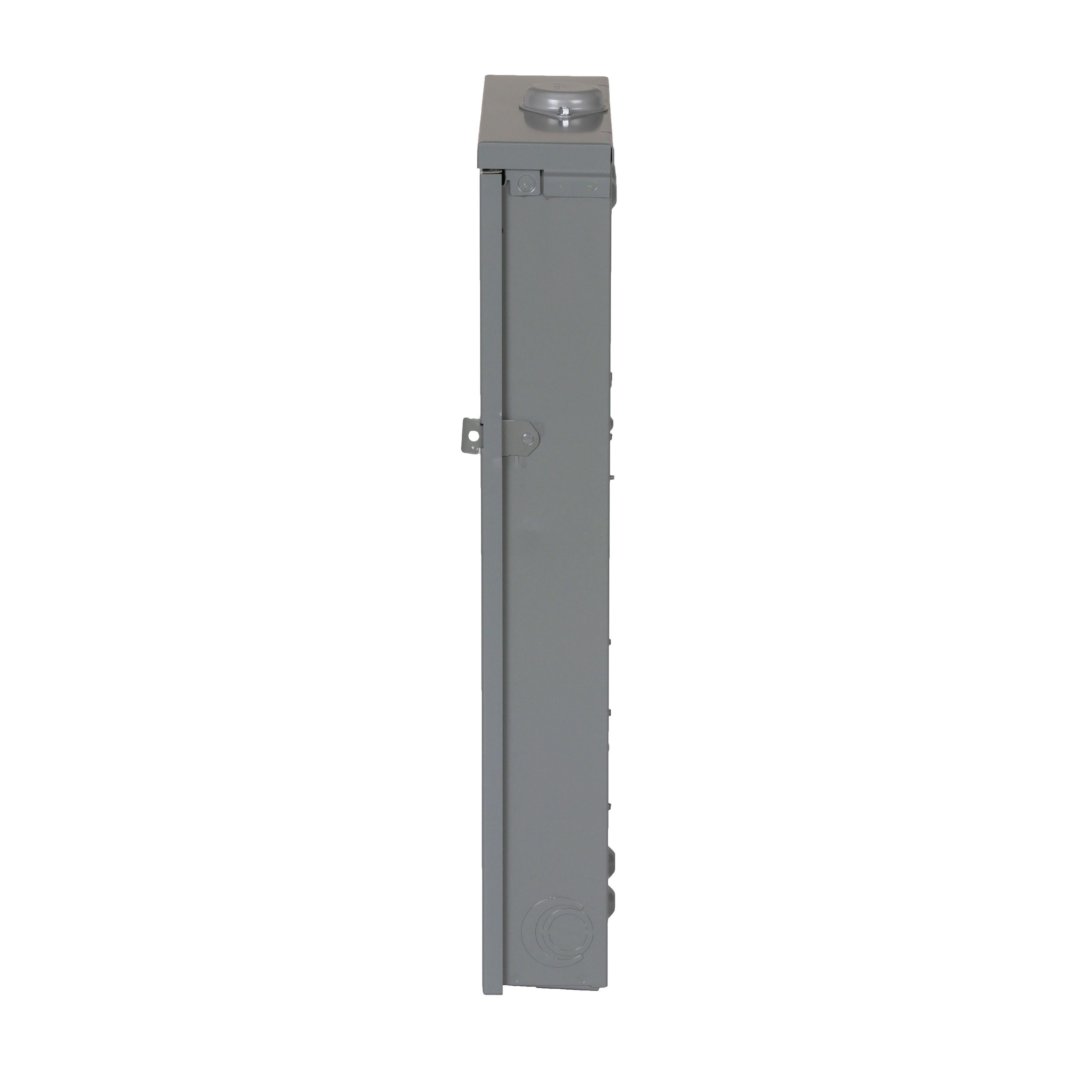

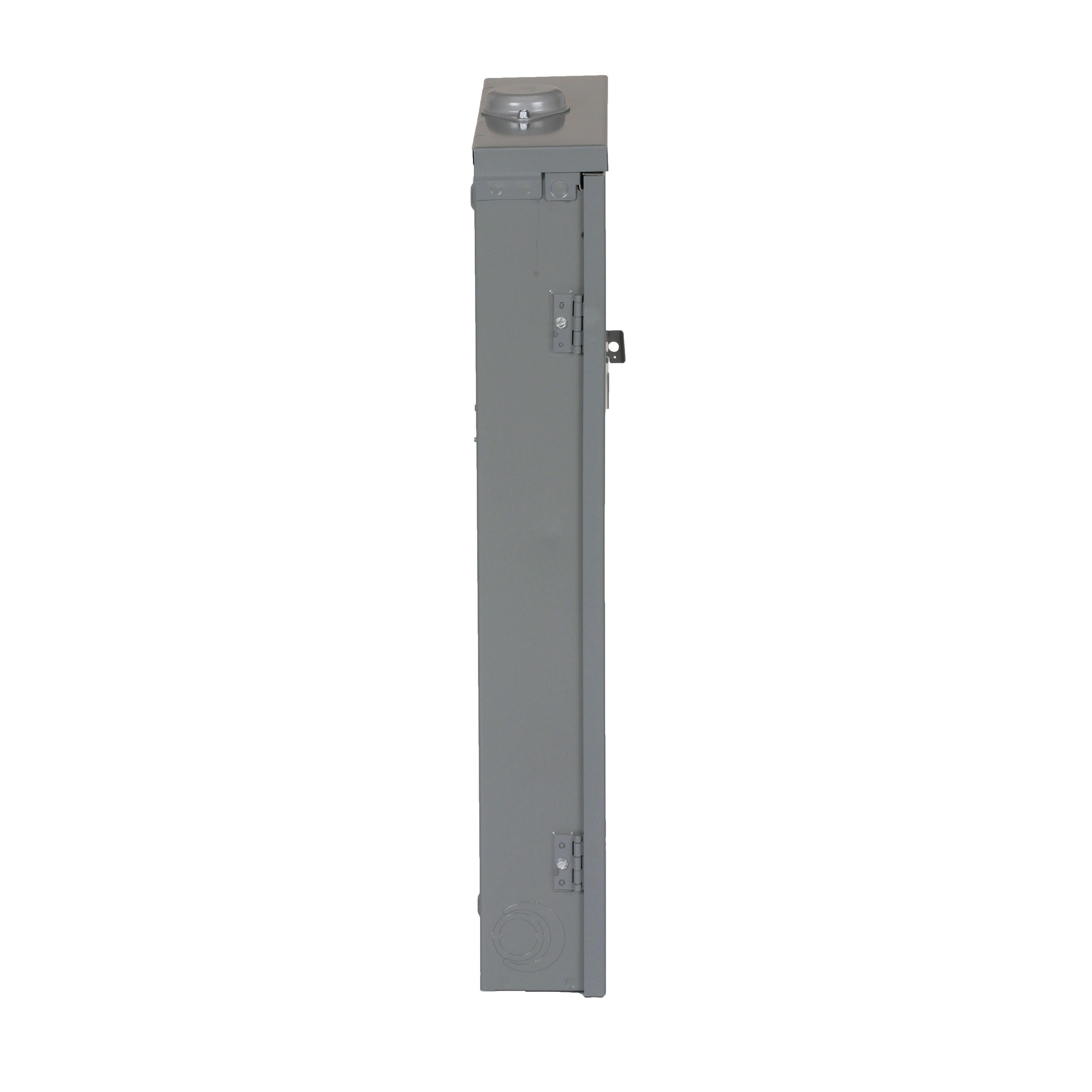

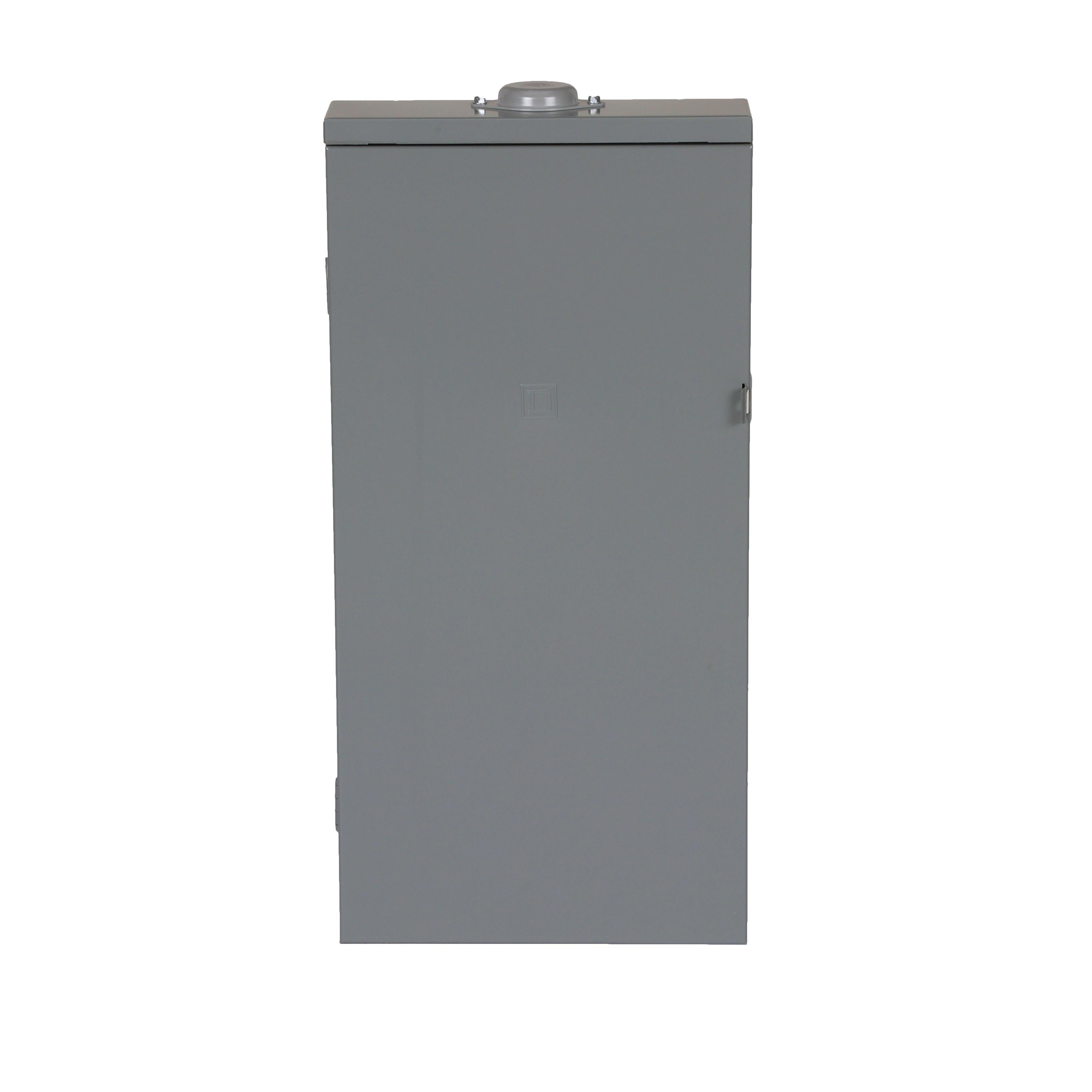

Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru
Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru
Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru
Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru
Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru Picture of HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru
Square D™

HOM816M150PFTRB - Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, PoN, NEMA3R, feedthru

Item Code: 1012679
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM816M150PFTRB

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 150A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 3R rain proof enclosure. The electrical connections are feed thru lugs. The lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

Specifications

Weight

32.72

Width

15.16

Length

31.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HOM816M150PFTRB/HOM816M150PFTRB.spin

AD Alternative Part Number

12945584

AD Application

For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD EAN

0785901974048

AD Gtin

00785901974048

AD IDEA Index ID

12945584

AD Includes

Factory Installed Feed-Thru Lugs and Rainproof Cover

AD Invoice Description

LOADCENTER MAIN BRKR 120/240VAC 150A 1 8

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Item Features 06

Compatible with Wiser Energy Smart Home Monitor to monitor and manage your energy usage

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

31.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

32.7200

AD Package Weight UOM

LB

AD Package Width

15.1600

AD Package Width UOM

IN

AD Part Number Keywords

HOM816M150PFTRB ; 12945584 ; 785901974048 ; 78590197404 ; 00785901974048 ; 0785901974048

AD Video Links

https://www.youtube.com/embed/B5LRuRQEvMI

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

150

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plug-On

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

16

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

8

Spec 14 Attribute

Type

Spec 14 Attribute Value

1-Phase Convertible Neutral Rainproof

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120/240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

6 to 1 AWG, 6 to 2/0 AWG, 4 AWG to 250 kcmil

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

HOM

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.75 in W x 4.52 in D x 29.86 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

6r

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

22
