Square D

HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL

Category Plug-In Circuit Breakers

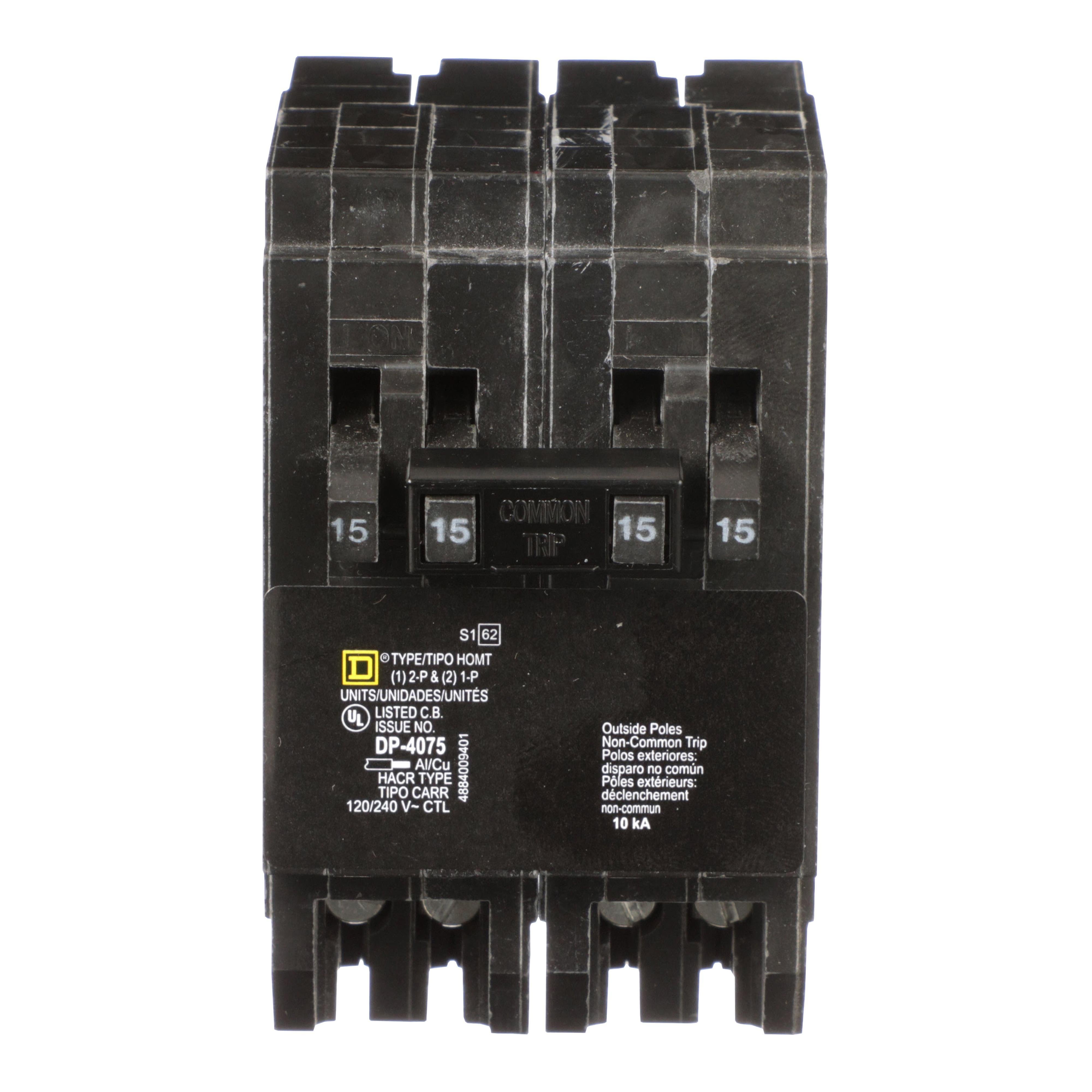

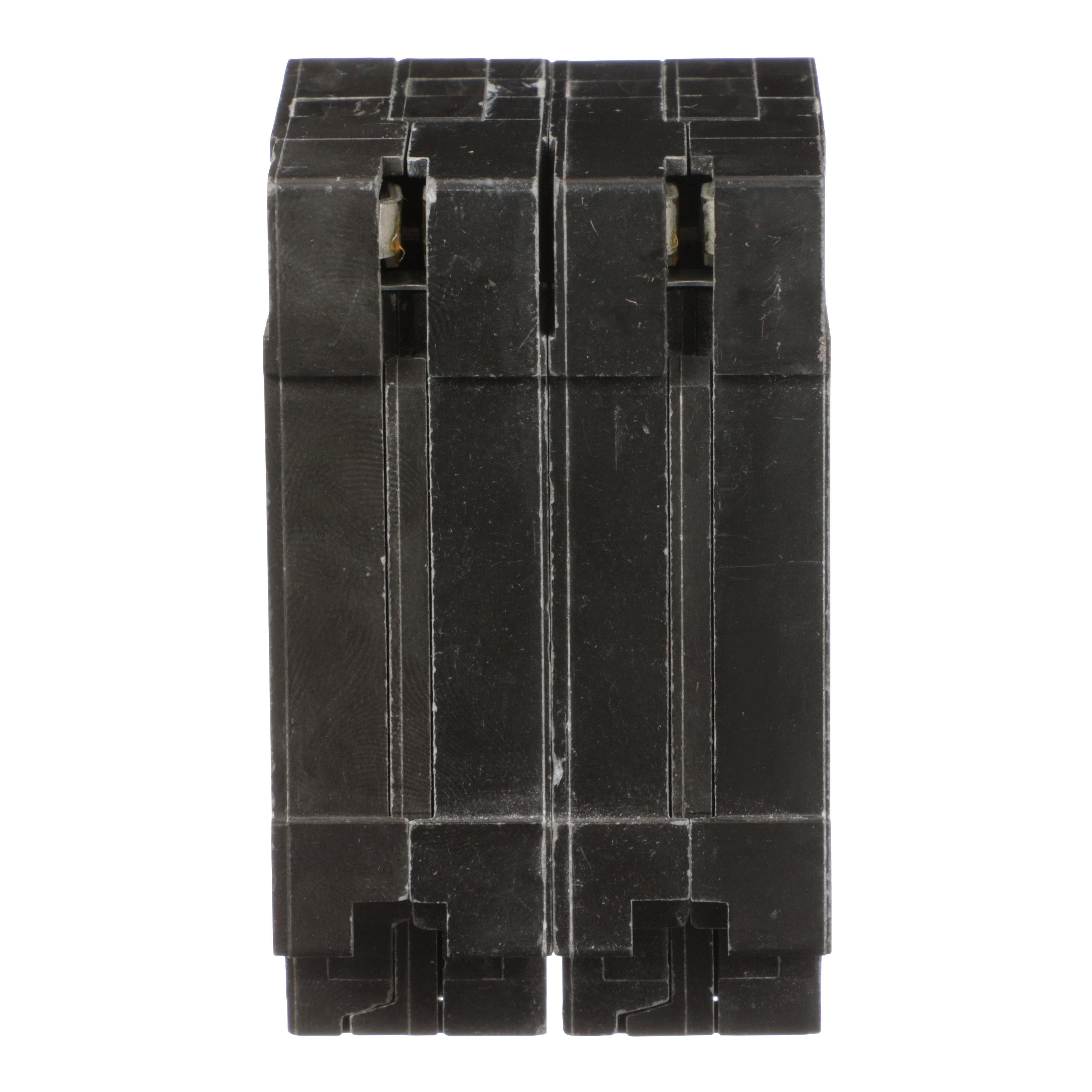

Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL
Square D

HOMT1515215 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 15A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 653354
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT1515215

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 15A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Weight

0.91

Height

2

Width

2.97

Length

3.17

AD All Features

Homeline tandem circuit breakers provide better circuit space utilization and take up less space

AD Application

For providing overload and short circuit protection applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 15A 10KA

AD Item Features 01

Homeline tandem circuit breakers provide better circuit space utilization and take up less space

AD Item Features 02

Easy plug on design with SE Homeline Loadcenters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

3.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

19.2000

AD Package Volume UOM

cu-in

AD Package Weight

0.9100

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

10

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Plug-In

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

2

Spec 7 Attribute

Type

Spec 7 Attribute Value

Type HOM Quad Tandem

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute UOM

AWG

Spec 9 Attribute Value

14 to 8
