Square D

HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Category Plug-In Circuit Breakers

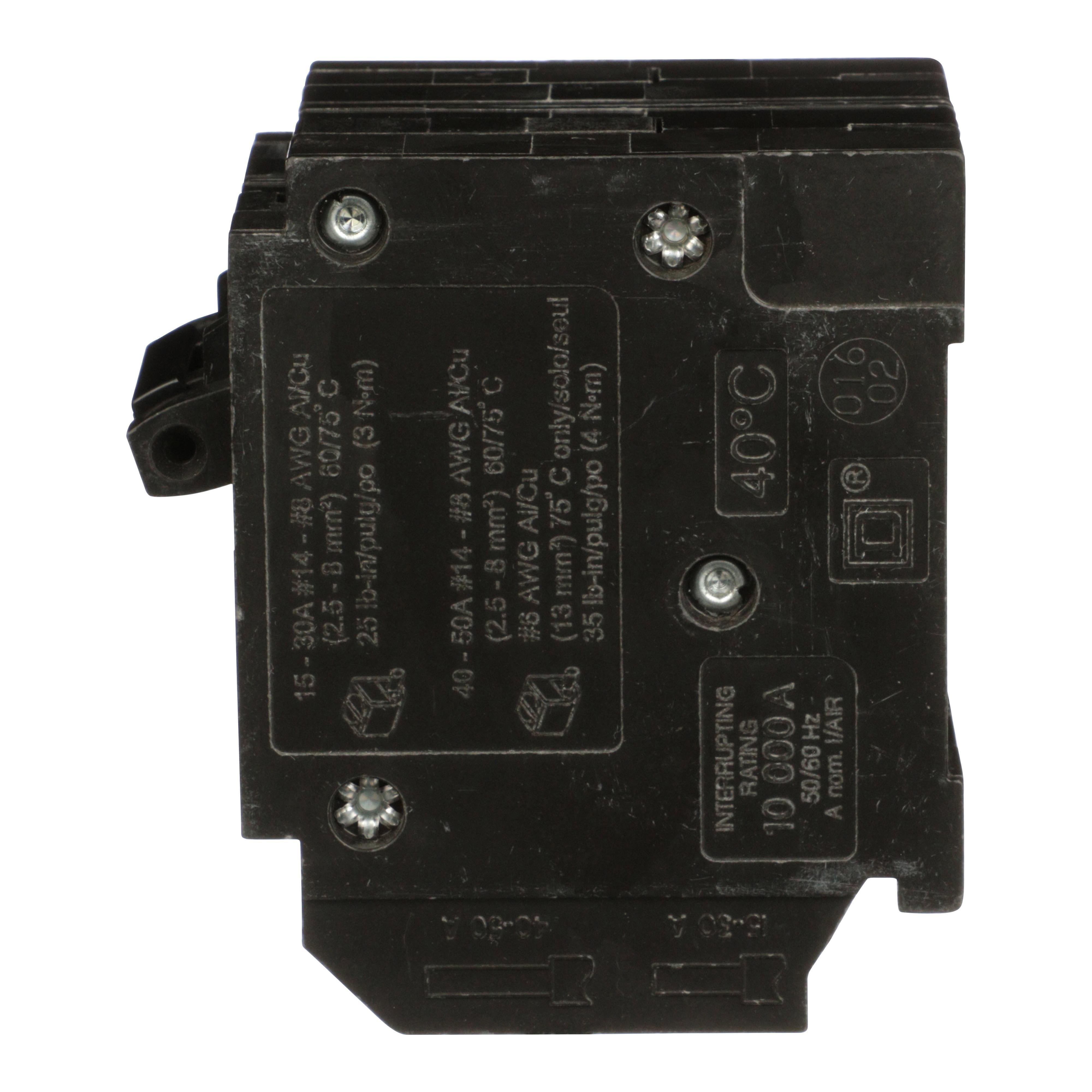

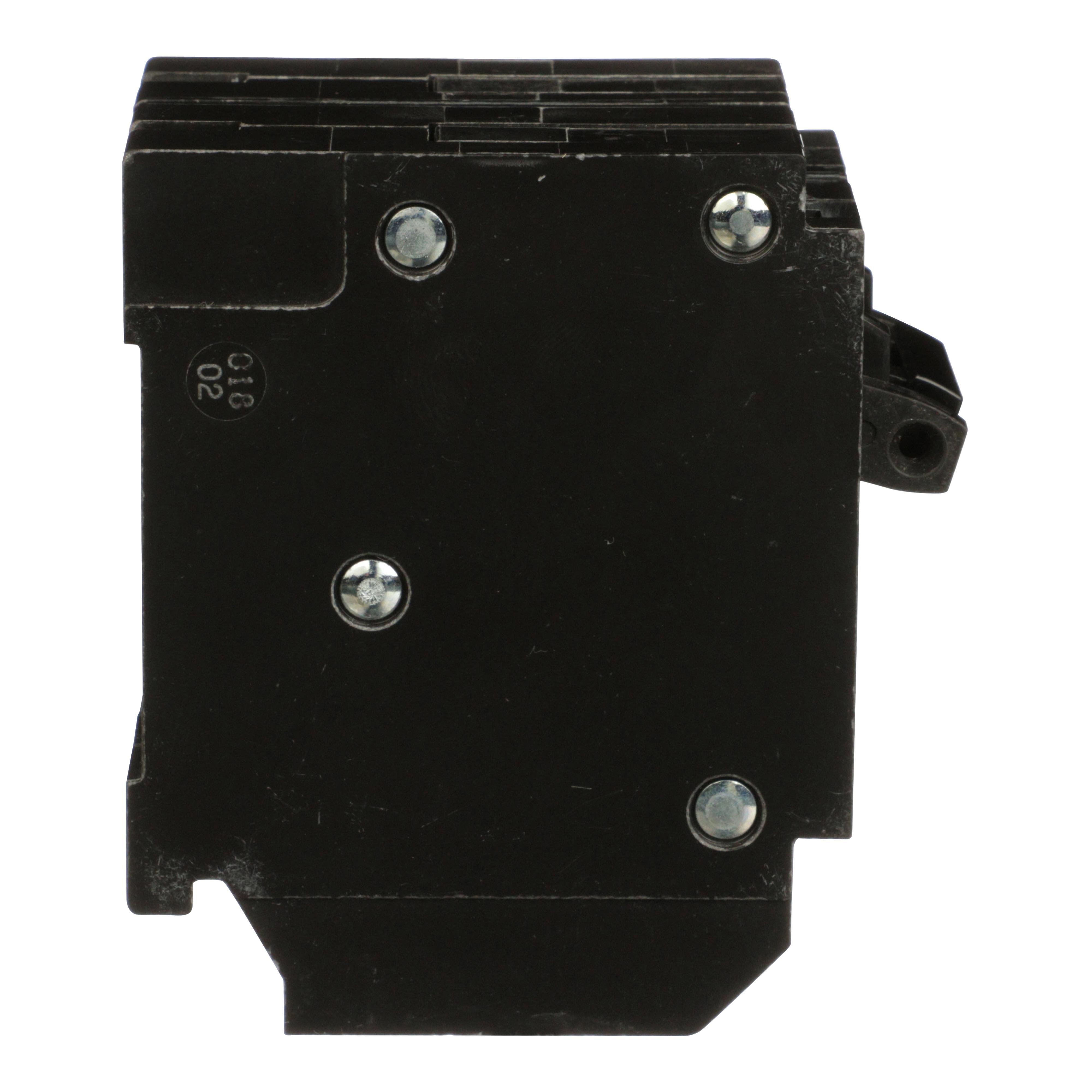

Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Square D

HOMT1515250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 592334
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT1515250

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 50A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Weight

0.85

Width

2.97

Length

3.17

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Application

Residential and Light Commercial, Commercial and Industrial Circuit Protection, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 15 TO 50A

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design with SE Homeline Loadcenters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8500

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15 to 50

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

14 to 6 AWG Cu, 12 to 6 AWG Al, 12 to 8 AWG Al

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.13 in H x 2 in W x 2.98 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2-Jan

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Type

Spec 9 Attribute Value

Type HOM Tandem
