Square D

HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

Category Plug-In Circuit Breakers

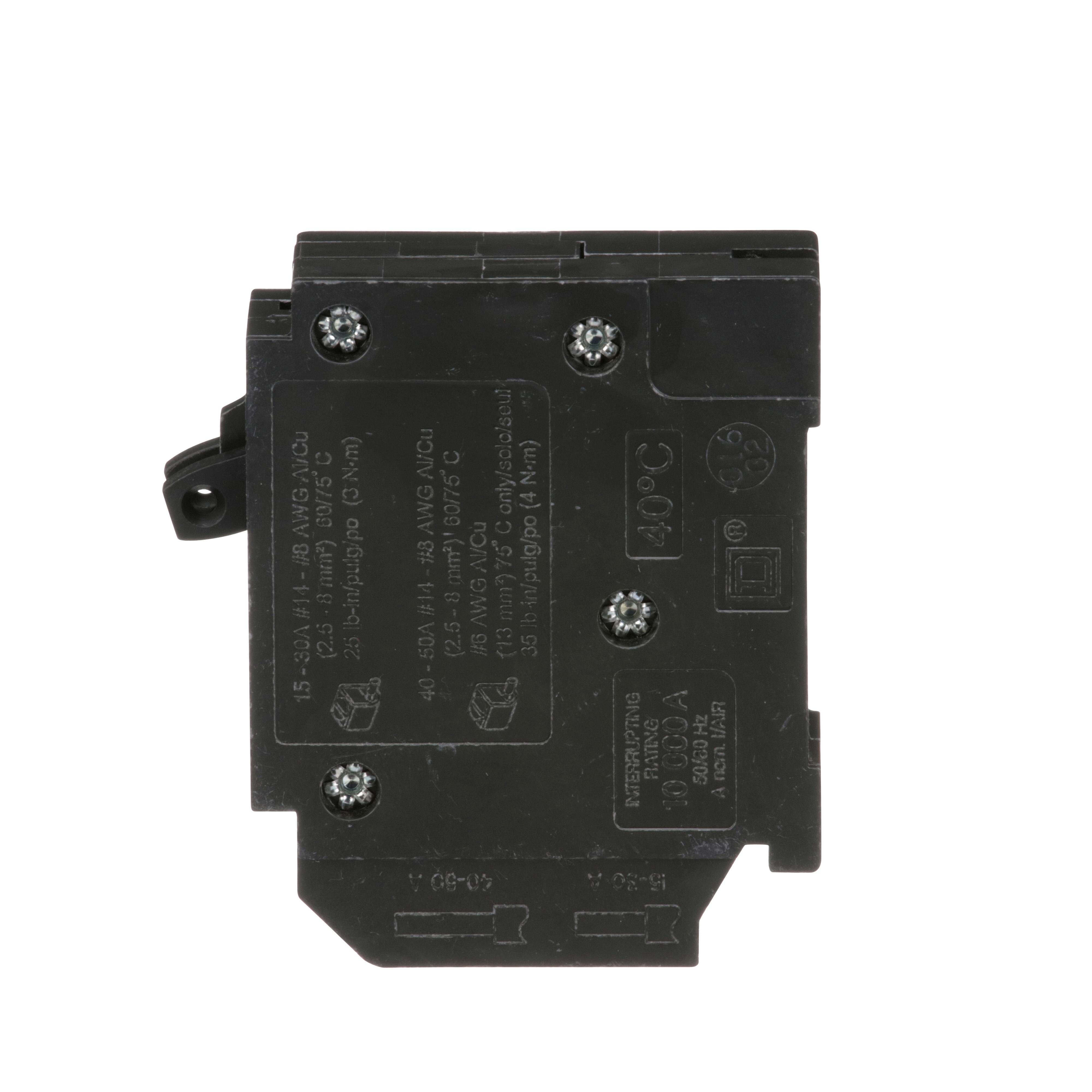

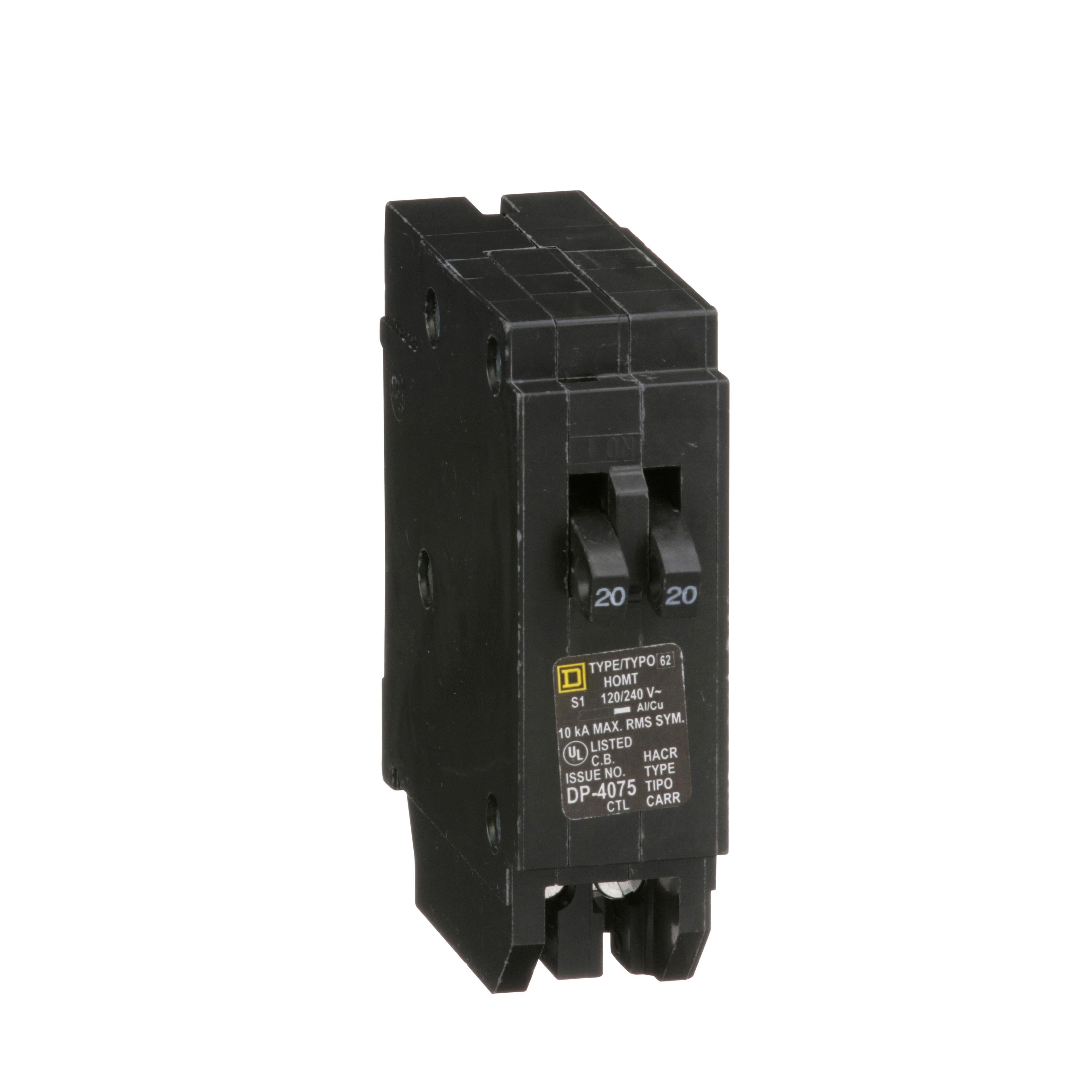

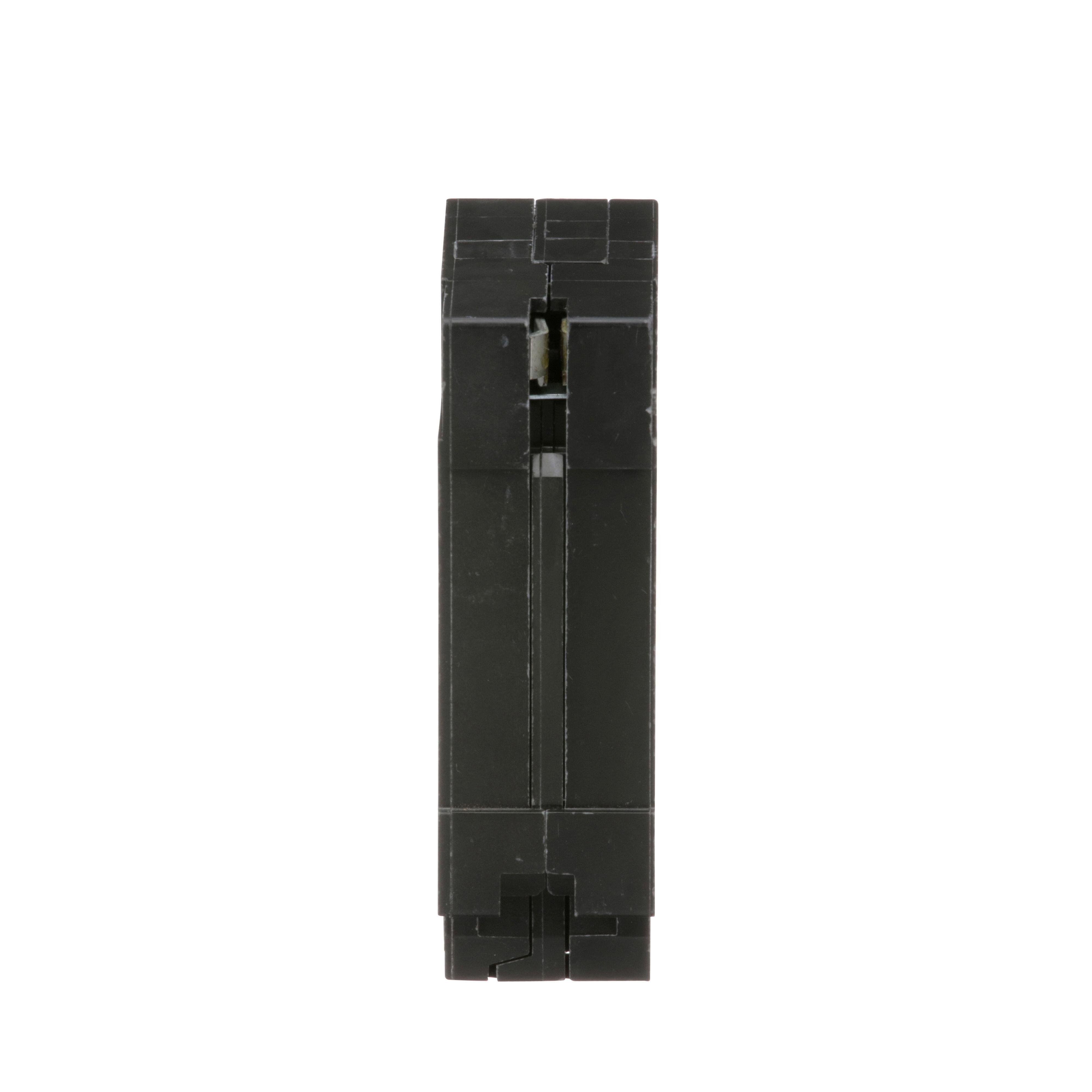

Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
Square D

HOMT2020 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 18206
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT2020

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Purchasing Quantities

EACH

1

BOX

10

Specifications

Weight

0.45lb

Height

3mm

Width

0.99mm

Length

3.27mm

Depth

2.98mm

AD All Features

Easy plug on design reduces installation time and cost

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER MINTR CKT 120/240VAC 20A 10KA

AD Item Features 01

Easy plug on design reduces installation time and cost

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9.9000

AD Package Volume UOM

cu-in

AD Package Weight

0.4500

AD Package Weight UOM

LB

AD Package Width

0.9900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Tandem

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 1 in W x 3.13 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

HOM
