Square D

HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Category Miscellaneous

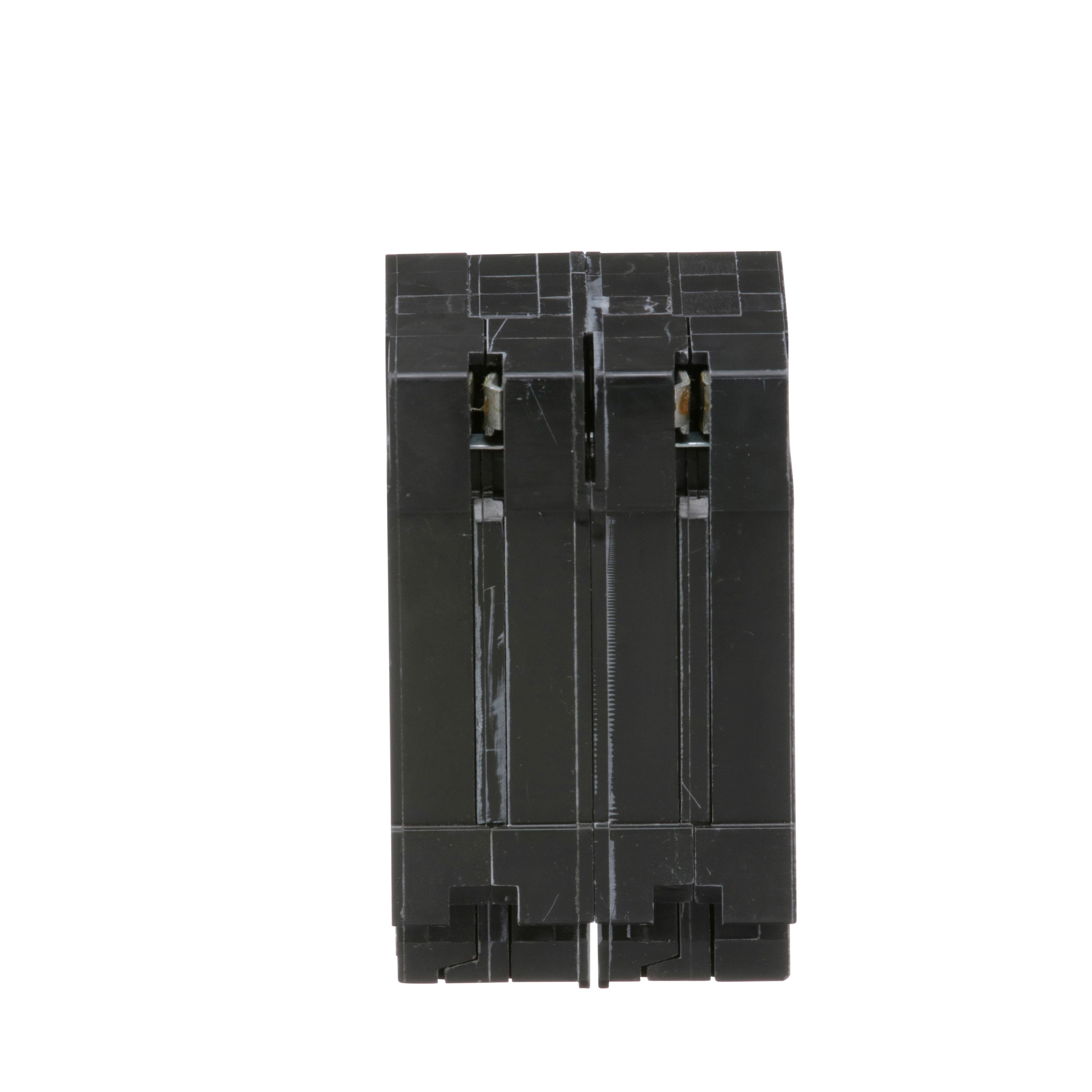

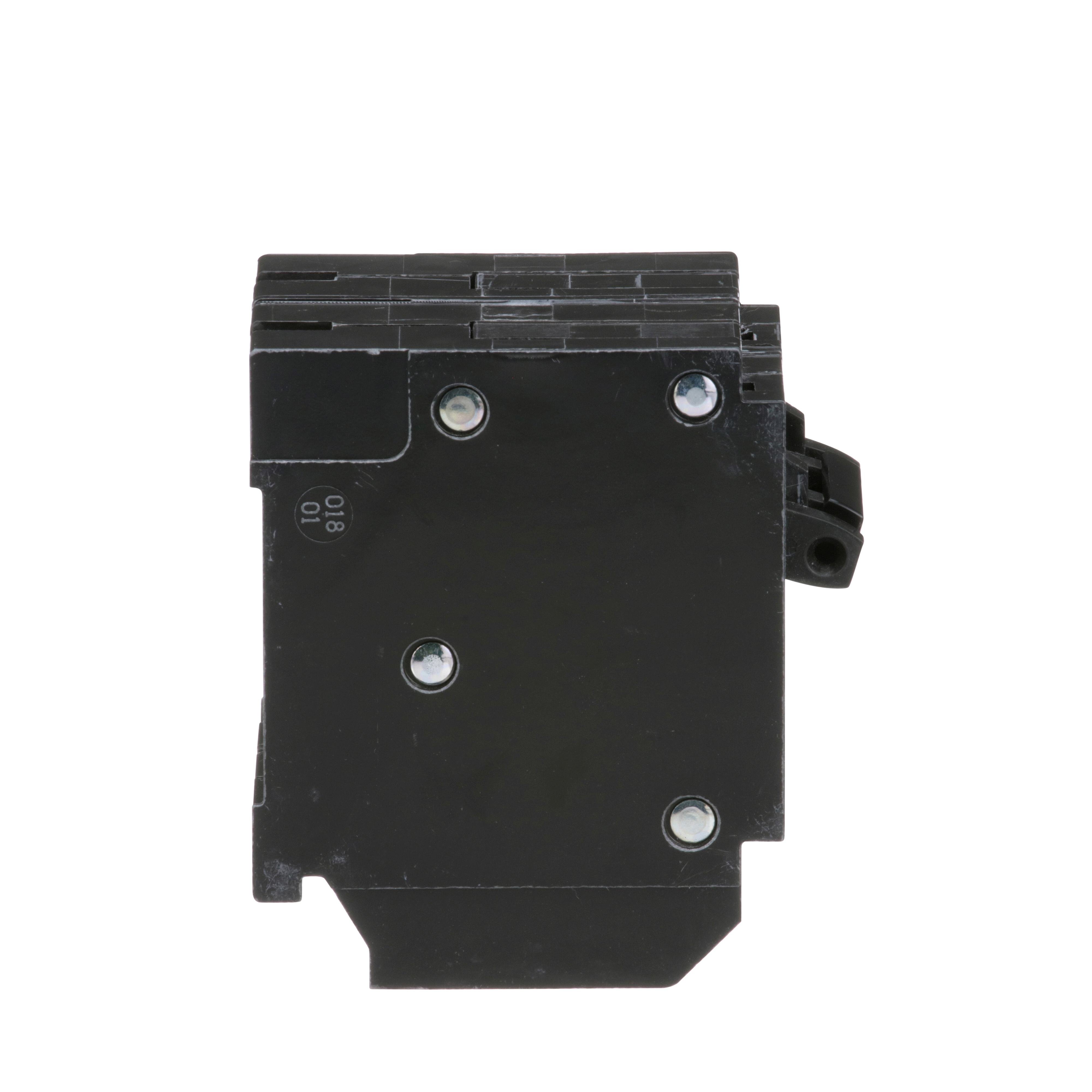

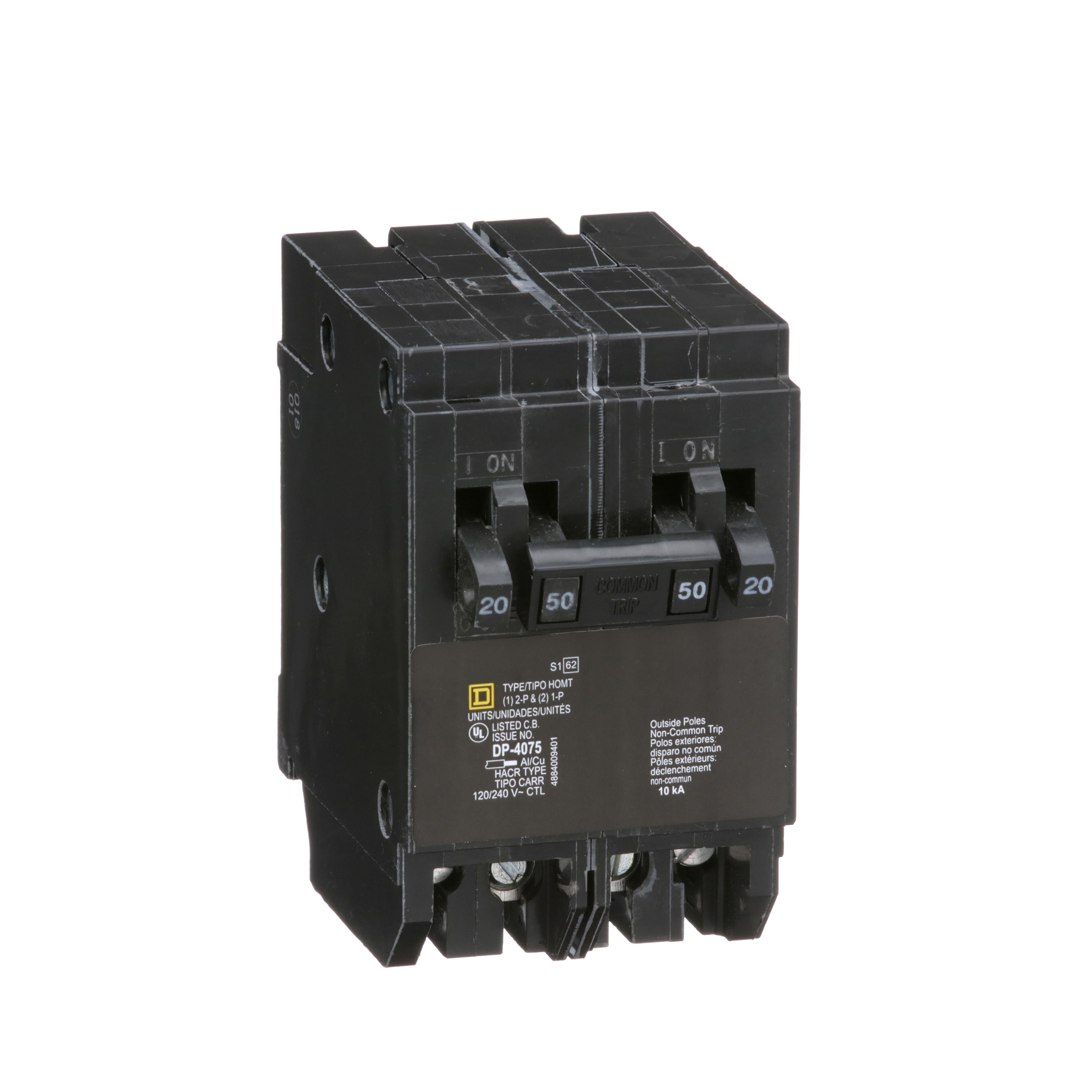

Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Square D

HOMT2020250 - Tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 250940
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT2020250

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 50A at 120/240 VAC and the single pole breakers are rated 20A and 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Weight

0.85

Width

3.07

Length

3.27

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HOMT2020250/HOMT2020250.spin

AD All Features

Easy plug on design with SE Homeline Loadcenters

AD Alternative Part Number

8016077

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901377054

AD Gtin

00785901377054

AD IDEA Index ID

8016077

AD Invoice Description

BREAKER MINTR CKT 120/240VAC 20/50A 10KA

AD Item Features 01

Easy plug on design with SE Homeline Loadcenters

AD Keywords

Homeline HOMT2020250 Quad Tandem Miniature Circuit Breaker, 120/240 V AC, 20/50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; HOMT2020250 ; HOMT2020250 ; 785901377054 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8500

AD Package Weight UOM

LB

AD Package Width

3.0700

AD Package Width UOM

IN

AD Part Number Keywords

HOMT2020250 ; 8016077 ; 785901377054 ; 78590137705 ; 00785901377054 ; 0785901377054

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20/50

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Quad Tandem

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

12 To 6

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Terminal Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

Series

Spec 8 Attribute Value

HOM

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

75
