Square D™

HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Category Miscellaneous

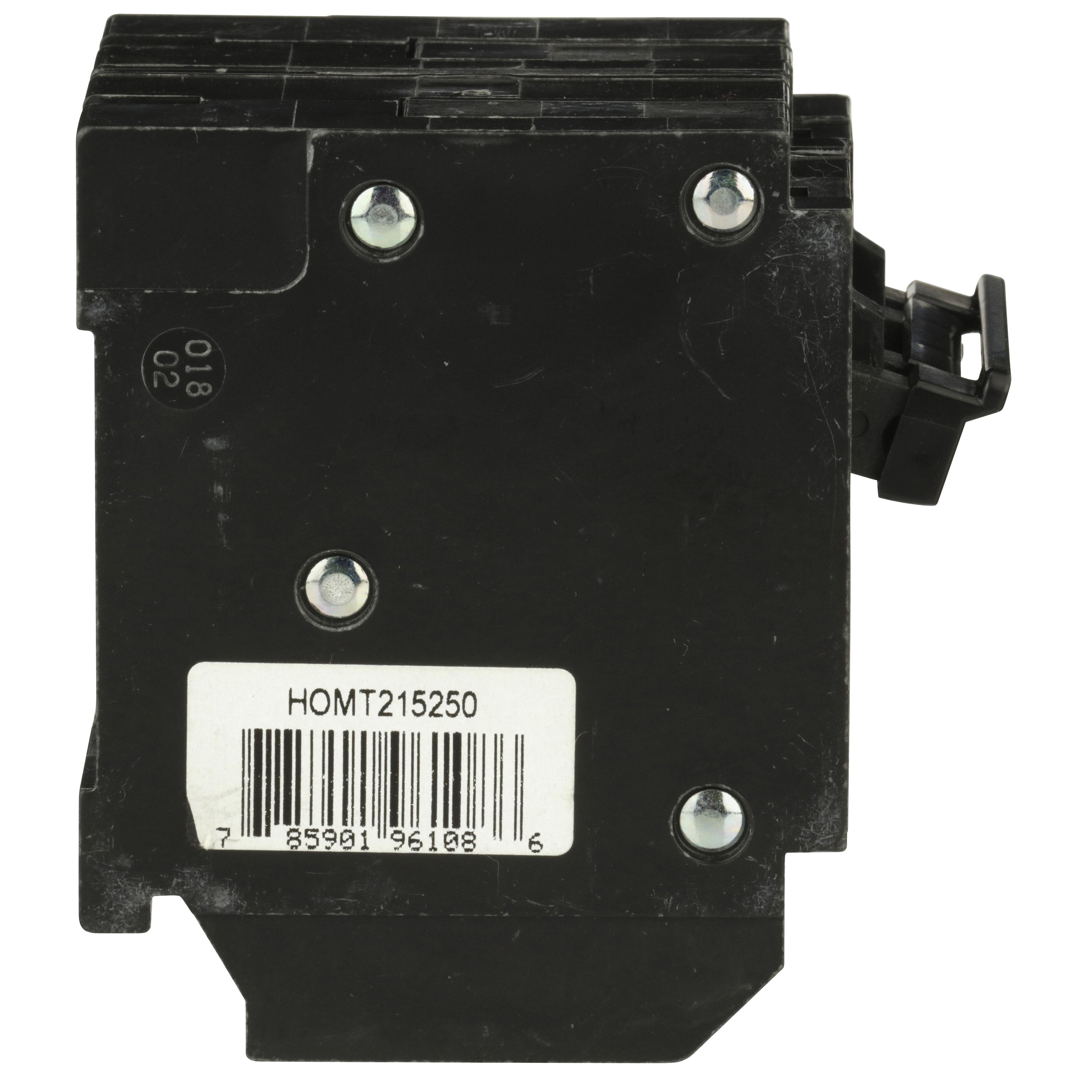

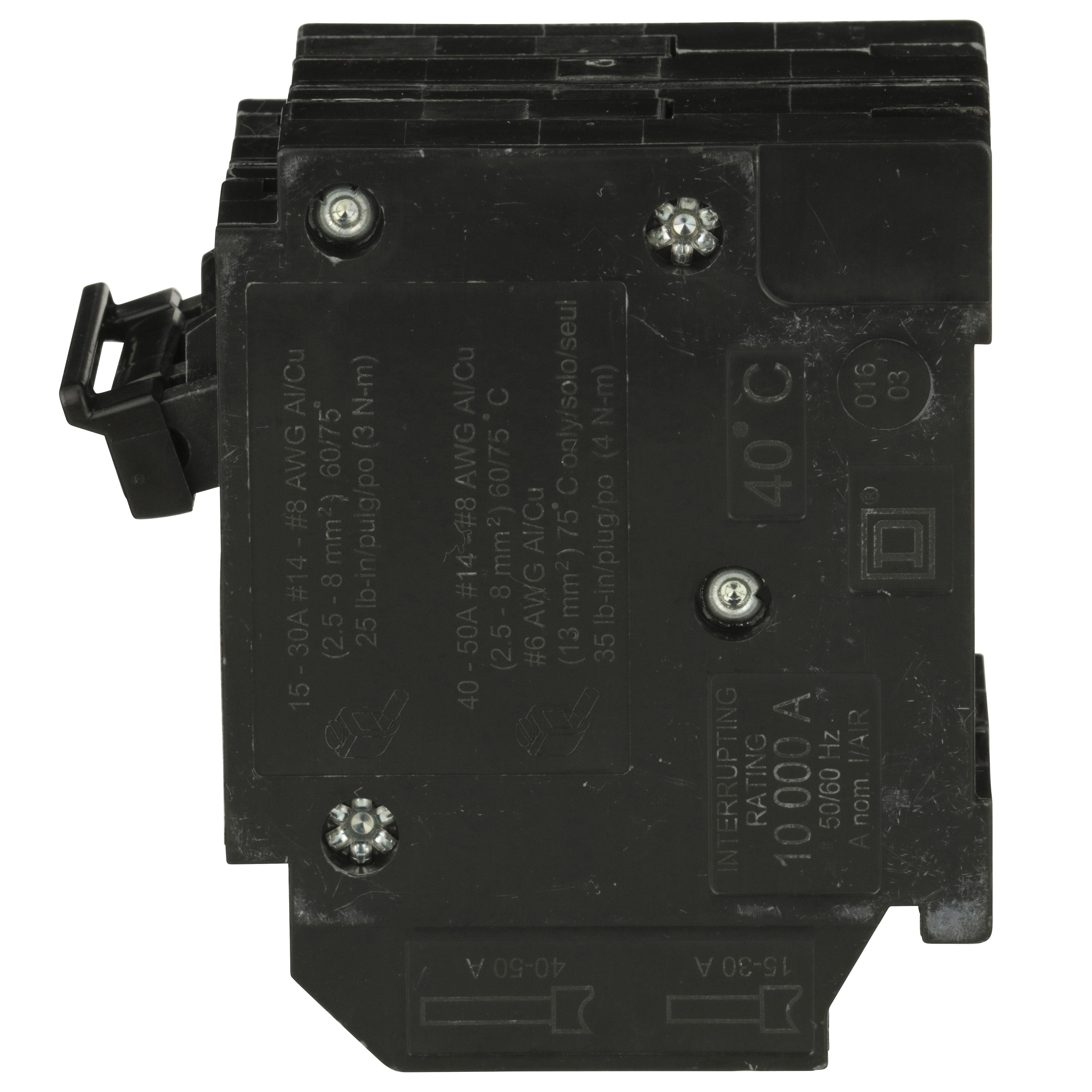

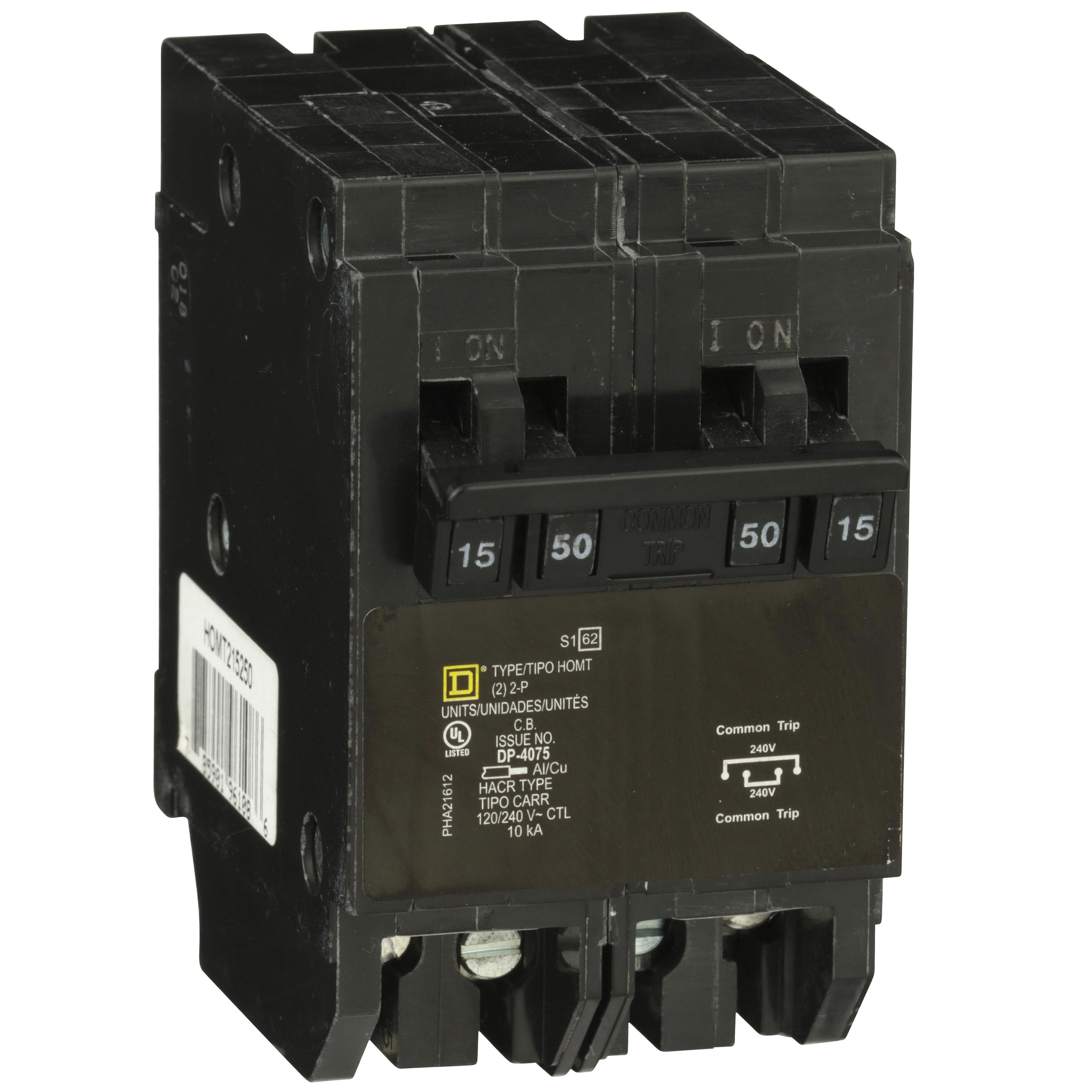

Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Square D™

HOMT215250 - Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 1235559
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT215250

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 15A at 120/240 VAC and other two pole breaker is rated 50A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 15A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 50A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Weight

1

Width

13.87

Length

25.76

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Alternative Part Number

14537253

AD Application

For residential and light commercial circuit protection, single-phase applications, overcurrent protection, short circuit protection, parallel and series arc fault protection and ground fault protection

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901039563

AD Gtin

00785901039563

AD IDEA Index ID

14537253

AD Invoice Description

BREAKER CKT MINI TDM QUAD 120/240VAC 2

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design reduces installation time and cost

AD Keywords

Homeline HOMT215250 Quad Tandem Mini Circuit Breaker, 120/240 V AC, 15/50 A, 10 kA Interrupt, 2 Poles ; Schneider Electric ; Square D ; HOMT215250 ; 785901969693 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

25.7600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0000

AD Package Weight UOM

LB

AD Package Width

13.8700

AD Package Width UOM

IN

AD Part Number Keywords

HOMT215250 ; 14537253 ; 785901969693 ; 78590196969 ; 00785901039563 ; 0785901039563

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15/50

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.97 in W x 3.29 in D x 3.13 in H

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

10

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Plug-In

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

2

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg F

Spec 7 Attribute Value

104

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

(1) 14 to 8 AWG Al/Cu, (1) 14 to 6 AWG Al/Cu
