Square D™

HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL

Category Miscellaneous

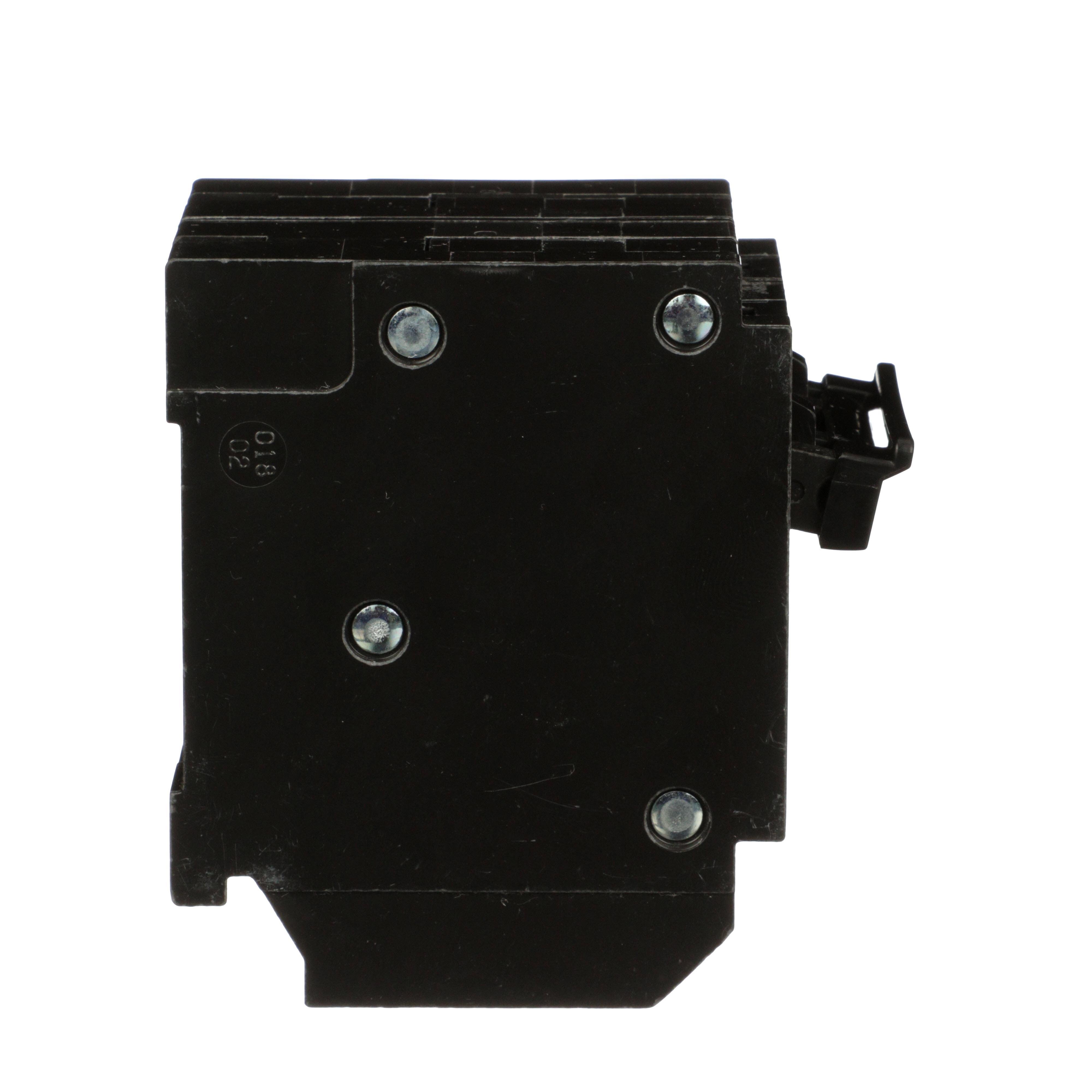

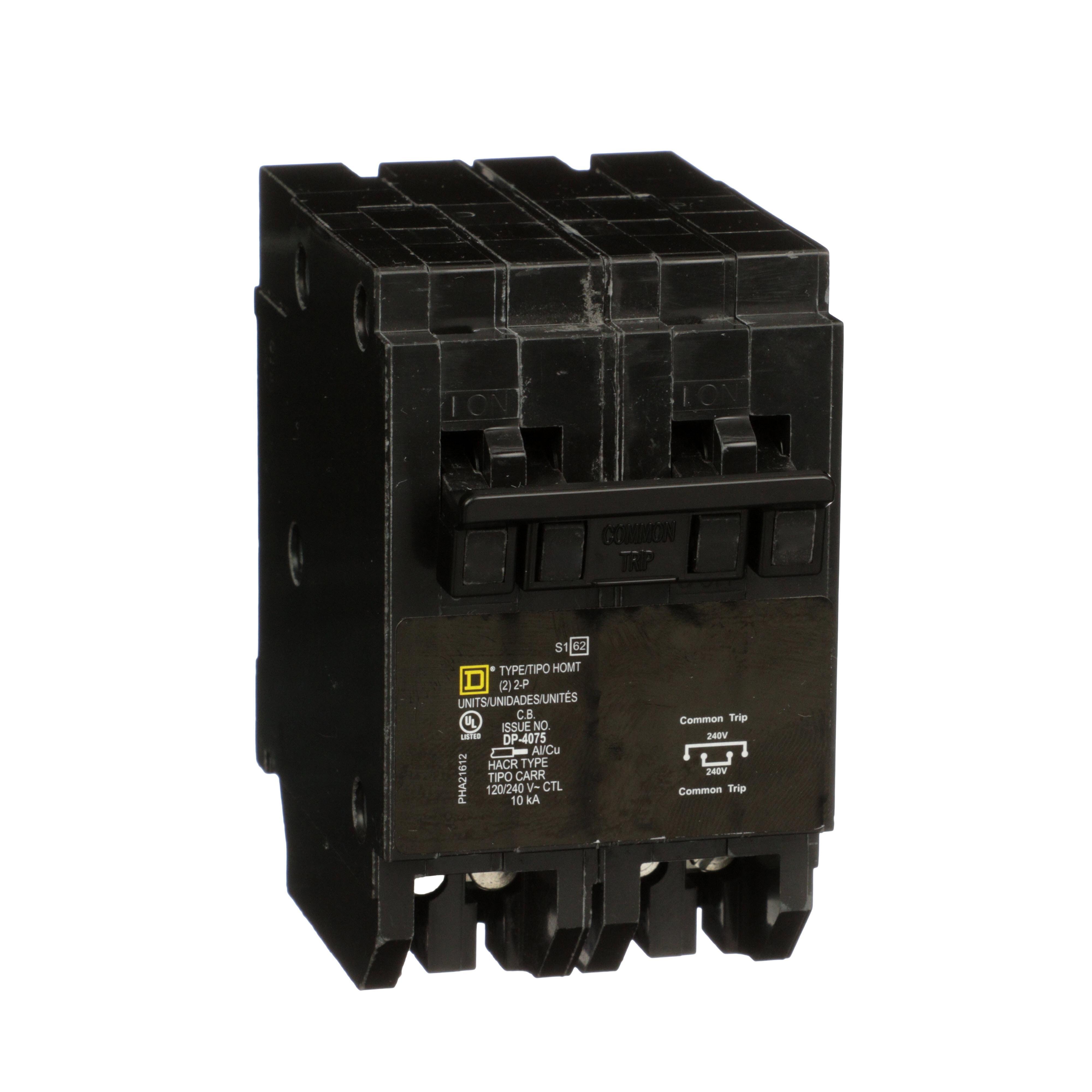

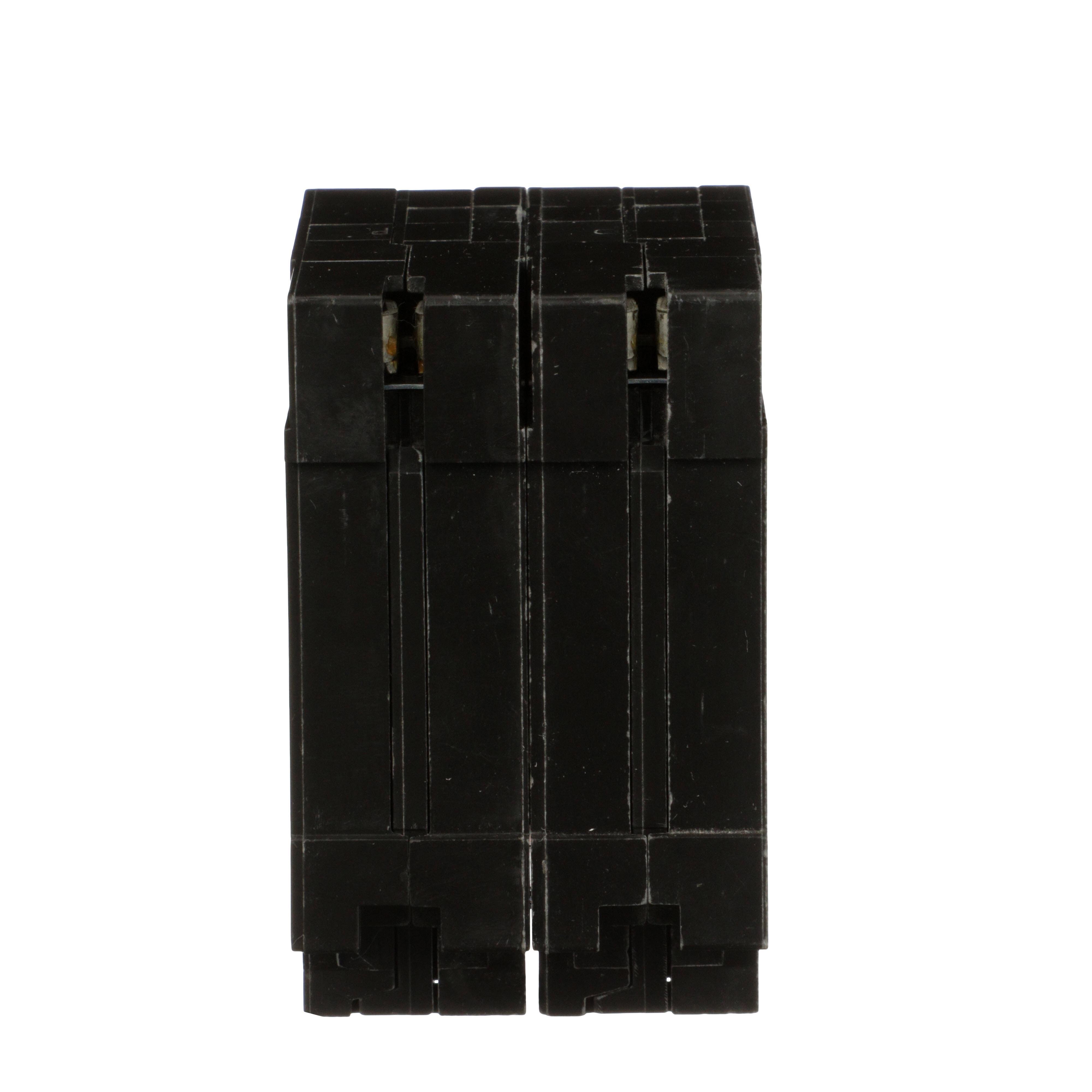

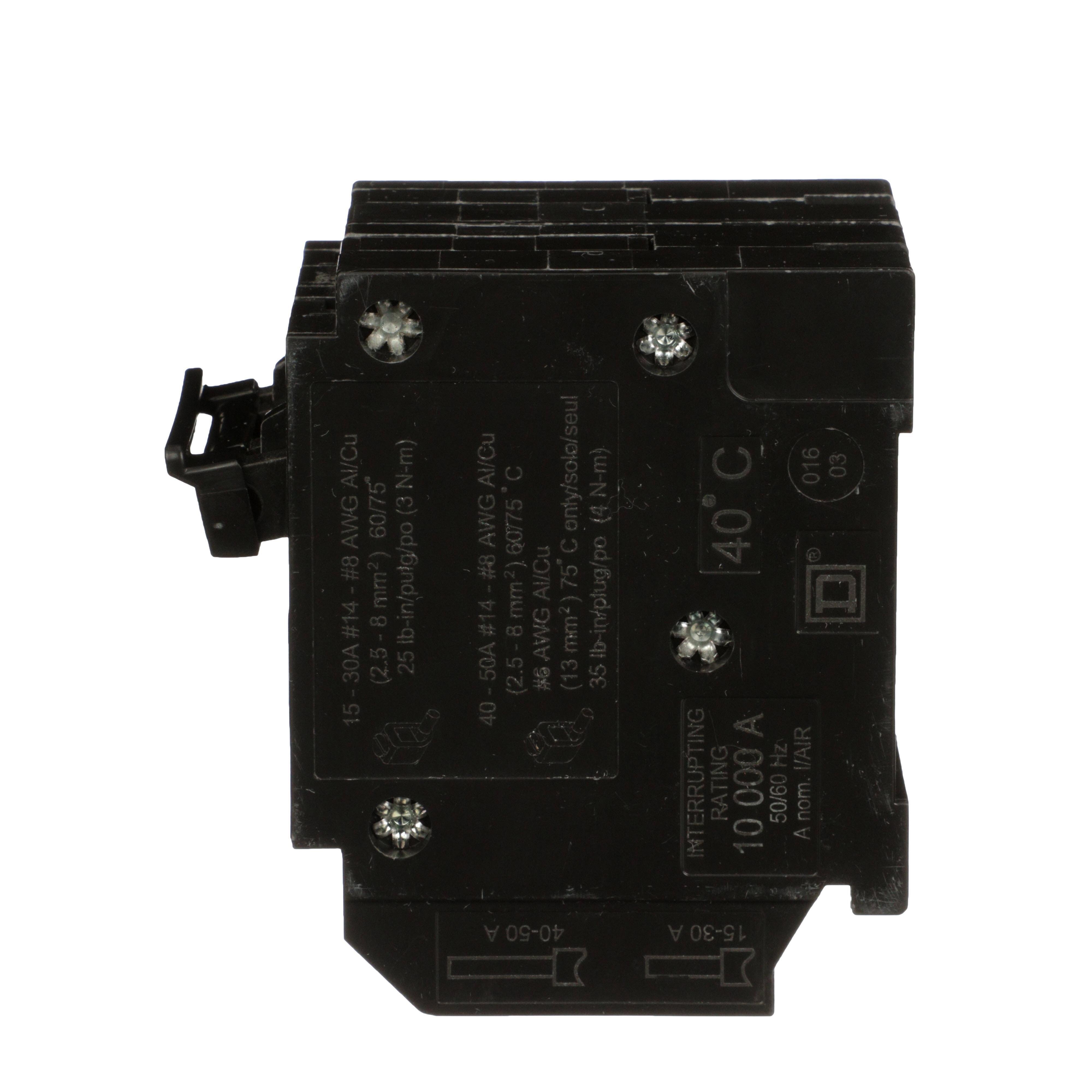

Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL
Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL Picture of HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL
Square D™

HOMT230230 - Quad tandem circuit breaker, Homeline, 2 x 2 pole at 30A, 120/240VAC, 10kA AIR, plug in, UL

Item Code: 1048979
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOMT230230

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 30A at 120/240 VAC and other two pole breaker is rated 30A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Weight

1

Height

3.2

Width

1.95

Length

3.2

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/homt215215/homt215215.spin

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Alternative Part Number

14537245

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901040910

AD Gtin

00785901970453

AD IDEA Index ID

14537245

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 30A 2 1PH

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design reduces installation time and cost

AD Keywords

Homeline HOMT230230 Quad Tandem Miniature Circuit Breaker, 120/240 V AC, 30 A, 2 Poles ; Schneider Electric ; Square D ; HOMT230230 ; HOMT230230 ; 785901970453 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.2000

AD Package Height UOM

IN

AD Package Length

3.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

21.1200

AD Package Volume UOM

cu-in

AD Package Weight

1.0000

AD Package Weight UOM

LB

AD Package Width

1.9500

AD Package Width UOM

IN

AD Part Number Keywords

HOMT230230 ; 14537245 ; 785901970453 ; 78590197045 ; 00785901970453 ; 0785901040910

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Wire Size

Spec 10 Attribute Value

14 to 8 AWG Aluminum/Copper

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1.97 in W x 3.23 in D x 3.13 in H

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Plug-In

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

2

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

1

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

40

Spec 8 Attribute

Type

Spec 8 Attribute Value

Quad Tandem

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

120/240
