Square D

HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R

Category Non-Fusible Heavy Duty Safety Switches

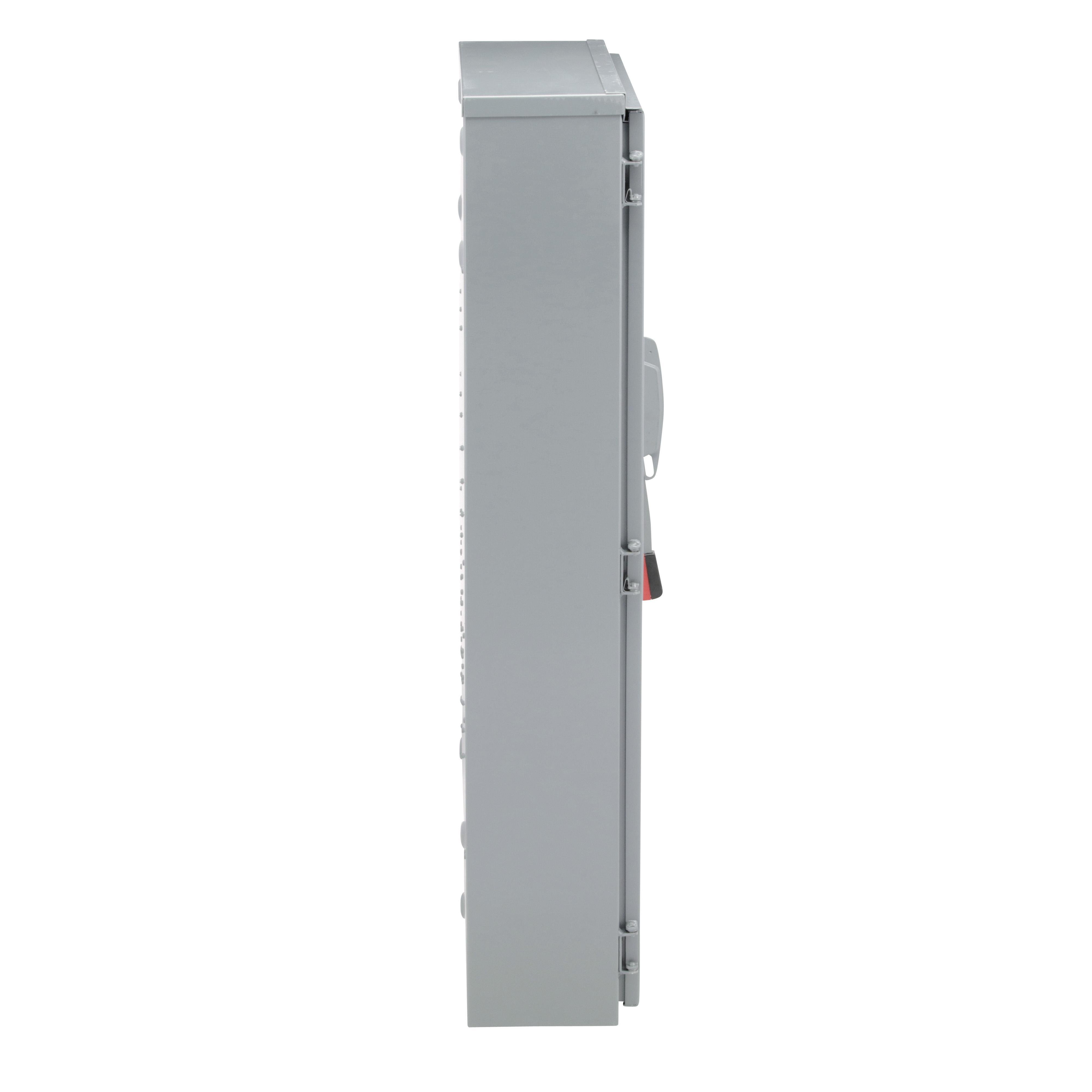

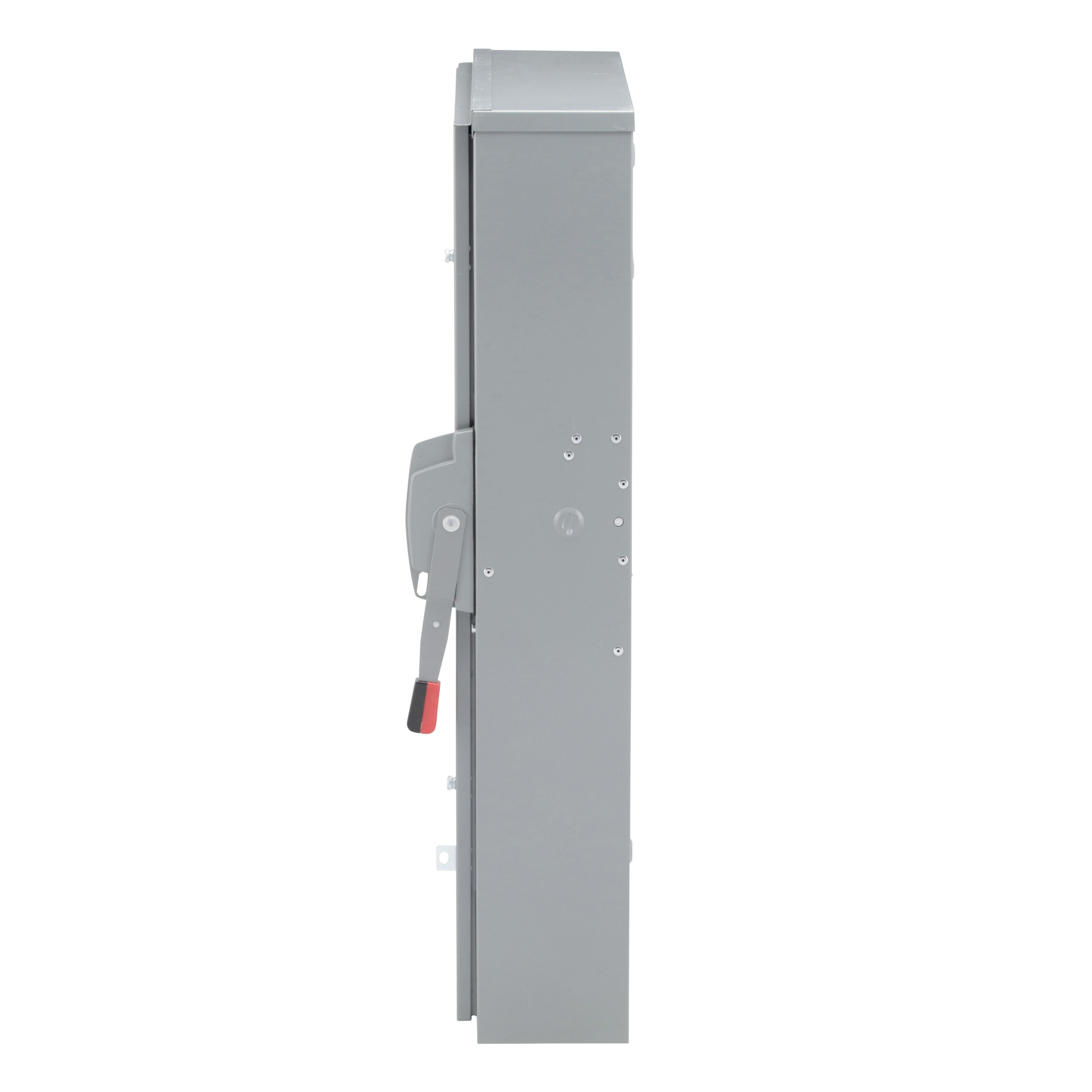

Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R
Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R
Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R Picture of HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R
Square D

HU365R - Safety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350hp, 600VAC/DC, NEMA 3R

Item Code: 18219
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HU365R

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Specifications

Weight

186.61lb

Height

14mm

Width

28.47mm

Length

50.7mm

Depth

10.13mm

AD Application

Commercial, Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF 600VAC/VDC 400A 350HP ST 3

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Quick make, quick break operating mechanism

AD Item Features 03

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 04

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

14.0000

AD Package Height UOM

IN

AD Package Length

50.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

186.6100

AD Package Weight UOM

LB

AD Package Width

28.4700

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

200

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Lug

Spec 12 Attribute

Type

Spec 12 Attribute Value

Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC/DC

Spec 13 Attribute Value

600

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3PST

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

27.6 in W x 9.53 in D x 50.31 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Hot dipped galvanized

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

350

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
