Square D

HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1

Category Non-Fusible Heavy Duty Safety Switches

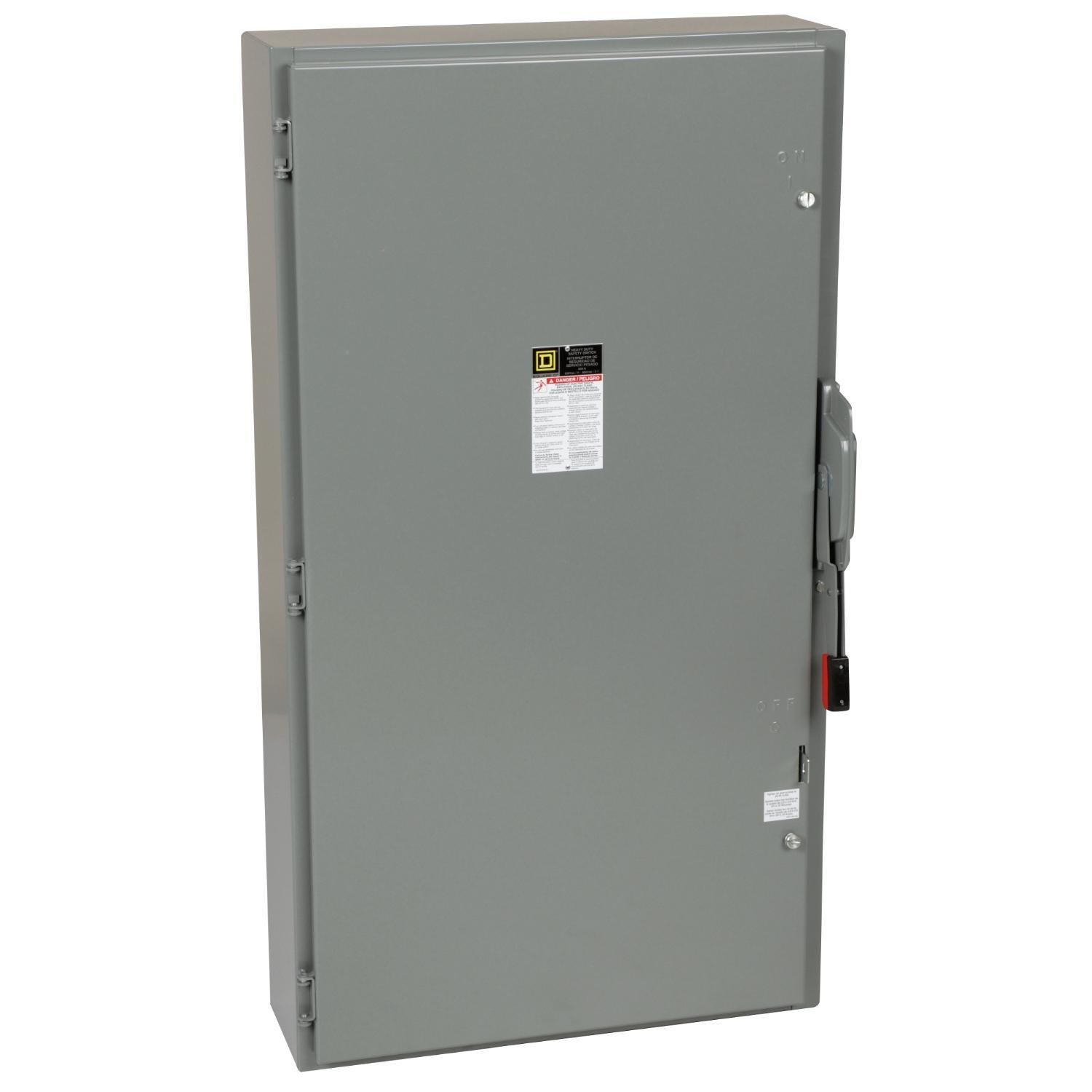

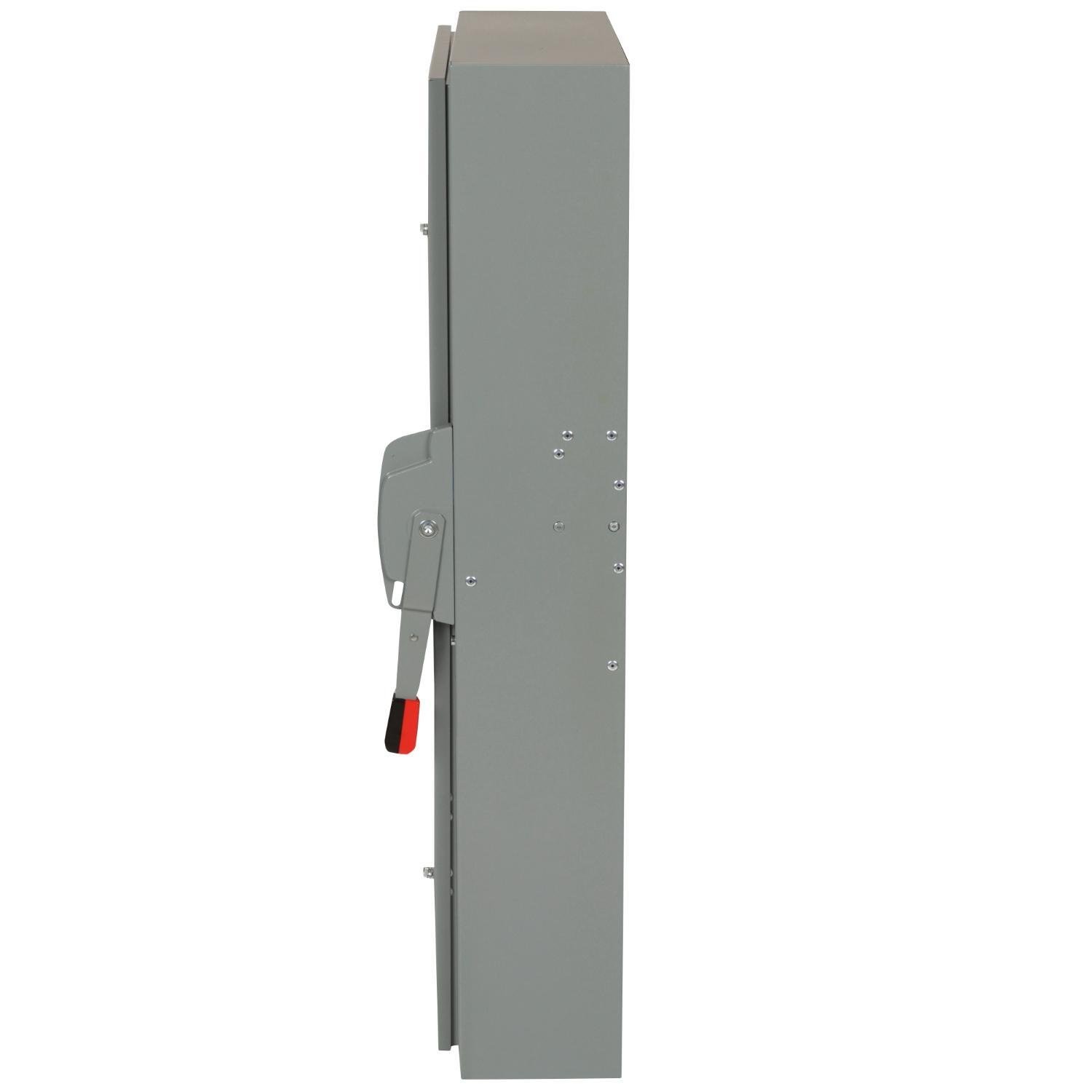

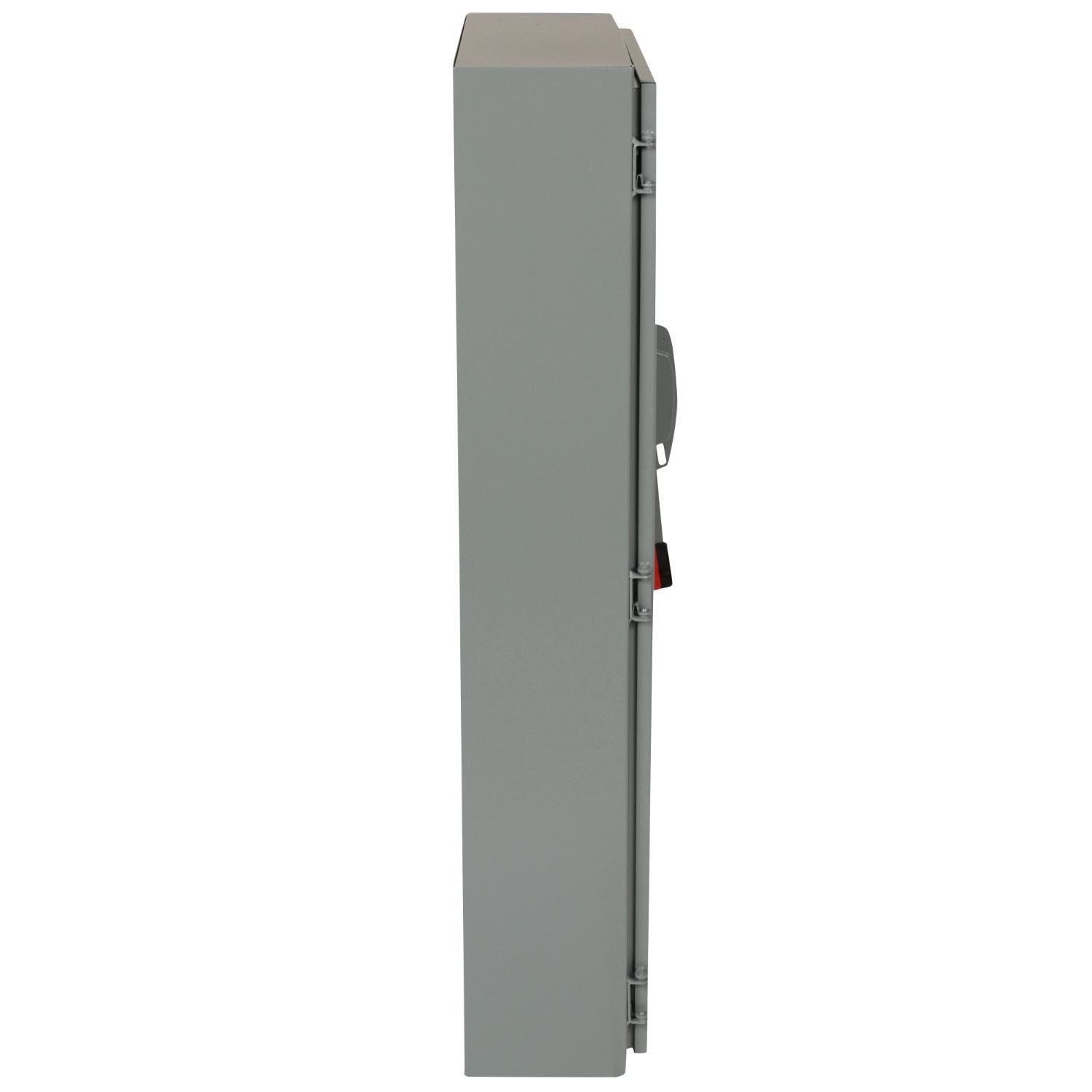

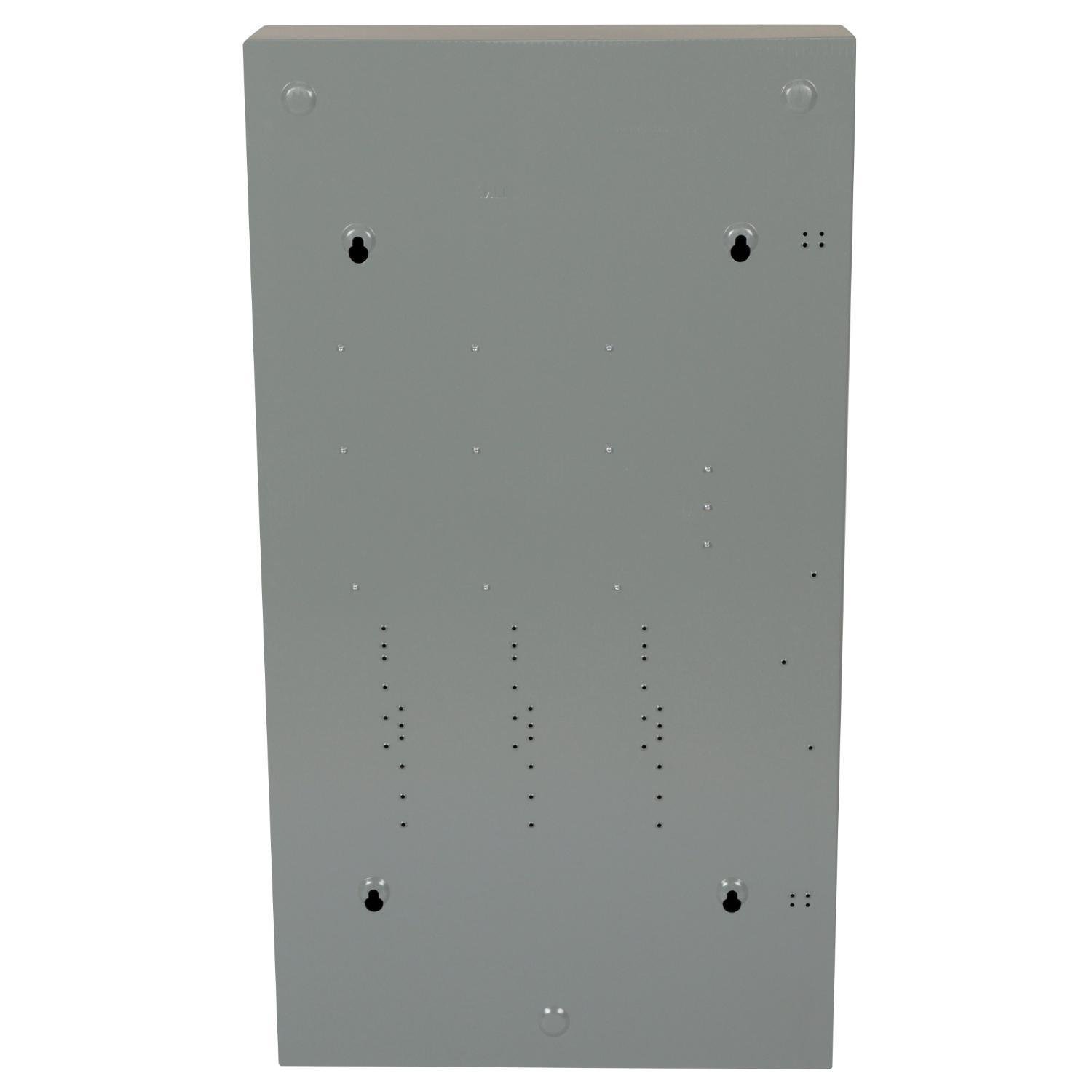

Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1 Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1
Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1 Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1
Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1 Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1
Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1 Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1
Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1 Picture of HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1
Square D

HU366 - Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 1

Item Code: 663447
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HU366

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 600A and has a NEMA 1 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a steel enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 500 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 50.25 in (H), 27.63 in (W), 10.13 in (D).

Specifications

Weight

174.63lb

Height

51.9mm

Width

28.04mm

Length

14.16mm

Depth

10.13mm

AD Application

Commercial, Industrial, Indoor and General Purpose Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 600A TPST

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Quick make, quick break operating mechanism

AD Item Features 03

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 04

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

51.9000

AD Package Height UOM

IN

AD Package Length

14.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

21003.4000

AD Package Volume UOM

cu-in

AD Package Weight

174.6300

AD Package Weight UOM

LB

AD Package Width

28.0400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/eDpOzHTM8qw

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

1/2/2003

Spec 14 Attribute

Series

Spec 14 Attribute Value

E4

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Non-fusible

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute UOM

V AC/DC

Spec 19 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3PST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

27.63 in W x 10.13 in D x 50.25 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

500 hp, 50 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Cold Rolled Steel
