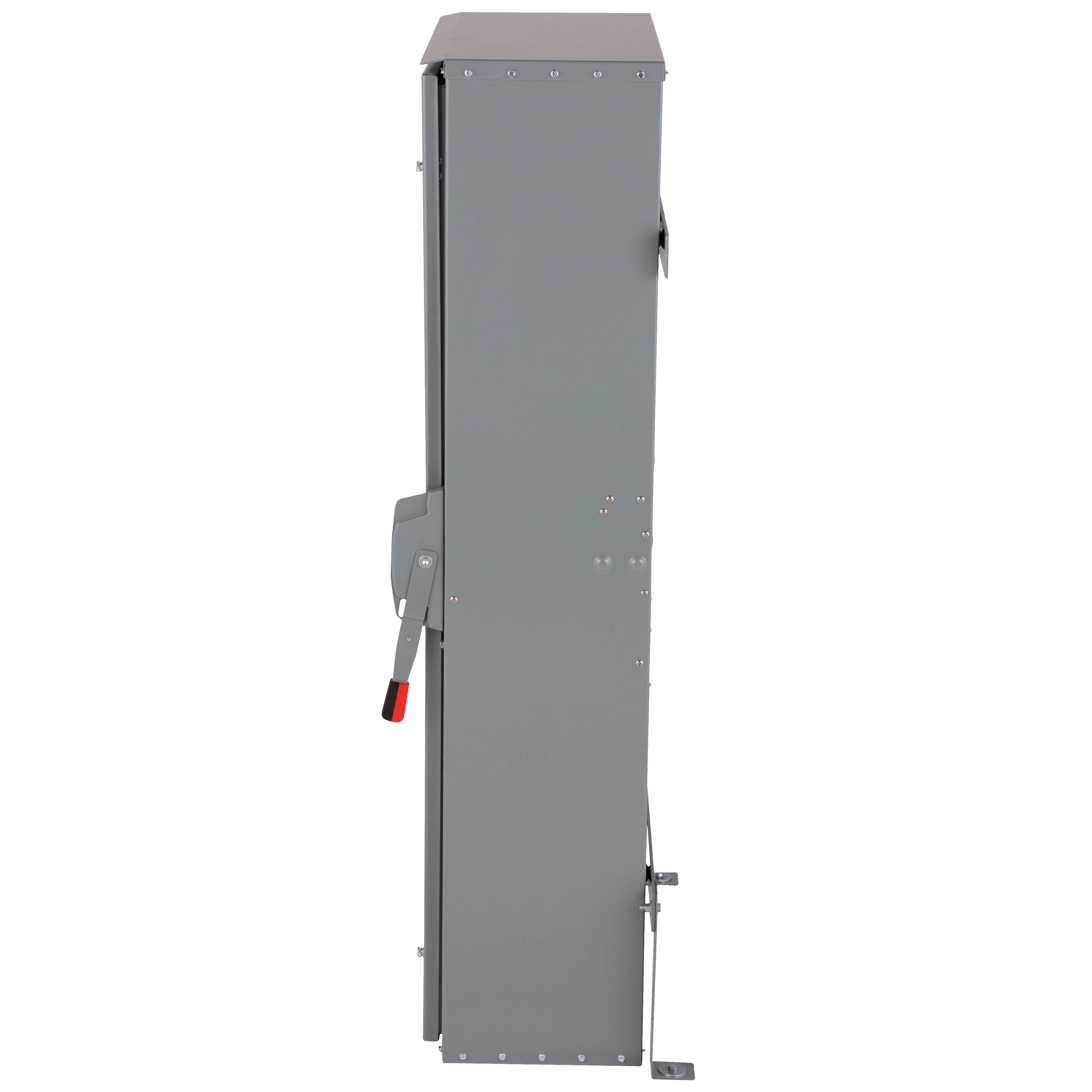

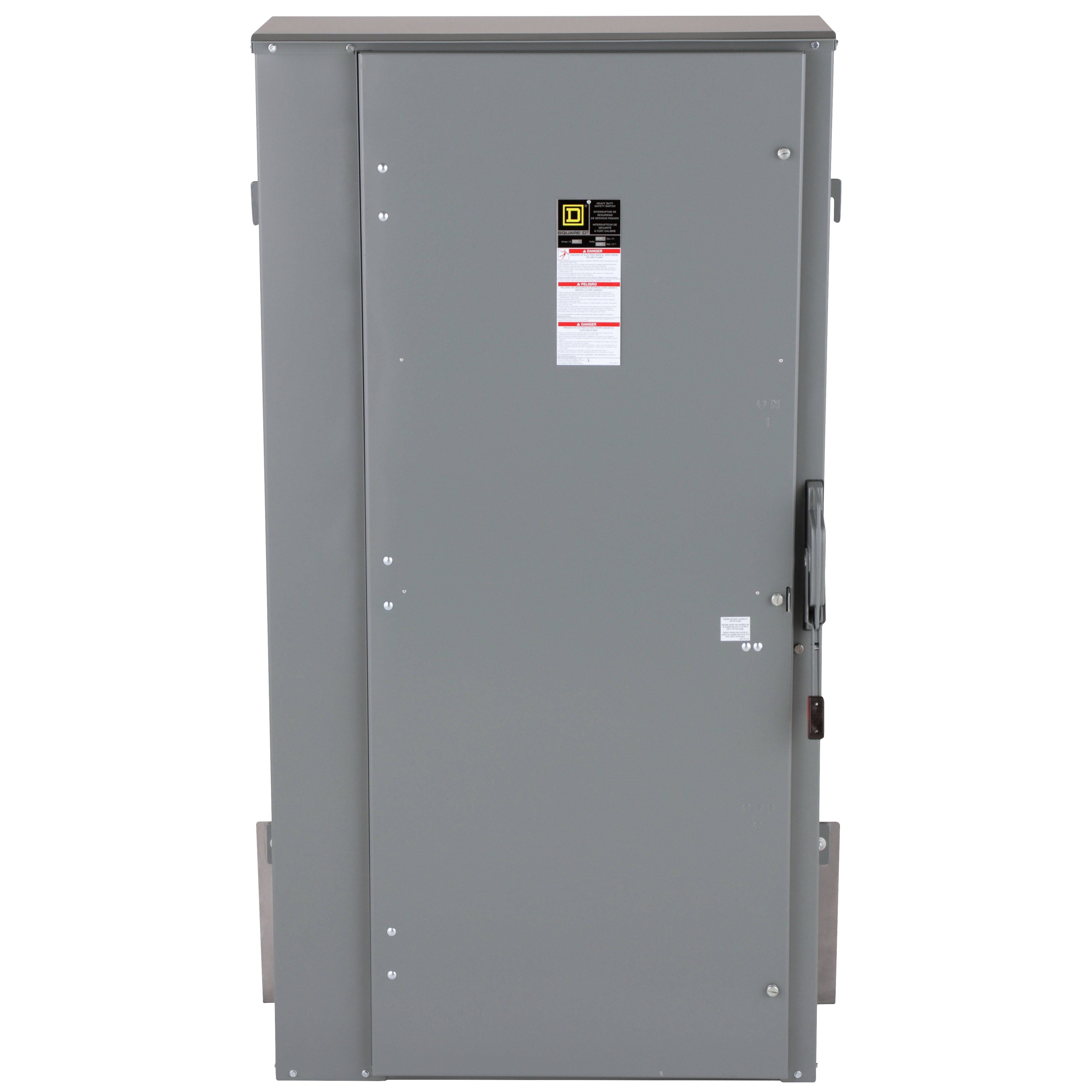

Picture of HU367AWK - Safety switch, heavy duty, non fusible, 700A, 3 pole, 500HP, 600V AC/DC, NEMA 12

Square D™

HU367AWK - Safety switch, heavy duty, non fusible, 700A, 3 pole, 500HP, 600V AC/DC, NEMA 12

Item Code: 1011405

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref HU367AWK

Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 800A and has a NEMA 3R/12 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).

Specifications

Weight

379.2

Width

36.28

Length

68.48

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HU367AWK/HU367AWK.spin

AD Alternative Part Number

8008220

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901078067

AD Gtin

00785901078067

AD IDEA Index ID

8008220

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 800A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

All feature a quick-make, quick-break operating mechanism, a dual cover interlock

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

68.4800

AD Package Length UOM

AD Package Quantity

AD Package Weight

379.2000

AD Package Weight UOM

AD Package Width

36.2800

AD Package Width UOM

AD Part Number Keywords

HU367AWK ; 8008220 ; 785901078067 ; 78590107806 ; 00785901078067 ; 0785901078067

AD Video Links

https://www.youtube.com/embed/50y6BJxDvsg

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle/Single Throw

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

Spec 13 Attribute

Series

Spec 13 Attribute Value

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

Spec 14 Attribute Value

200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC/DC

Spec 18 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

800

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R/12

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed/Painted

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

500 hp at 600 VAC, 50 hp at 600 VDC

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
