Square D

HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R

Category Non-Fusible Heavy Duty Safety Switches

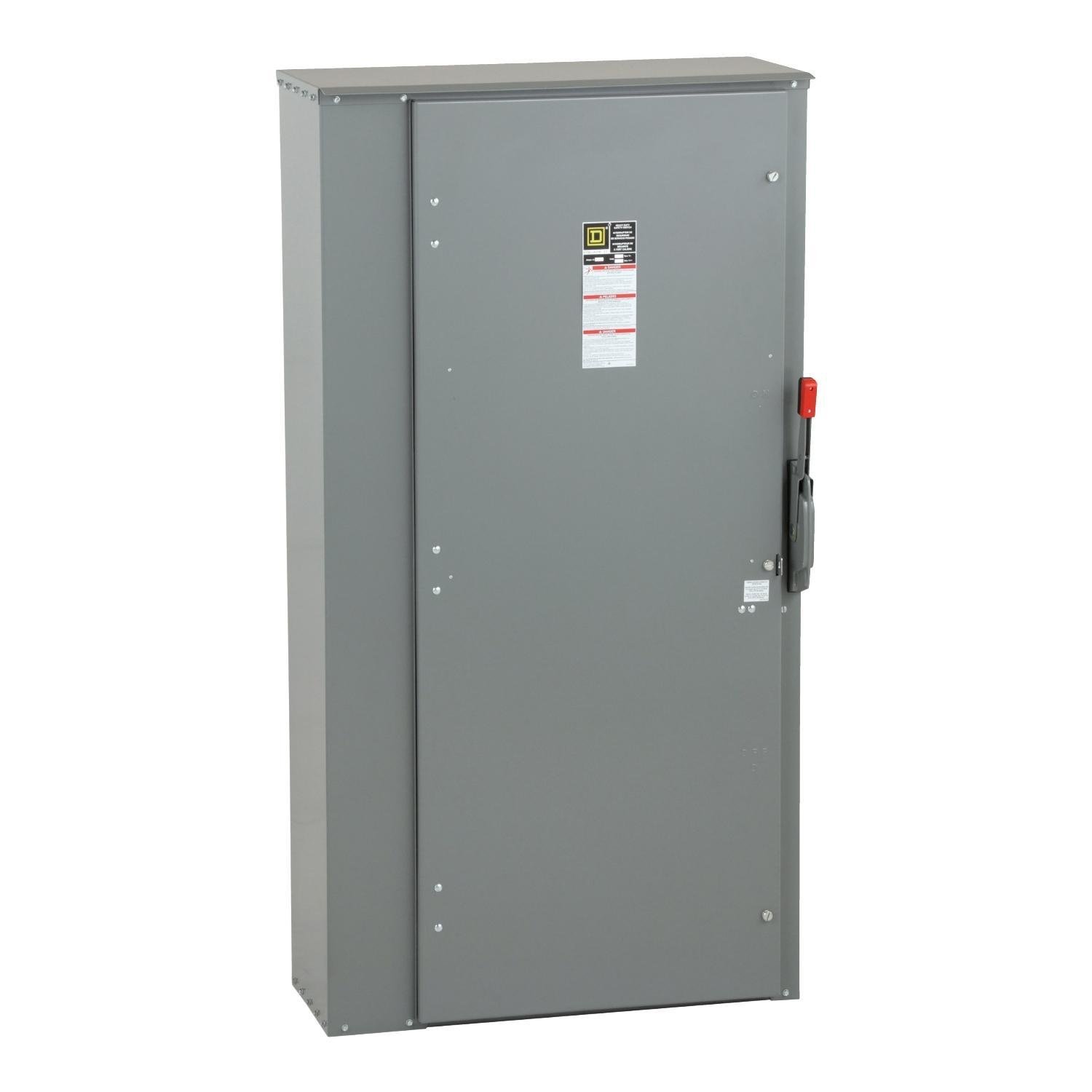

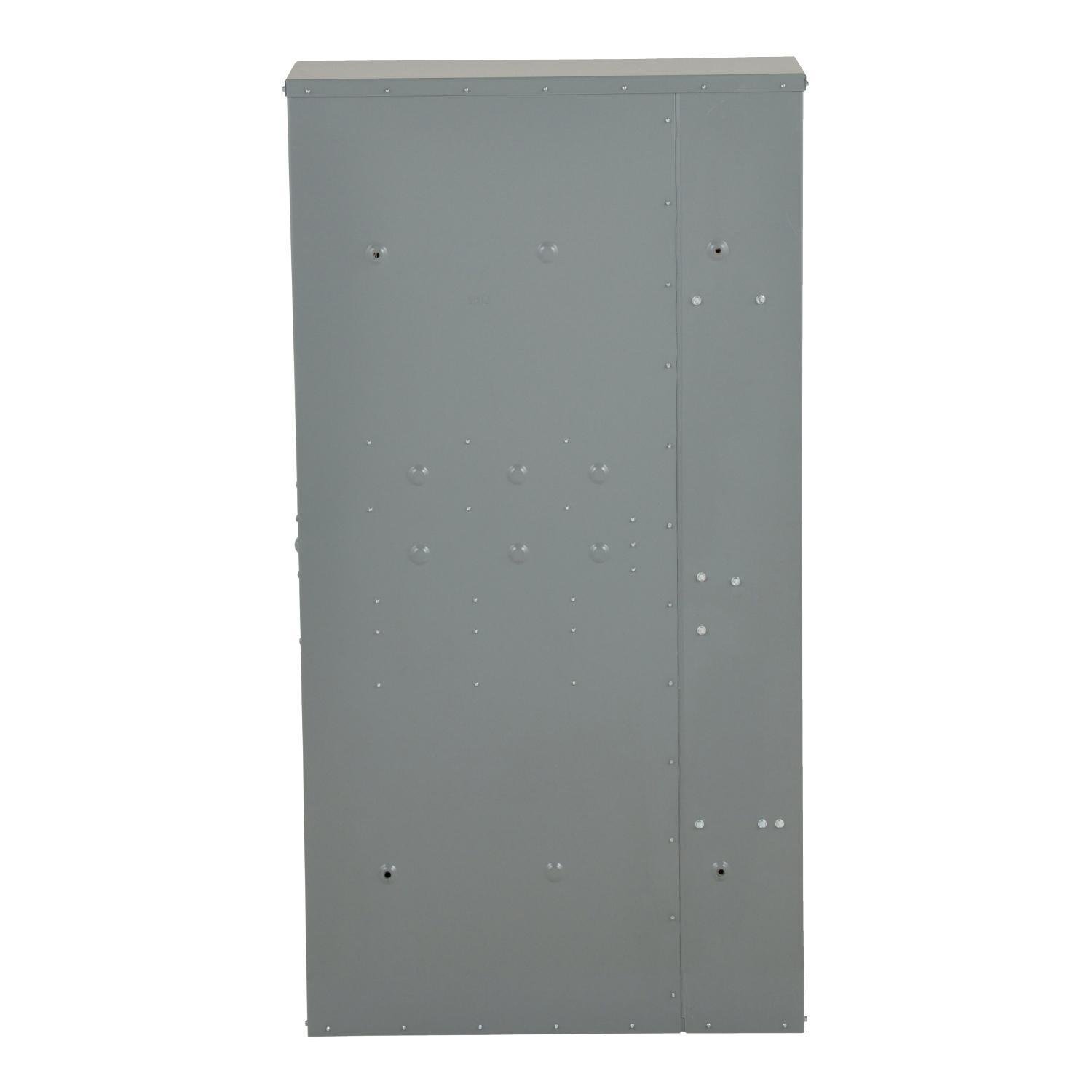

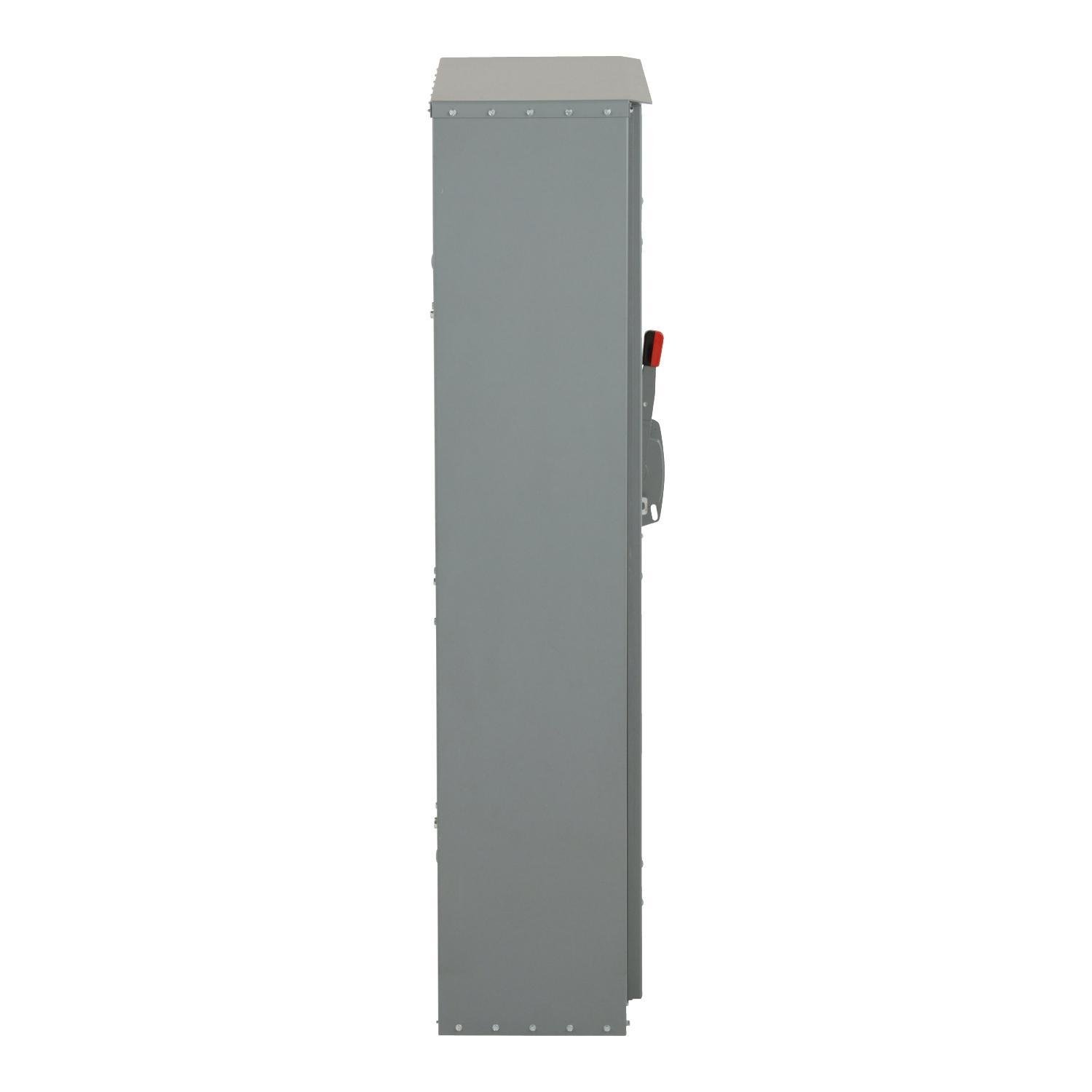

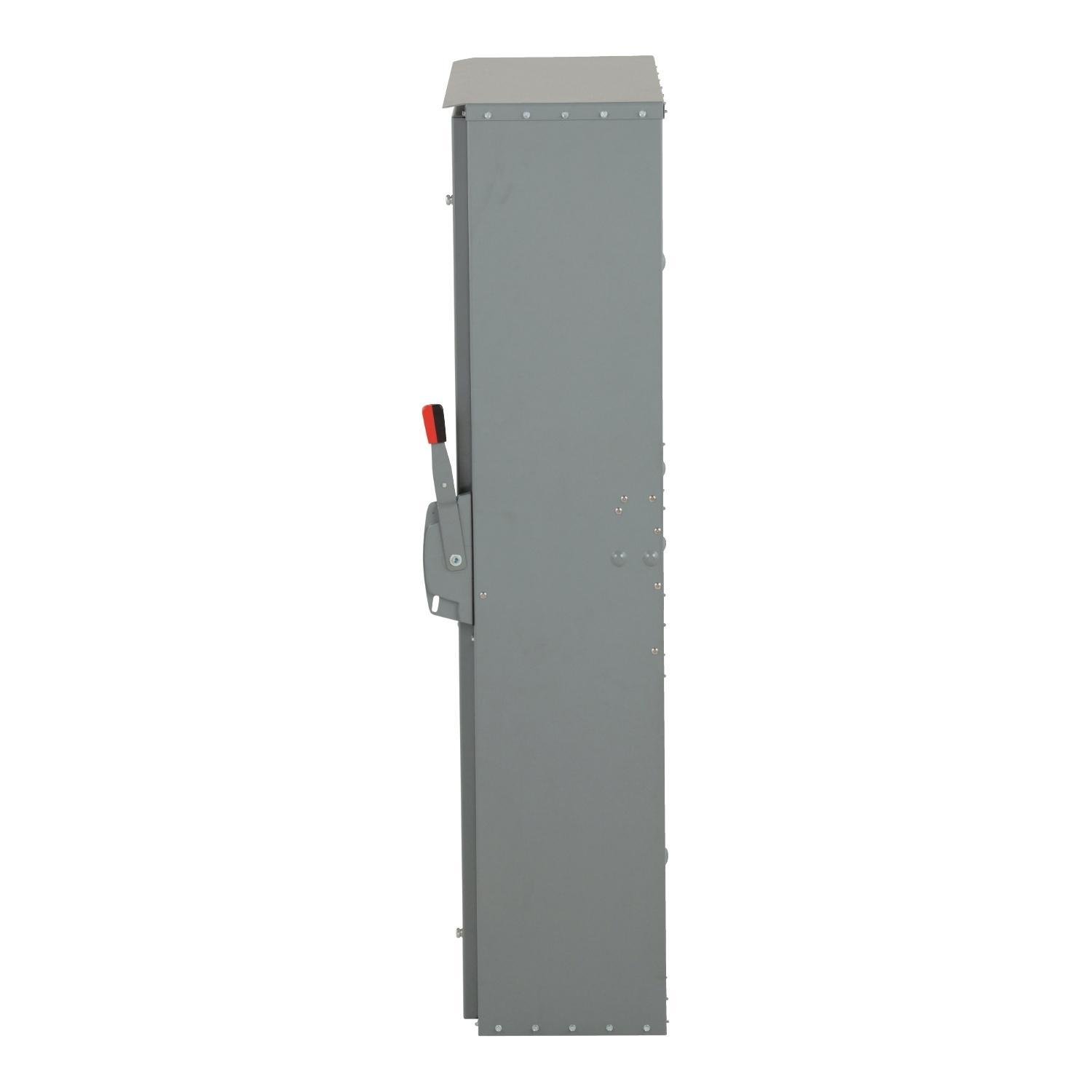

Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R
Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R
Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R
Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R
Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R Picture of HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R
Square D

HU367R - Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 pole, 500HP, 600V AC/DC, NEMA 3R

Item Code: 913965
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HU367R

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Specifications

Weight

341.28

Width

29.6

Length

37.44

AD Application

Educational Campuses, Healthcare Facilities, Waste Water Treatment Plants, Industrial Buildings, Commercial Buildings, Mining, Mineral and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 800A TPST

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Quick make, quick break operating mechanism

AD Item Features 03

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 04

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.4400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

341.2800

AD Package Weight UOM

LB

AD Package Width

29.6000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/eDpOzHTM8qw

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

1/2/2003

Spec 12 Attribute

Series

Spec 12 Attribute Value

E4

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

200

Spec 14 Attribute

Temperature Rating

Spec 14 Attribute UOM

deg F

Spec 14 Attribute Value

-22 to 104

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Lug

Spec 16 Attribute

Type

Spec 16 Attribute Value

Iceproof Non-Fusible Rainproof Single Throw Sleetproof

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC/DC

Spec 17 Attribute Value

600

Spec 2 Attribute

Color

Spec 2 Attribute Value

Gray

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 500 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
