Square D

HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R

Category Miscellaneous

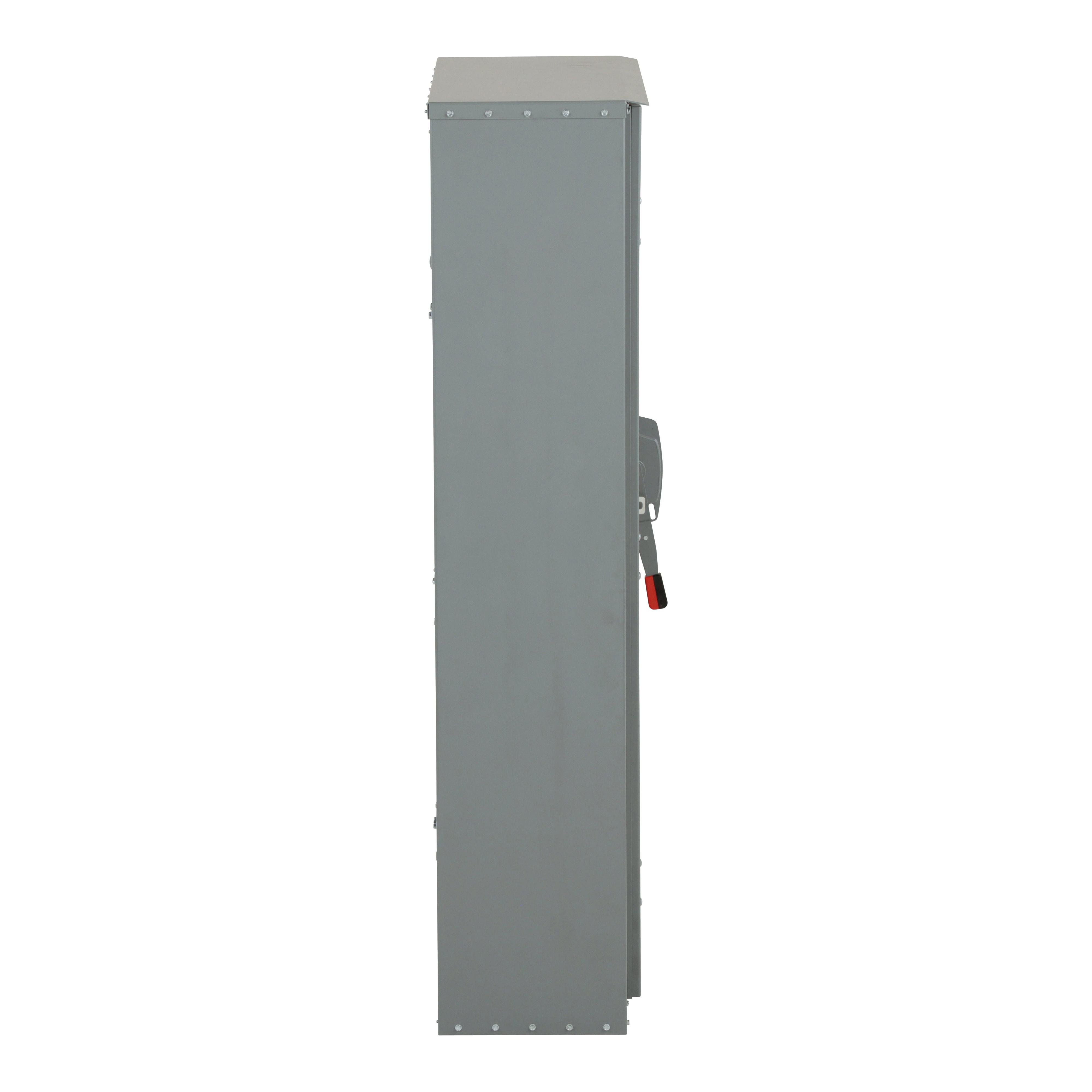

Picture of HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R Picture of HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
Picture of HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R Picture of HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
Square D

HU368R - Safety switch, heavy duty, non fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R

Item Code: 557147
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HU368R

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole nonfusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 3R enclosure. It is UL listed with the file E2875.

Specifications

Weight

363.24

Width

29.72

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HU368R/HU368R.spin

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Alternative Part Number

8109185

AD Application

Educational Campuses, Healthcare Facilities, Waste Water Treatment Plants, Industrial Buildings, Commercial Buildings, Mining and Mineral Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901259367

AD Gtin

00785901259367

AD IDEA Index ID

8109185

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 1200A

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Reliable performance and long term durability

AD Item Features 03

Easy Installation

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Keywords

HU368R E4 Non-Fusible Iceproof Rainproof Sleetproof Heavy Duty Safety Switch, 600 V AC/DC, 1200 A, 50 hp, 100 hp, 500 hp, 3PST Contact, 3 Poles ; Schneider Electric ; Square D ; HU368R ; HU368R ; 785901259367 ; Heavy Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

363.2400

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Part Number Keywords

HU368R ; 8109185 ; 785901259367 ; 78590125936 ; 00785901259367 ; 0785901259367

AD Video Links

https://www.youtube.com/embed/mbIMCO9g7oI

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E4

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

200

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Lug

Spec 16 Attribute

Type

Spec 16 Attribute Value

Non-Fusible Iceproof Rainproof Sleetproof

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC/DC

Spec 17 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

1200

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3PST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Baked Enamel/Galvannealed

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

50 hp, 100 hp, 500 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
