Square D

J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel

Category Miscellaneous

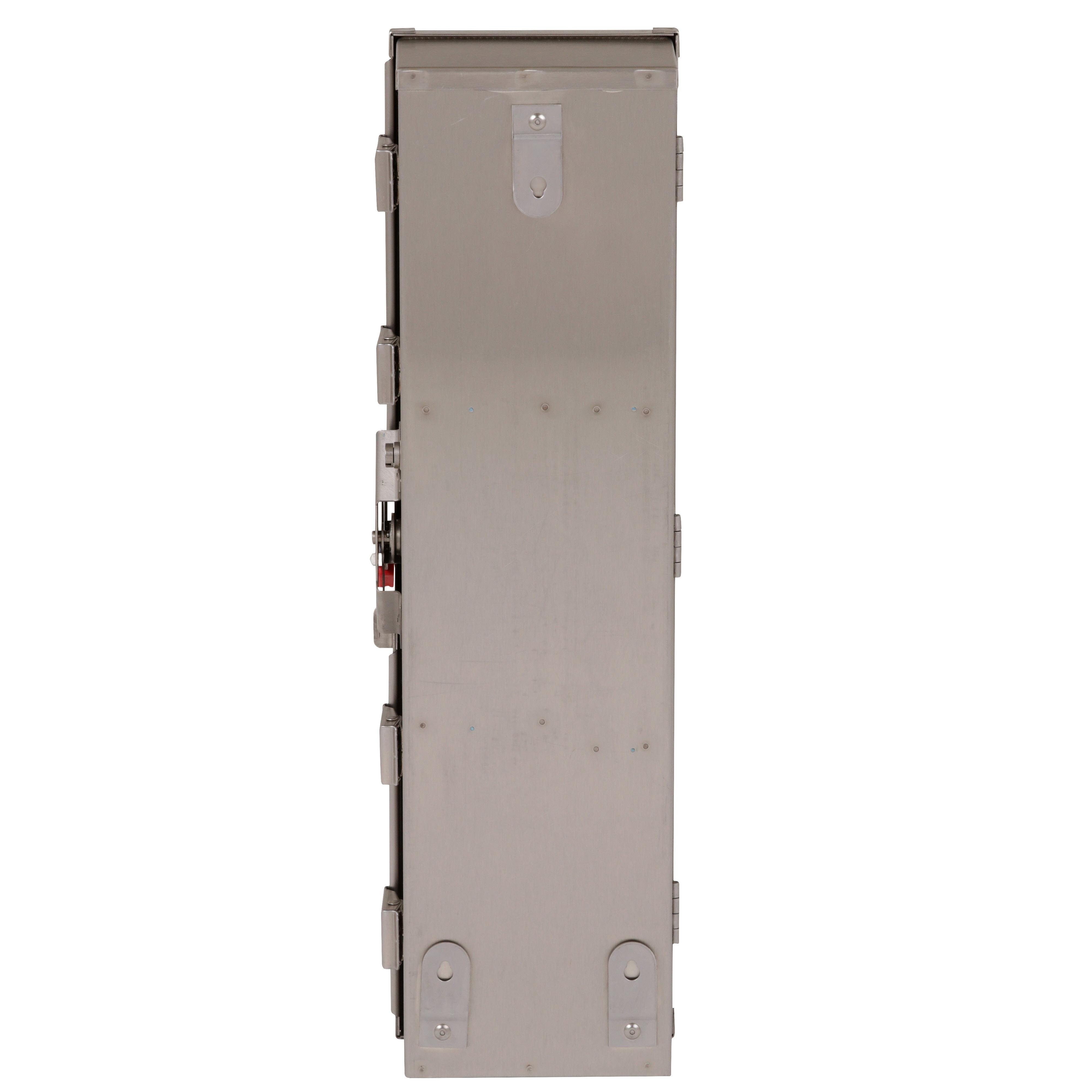

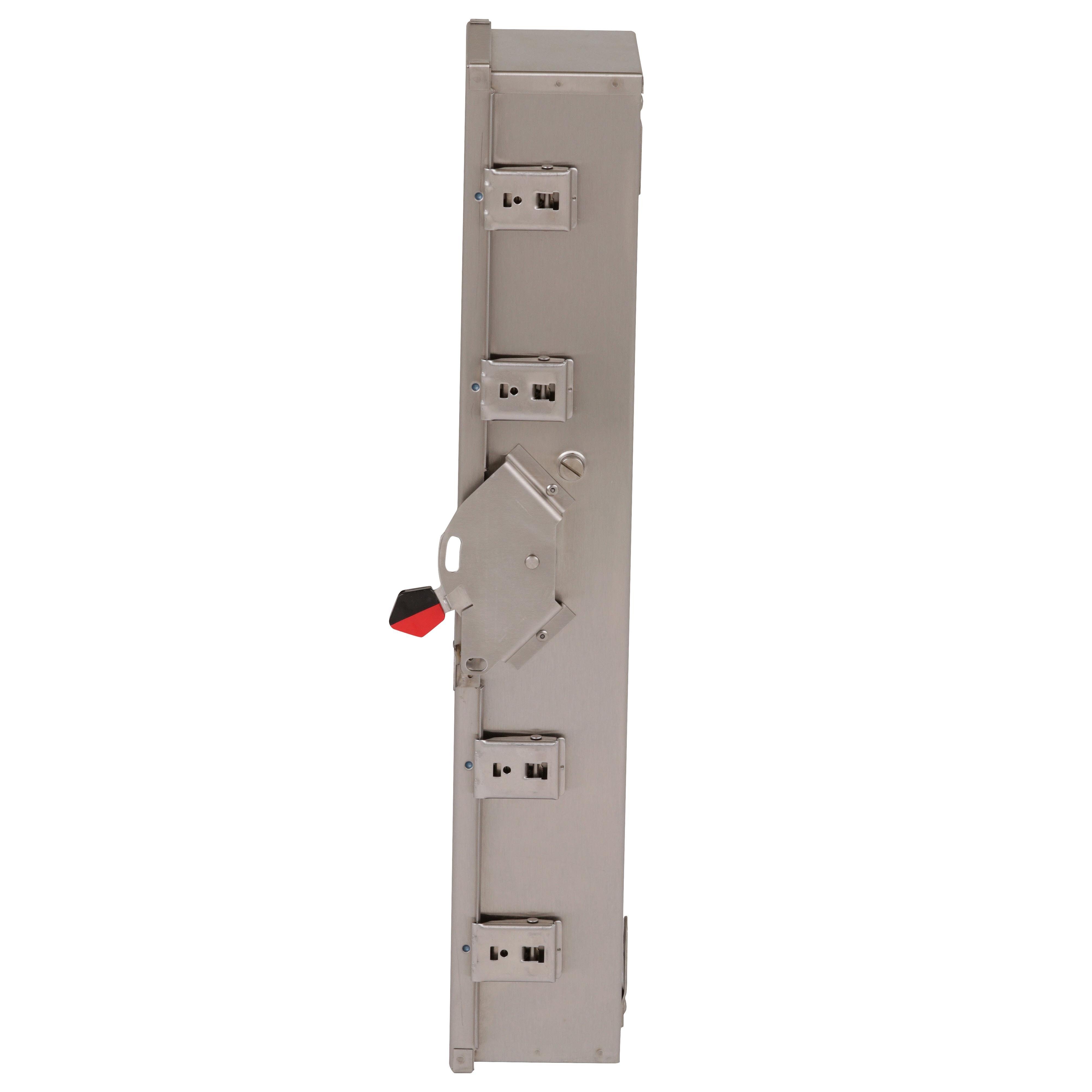

Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel
Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel
Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel Picture of J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel
Square D

J250DS - Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 3/3R/4/4X/5, stainless steel

Item Code: 600440
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref J250DS

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  This is a Powerpact H and J Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 15-250A and is NEMA 1 enclosure. This enclosure is for powerpact H and J frame breakers. This product comes with an 18 month warranty.

Specifications

Weight

25.78

Height

7.9

Width

9.4

Length

32.8

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/J250DS/J250DS.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

9256303

AD Application

For use with HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL circuit breaker

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901507598

AD Gtin

00785901507598

AD IDEA Index ID

9256303

AD Invoice Description

ENCLOSURE BRKR CKT 9.72IN 7.94IN 32.26IN

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Overcurrent protection and switching on AC systems

AD Item Features 03

Common accessories across the range

AD Item Features 04

Confidence and power reliability

AD Keywords

J250DS Stainless Steel Circuit Breaker Enclosure, 9.72 in W x 7.94 in D x 32.26 in H, NEMA 3/3R/4/4X/5/12 NEMA Rating, Stainless Steel ; Square D ; J250DS ; 9256303 ; 10762118 ; 785901507598 ; Circuit Breaker Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.9000

AD Package Height UOM

IN

AD Package Length

32.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

25.7800

AD Package Weight UOM

LB

AD Package Width

9.4000

AD Package Width UOM

IN

AD Part Number Keywords

J250DS ; 9256303 ; 10762118 ; 785901507598 ; 78590150759 ; 00785901507598 ; 0785901507598

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Natural

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3-Feb

Spec 11 Attribute

Width

Spec 11 Attribute UOM

IN

Spec 11 Attribute Value

9.72

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

7.94

Spec 3 Attribute

Electrical Ratings

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

15 to 250

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Natural

Spec 5 Attribute

Frame

Spec 5 Attribute Value

HDL/HGL/HJL/HLL/JDL/JGL/JJL/JLL

Spec 6 Attribute

Height

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

32.26

Spec 7 Attribute

Material

Spec 7 Attribute Value

Stainless Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

NEMA Rating

Spec 9 Attribute Value

NEMA 3/3R/4/4X/5/12
