Square D

JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Category Miscellaneous

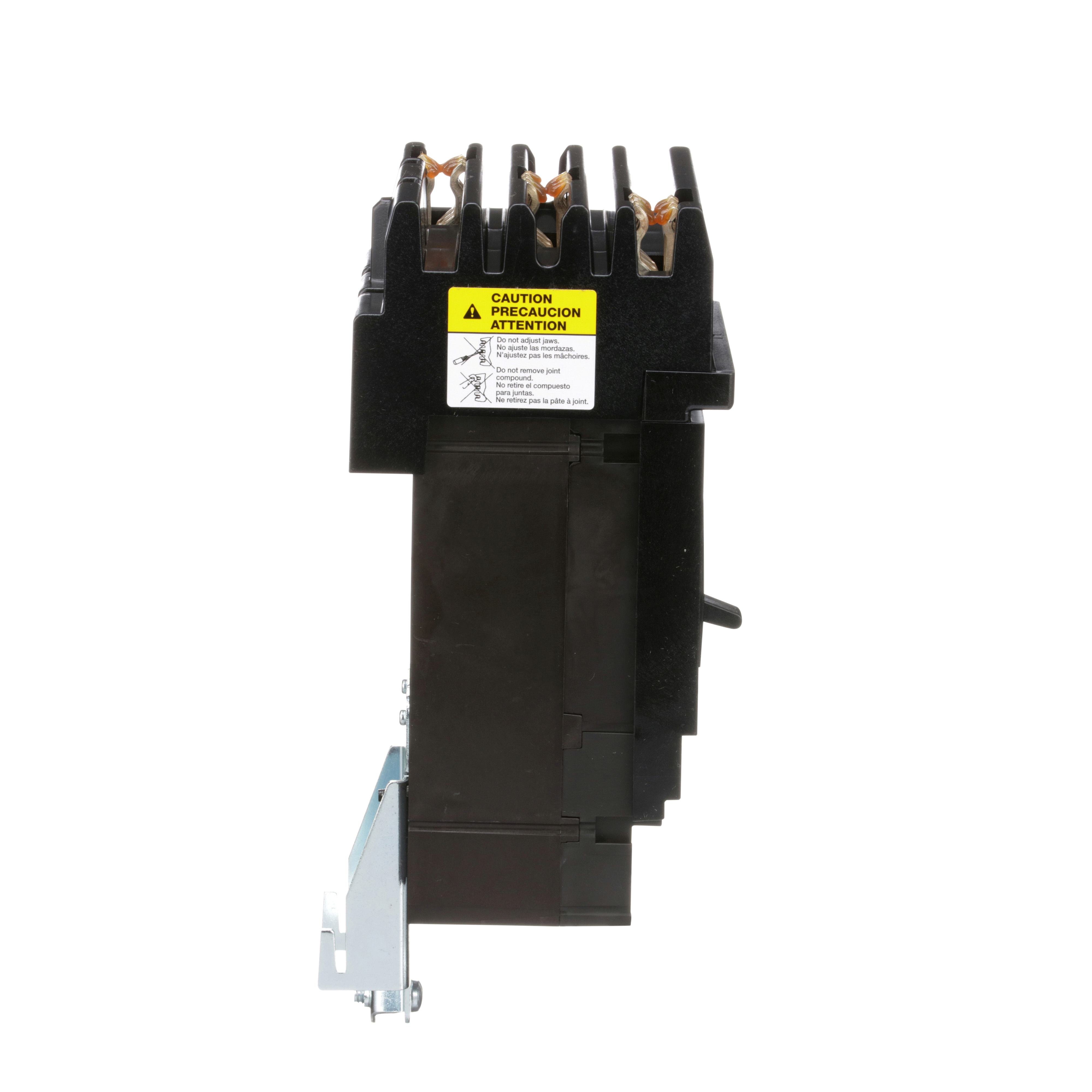

Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

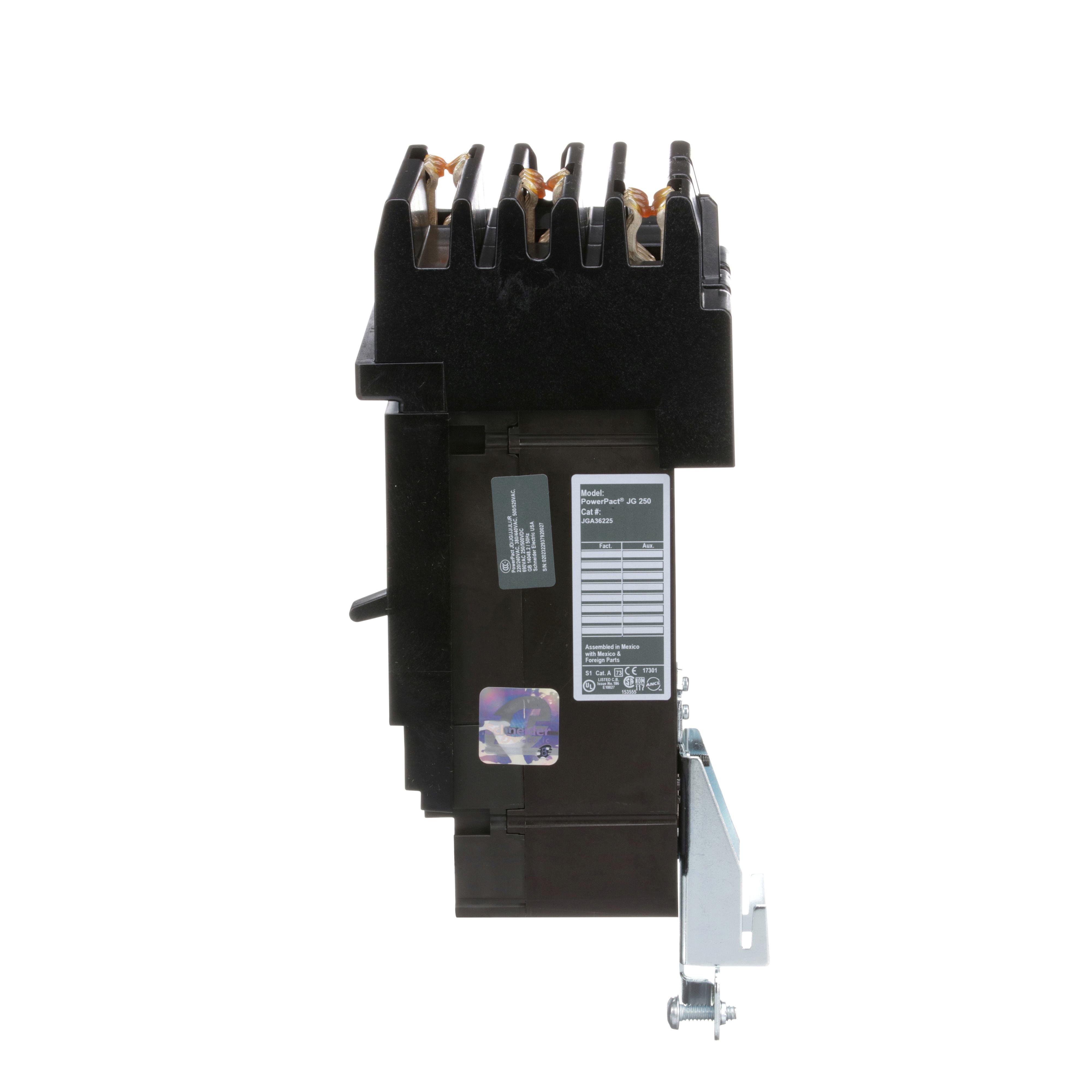

Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

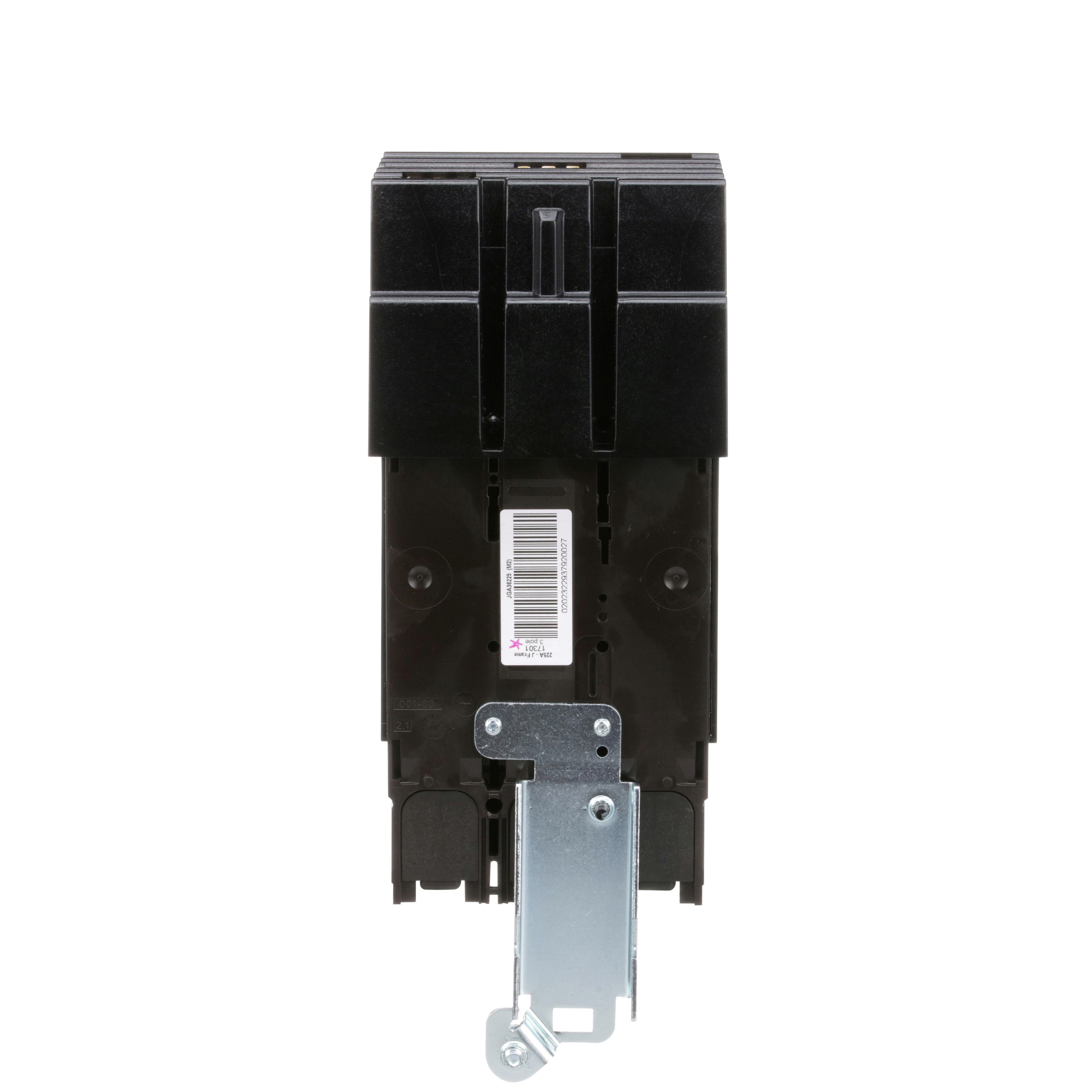

Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Square D

JGA36225 - Circuit breaker, PowerPacT J, 225A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 599399
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref JGA36225

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

6.64

Height

6.5

Width

8.31

Length

14.74

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/JGA36225/JGA36225.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8035657

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901795841

AD Gtin

00785901795841

AD IDEA Index ID

8035657

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 3 J

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Easy to install, extremely versatile, a wide variety of terminal options

AD Item Features 04

QR codes for easy access to device documentation

AD Keywords

PowerPact JGA36225 Type JGA Molded Case Circuit Breaker, 600 V AC/250 V DC, 225 A, 18/20 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; JGA36225 ; JGA36225 ; 785901795841 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.5000

AD Package Height UOM

IN

AD Package Length

14.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

828.7500

AD Package Volume UOM

cu-in

AD Package Weight

6.6400

AD Package Weight UOM

LB

AD Package Width

8.3100

AD Package Width UOM

IN

AD Part Number Keywords

JGA36225 ; 8035657 ; 785901795841 ; 78590179584 ; 00785901795841 ; 0785901795841

AD Video Links

https://www.youtube.com/embed/wCXL5fqf9PE

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-13 To 158

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1125 to 2250

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type JGA

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

3/0 AWG to 350 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

I-Line Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.12 in W x 5 in D x 7.52 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

J

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

18/20

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
