Square D

JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%

Category Miscellaneous

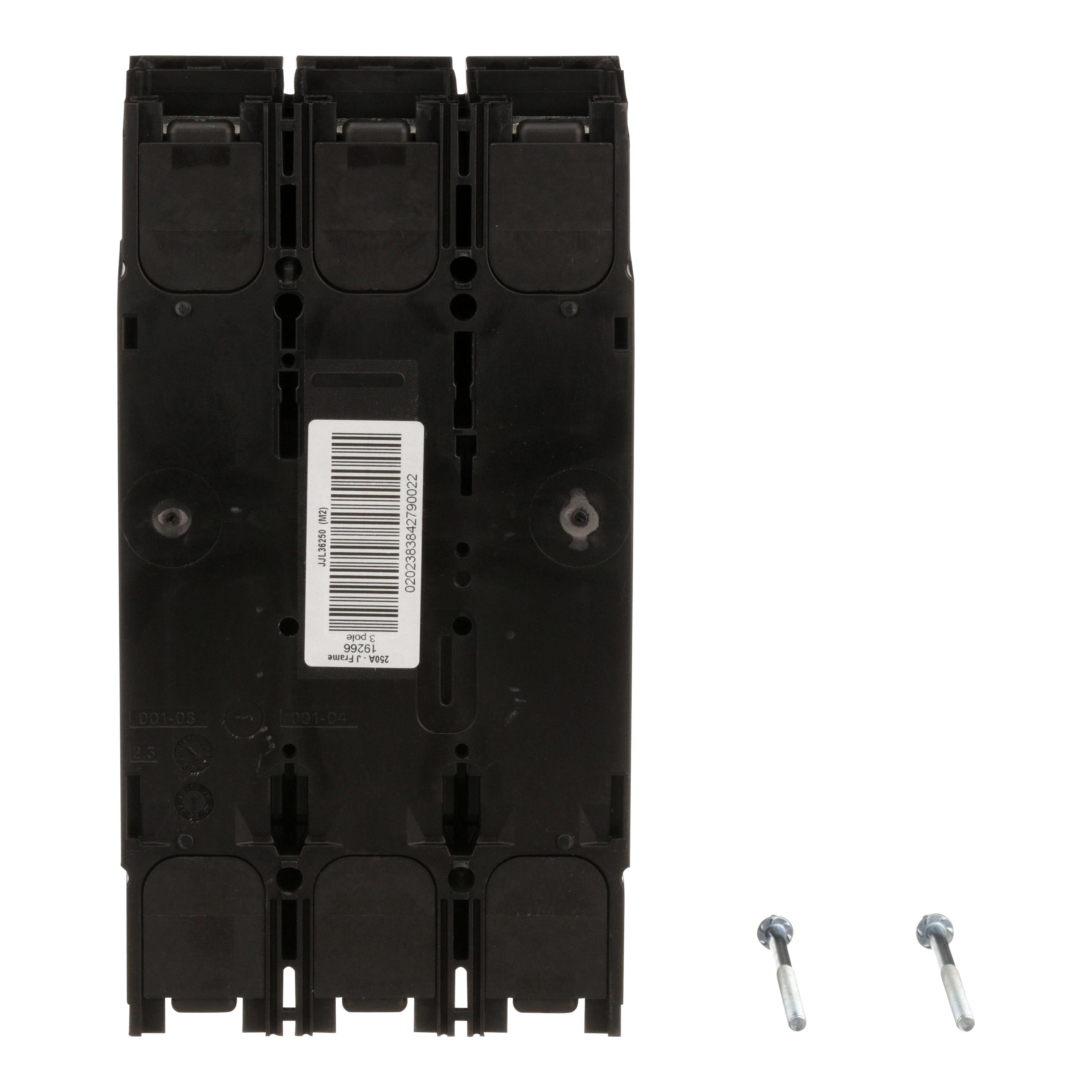

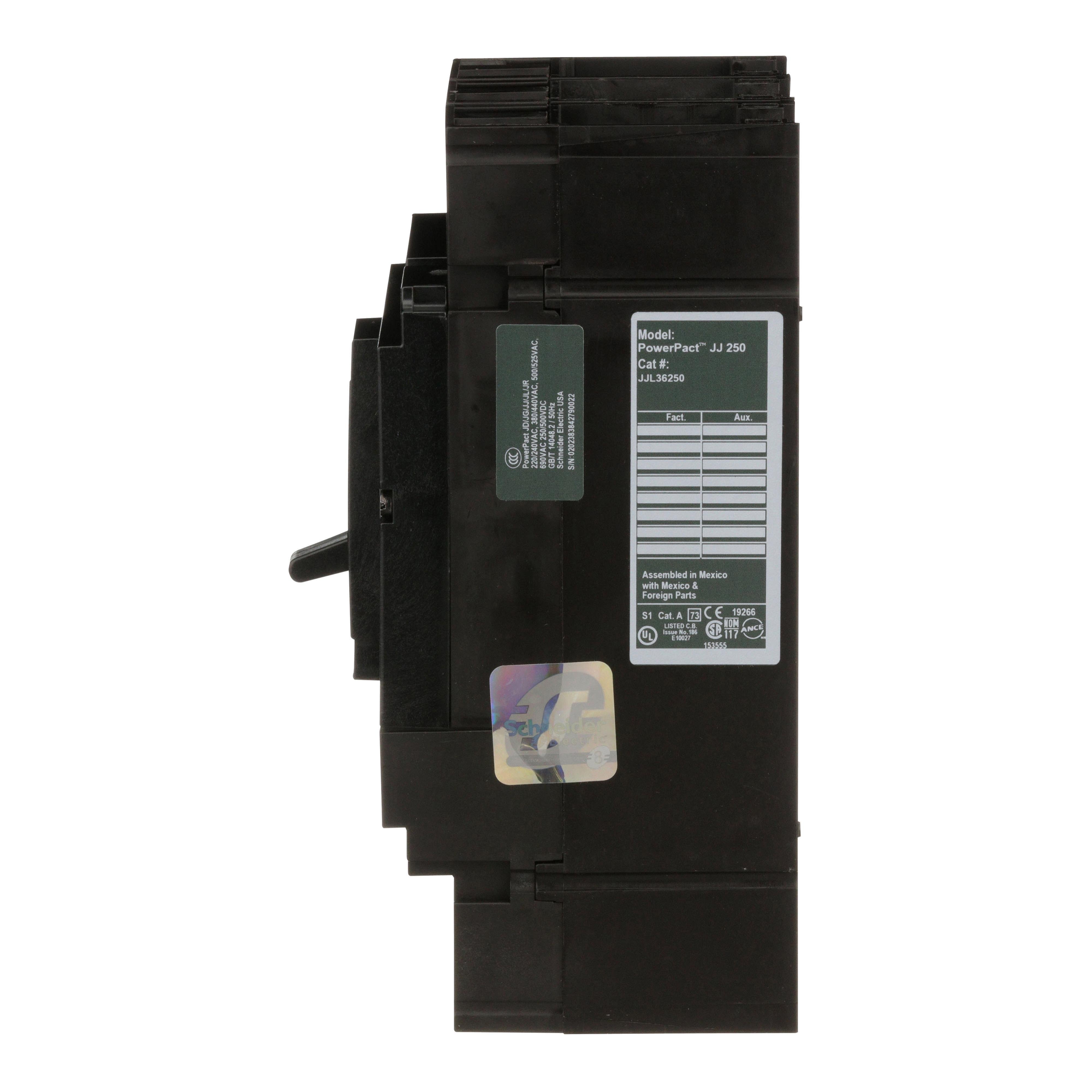

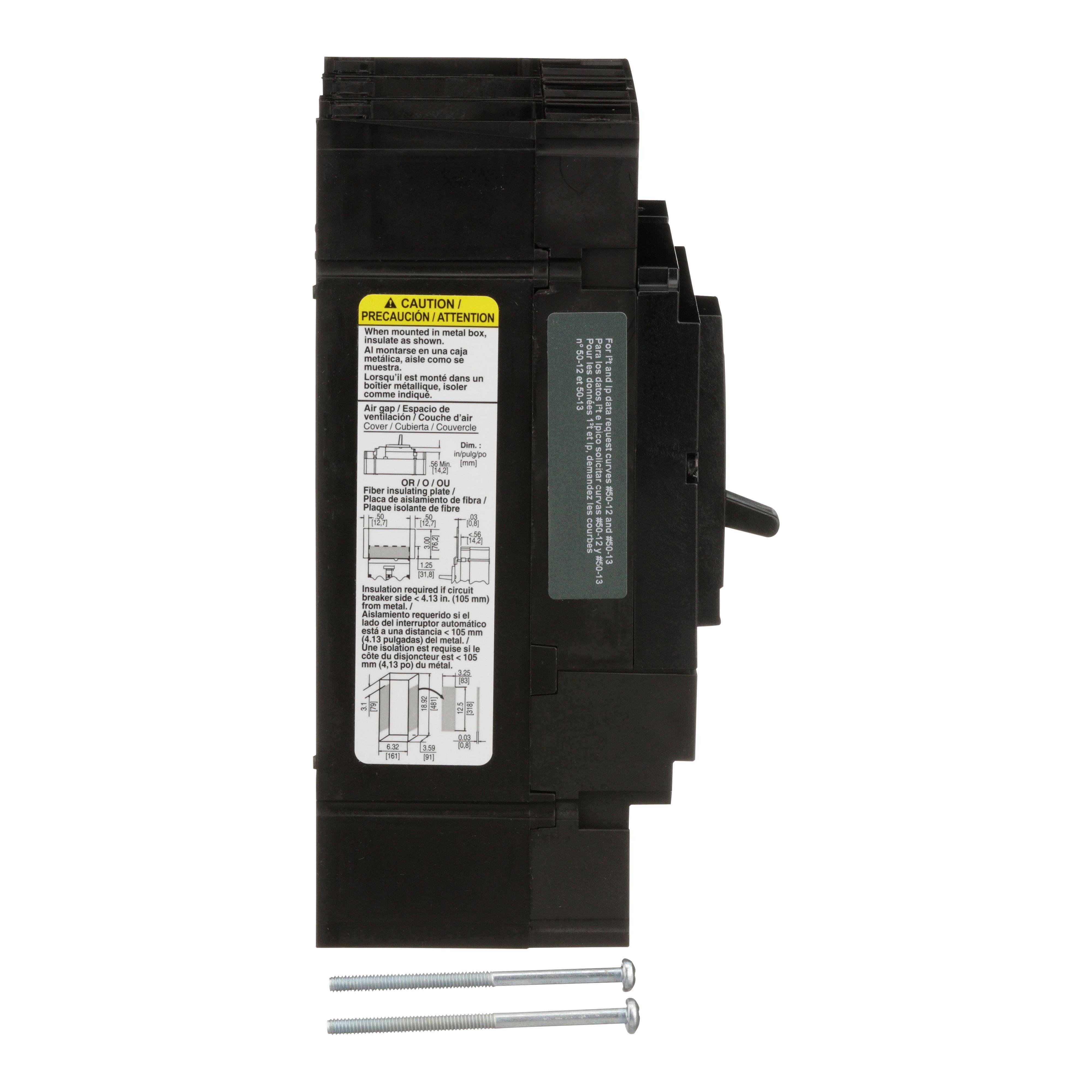

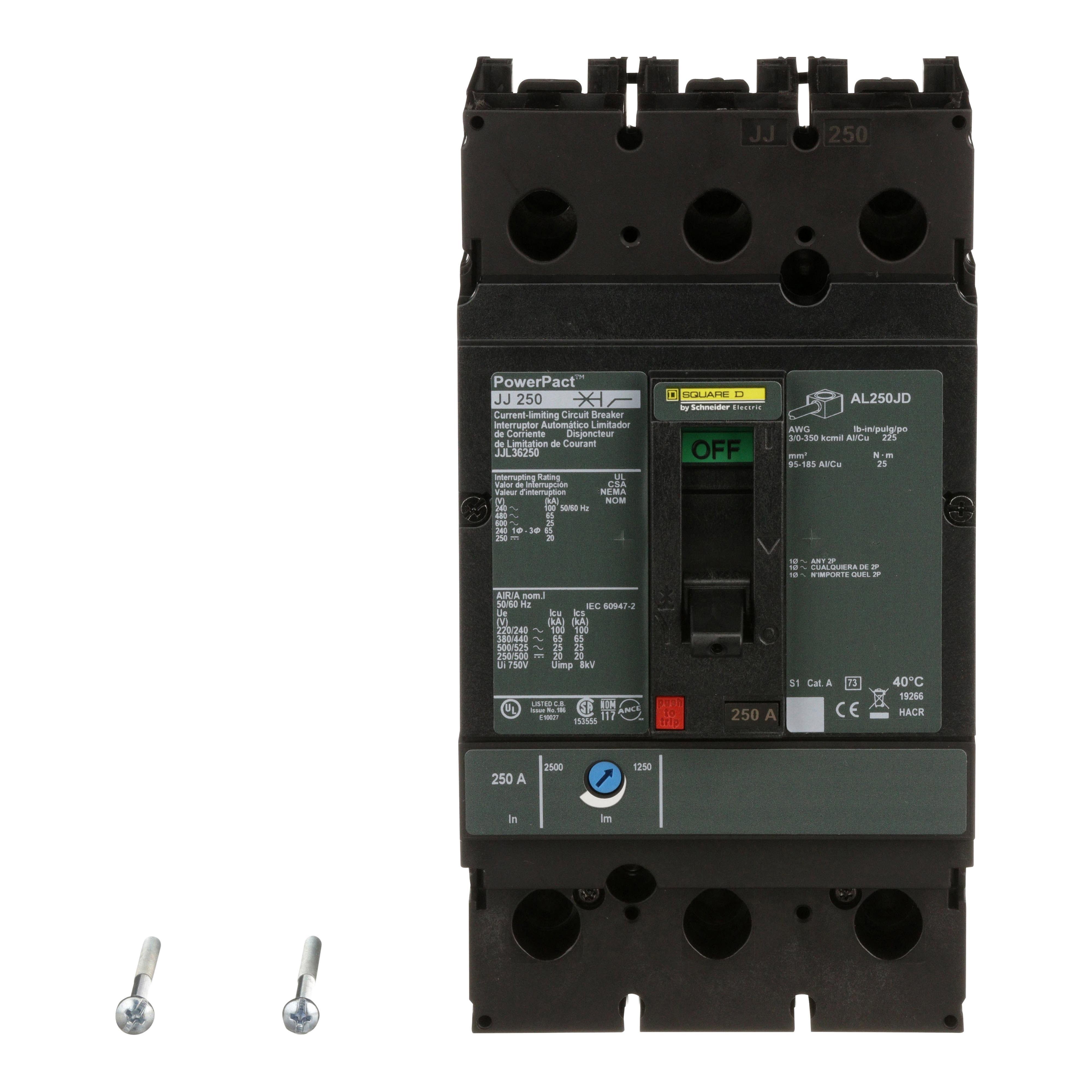

Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Square D

JJL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%

Item Code: 600970
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref JJL36250

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.84

Width

7.33

Length

8.62

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/JJL36250/JJL36250.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8097157

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901955979

AD Gtin

00785901955979

AD IDEA Index ID

8097157

AD Invoice Description

BREAKER MLD CASE CKT 600VAC 250A 3 J 3

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Overcurrent protection and switching on AC systems

AD Item Features 03

Common accessories across the range

AD Item Features 04

Easy to install, extremely versatile, a wide variety of terminal options

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.6200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.8400

AD Package Weight UOM

LB

AD Package Width

7.3300

AD Package Width UOM

IN

AD Part Number Keywords

JJL36250 ; 8097157 ; 785901955979 ; 78590195597 ; 00785901955979 ; 0785901955979

AD Video Links

https://www.youtube.com/embed/wCXL5fqf9PE

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

250

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-13 To 158

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

1250 to 2500

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type JJL

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute Value

600 V AC/250 V DC

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

3/0 AWG to 350 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.12 in W x 4.36 in D x 6.4 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

J

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
