Square D

JLL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

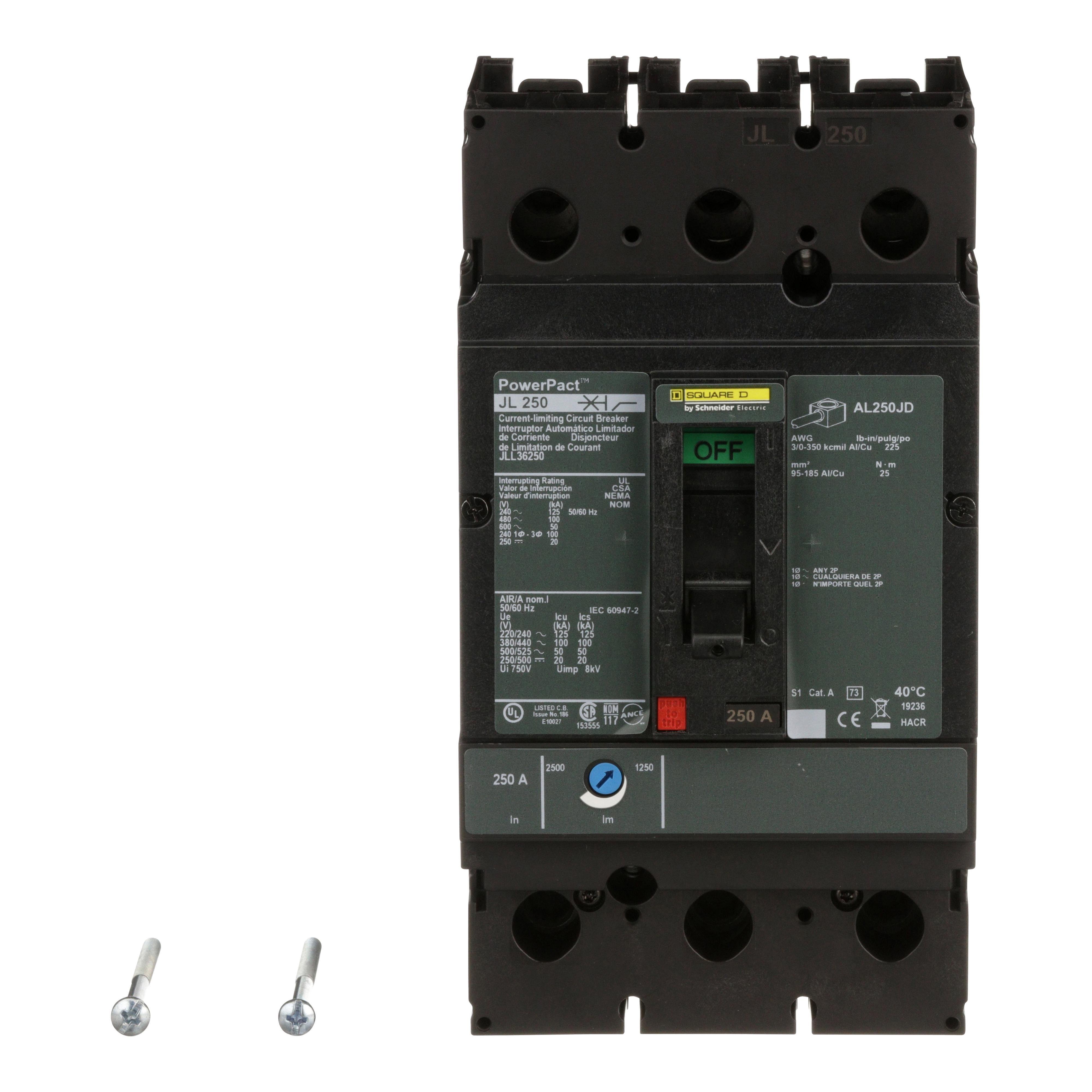

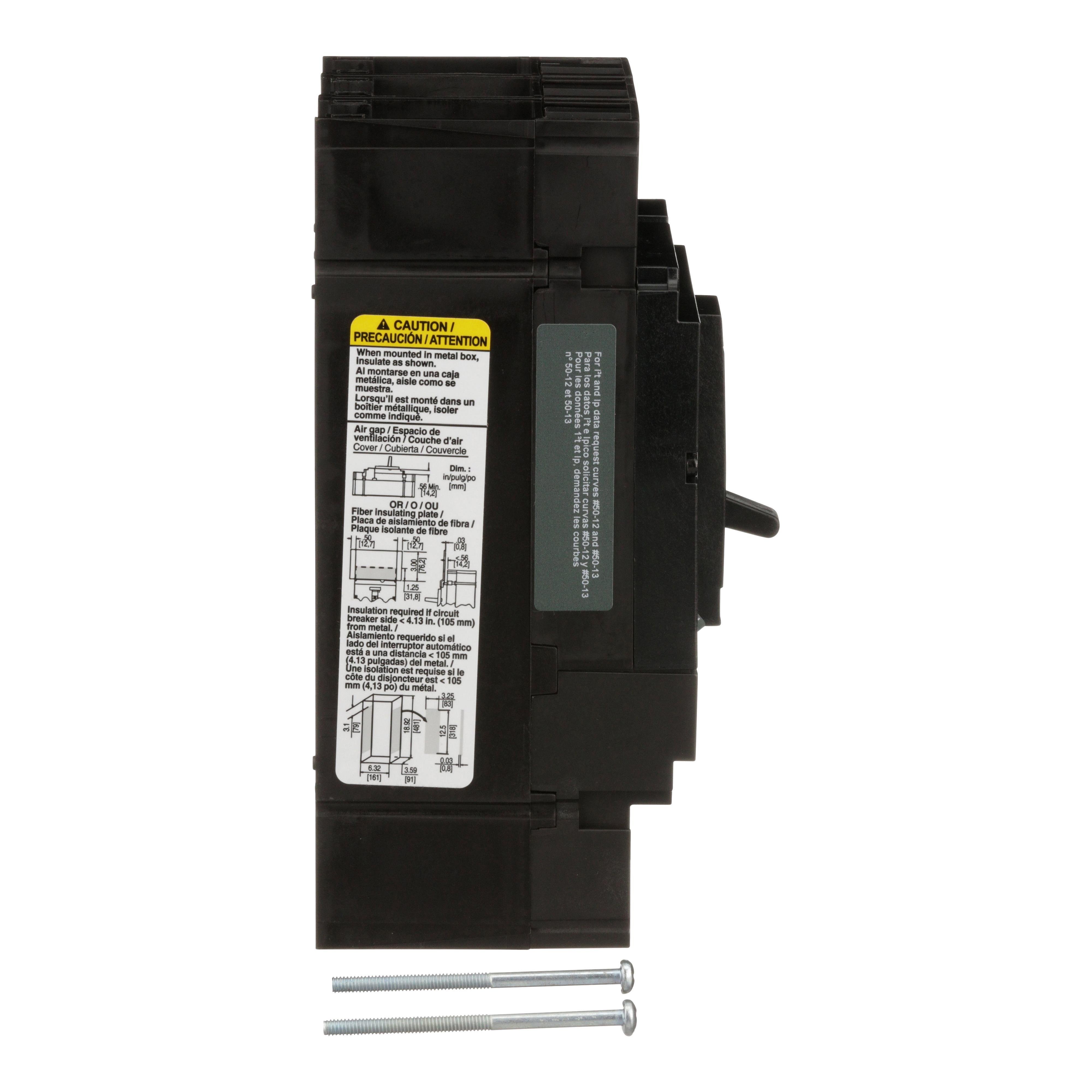

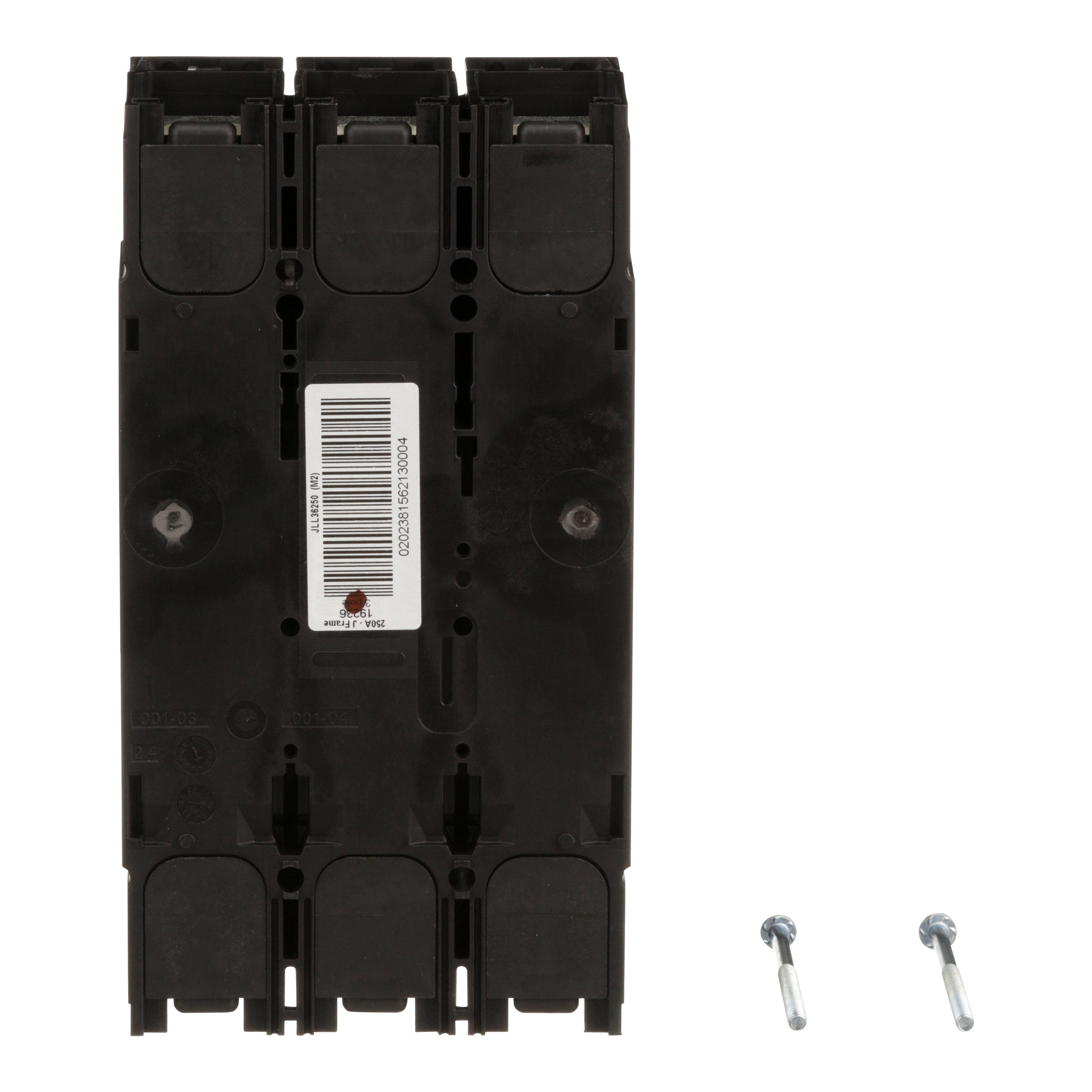

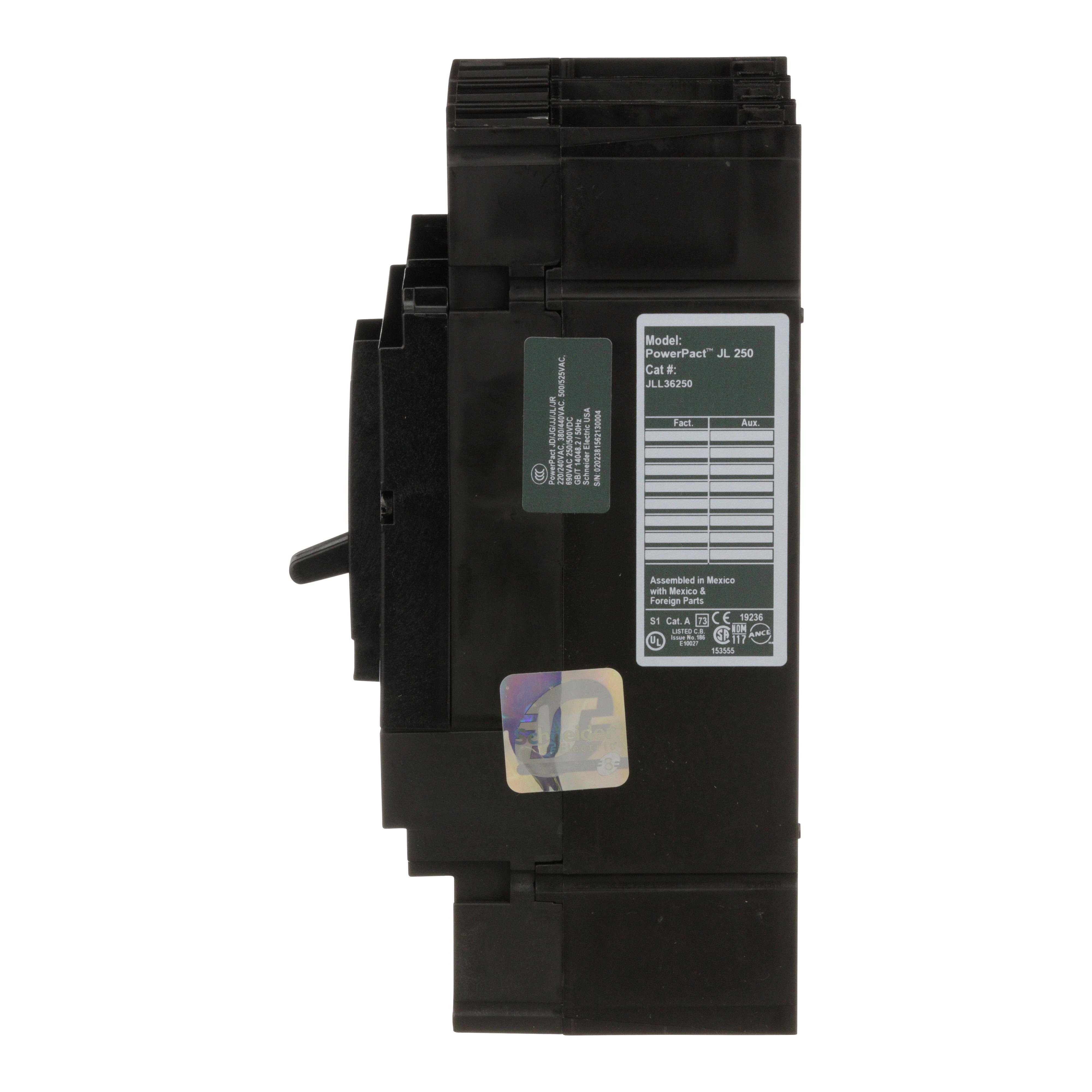

Picture of JLL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%
Square D

JLL36250 - Circuit breaker, PowerPacT J, 250A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%

Item Code: 850462
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref JLL36250

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.75

Width

5.94

Length

9.01

Amperage Rating

250 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Line/Load Lug

Dimensions

3.24 in L x 5 in W x 7.52 in H

Frame

J

Frequency Rating

50/60 Hz

Interrupt Rating

250 VDC/600 VAC/20 kA at 250 VDC/125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC

Mounting Type

Unit

Number Of Poles

3

Phase

3

Temperature Rating

-13 to 158 deg f

Trip Range

250/1250/2500 A

Trip Type

Thermal Magnetic

Type

Type JLL

Voltage Rating

600 V AC/250 V DC

Wire Size

3/0 AWG to 350 kcmil
