Square D

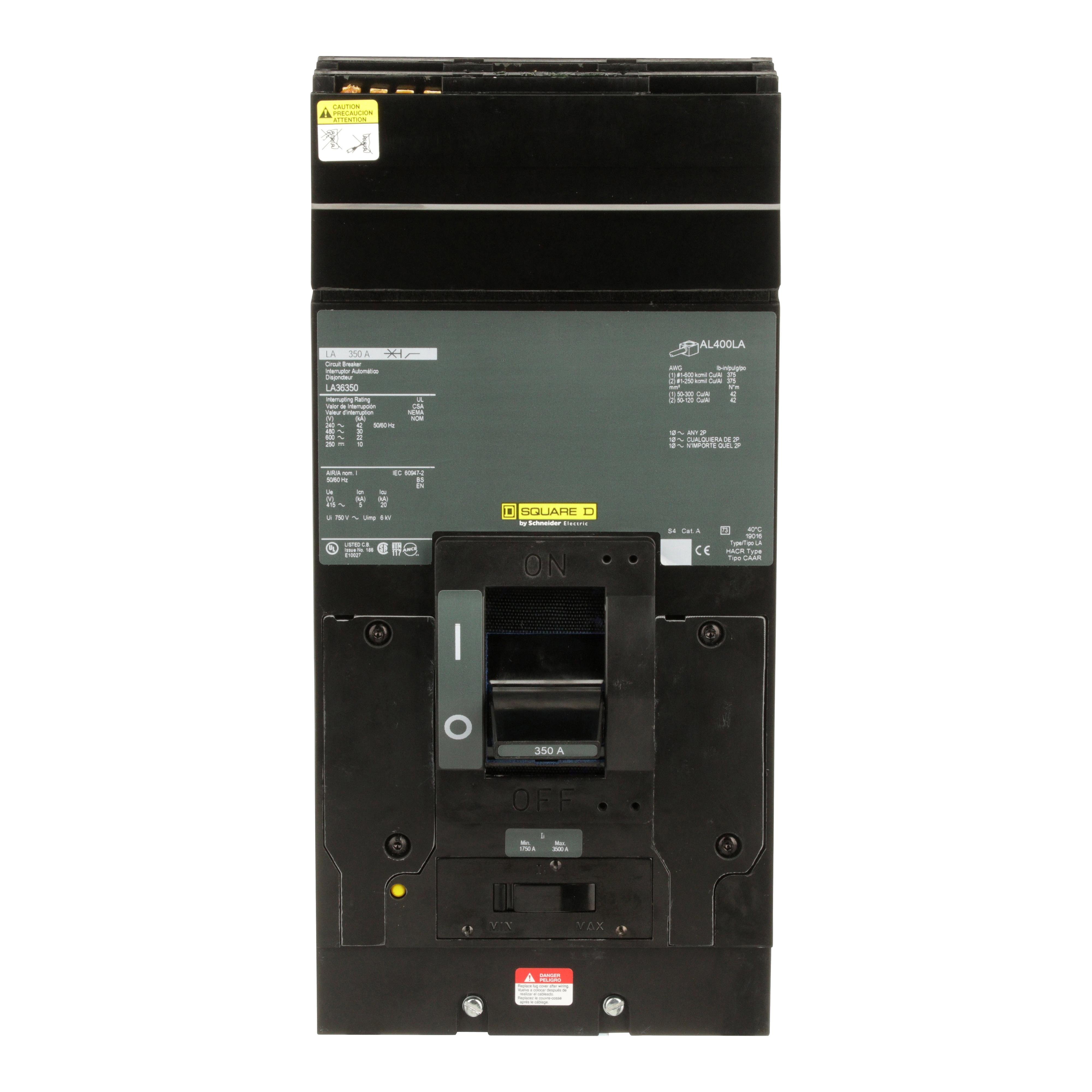

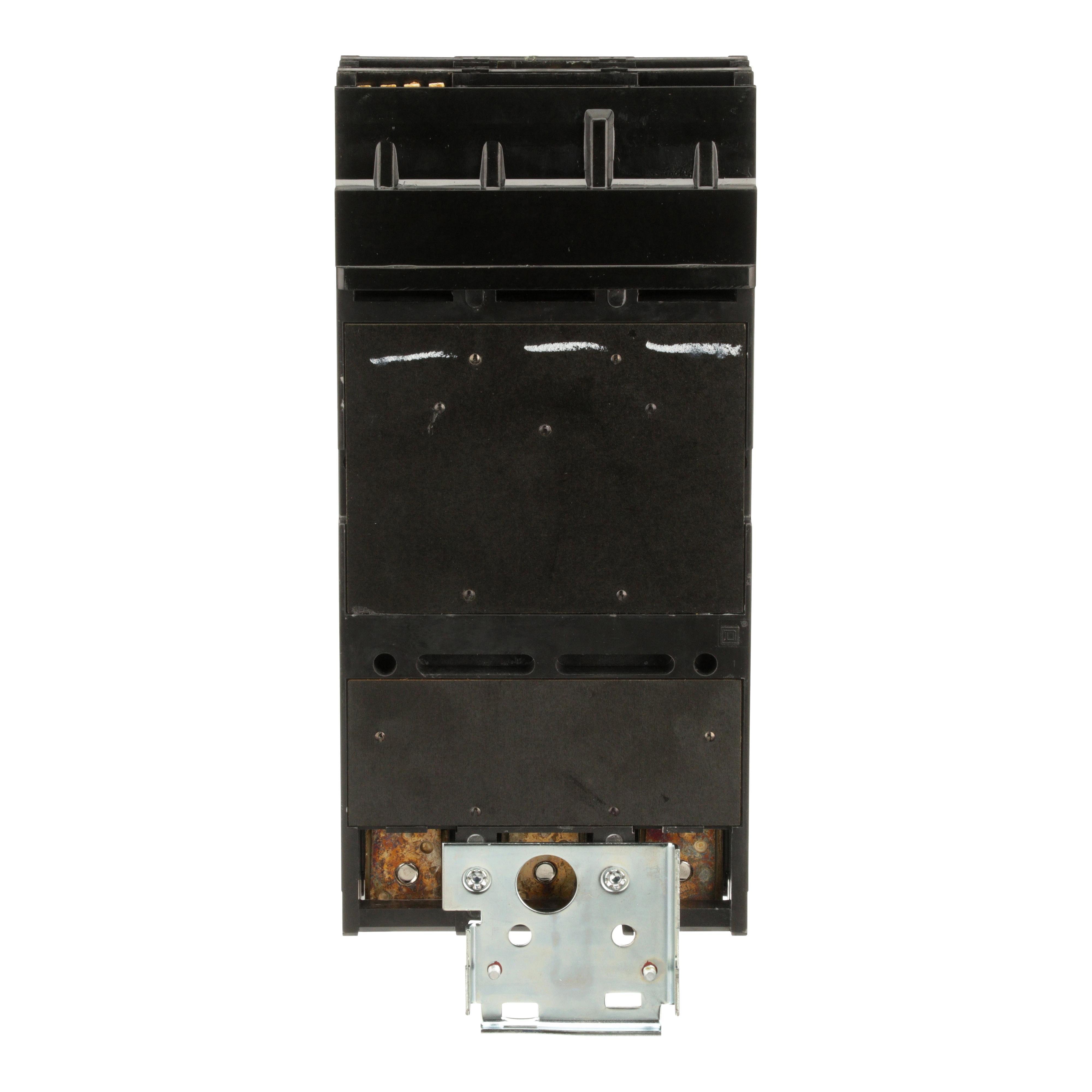

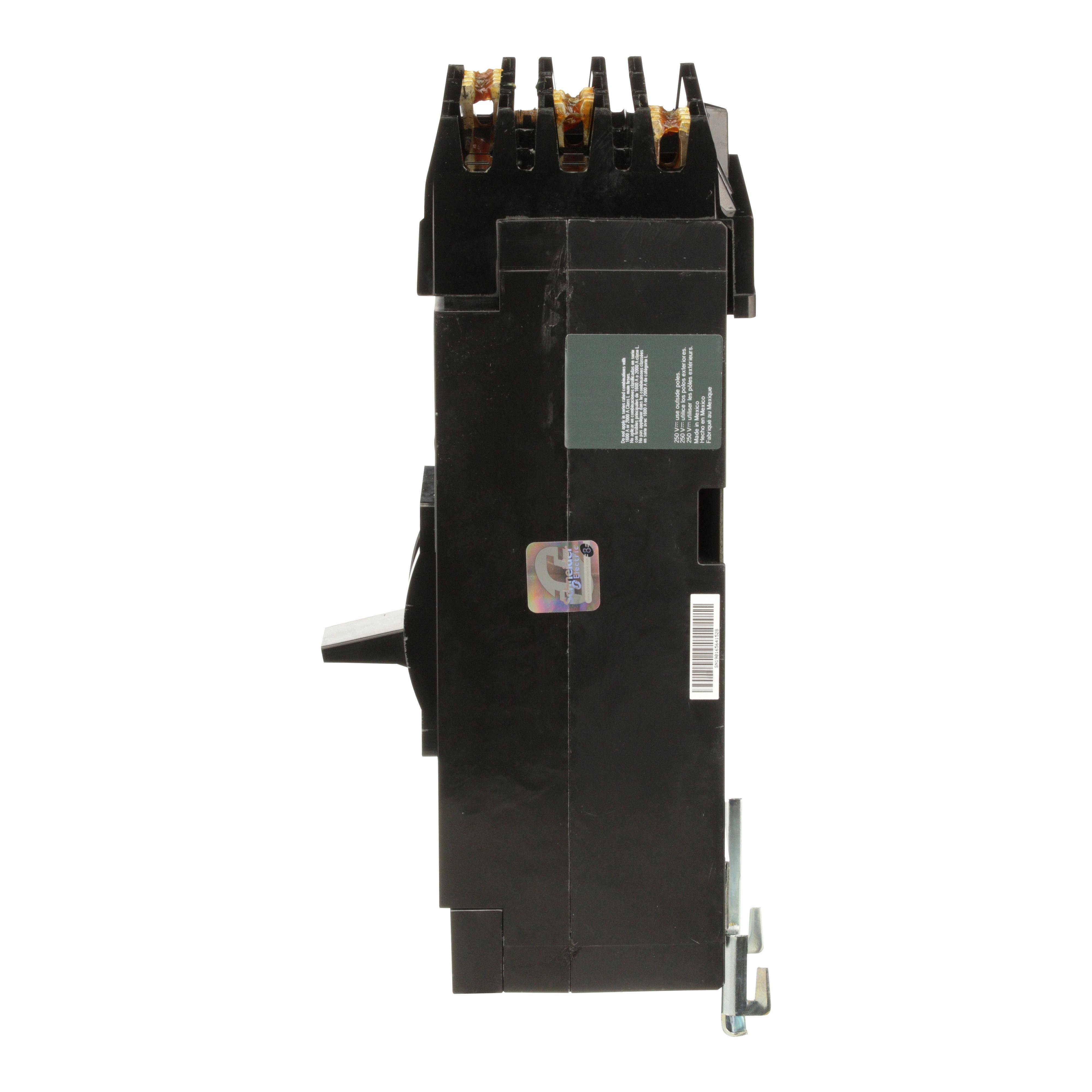

LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic

Category Miscellaneous
Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic
Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic
Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic
Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic Picture of LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic
Square D

LA36350 - Circuit breaker, LA, 350A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, I-Line, thermal magnetic

Item Code: 32949
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LA36350

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, circuit breaker is a 3P breaker with a rated current of 350A. This product has a breakning capacity of 22kA@600VAC. This breaker has a thermal-magnetic trip unit trechnology. This product complys to UL listed & CSA standards. With a magnetic hold current of 1750A and a magnetic tripping current of 3500A. Dimensions for this product are 11 in (H), 6 in (W), 5.84 in (D).

Specifications

Weight

18.35

Height

9.4

Width

11.39

Length

17.24

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LA36350/LA36350.spin

AD All Features

Available in 2 and 3 pole design

AD Alternative Part Number

8046072

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901426288

AD Gtin

00785901426288

AD IDEA Index ID

8046072

AD Invoice Description

BREAKER CKT CASE MLD 600 VAC/250 VDC 3 L

AD Item Features 01

Available in 2 and 3 pole design

AD Item Features 02

Protection from overloads and short circuits

AD Item Features 03

Automatic molded case switches available

AD Item Features 04

Unit mount, I-Line and rear connect constructions

AD Keywords

LA36350 Type LA Standard Molded Case Circuit Breaker, 600 V AC/250 V DC, 350 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; LA36350 ; LA36350 ; 785901426288 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.4000

AD Package Height UOM

IN

AD Package Length

17.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1902.6500

AD Package Volume UOM

cu-in

AD Package Weight

18.3500

AD Package Weight UOM

LB

AD Package Width

11.3900

AD Package Width UOM

IN

AD Part Number Keywords

LA36350 ; 8046072 ; 785901426288 ; 78590142628 ; 00785901426288 ; 0785901426288

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

350

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1750 to 3500

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type LA Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

1 AWG to 600 kcmil, (2) 250 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6 in W x 5.8 in D x 11 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

L

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

25

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
