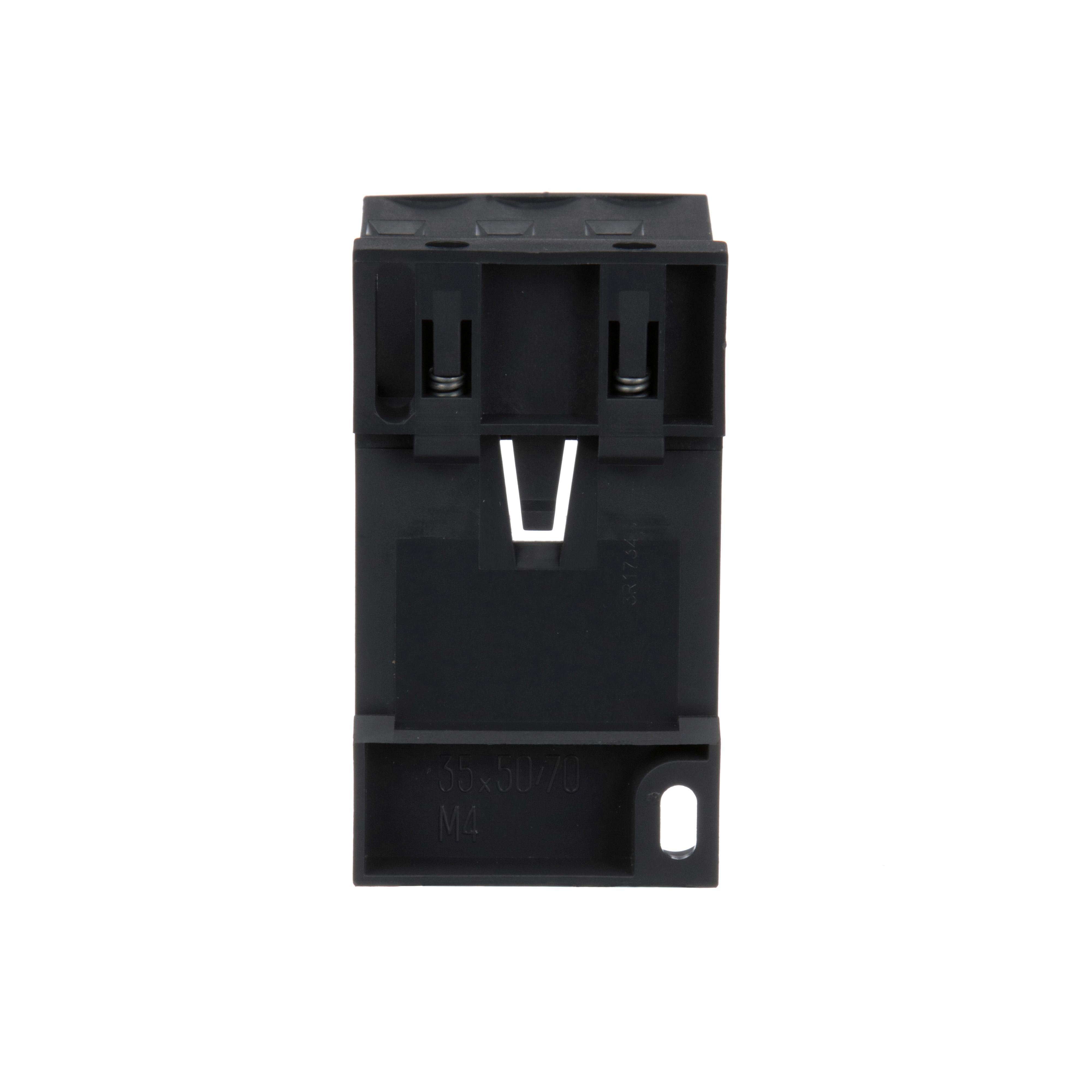

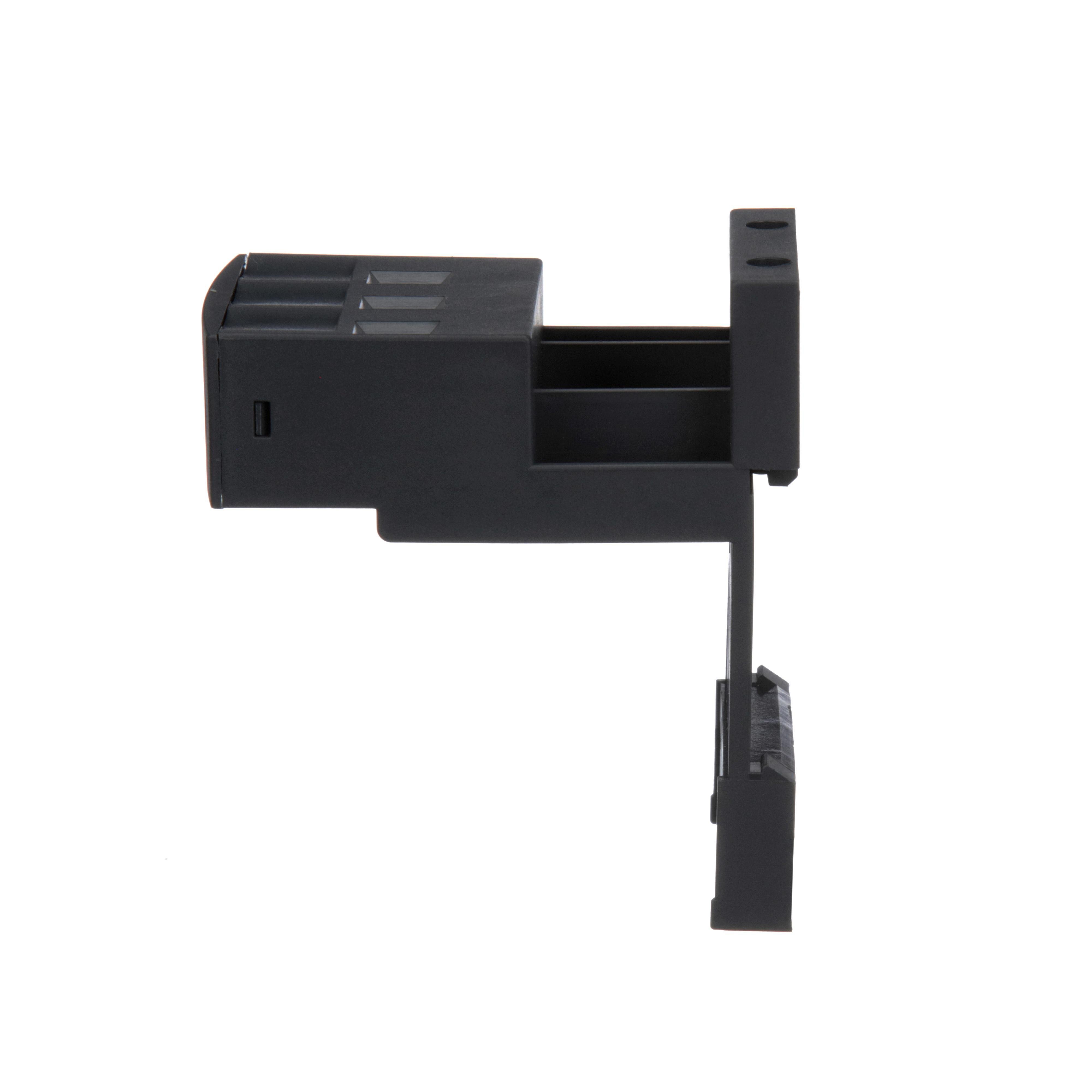

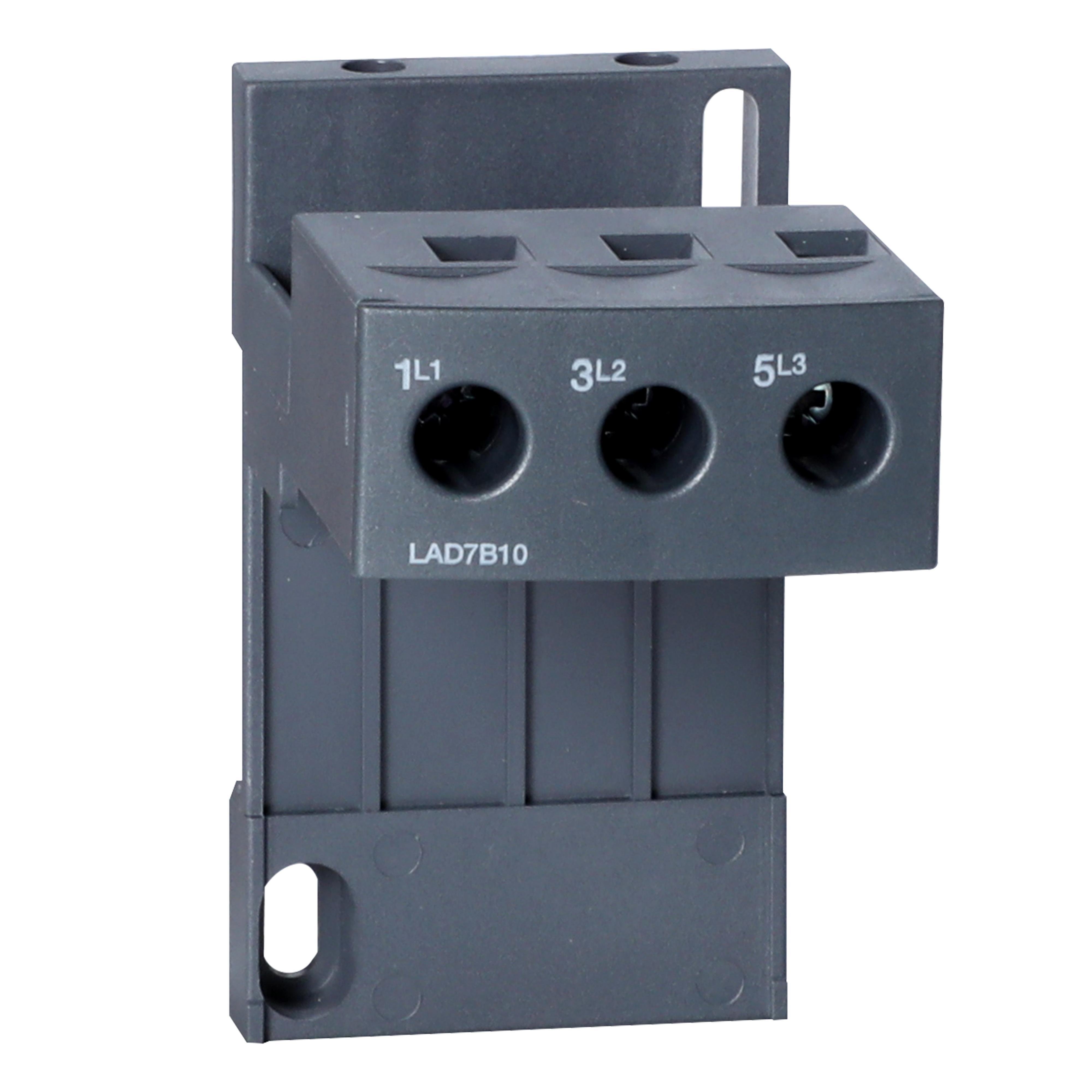

LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals

Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals
Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals
Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals
Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals Picture of LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals

LAD7B10 - TeSys D, separate mount kit, for LRD01 to LRD35 and LR3D01 to LR3D35 overload relays, screw clamp terminals

Item Code: 564938
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAD7B10
Call for Availability
Compare

Description

TeSys LRD overload relays can be mount separately from the contactor to make panel layout easier in some cases. To mount the overload relay separately and to have a connection terminal, this adaptor is used. This adaptor will work with LRD01 through LRD35 and LR3D01 through R3D35 overload relays. This adaptor bracket has screw clamp terminals.

Specifications

Weight

0.16lb

Height

1.9mm

Width

3.31mm

Length

2.92mm

Brand

Schneider Electric

Category

OVERLOAD RELAYS & ACCESSORIES

Dimensions

15.6 in L x 11.7 in W x 5.7 in H

Specifications

3-Pole, 35 mm DIN Rail or Panel Mount, -5 to 55 deg C Temperature, Screw Clamp Connection

Suitable For Use With

LR3D01 and LRD01 Thermal Overload Relay
