Square D

LAD9R1V - Tesys D, reversing mechanical interlock kit, with electrical interlocking, for LC1D09 to LC1D38

Category Contactor Accessories

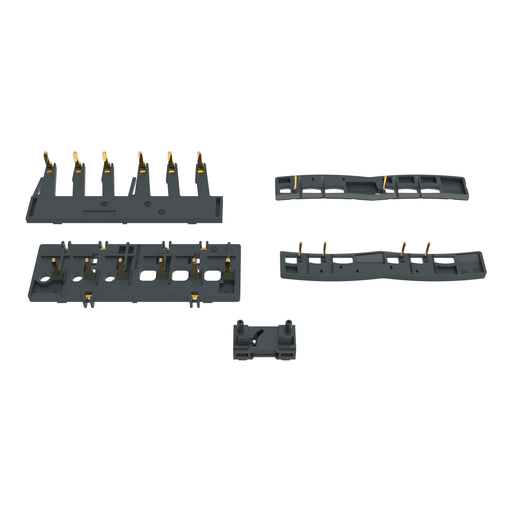

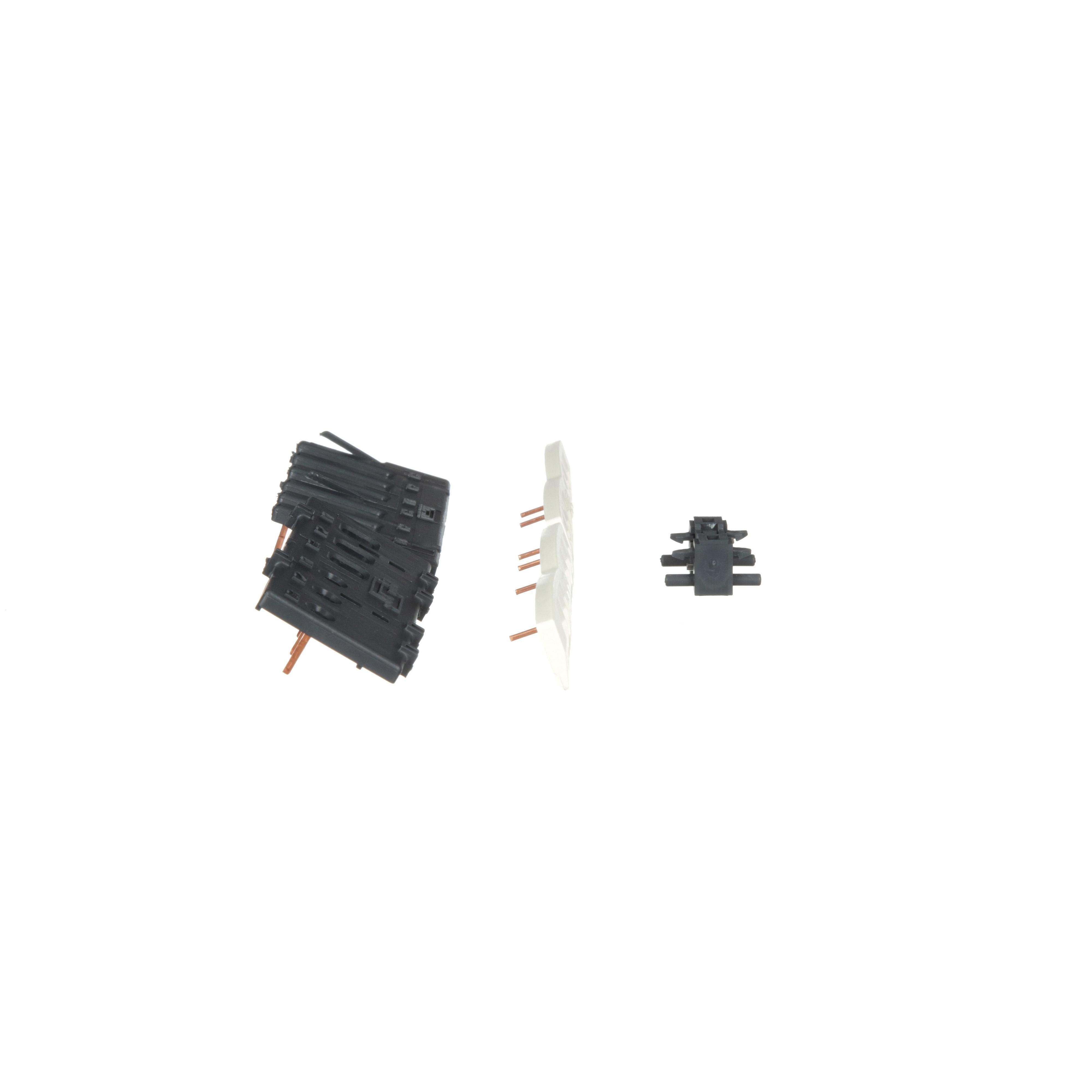

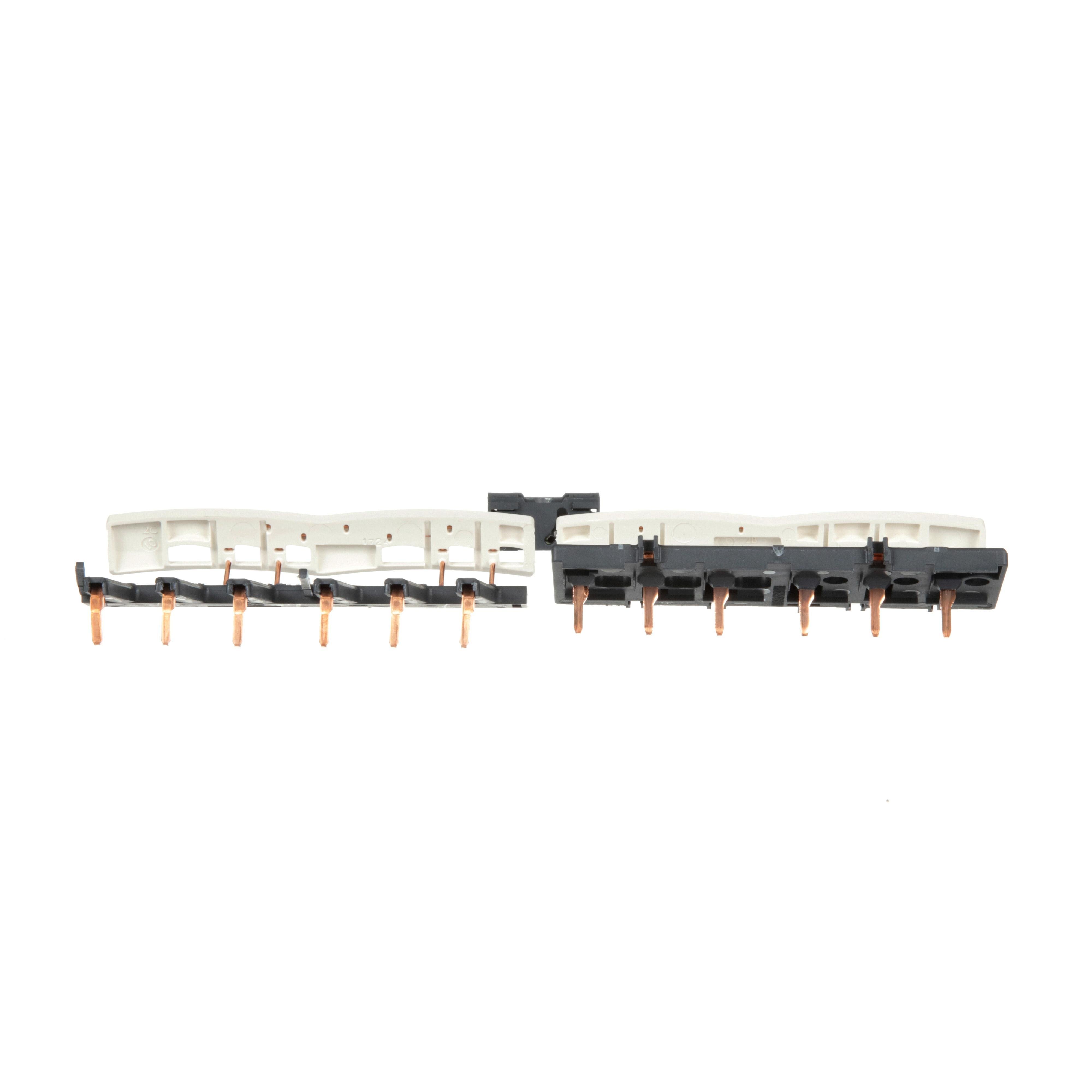

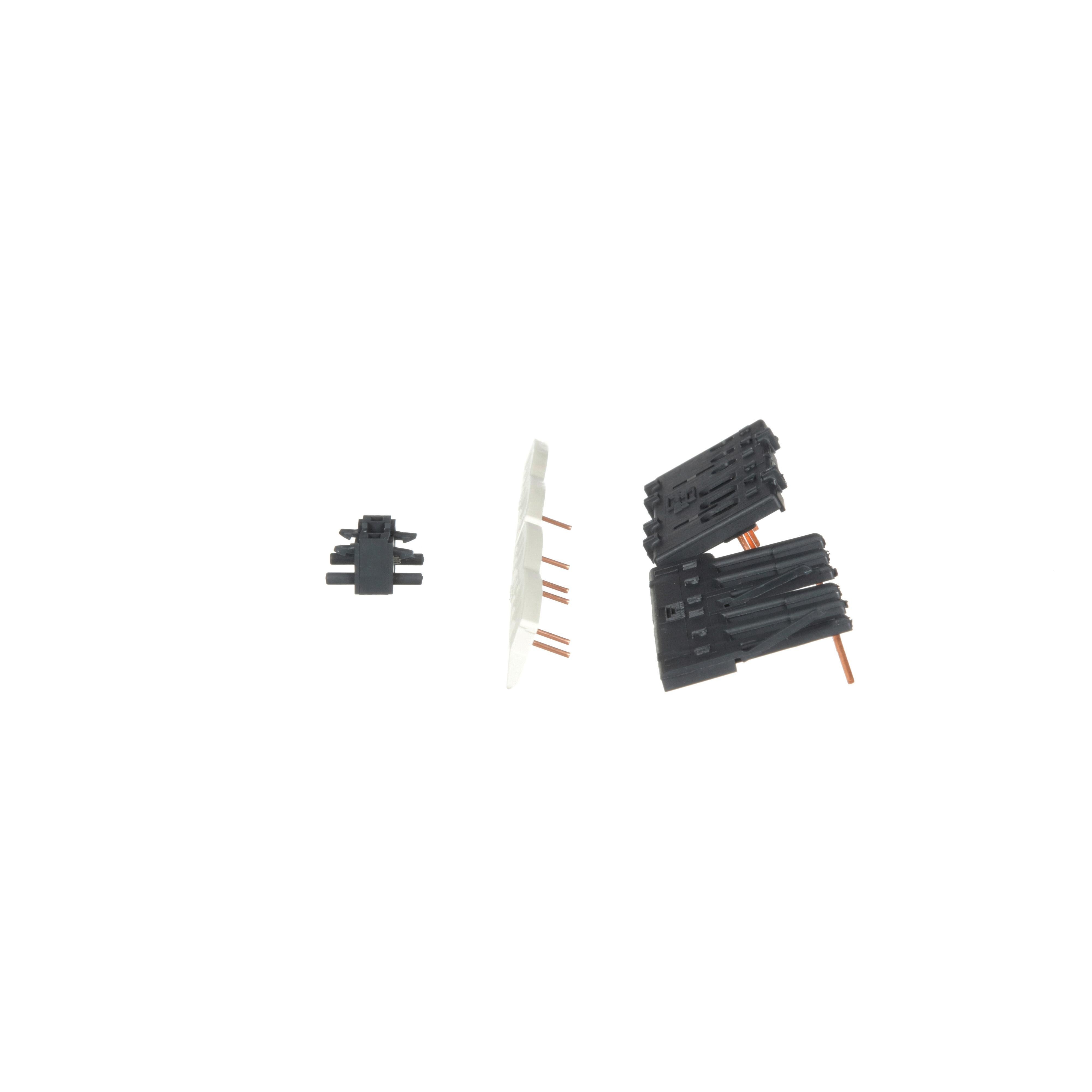

Picture of LAD9R1V - Tesys D, reversing mechanical interlock kit, with electrical interlocking, for LC1D09 to LC1D38
Square D

LAD9R1V - Tesys D, reversing mechanical interlock kit, with electrical interlocking, for LC1D09 to LC1D38

Item Code: 544915
Category Contactor Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAD9R1V

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

TeSys D kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

Specifications

Weight

0.15lb

Height

0.8mm

Width

0.97mm

Length

3.63mm

Brand

Schneider Electric

Category

Contactor Accessories

Dimensions

6 in L x 4 in W x 4 in H

Number Of Poles

3

Specifications

Screw Clamp Connection, -5 to 55 deg C Operating

Suitable For Use With

LC1D09 to LC1D38 Contactor

Type

Mechanical Reversing

Square D
