Schneider Electric

LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

Category Contactor Accessories

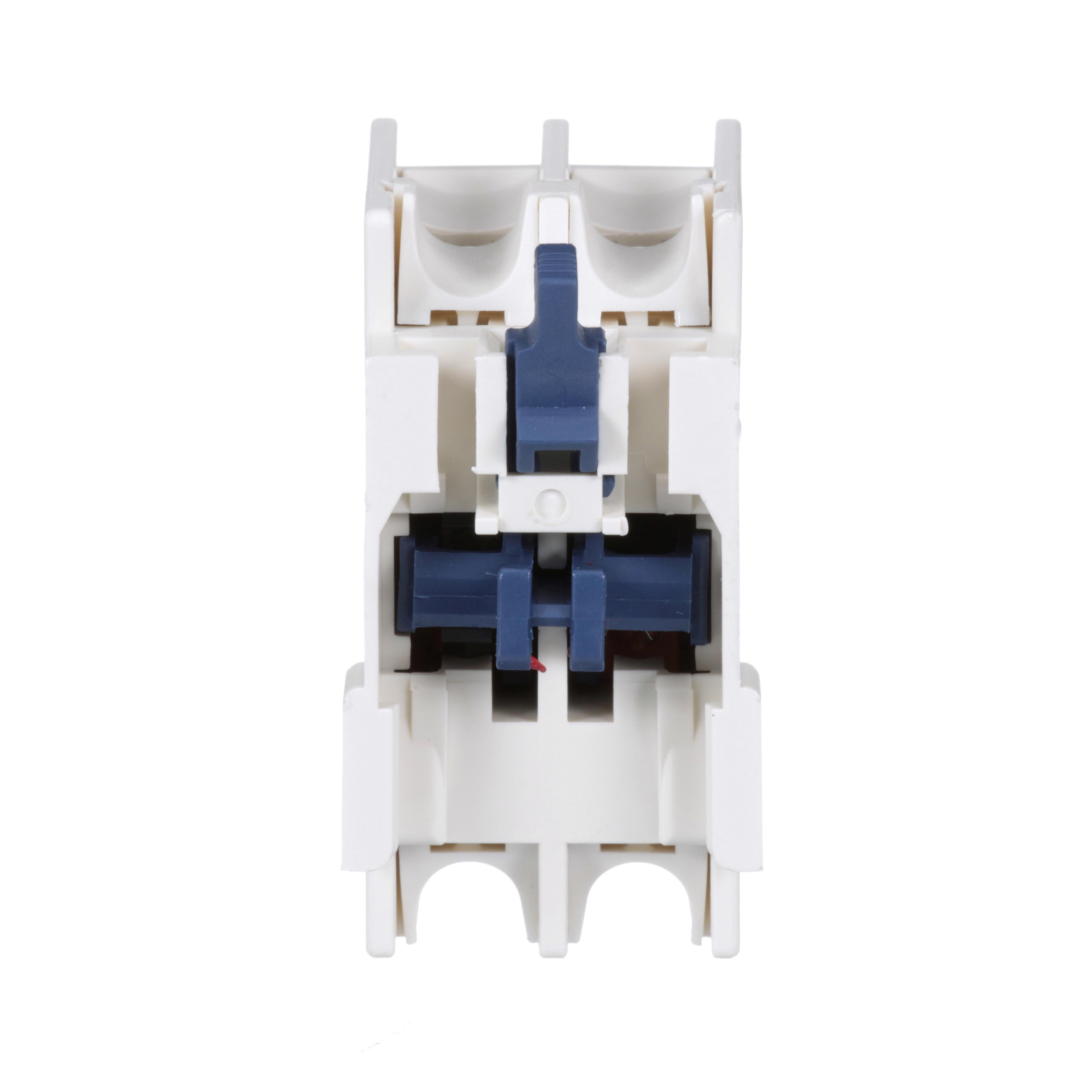

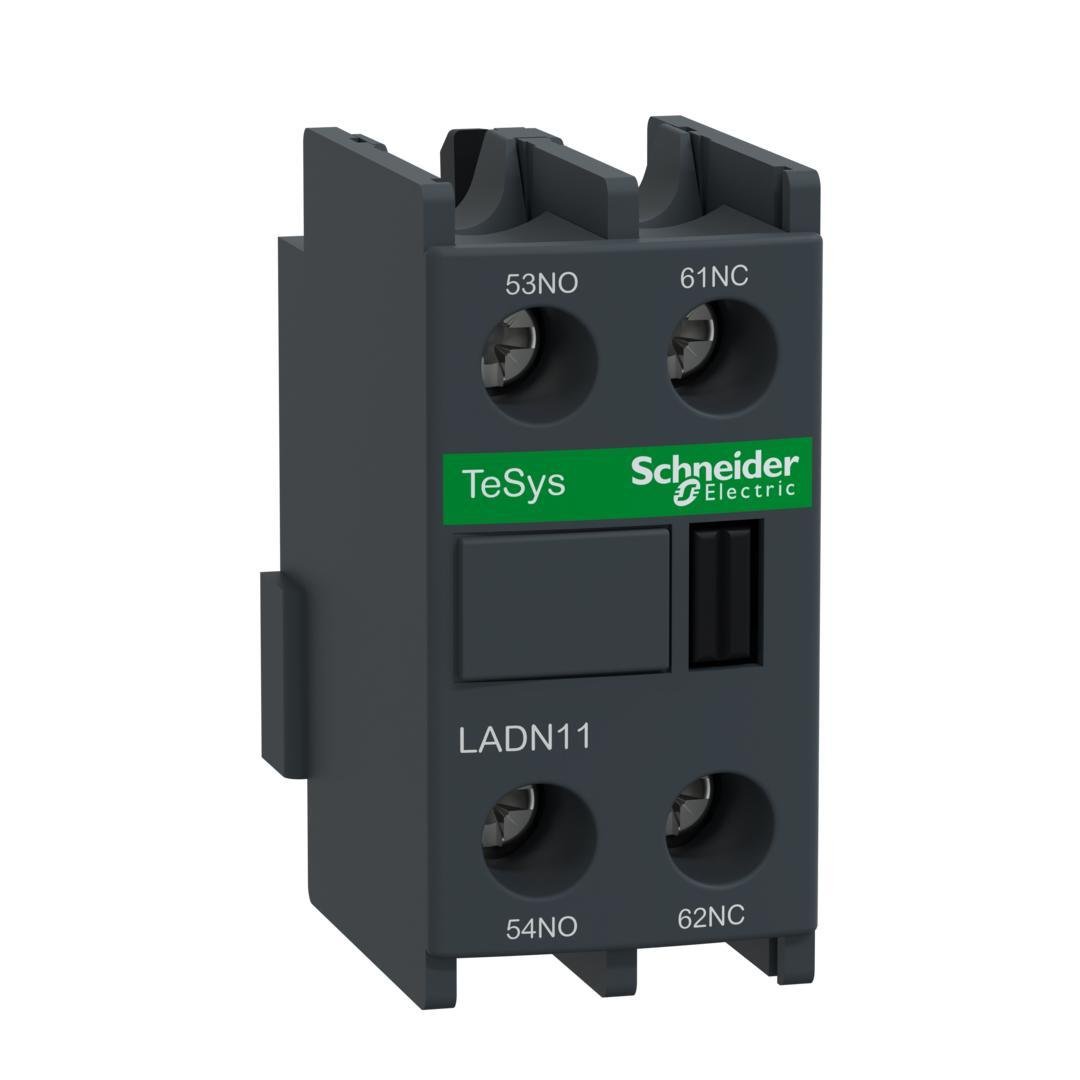

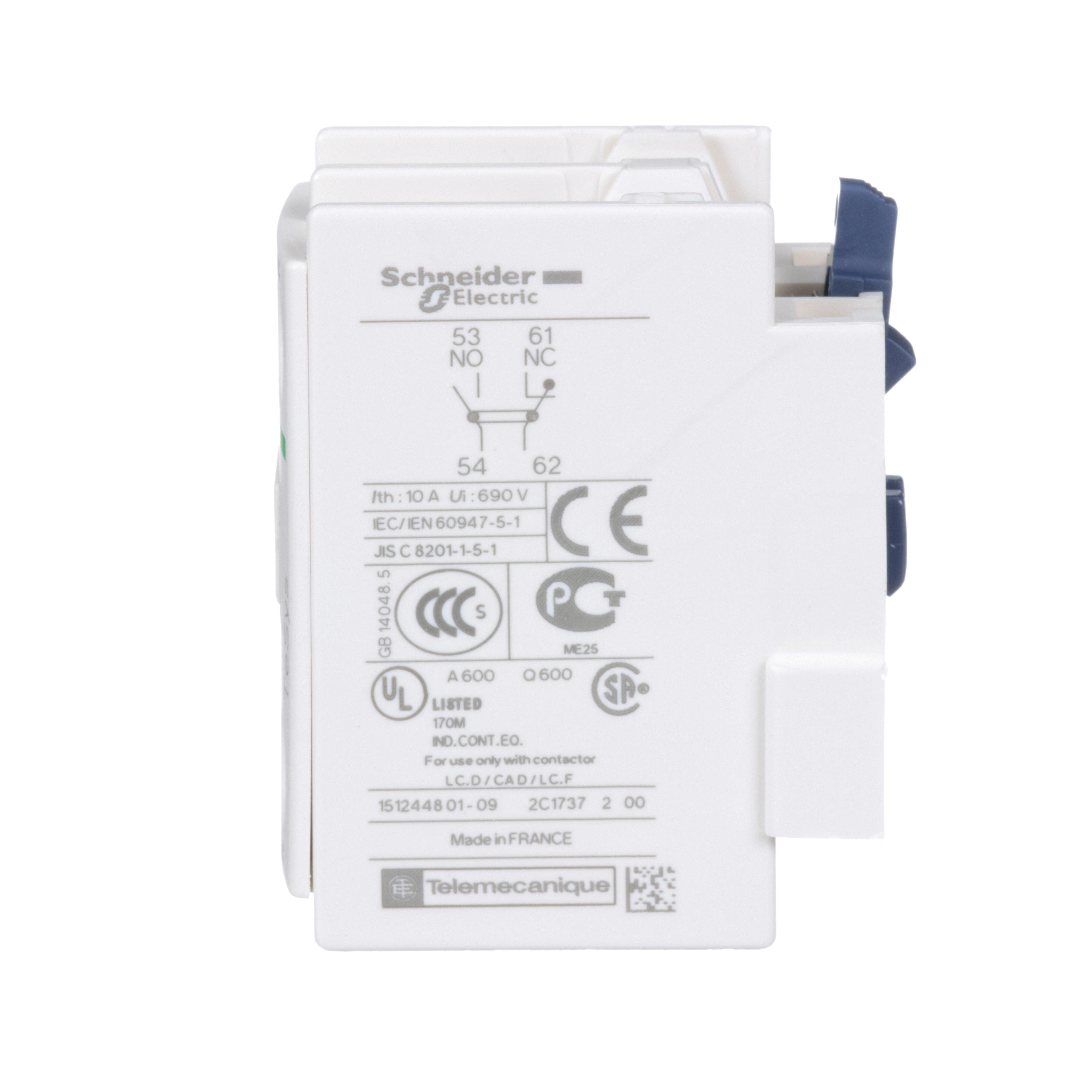

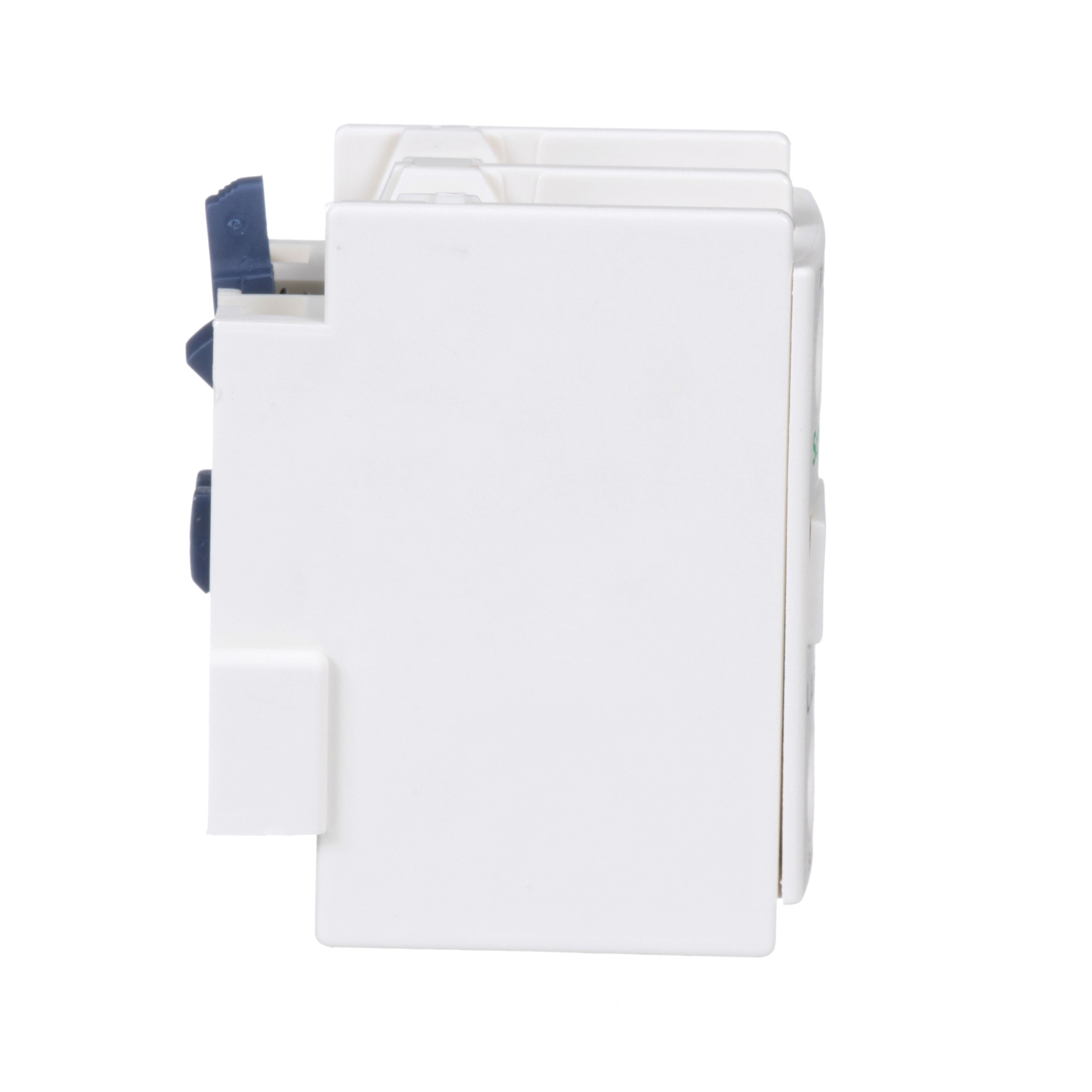

Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Schneider Electric

LADN11 - TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

Item Code: 18270
Category Contactor Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LADN11

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Specifications

Weight

0.07lb

Height

2mm

Width

1.64mm

Length

2.07mm

Depth

42mm

AD All Features

New modern look and feel of all machines

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

BLOCK CONT AUX 690VAC 10A 2 25/400HZ

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

2.0700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.5200

AD Package Volume UOM

cu-in

AD Package Weight

0.0700

AD Package Weight UOM

LB

AD Package Width

1.6400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/vlEODblcQoo

Brand

Schneider Electric

Category

Contactor Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Suitable For Use With

Spec 10 Attribute Value

TeSys D™ CR1F Contactor

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

690

Spec 2 Attribute

Contact Resistance

Spec 2 Attribute UOM

mOhm

Spec 2 Attribute Value

>10

Spec 3 Attribute

Environmental Conditions

Spec 3 Attribute Value

-60 to 80 deg C Storage Temperature

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

25 to 400

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Front Clip-On

Spec 6 Attribute

Number of Contacts

Spec 6 Attribute Value

2

Spec 7 Attribute

Operating Cycles

Spec 7 Attribute UOM

Cycles

Spec 7 Attribute Value

30000000

Spec 8 Attribute

Operating Temperature

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-5 To 60

Spec 9 Attribute

Series

Spec 9 Attribute Value

LAD
