LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

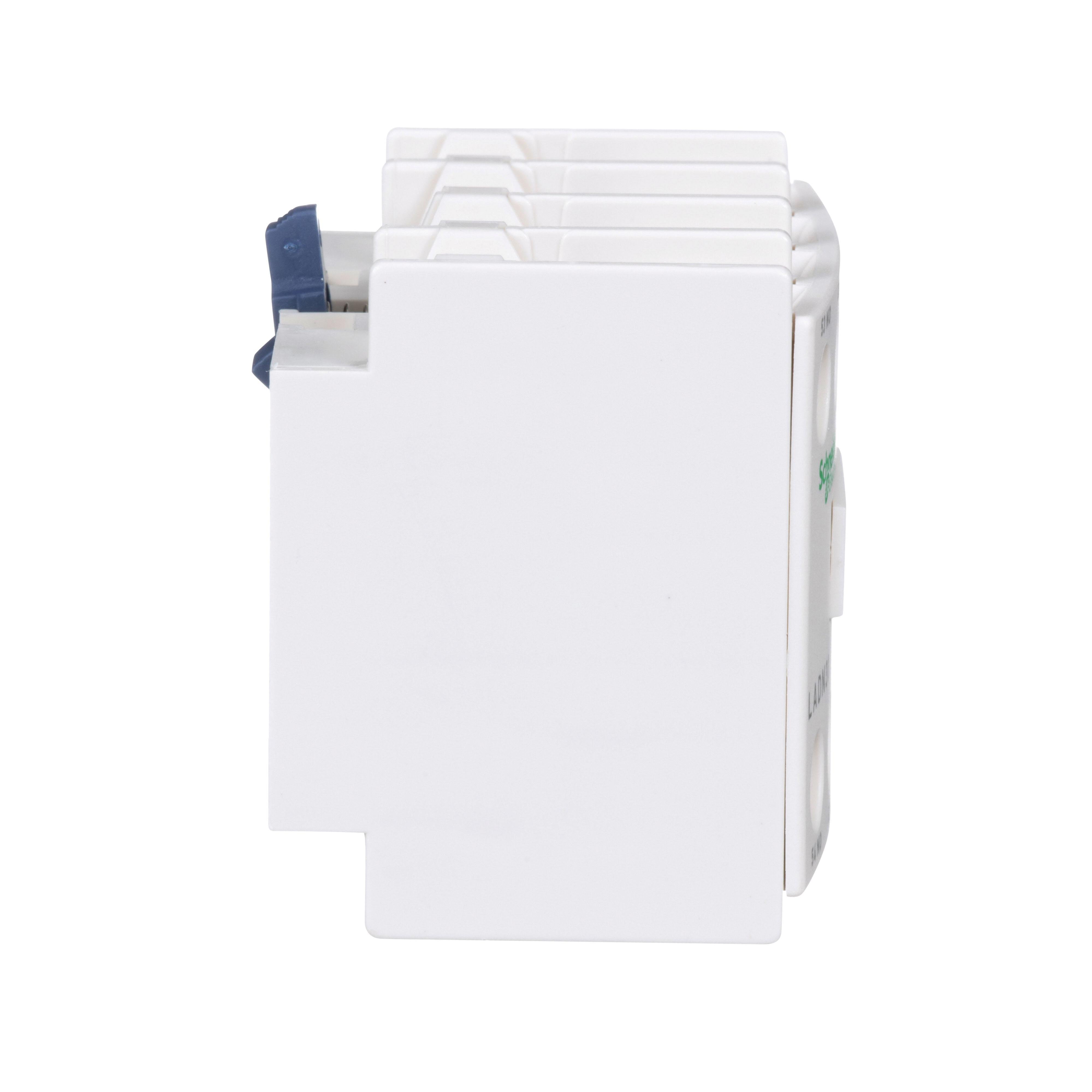

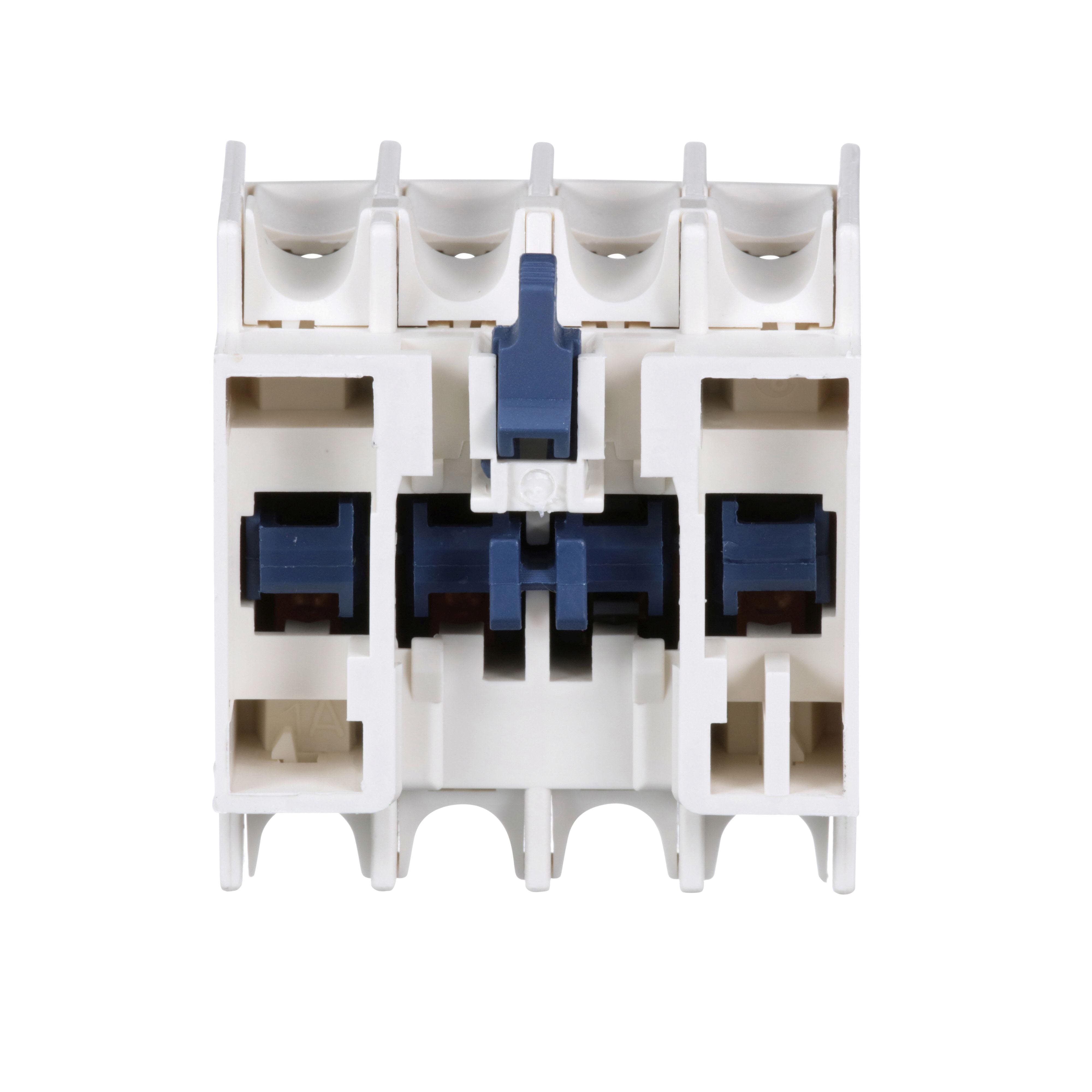

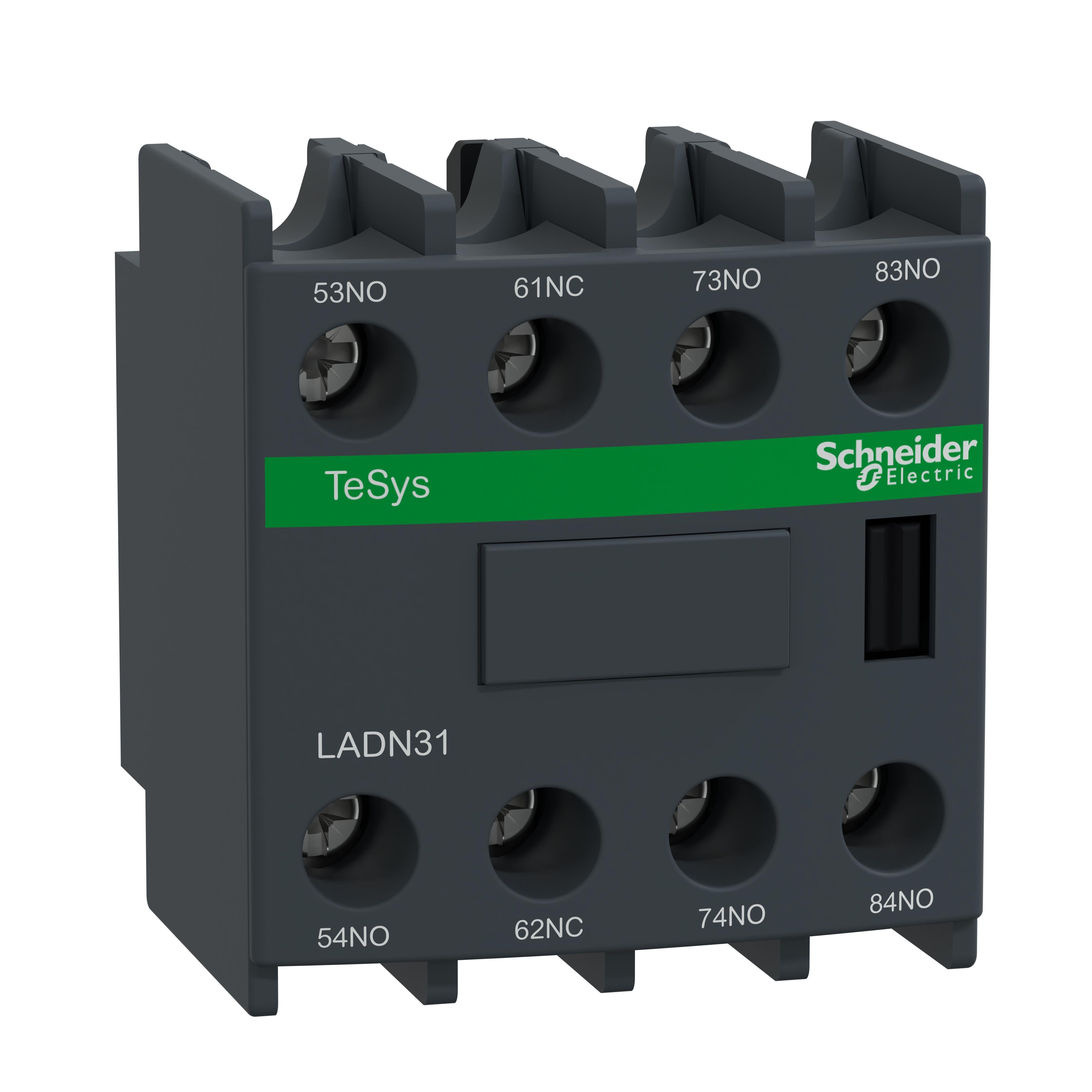

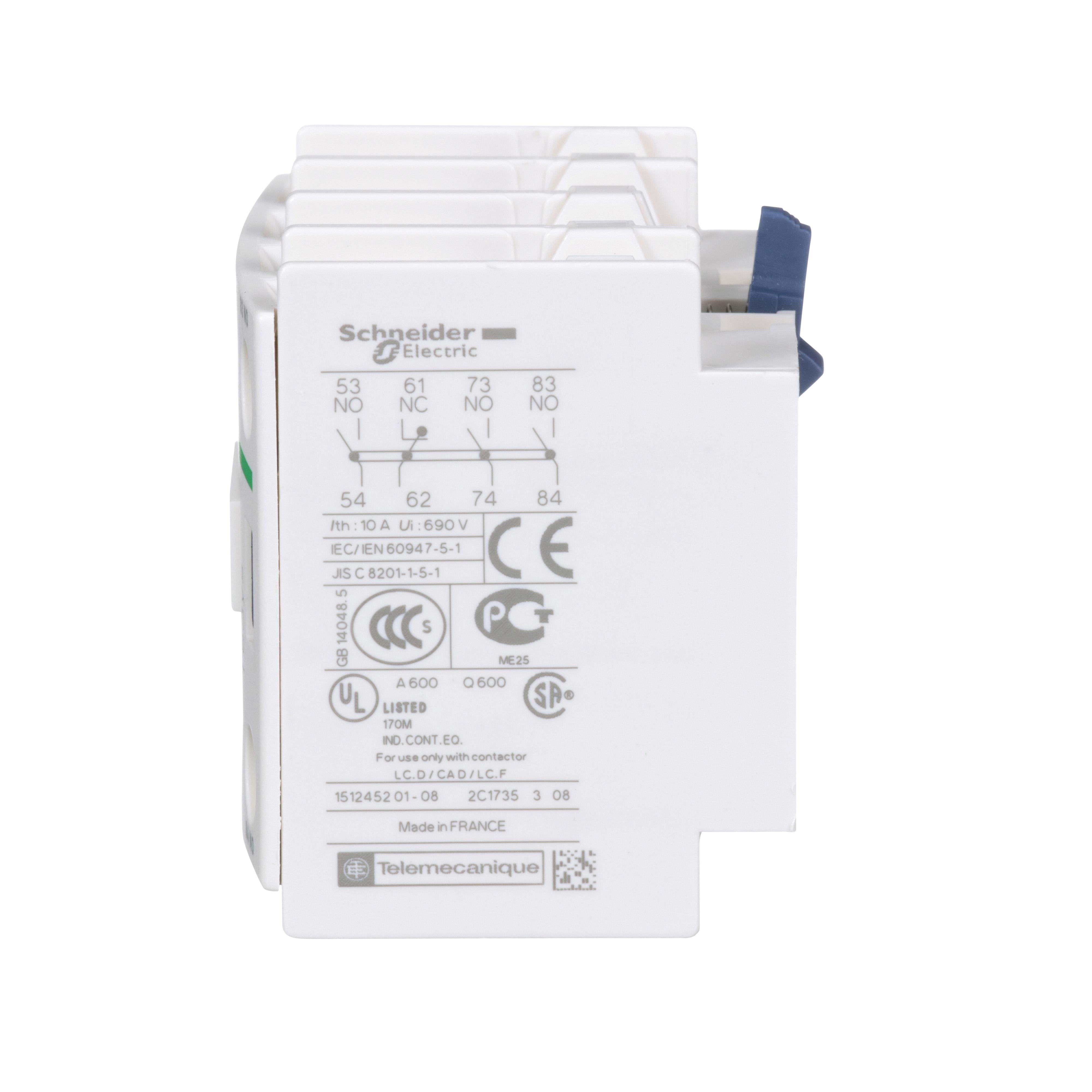

Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors Picture of LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

LADN31 - TeSys Deca, auxiliary contact block, 3 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

Item Code: 1525479
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LADN31
Call for Availability
Compare

Description

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Specifications

Weight

0.14lb

Height

2mm

Width

1.64mm

Length

1.95mm

Depth

42mm

Amperage Rating

10 A

Brand

Square D

Category

Contactor Accessories

Contact Resistance

>10 MOhm

Environmental Conditions

-60 to 80 deg C Storage Temperature

Frequency Rating

25 to 400 Hz

Mounting Type

Front Clip-On

Number Of Contacts

4

Operating Cycles

30000000 Cycles

Operating Temperature

23 to 140 deg f

Series

LAD

Suitable For Use With

TeSys D™ CR1F, LC1F Contactor, Control Relay and Reversing Contactor

Type

Instantaneous

Voltage Rating

690 V AC
