Schneider Electric

LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals

Category Contactor Accessories

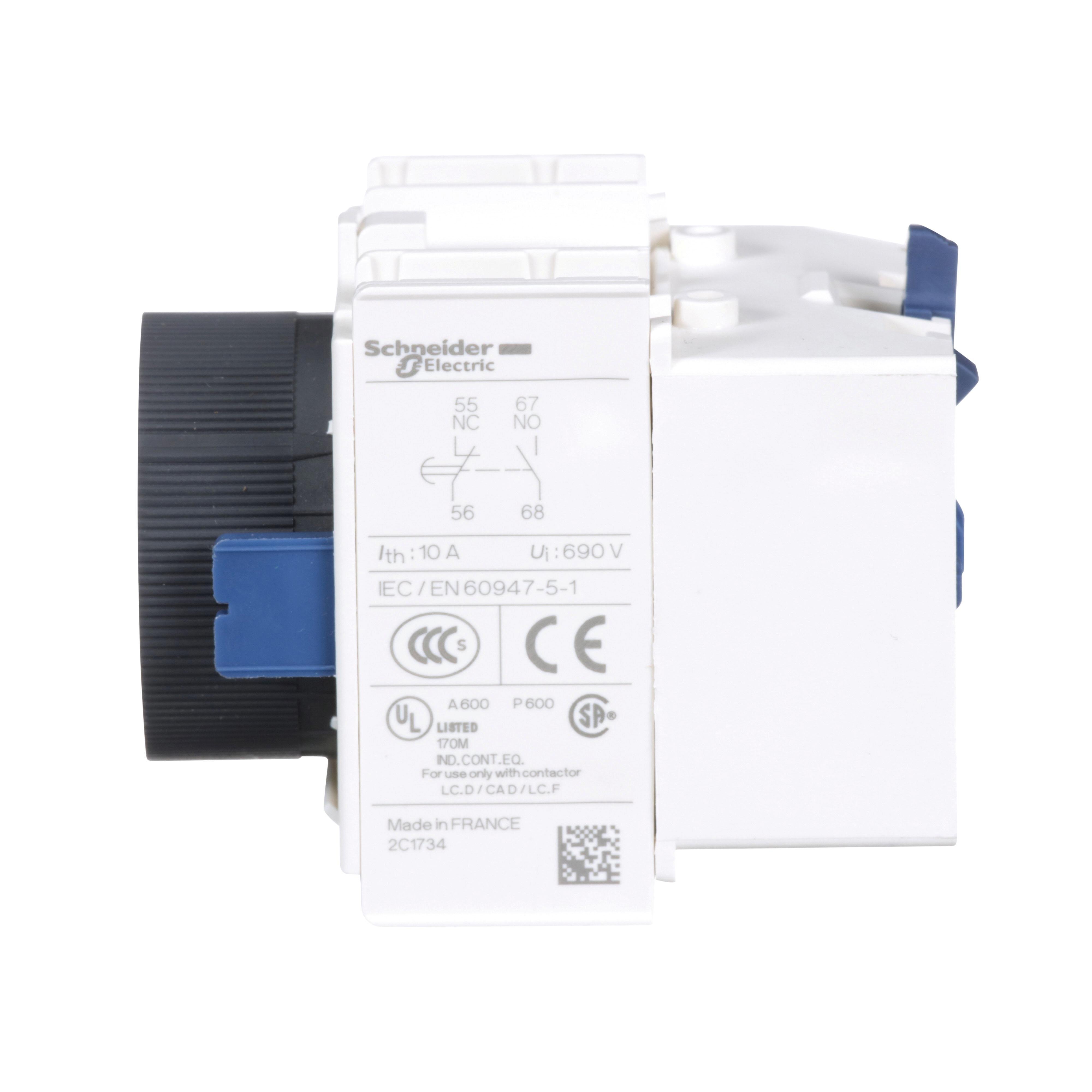

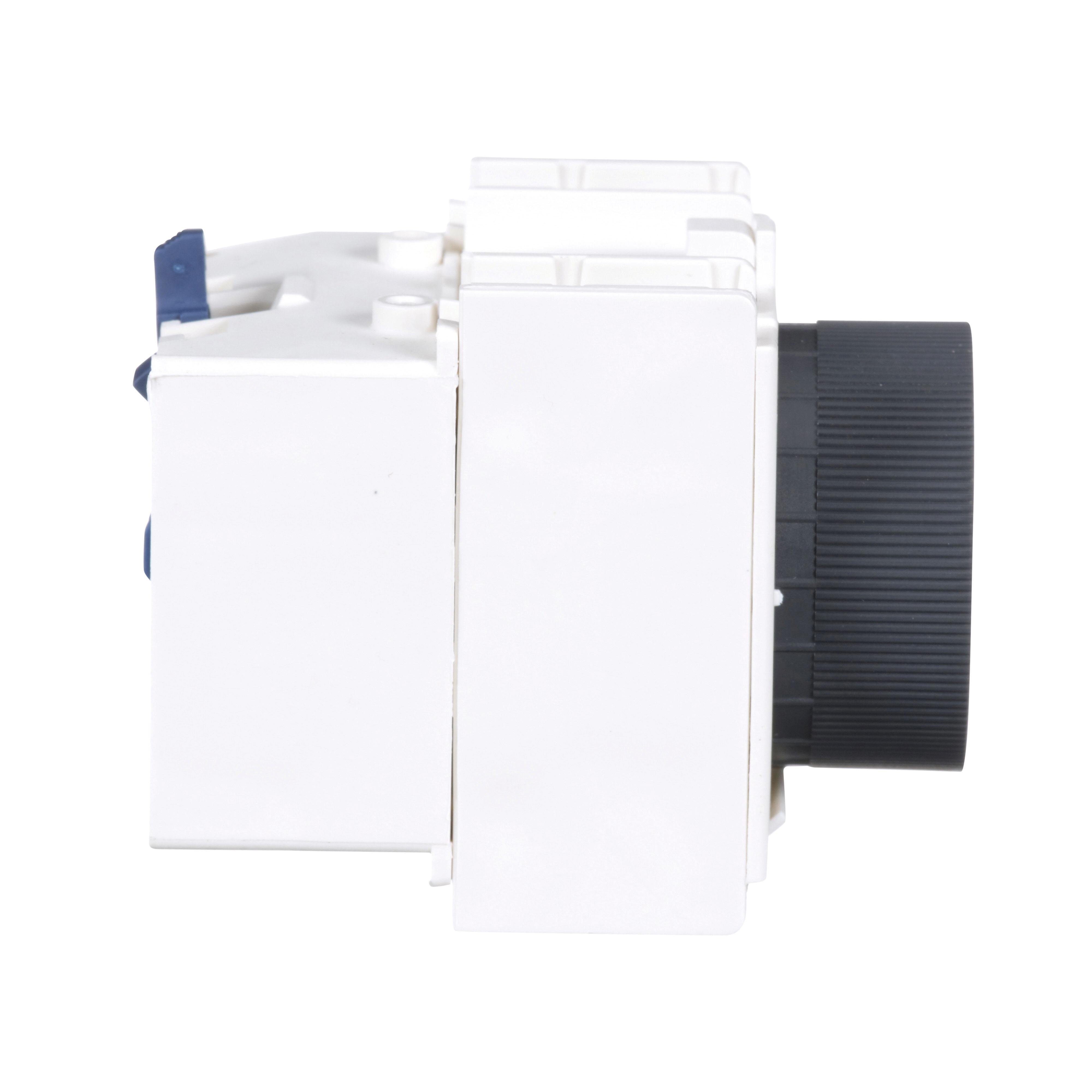

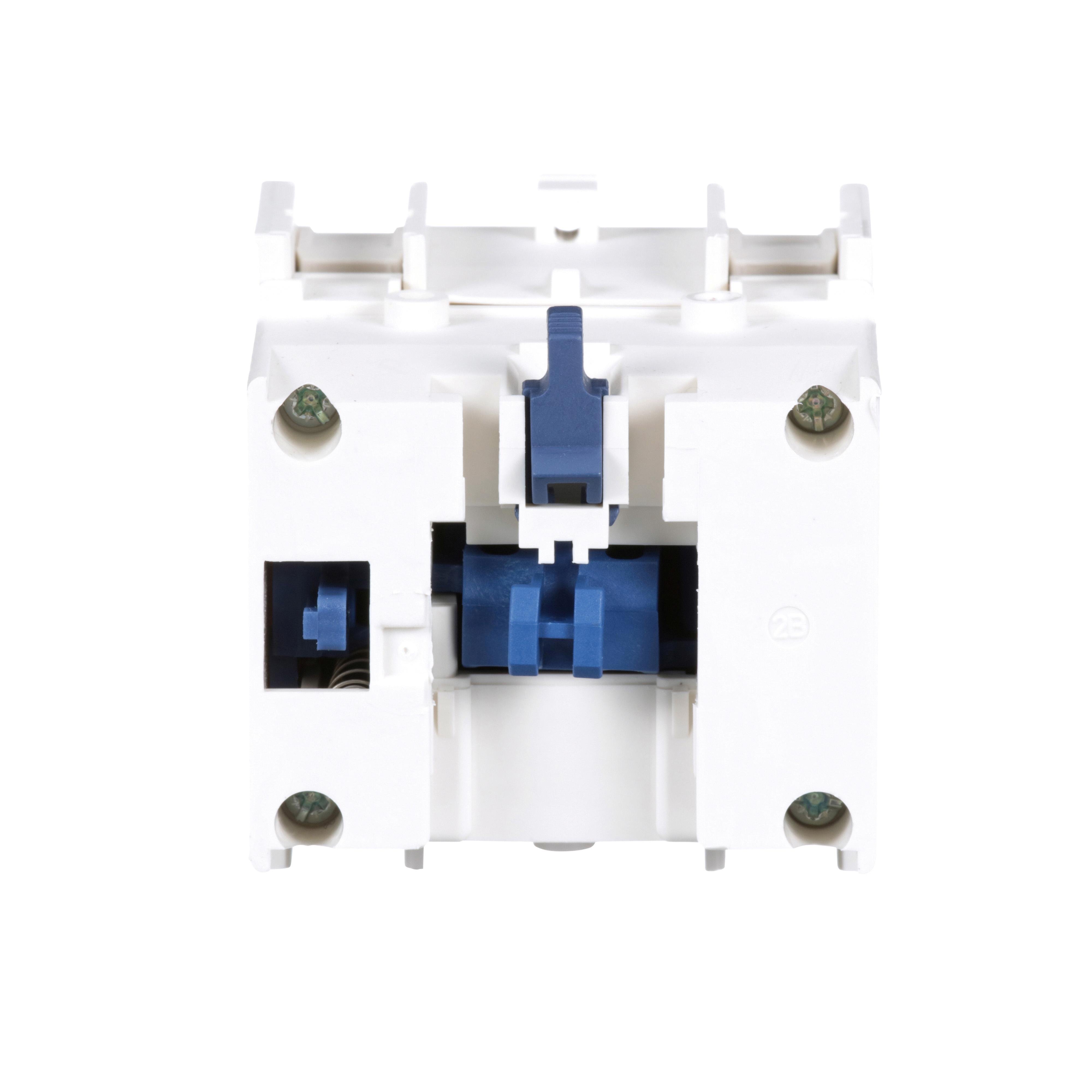

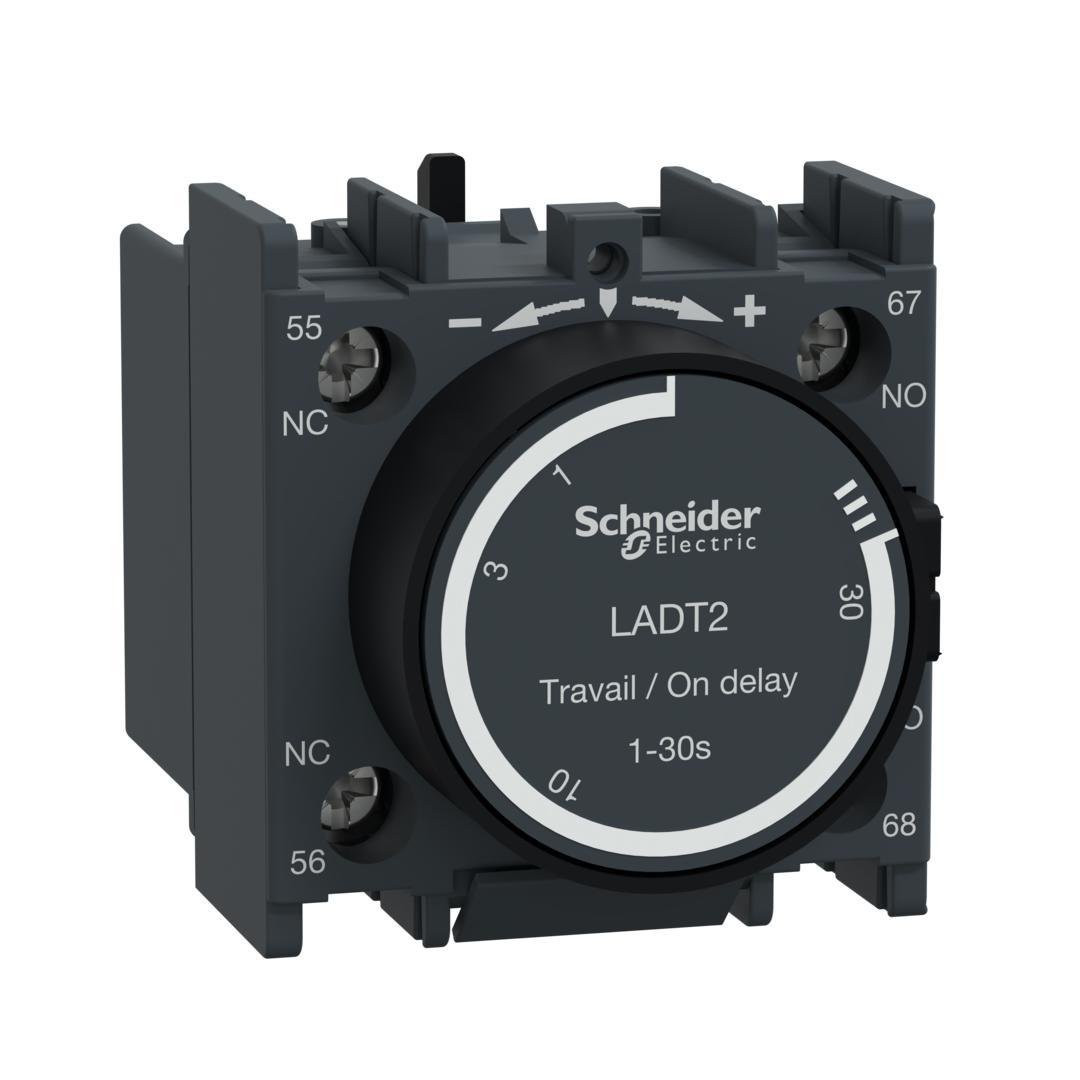

Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals
Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals
Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals
Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals
Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals Picture of LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals
Schneider Electric

LADT2 - TeSys Deca, pneumatic time delay attachment, on delay, 0.1 to 30 sec, 1 NO and 1 NC, screw clamp terminals

Item Code: 32955
Category Contactor Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LADT2

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. The one NO and one NC contacts can be used in the control circuit. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Specifications

Weight

0.16lb

Height

1.9mm

Width

2.54mm

Length

1.95mm

Depth

61mm

AD All Features

New modern look and feel of all machines

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BLOCK CONT AUX 690VAC 10A 2 25/400HZ

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

1.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

10.3700

AD Package Volume UOM

cu-in

AD Package Weight

0.1600

AD Package Weight UOM

LB

AD Package Width

2.5400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kW01lFljKgE

Brand

Schneider Electric

Category

Contactor Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Suitable For Use With

Spec 10 Attribute Value

TeSys D™ LC1F Contactor, Control Relay and Reversing Contactor

Spec 11 Attribute

Type

Spec 11 Attribute Value

ON-Time Delay

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

690

Spec 2 Attribute

Contact Resistance

Spec 2 Attribute UOM

mOhm

Spec 2 Attribute Value

>10

Spec 3 Attribute

Environmental Conditions

Spec 3 Attribute Value

-60 to 80 deg C Storage Temperature

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

25 to 400

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Front Clip-On

Spec 6 Attribute

Number of Contacts

Spec 6 Attribute Value

2

Spec 7 Attribute

Operating Cycles

Spec 7 Attribute UOM

Cycles

Spec 7 Attribute Value

50000000

Spec 8 Attribute

Operating Temperature

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

23 to 140

Spec 9 Attribute

Series

Spec 9 Attribute Value

LAD
