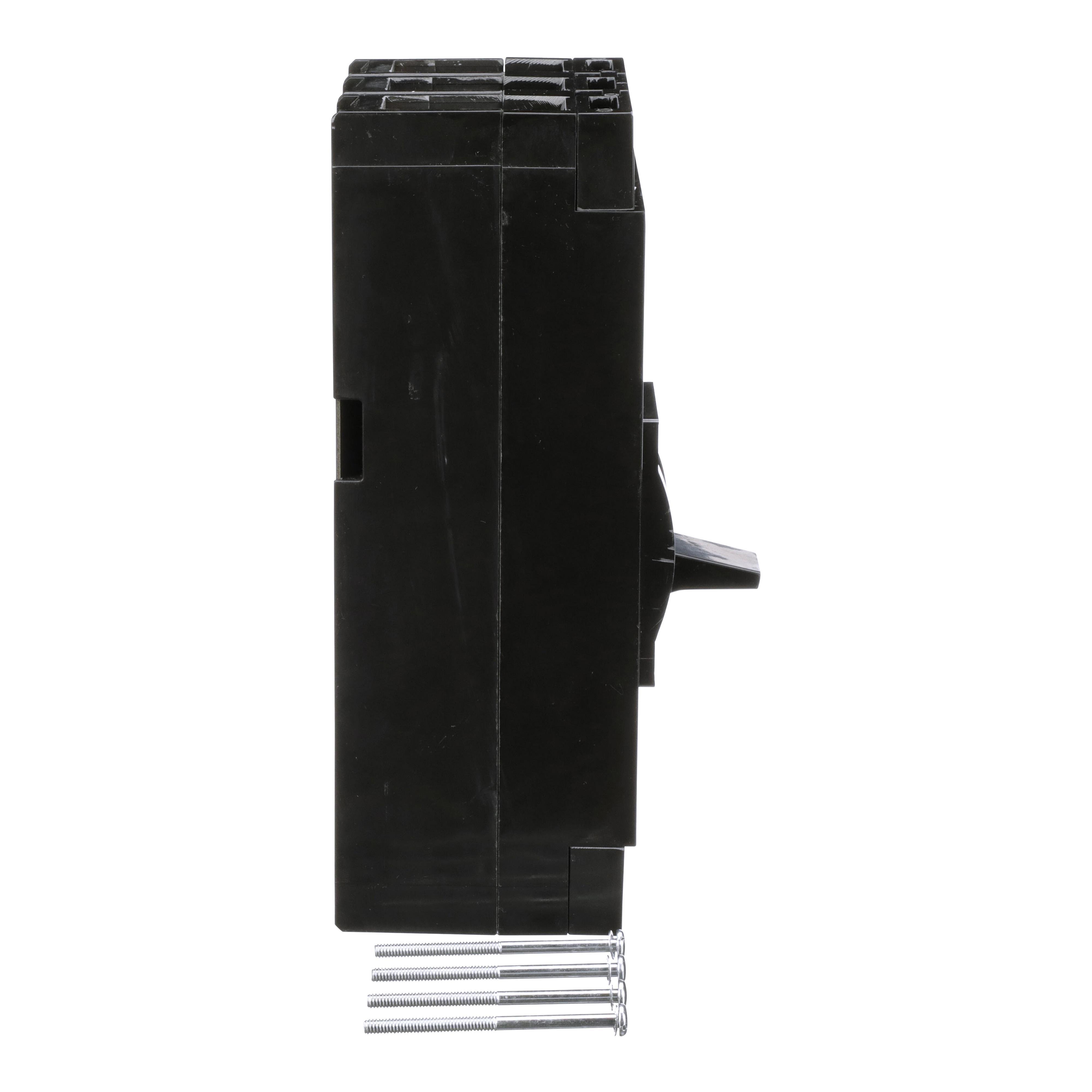

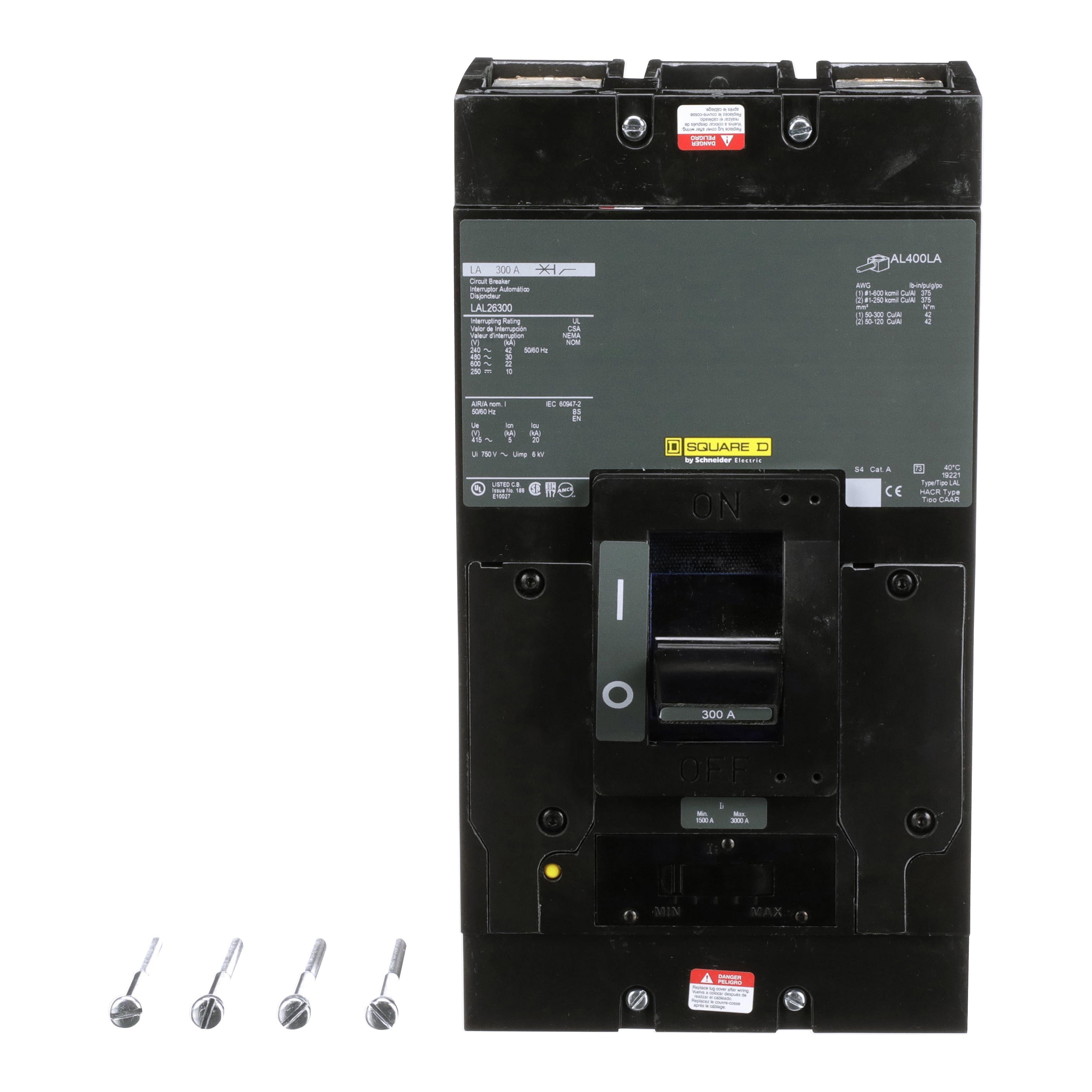

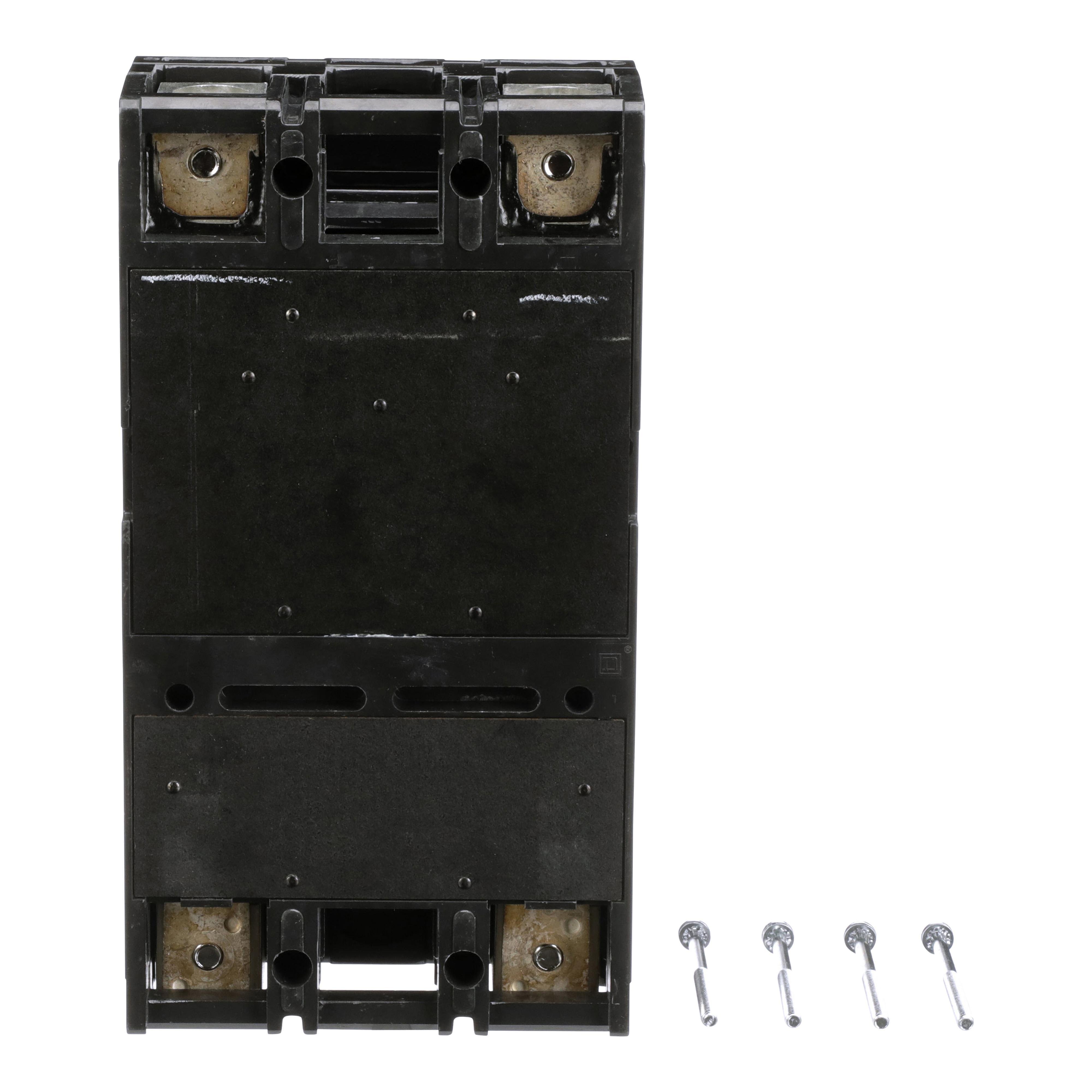

Picture of LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Item Code: 566031

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref LAL26300

Document
Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 300A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.

Specifications

Weight

14.39

Height

11.5

Width

11.39

Length

17.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LAL26300/LAL26300.spin

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Alternative Part Number

8046098

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901426448

AD Gtin

00785901426448

AD IDEA Index ID

8046098

AD Invoice Description

BREAKER CKT CASE MLD 600 VAC/250 VDC 2 L

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.5000

AD Package Height UOM

AD Package Length

17.3600

AD Package Length UOM

AD Package Quantity

AD Package Volume

1811.2500

AD Package Volume UOM

cu-in

AD Package Weight

14.3900

AD Package Weight UOM

AD Package Width

11.3900

AD Package Width UOM

AD Part Number Keywords

LAL26300 ; 8046098 ; 785901426448 ; 78590142644 ; 00785901426448 ; 0785901426448

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle Handle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

Spec 12 Attribute Value

1500/3000

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Standard

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute Value

600 V AC/250 V DC

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

(1) 1 AWG to (1) 600 kcmil, (2) 250 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

300

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.84 in L x 6 in W x 5.8 in D x 11 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Item Code: 566031

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref LAL26300

Document
Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Specifications

Weight

14.39

Height

11.5

Width

11.39

Length

17.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LAL26300/LAL26300.spin

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Alternative Part Number

8046098

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901426448

AD Gtin

00785901426448

AD IDEA Index ID

8046098

AD Invoice Description

BREAKER CKT CASE MLD 600 VAC/250 VDC 2 L

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.5000

AD Package Height UOM

AD Package Length

17.3600

AD Package Length UOM

AD Package Quantity

AD Package Volume

1811.2500

AD Package Volume UOM

cu-in

AD Package Weight

14.3900

AD Package Weight UOM

AD Package Width

11.3900

AD Package Width UOM

AD Part Number Keywords

LAL26300 ; 8046098 ; 785901426448 ; 78590142644 ; 00785901426448 ; 0785901426448

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle Handle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

Spec 12 Attribute Value

1500/3000

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Standard

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute Value

600 V AC/250 V DC

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

(1) 1 AWG to (1) 600 kcmil, (2) 250 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

300

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.84 in L x 6 in W x 5.8 in D x 11 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Description

Specifications

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

LAL26300 - Circuit breaker, LA, 300A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Description

Specifications
