Square D

LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle

Category Thermal Magnetic Trip Molded Case Circuit Breakers

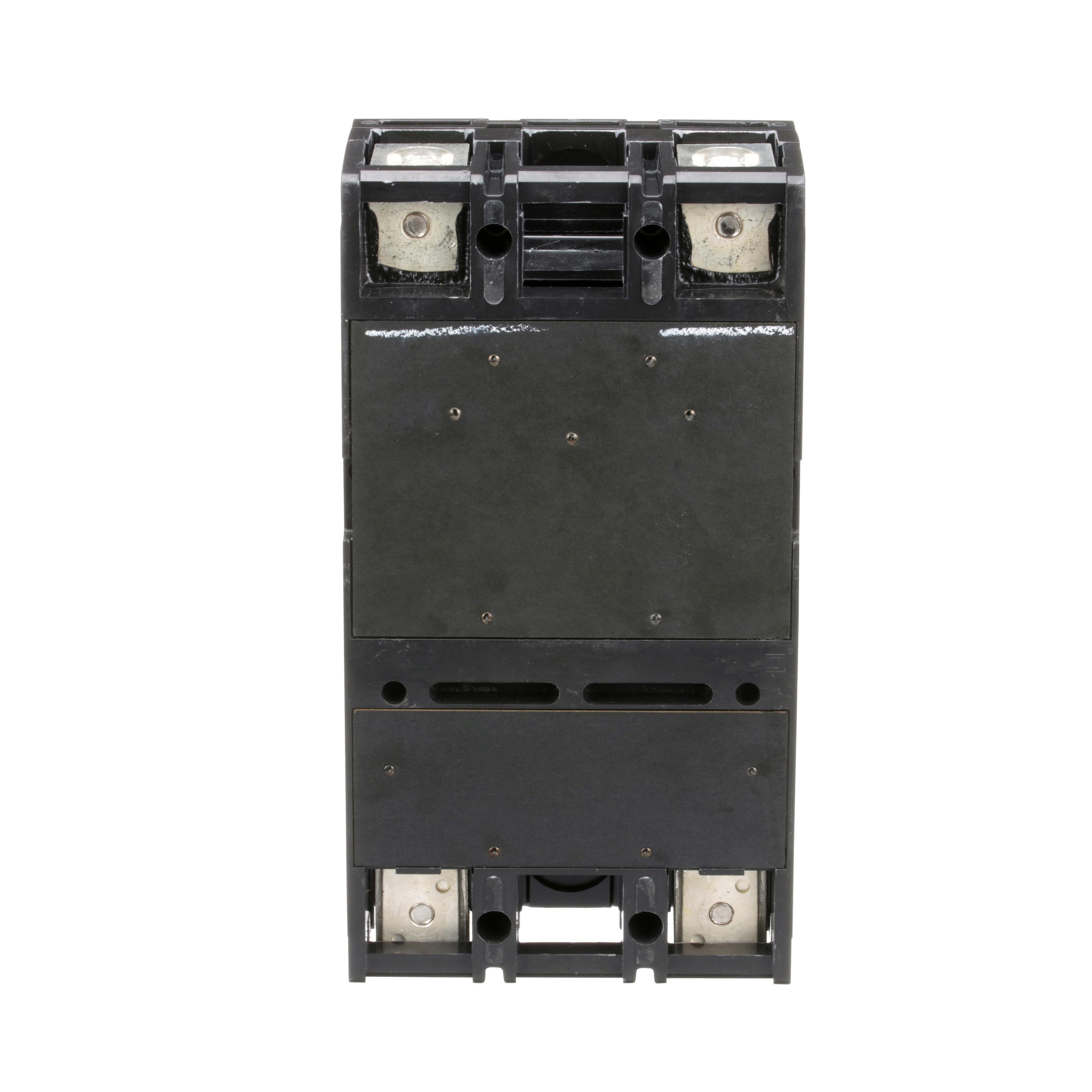

Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle
Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle
Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle Picture of LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle
Square D

LAL26400MB - Circuit breaker, LA, 400A, 2 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle

Item Code: 711253
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAL26400MB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 400A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a shorter handle so that a panel door can close. LA breakers are UL 489, CSA, IEC certified.

Specifications

Weight

14.52lb

Height

11mm

Width

11.58mm

Length

17.12mm

Depth

5.84mm

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 2 L

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

17.1200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.5200

AD Package Weight UOM

LB

AD Package Width

11.5800

AD Package Width UOM

IN

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Short Lever

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type LAL

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

1 AWG to 600 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.84 in L x 6 in W x 11 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Trip Range

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

400/2000/4000
