Square D

LAL36250MB - Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle

Category Thermal Magnetic Trip Molded Case Circuit Breakers

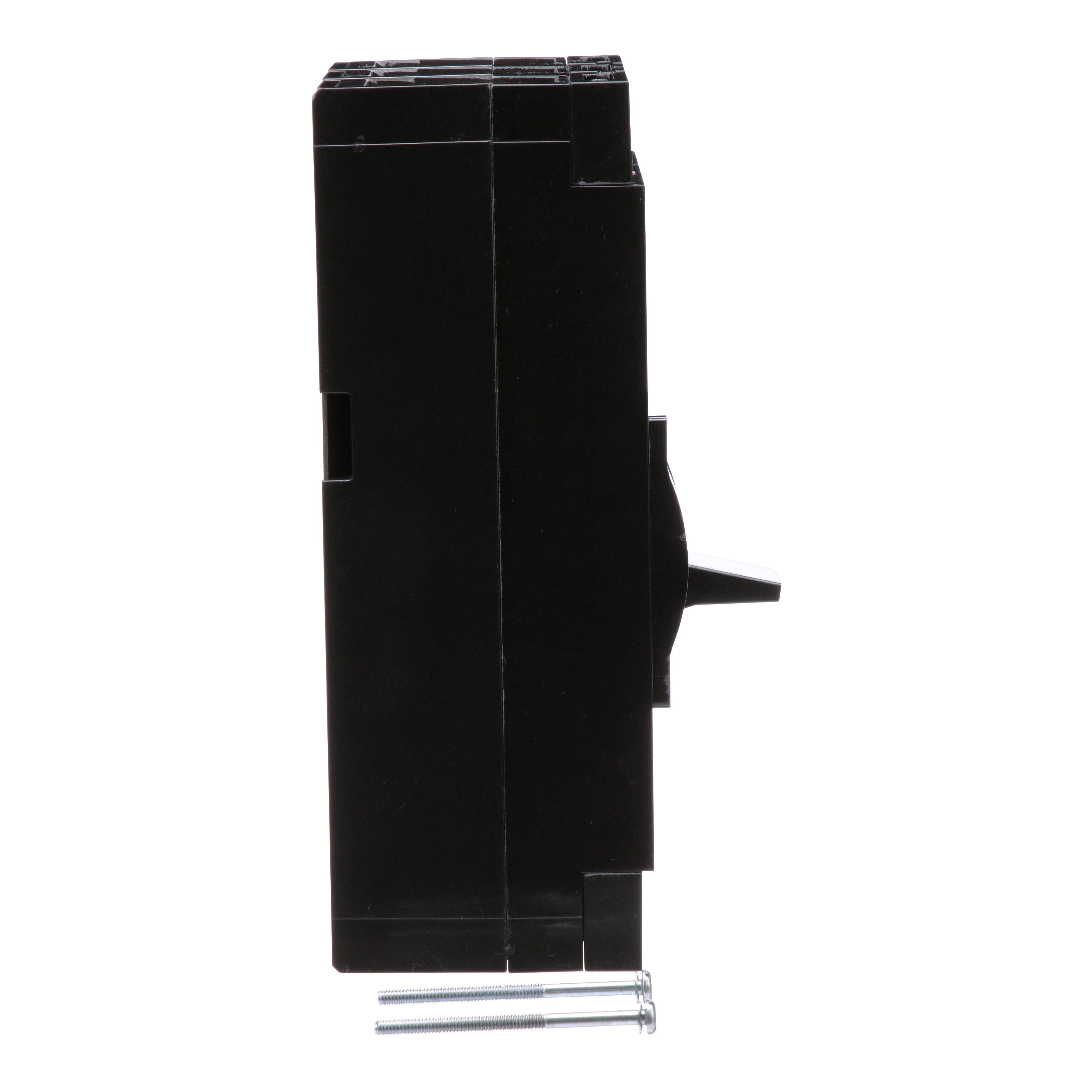

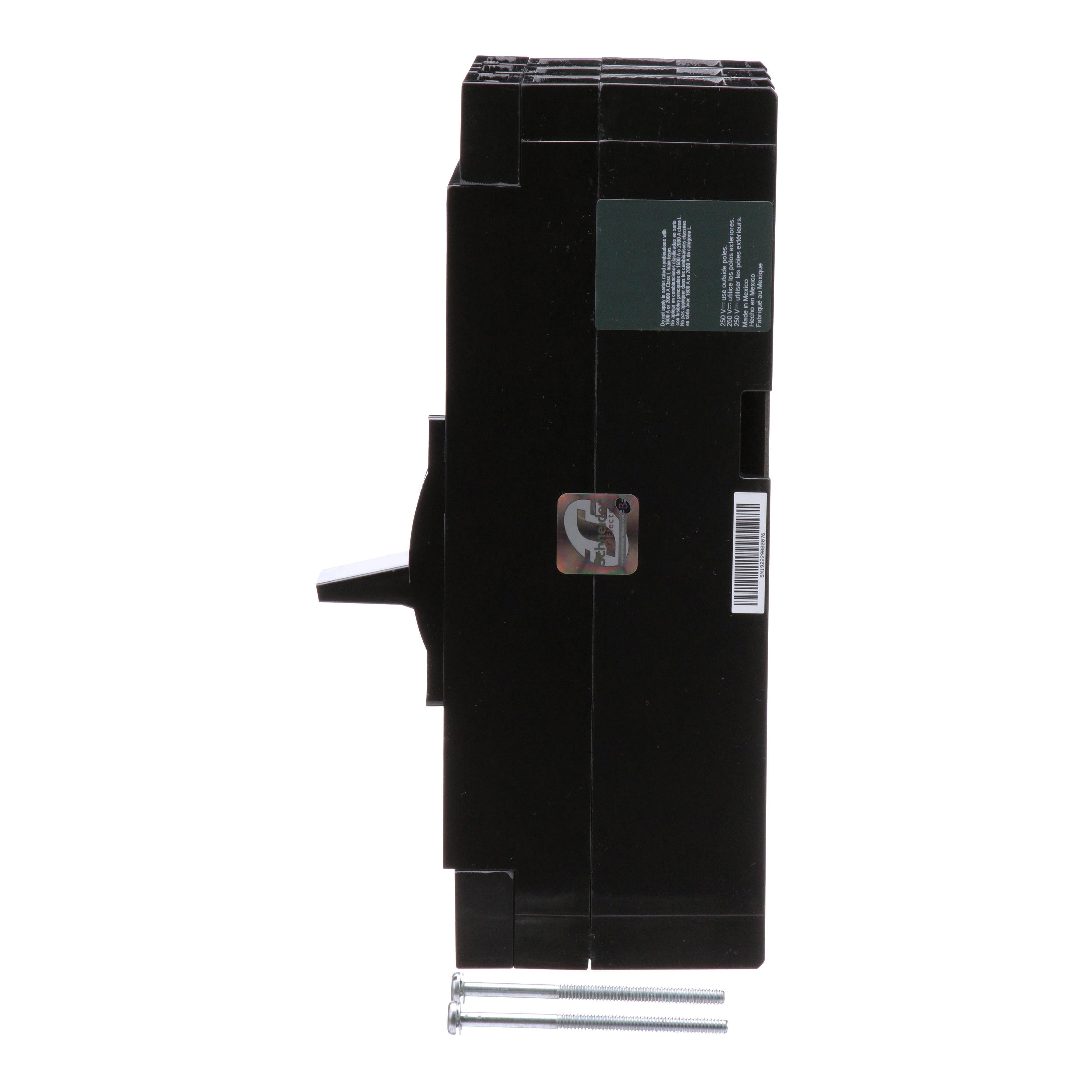

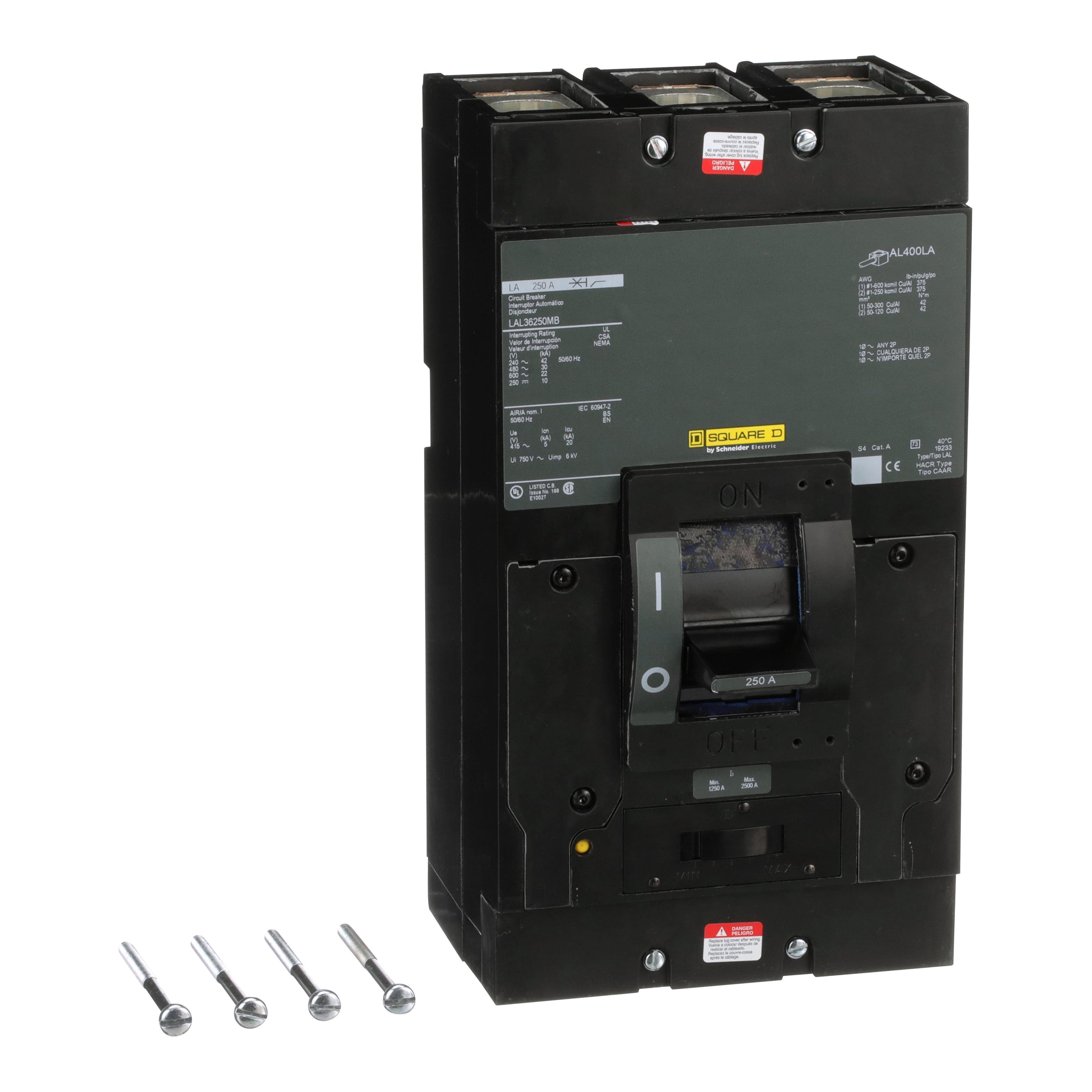

Picture of LAL36250MB - Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle
Square D

LAL36250MB - Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, short handle

Item Code: 737617
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAL36250MB

Full Engineering Drawing
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 250A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a shorter handle so that a panel door can close. LA breakers are UL 489, CSA, IEC certified.

Specifications

Weight

16.21lb

Height

11mm

Width

11.58mm

Length

17.12mm

Depth

5.84mm

Actuator Type

Short Lever

Amperage Rating

250 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Line/Load Lug

Dimensions

5.84 in L x 6 in W x 11 in H

Frame

L

Frequency Rating

50/60 Hz

Interrupt Rating

250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC

Number Of Poles

3

Phase

3

Temperature Rating

-13 to 158 deg f

Trip Range

250/1250/2500 A

Trip Type

Thermal Magnetic

Type

Type LAL

Voltage Rating

600 V AC/250 V DC

Wire Size

(1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Aluminum/Copper
