LAL36300 - Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Category Miscellaneous

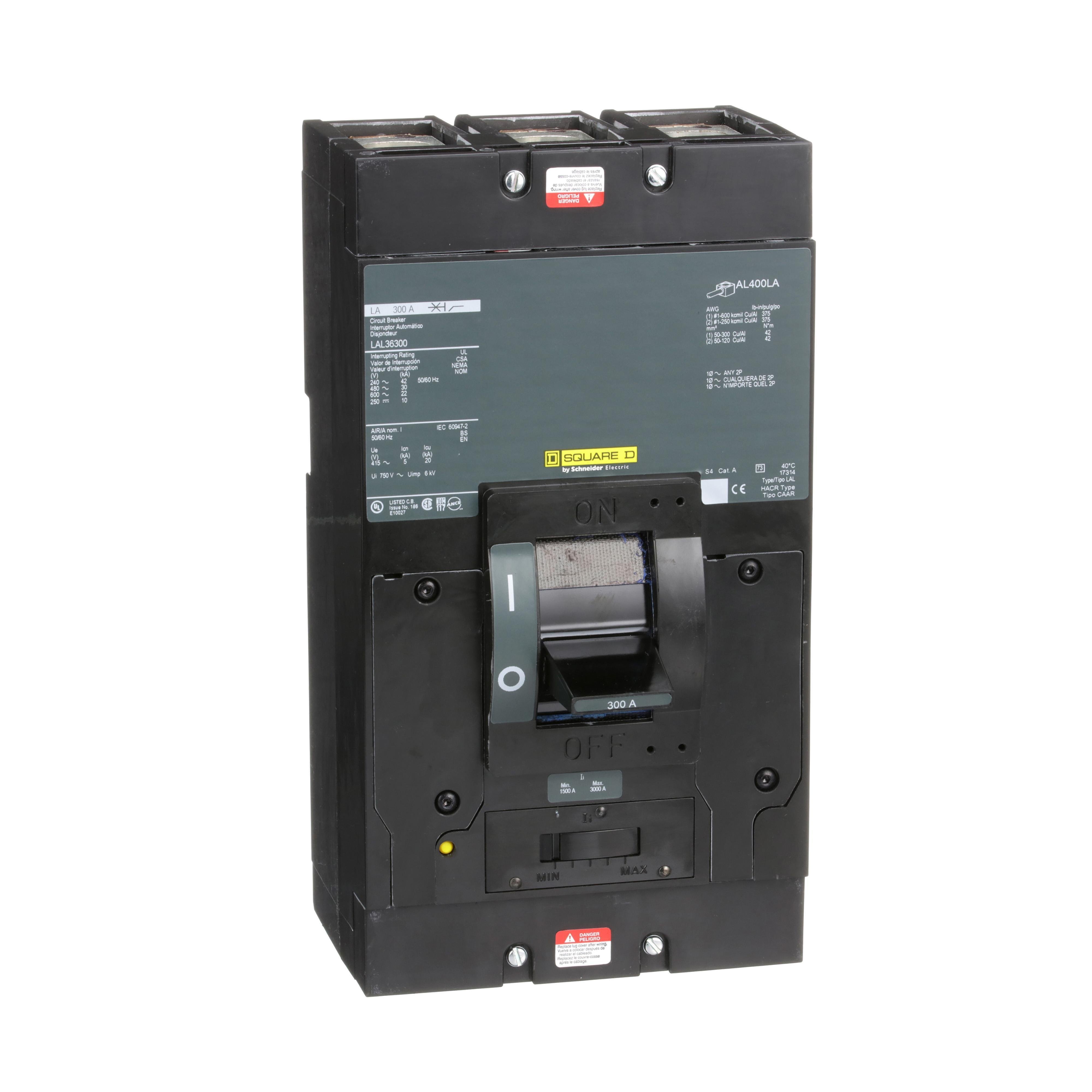

Picture of LAL36300 - Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic
Square D™

LAL36300 - Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic

Item Code: 18274
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAL36300

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.

Specifications

Weight

16.35

Height

9.3

Width

11.51

Length

17.24

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LAL36300/LAL36300.spin

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Alternative Part Number

8046242

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

IE

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901426783

AD Gtin

00785901426783

AD IDEA Index ID

8046242

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 3 L

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Keywords

LAL36300 Type LAL Standard Molded Case Circuit Breaker, 600 V AC/250 V DC, 300 A, 22/10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip ; Schneider Electric ; Square D ; LAL36300 ; LAL36300 ; 785901426783 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.3000

AD Package Height UOM

IN

AD Package Length

17.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1877.1100

AD Package Volume UOM

cu-in

AD Package Weight

16.3500

AD Package Weight UOM

LB

AD Package Width

11.5100

AD Package Width UOM

IN

AD Part Number Keywords

LAL36300 ; 8046242 ; 785901426783 ; 78590142678 ; 00785901426783 ; 0785901426783

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

300

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

300/1500/3000

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Standard Type LAL

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

1 AWG to 600 kcmil, (2) 250 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

5.84 in L x 6 in W x 5.8 in D x 11 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

L

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute Value

250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
