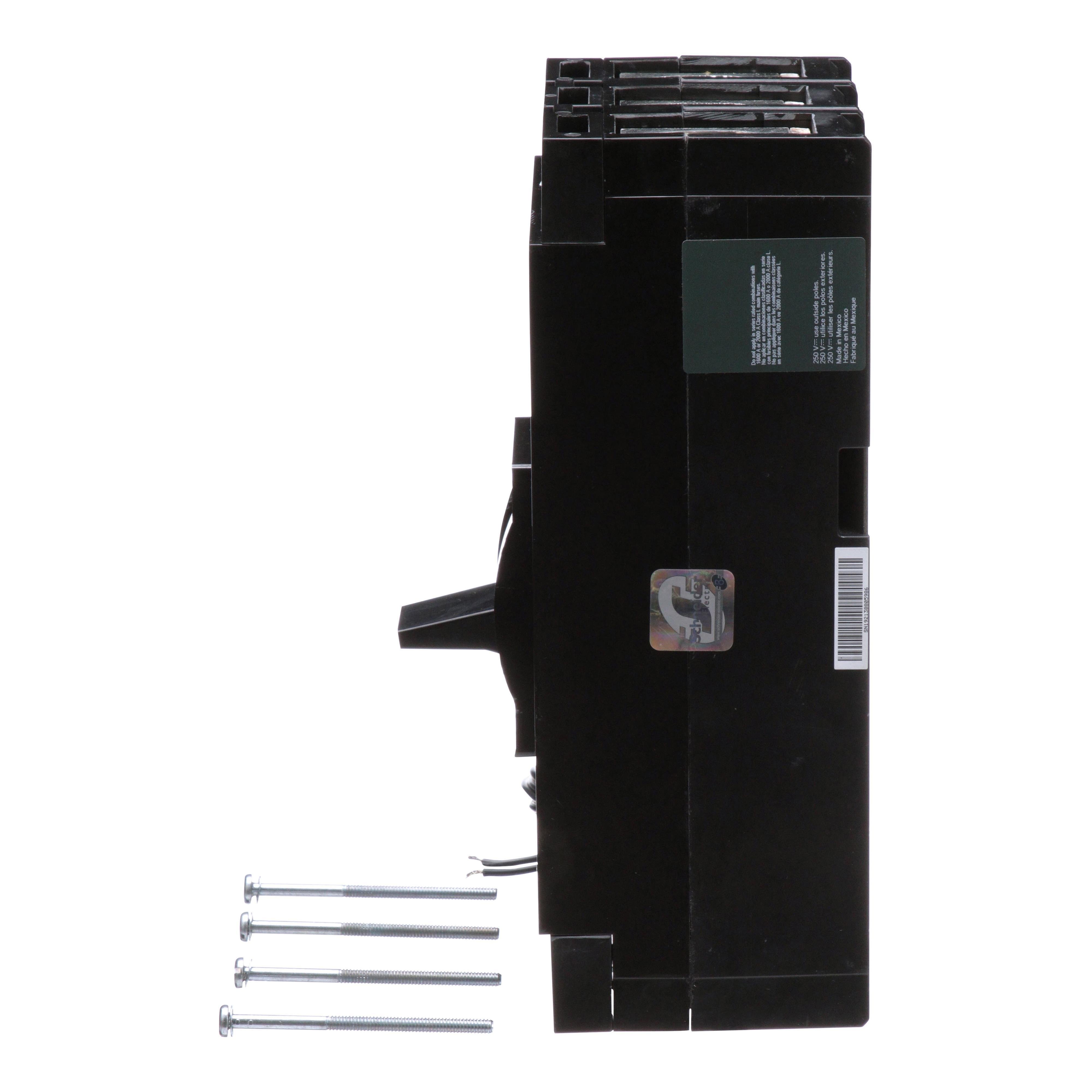

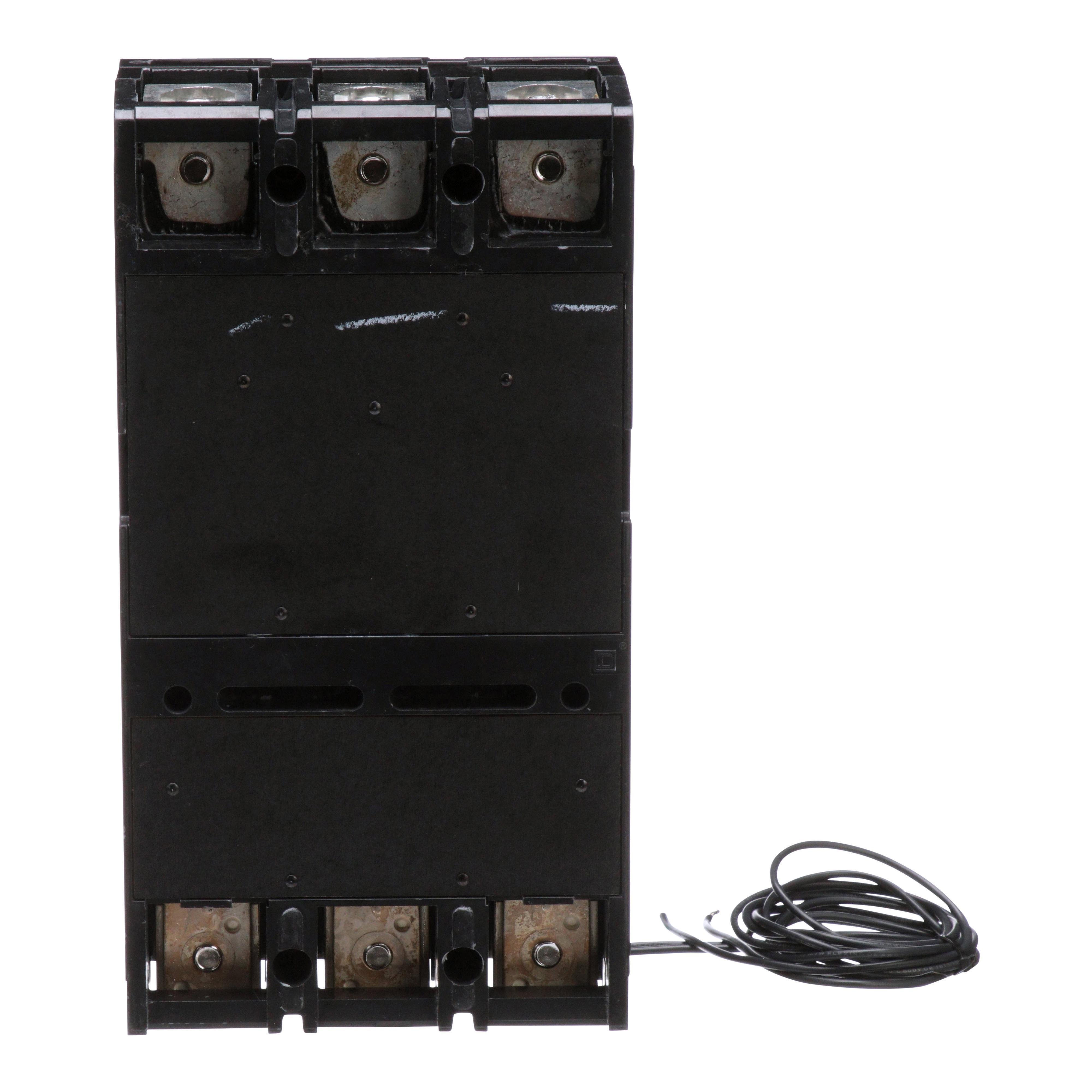

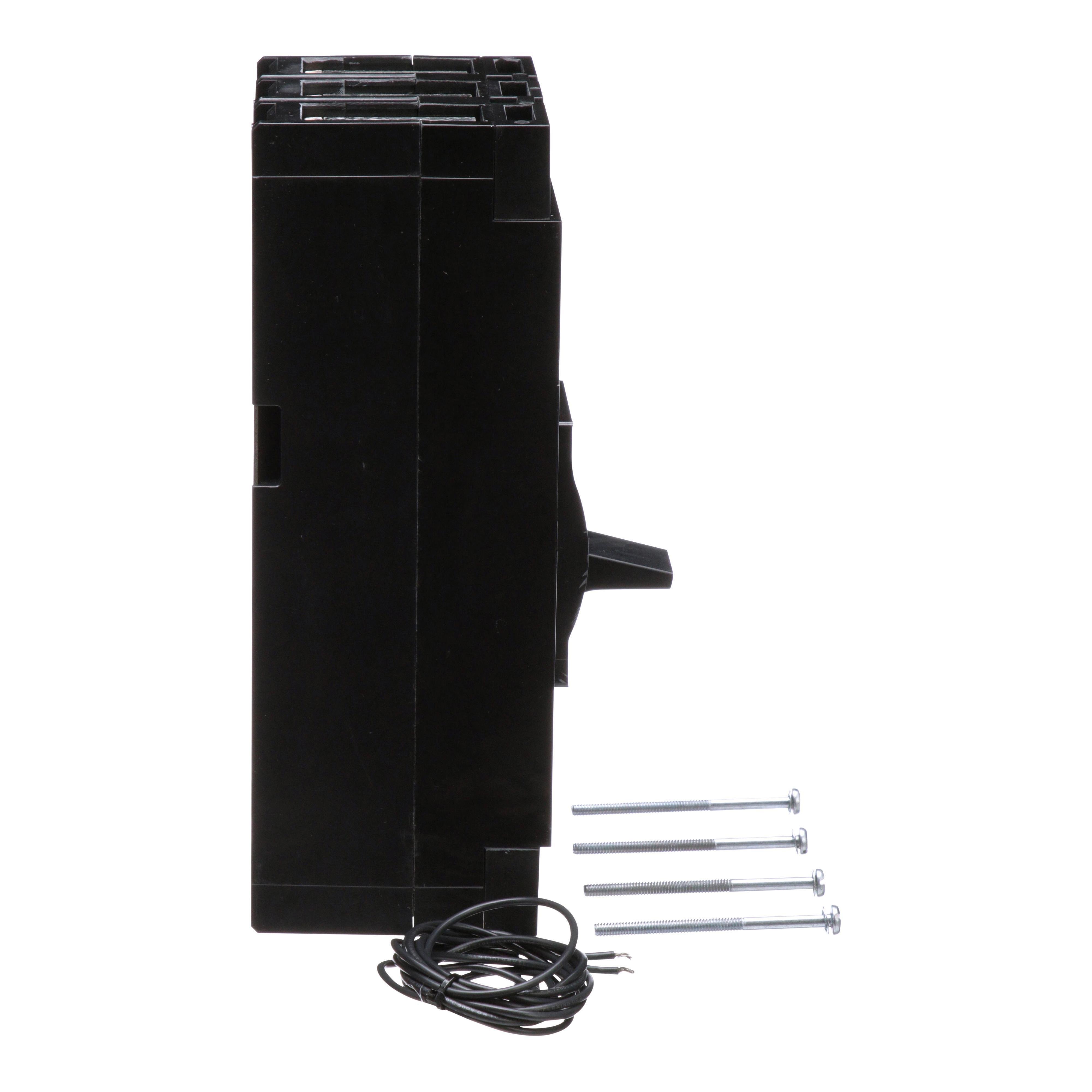

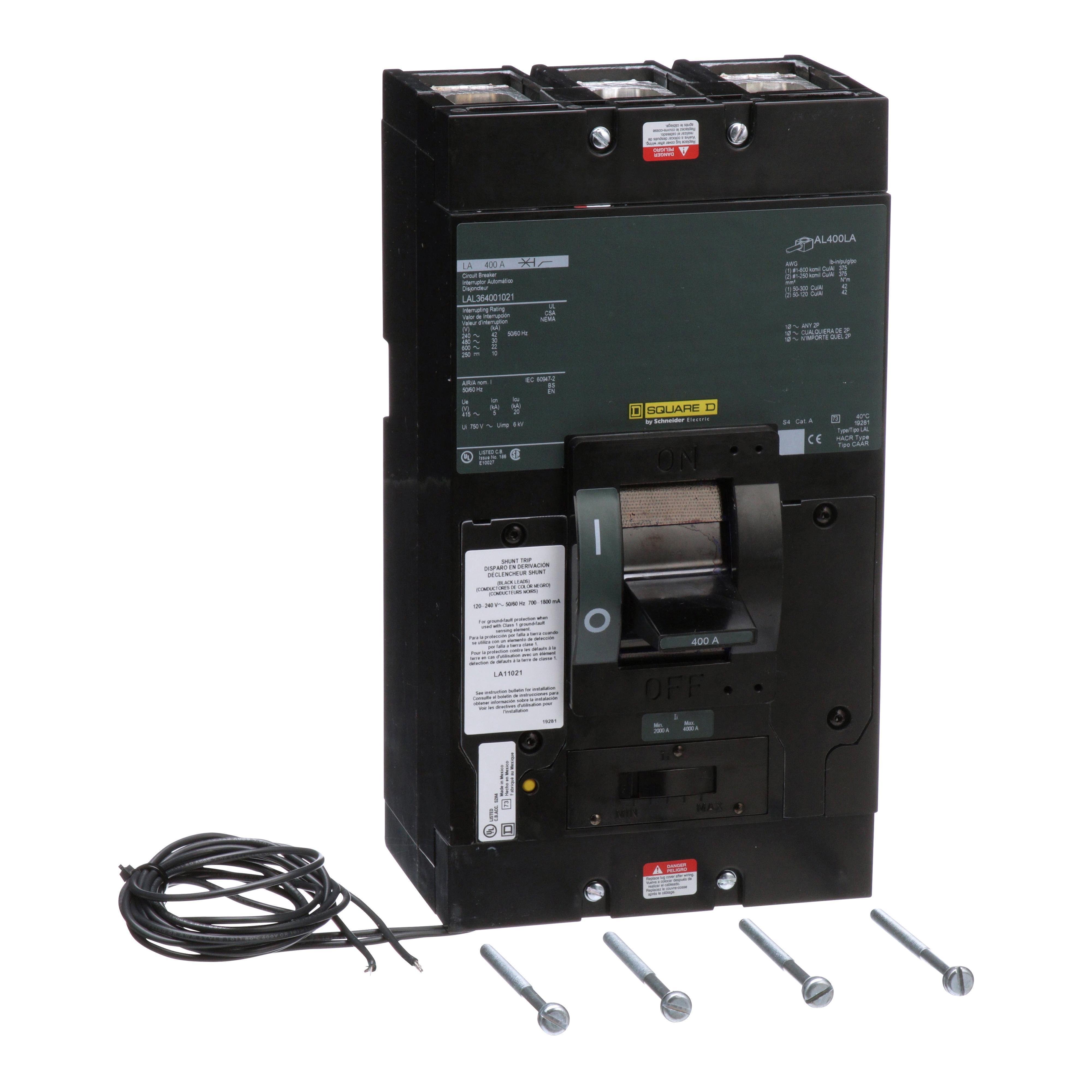

Picture of LAL364001021 - Circuit breaker, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip

Square D™

LAL364001021 - Circuit breaker, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip

Item Code: 1033605

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref LAL364001021

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed 120/240VAC shunt trip. LA breakers are UL 489, CSA, IEC certified.

Specifications

Weight

16.81

Height

9.5

Width

11.39

Length

17.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LAL364001021/LAL364001021.spin

AD Alternative Part Number

8149469

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901339496

AD Gtin

00785901339496

AD IDEA Index ID

8149469

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 250VDC

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Item Features 04

Shunt trip is used to trip the circuit breaker from a remote location with a trip coil energized from a separate circuit

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.5000

AD Package Height UOM

AD Package Length

17.3600

AD Package Length UOM

AD Package Quantity

AD Package Volume

2052.0000

AD Package Volume UOM

cu-in

AD Package Weight

16.8100

AD Package Weight UOM

AD Package Width

11.3900

AD Package Width UOM

AD Part Number Keywords

LAL364001021 ; 8149469 ; 785901339496 ; 78590133949 ; 00785901339496 ; 0785901339496

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

Spec 10 Attribute Value

2000 to 4000

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

(1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

400

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.84 in L x 6 in W x 11 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

10/22/30/42

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Unit

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

Spec 9 Attribute

PHASE

Spec 9 Attribute Value
