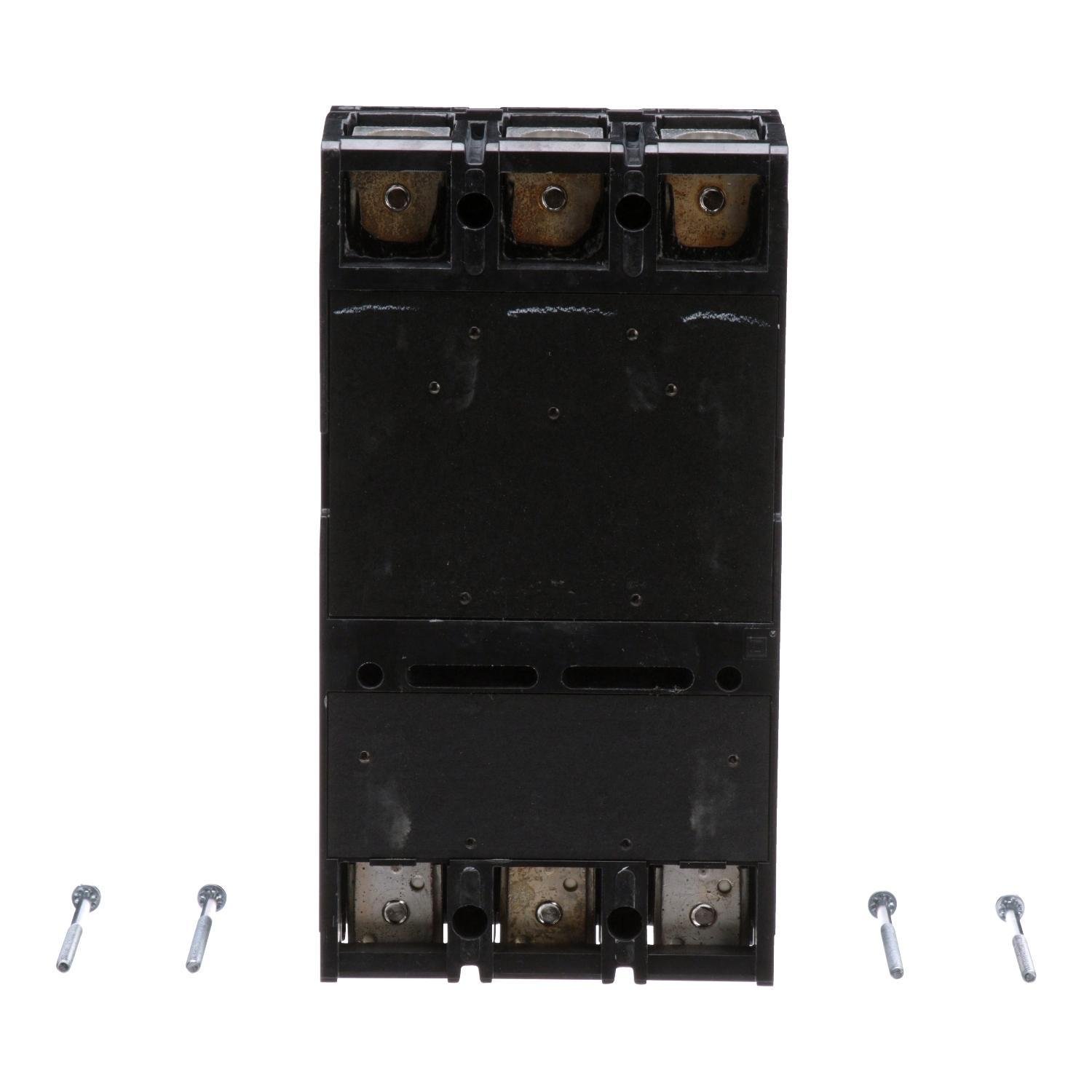

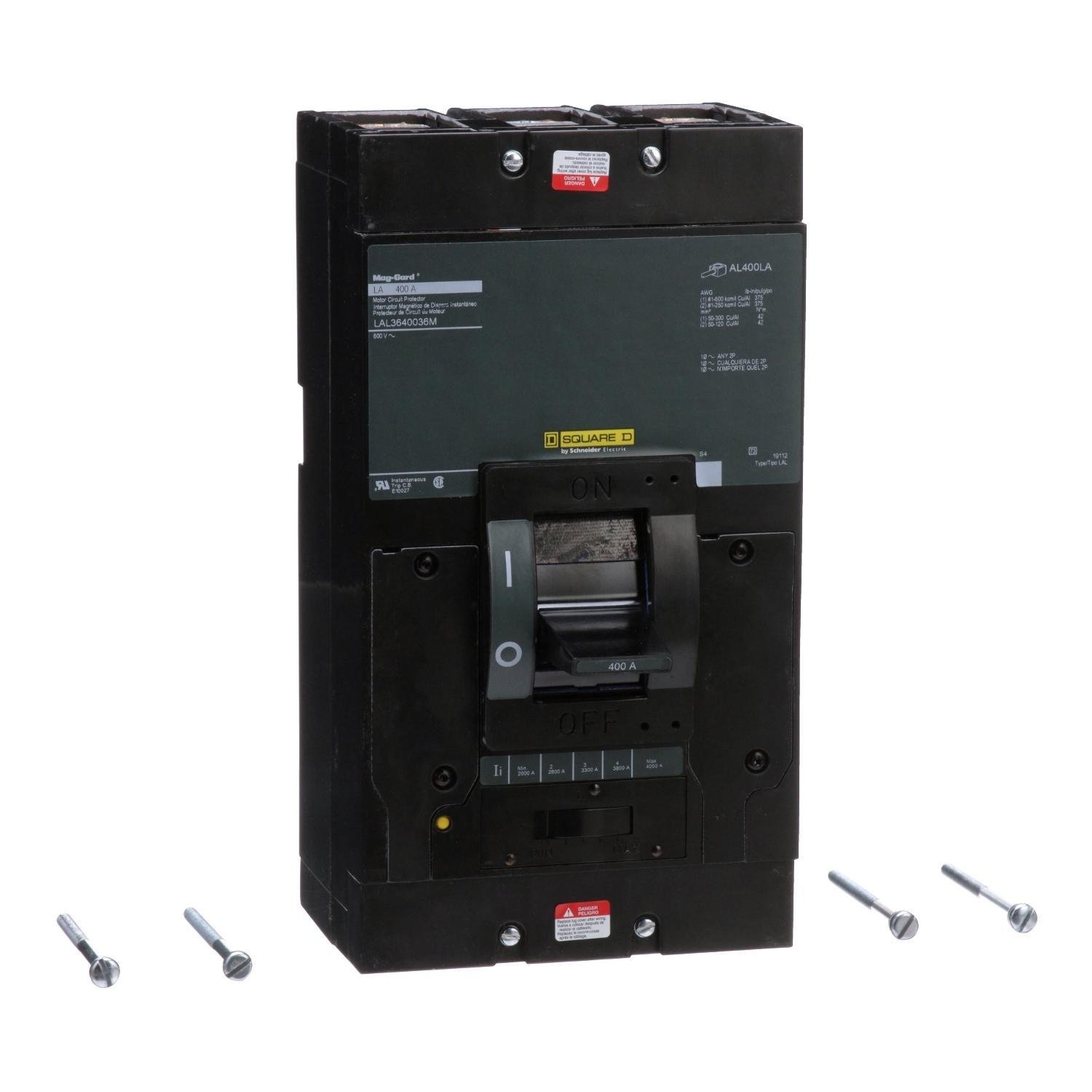

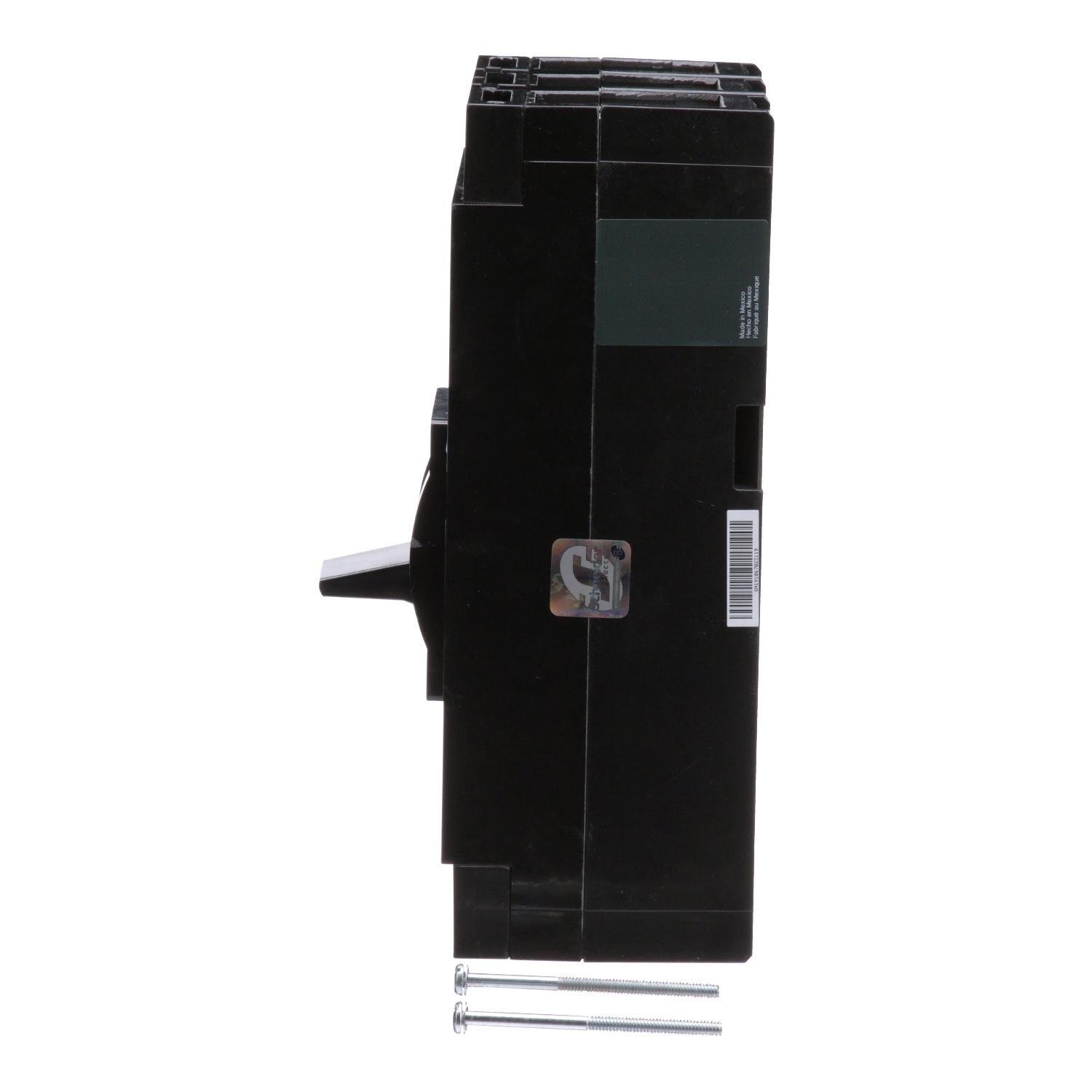

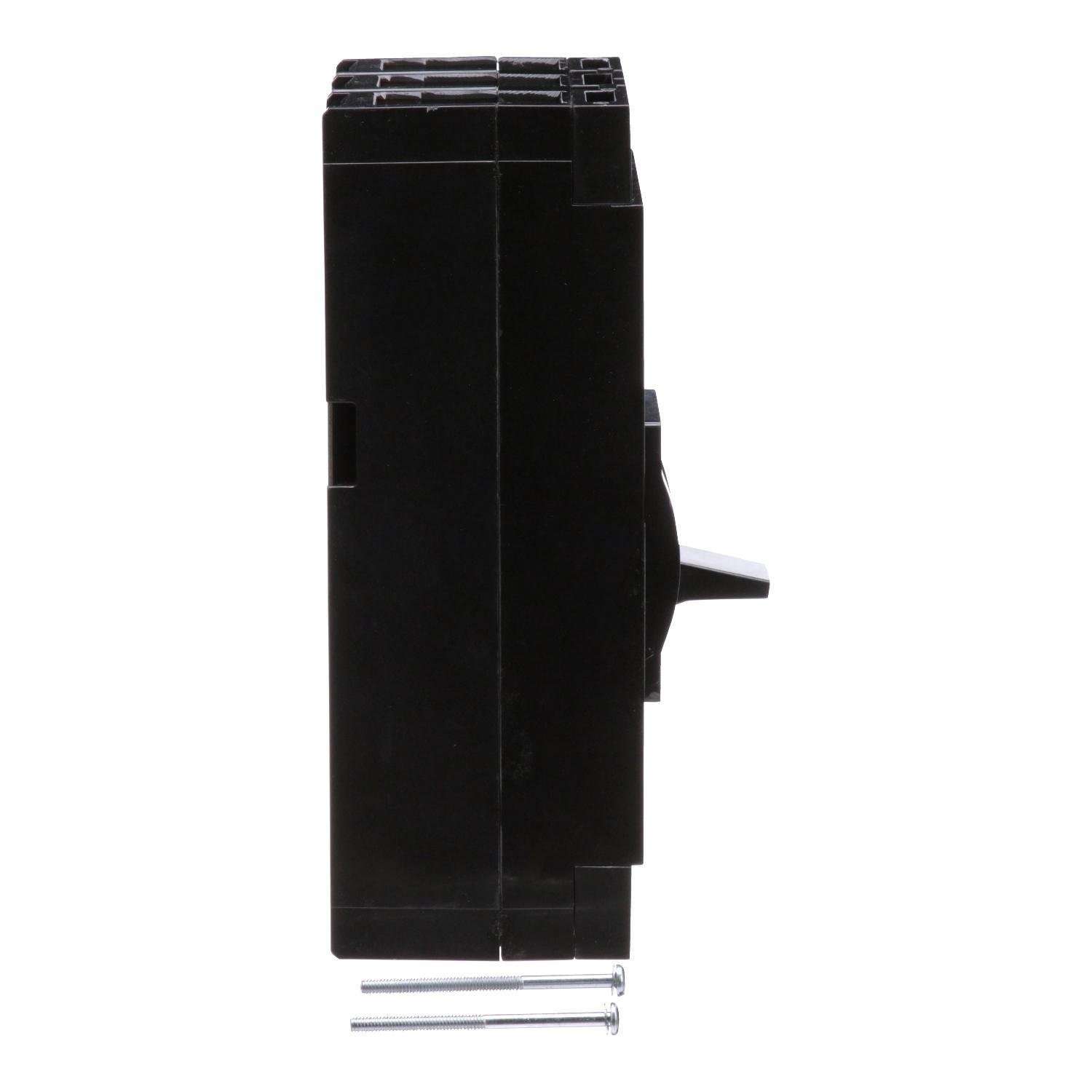

LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic

Category Miscellaneous
Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic
Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic
Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic
Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic
Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic Picture of LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic
Square D

LAL3640036M - Motor circuit protector, LA, 400A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, magnetic

Item Code: 576280
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LAL3640036M

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.

Specifications

Weight

16.48

Width

11.39

Length

17.34

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LAL3640036M/LAL3640036M.spin

AD All Features

Adjustable amperage pick up setting

AD Alternative Part Number

8121994

AD Application

For combination with motor starters with overload relays and for the protection of motor circuits from short circuits applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901650508

AD Gtin

00785901650508

AD IDEA Index ID

8121994

AD Invoice Description

PROTECTOR CKT MOT 600 VAC 250 VDC 400A

AD Item Features 01

Adjustable amperage pick up setting

AD Item Features 02

Allows coordinating pick up to motor starter

AD Item Features 03

Accepts the same lugs and accessories as equivalent LA circuit breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

17.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

16.4800

AD Package Weight UOM

LB

AD Package Width

11.3900

AD Package Width UOM

IN

AD Part Number Keywords

LAL3640036M ; 8121994 ; 785901650508 ; 78590165050 ; 00785901650508 ; 0785901650508

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle Handle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

400/2000/4000

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type LAL

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

(1) 1 AWG to 600 kcmil Aluminum/Copper, (2) 1 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.84 in L x 6 in W x 11 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
