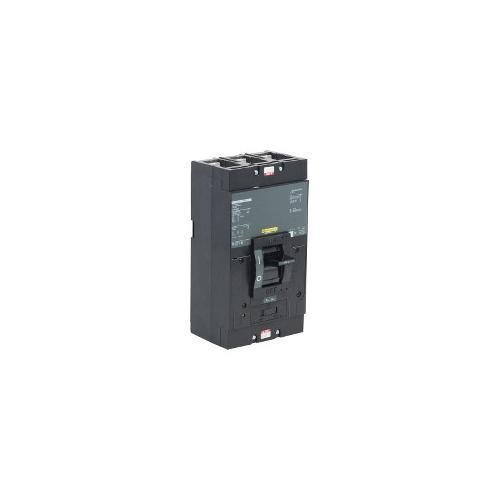

LAP36250MB - Circuit breaker, LA, 250A, 3 pole, 600VAC, 22kA, 250VDC, unit mount, thermal magnetic, short handle
Description
Specifications
14.89
8.9
11.58
17.12
For I-Line™ panelboards and switchboards
Square D
USA
MX
BREAKER CKT CASE MLD 600VAC/250VDC 3 L
Protects electrical systems from damage caused by overloads, short circuits, and ground faults
Automatically opens a circuit under overload or short circuit conditions
Equipped with Push-To-Trip allows the circuit breaker to be manually tripped without exposure to live parts
Schneider Electric
8.9000
IN
17.1200
IN
1
1780.8900
cu-in
14.8900
LB
11.5800
IN
Square D
THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS
Actuator Type
Short Lever
PHASE
3
Temperature Rating
deg F
-13 To 158
Trip Range
A
1250 to 2500
Trip Type
Magnetic
Type
Type LAP
Voltage Rating
600 V AC/250 V DC
Wire Size
1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu
Amperage Rating
A
250
Connection Type
Line/Load Lugs
Dimensions
11 in H x 6 in W x 5.84 in D
Frame
L Frame
Frequency Rating
HZ
50/60
Interrupt Rating
42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC
Mounting Type
Unit
Number Of Poles
3
