Schneider Electric

LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style

Category IEC Contactors

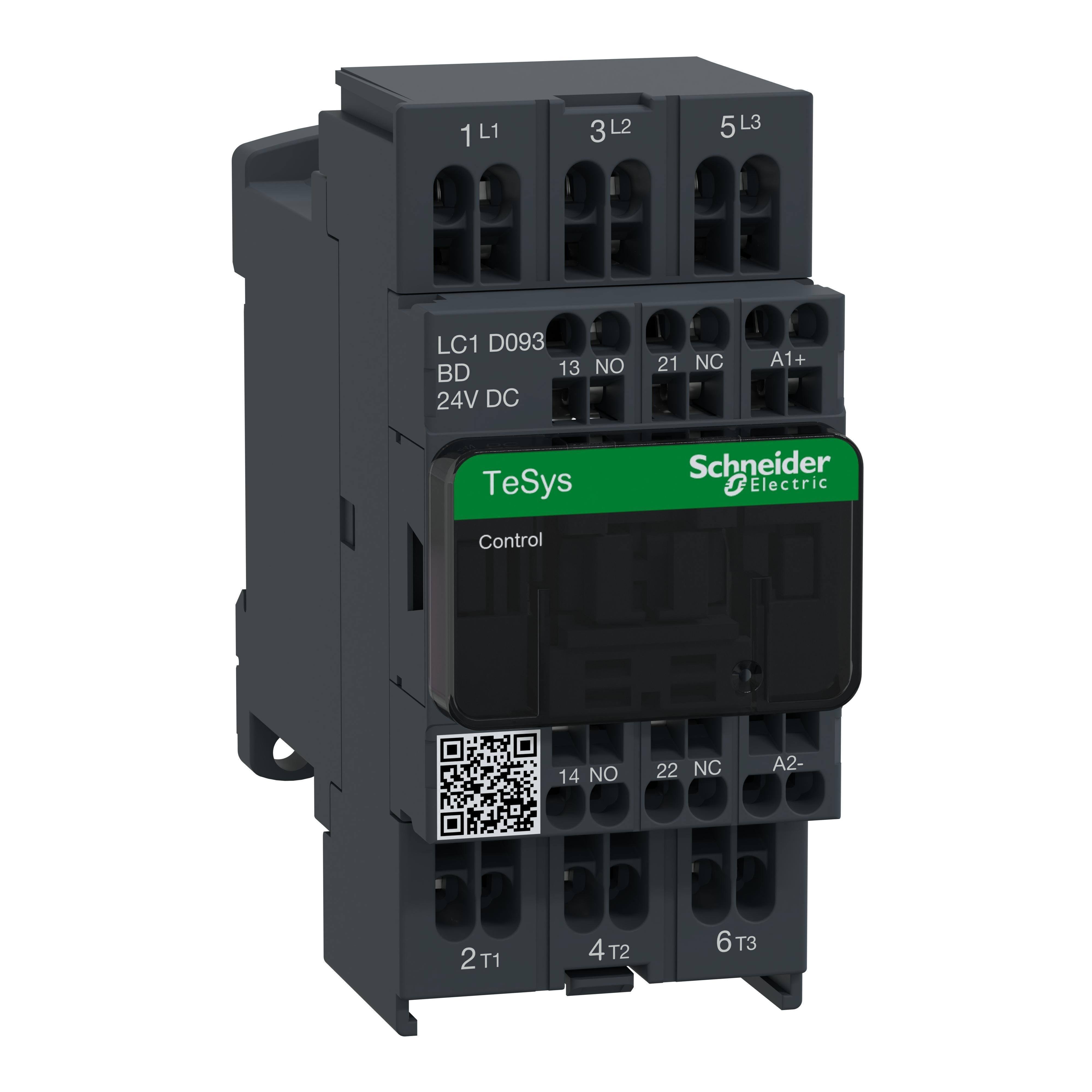

Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style Picture of LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Schneider Electric

LC1D093BD - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style

Item Code: 1019896
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D093BD

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-

Specifications

Weight

1.2

Width

4.09

Length

4.76

AD All Features

New modern look and feel of all machines

AD Application

Industry, Infrastructure, Building, Resistive Load and Motor Control Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

CONTACTOR IEC 690VAC 24/300VDC 9/25A

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.7600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.2000

AD Package Weight UOM

LB

AD Package Width

4.0900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/vlEODblcQoo

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

W

Spec 1 Attribute Value

5.4

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

25-Sep

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Rail/Surface

Spec 12 Attribute

Number of Auxiliary Contacts

Spec 12 Attribute Value

1NO-1NC

Spec 13 Attribute

Number Of Poles

Spec 13 Attribute Value

3

Spec 14 Attribute

Operating Cycles

Spec 14 Attribute UOM

Cycles/hr

Spec 14 Attribute Value

3600

Spec 15 Attribute

Operating Temperature

Spec 15 Attribute UOM

deg C

Spec 15 Attribute Value

-5 to 60/-40 to 70

Spec 16 Attribute

Series

Spec 16 Attribute Value

LC1D

Spec 17 Attribute

Size

Spec 17 Attribute UOM

MM

Spec 17 Attribute Value

45/80/95

Spec 18 Attribute

Terminal Type

Spec 18 Attribute Value

Spring

Spec 19 Attribute

Wattage

Spec 19 Attribute UOM

W

Spec 19 Attribute Value

0.2/1.56

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

690 V AC, 24/300 V DC

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Spring

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

10/60 A at 600 V AC, 16/60 A at 600 V AC

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Non-reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

45 mm W x 95 mm D x 80 mm H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Open

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
