Schneider Electric

LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style

Category IEC Contactors

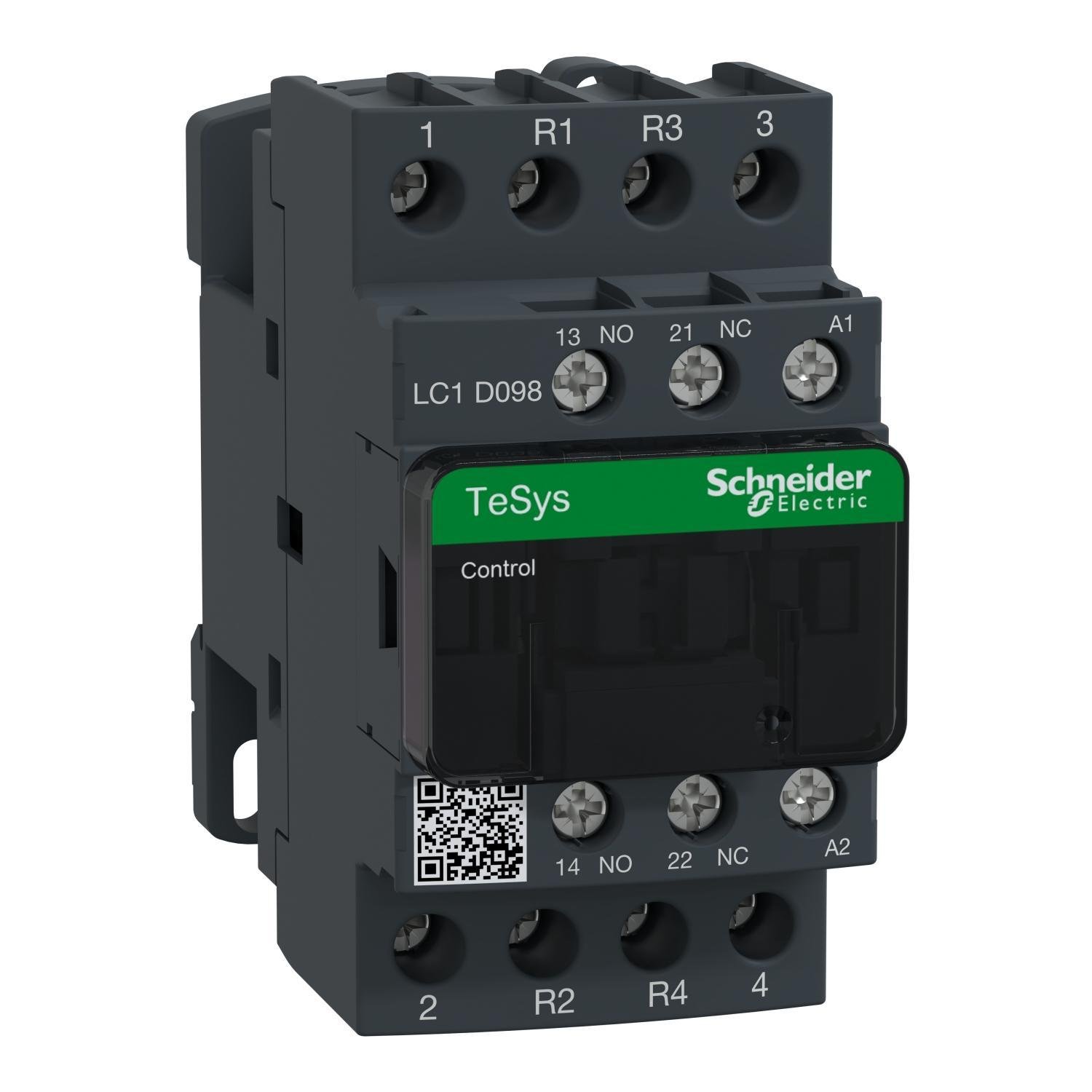

Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style
Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style
Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style
Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style
Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style Picture of LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style
Schneider Electric

LC1D098G7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style

Item Code: 556541
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D098G7

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mi

Specifications

Weight

0.84

Width

3.59

Length

4.41

AD All Features

New modern look and feel of all machines

AD Application

Industry, Infrastructure, Building, Resistive Load and Motor Control Application

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONTACTOR IEC 120VAC 20A 2NO-2NC 4 1.56W

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8400

AD Package Weight UOM

LB

AD Package Width

3.5900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/e8UrRZljFg0

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

7.5/7

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Rail/Surface

Spec 11 Attribute

Number of Auxiliary Contacts

Spec 11 Attribute Value

1 NO-1 NC

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

4

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles/hr

Spec 13 Attribute Value

3600

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-4 to 70

Spec 15 Attribute

Series

Spec 15 Attribute Value

LC1D

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Screw clamp

Spec 17 Attribute

Wattage

Spec 17 Attribute UOM

W

Spec 17 Attribute Value

1.56

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

120/690 V AC, 300 V DC

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NO-2NC

Spec 5 Attribute

Contact Type

Spec 5 Attribute Value

Non-reversing

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

45 mm W x 92 mm D x 85 mm H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Open

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

25/400

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

20
