LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style

Category IEC Contactors

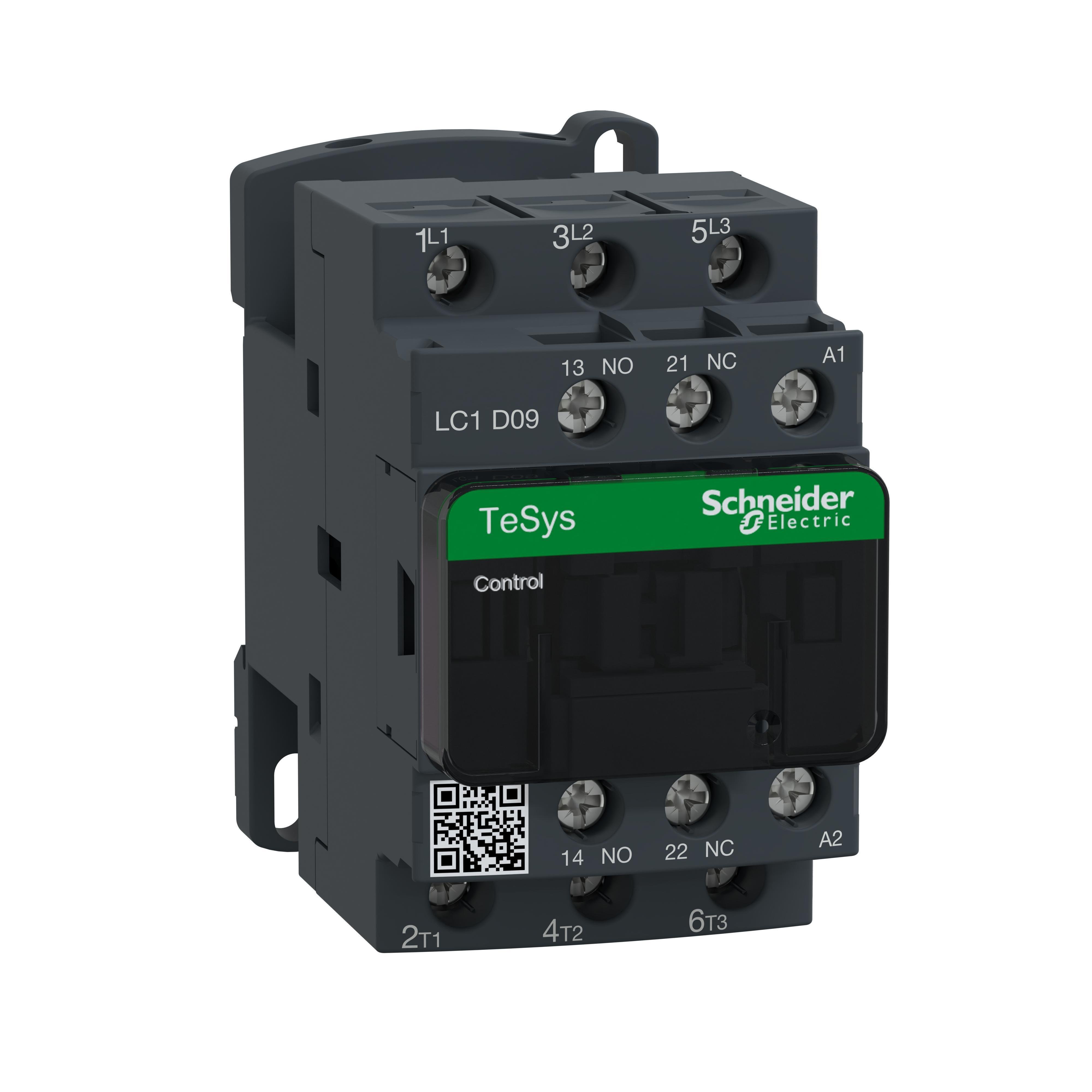

Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style
Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style
Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style
Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style
Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style Picture of LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style

LC1D09LE7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open style

Item Code: 1735635
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D09LE7
Call for Availability
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 208V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (N

Specifications

Weight

0.78

Height

4.6

Width

3.51

Length

1.91

Brand

Square D

Category

IEC Contactors

Coil Power Rating

70 VA Inrush, 7/7.5 VA Hold-In

Coil Voltage

208/609 V AC, 300 V DC

Connection Type

Screw clamp

Contact Configuration

3NO

Contact Rating

9 A at 600 V AC

Contact Type

Non-reversing

Dimensions

45 mm W x 86 mm D x 77 mm H

Enclosure Type

IP2x

Frequency Rating

50/60 Hz

Maximum Load Current

25-Sep A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1 NO-1 NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-4 to 70 deg C

Power Factor

0.75 Inrush, 0.3 Hold-In

Series

D-Line LC1D

Terminal Type

Screw clamp

Type

Standard

Wattage

4 KW
