Schneider Electric

LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style

Category IEC Contactors

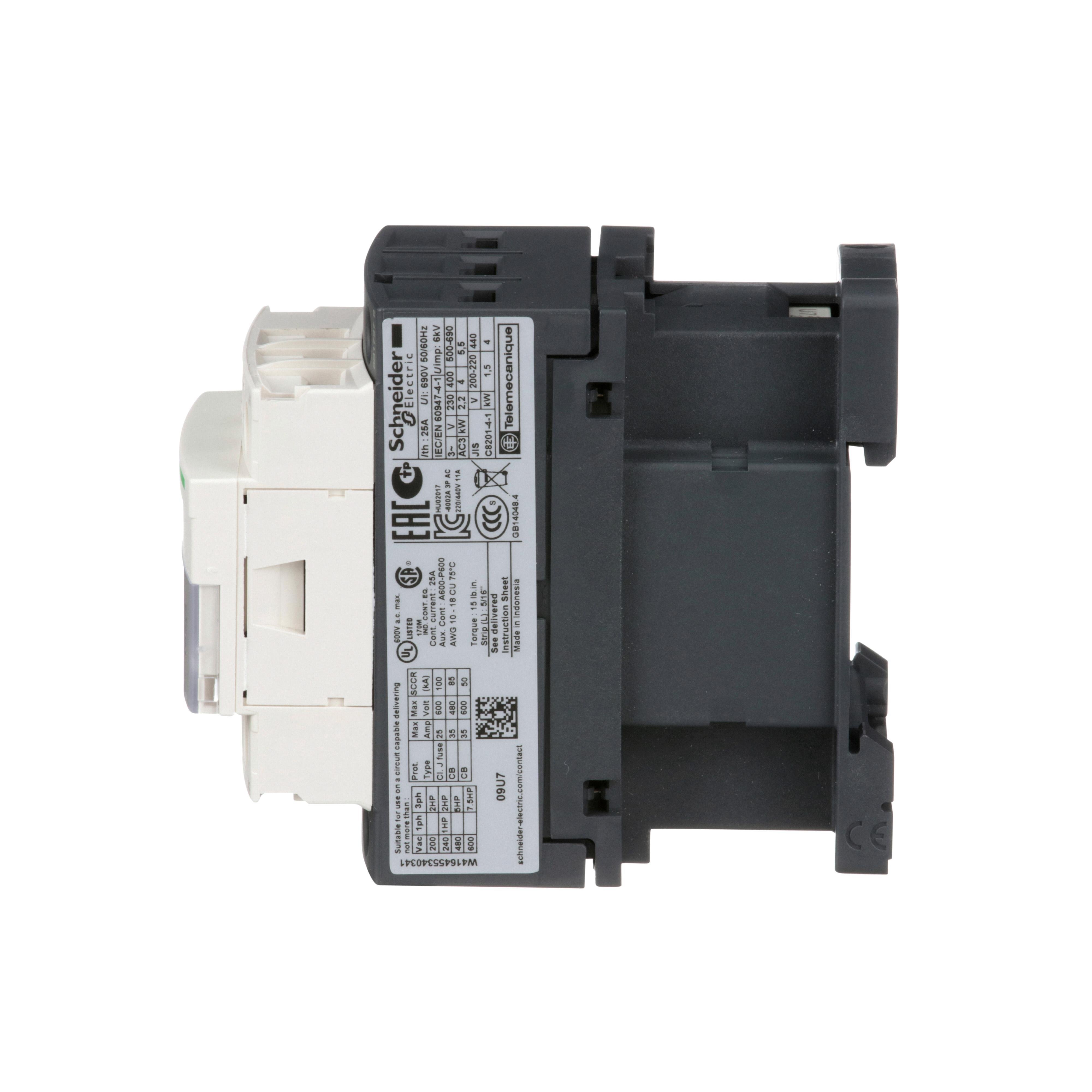

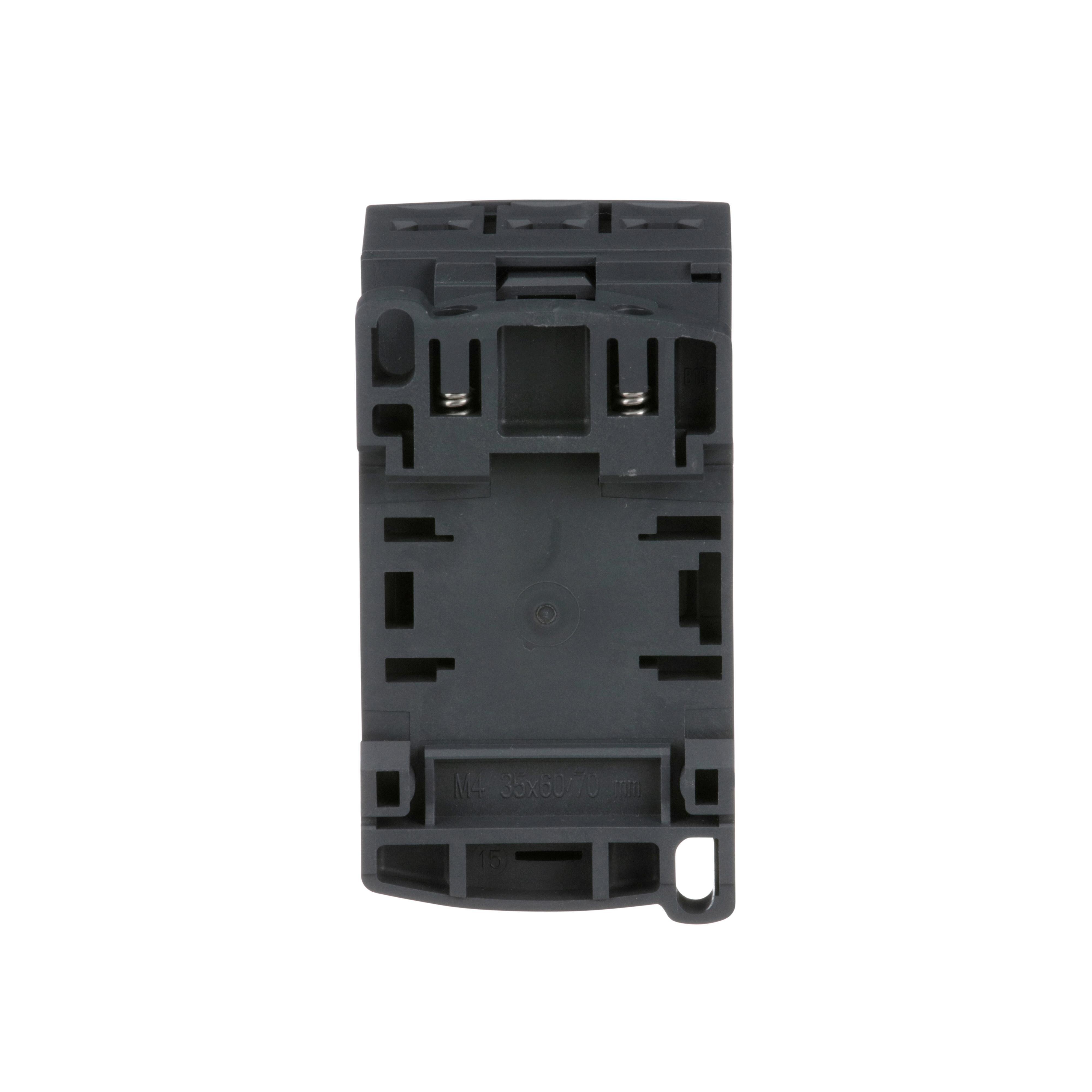

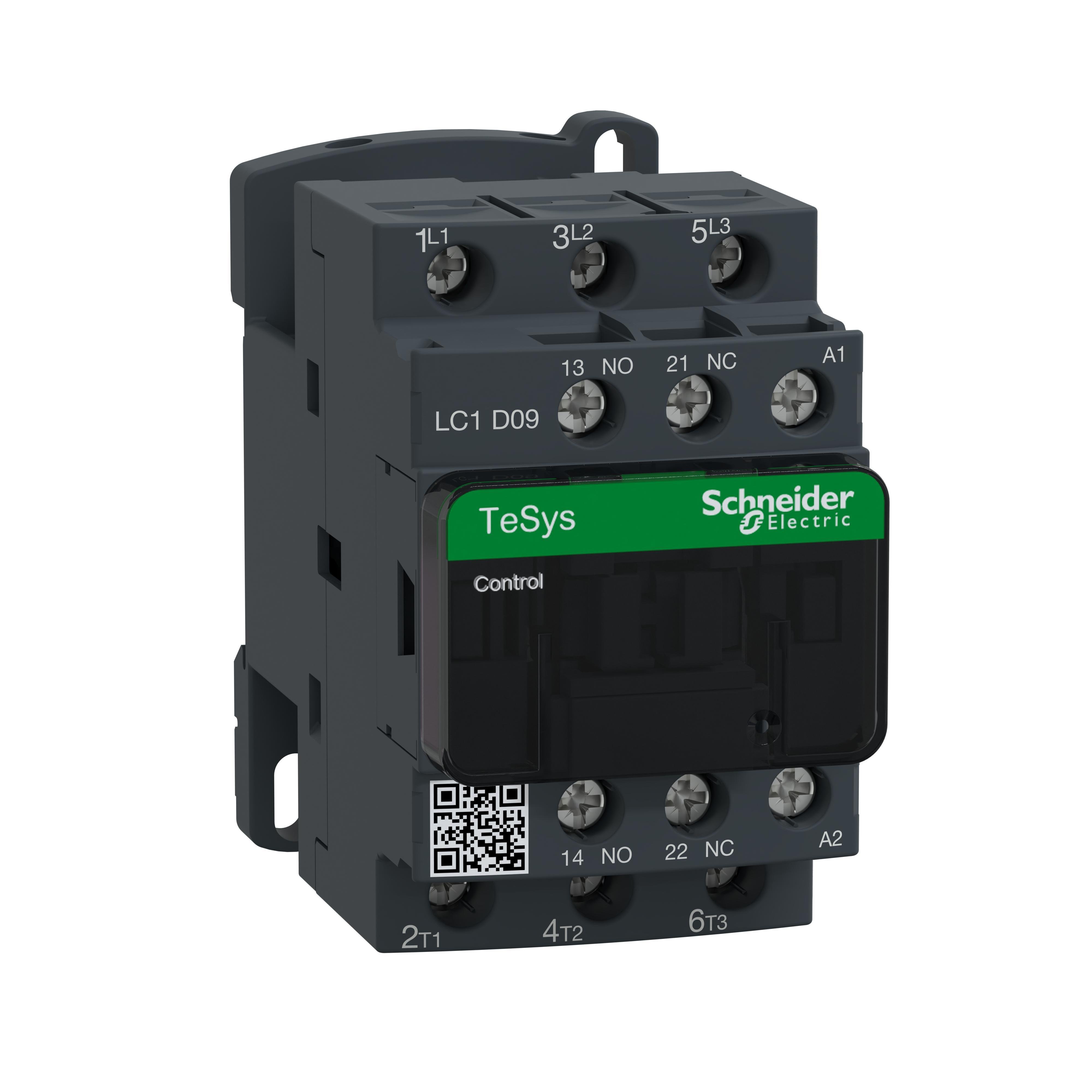

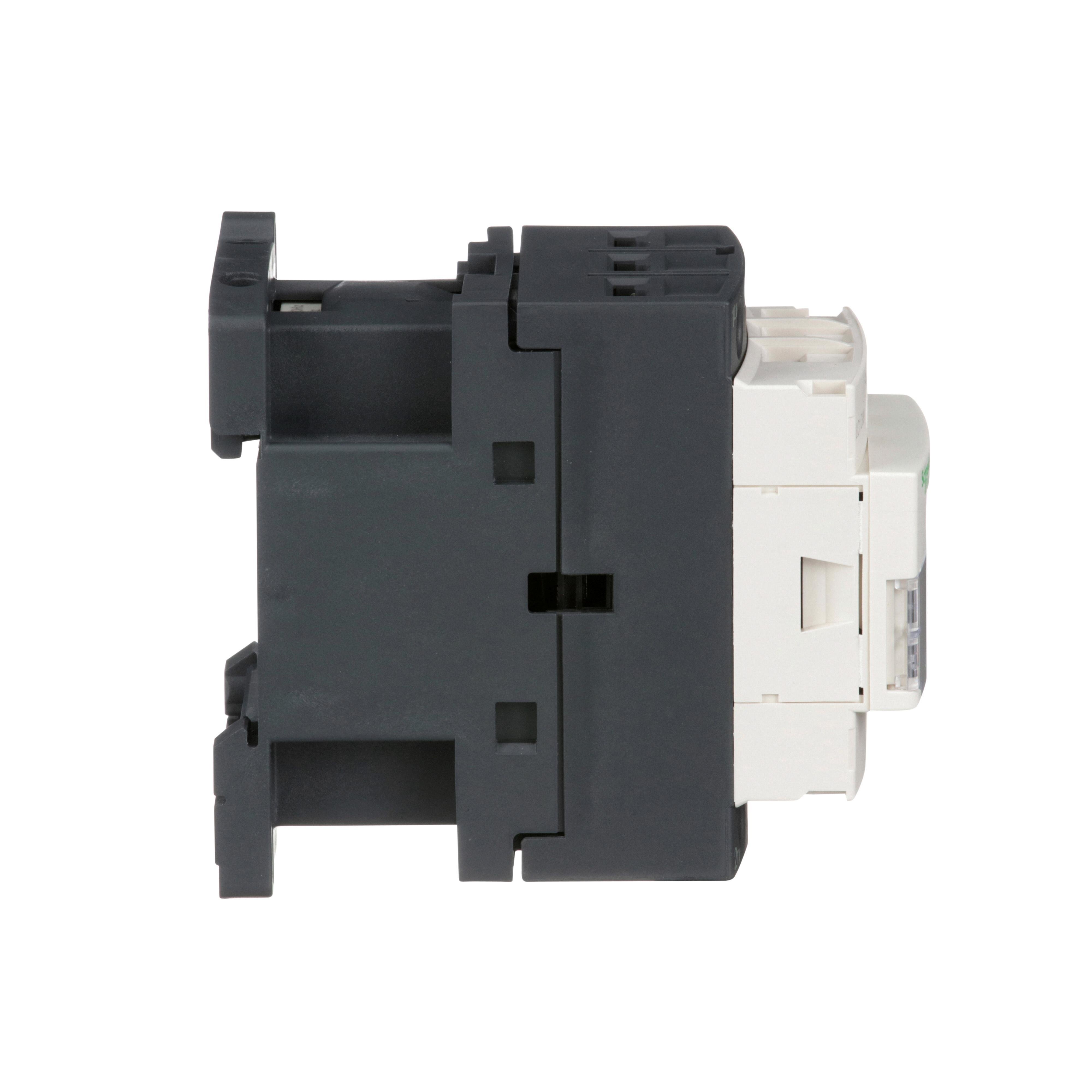

Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style
Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style
Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style
Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style
Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style Picture of LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style
Schneider Electric

LC1D09U7 - IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open style

Item Code: 32961
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D09U7

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (N

Specifications

Weight

0.77

Height

2.1

Width

3.59

Length

4.37

AD All Features

New modern look and feel of all machines

AD Application

Motor Control and Resistive Load Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Includes

Protective Cover

AD Invoice Description

CONTACTOR IEC 240/690VAC 300VDC 9/25A

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1000

AD Package Height UOM

IN

AD Package Length

4.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

34.7800

AD Package Volume UOM

cu-in

AD Package Weight

0.7700

AD Package Weight UOM

LB

AD Package Width

3.5900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/ZspiS_-OK5U

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

7.5/7.7

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

25-Sep

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Rail/Surface

Spec 12 Attribute

Number of Auxiliary Contacts

Spec 12 Attribute Value

1NO-1NC

Spec 13 Attribute

Number Of Poles

Spec 13 Attribute Value

3

Spec 14 Attribute

Operating Cycles

Spec 14 Attribute UOM

Cycles/hr

Spec 14 Attribute Value

3600

Spec 15 Attribute

Operating Temperature

Spec 15 Attribute UOM

deg C

Spec 15 Attribute Value

-5 to 60/-40 to 70

Spec 16 Attribute

Power Factor

Spec 16 Attribute Value

0.75 Inrush, 0.3 Hold-In

Spec 17 Attribute

Series

Spec 17 Attribute Value

LC1D

Spec 18 Attribute

Size

Spec 18 Attribute UOM

MM

Spec 18 Attribute Value

45/77/86

Spec 19 Attribute

Terminal Type

Spec 19 Attribute Value

Screw clamp

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

240/690 V AC, 300 V DC

Spec 20 Attribute Value

Direct On-Line Standard

Spec 21 Attribute

Wattage

Spec 21 Attribute UOM

W

Spec 21 Attribute Value

0.2/1.56

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

25/60 A at 600 V AC, 10/60 A at 600 V AC

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Non-reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

45 mm W x 84 mm D x 77 mm H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

IP2x

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
