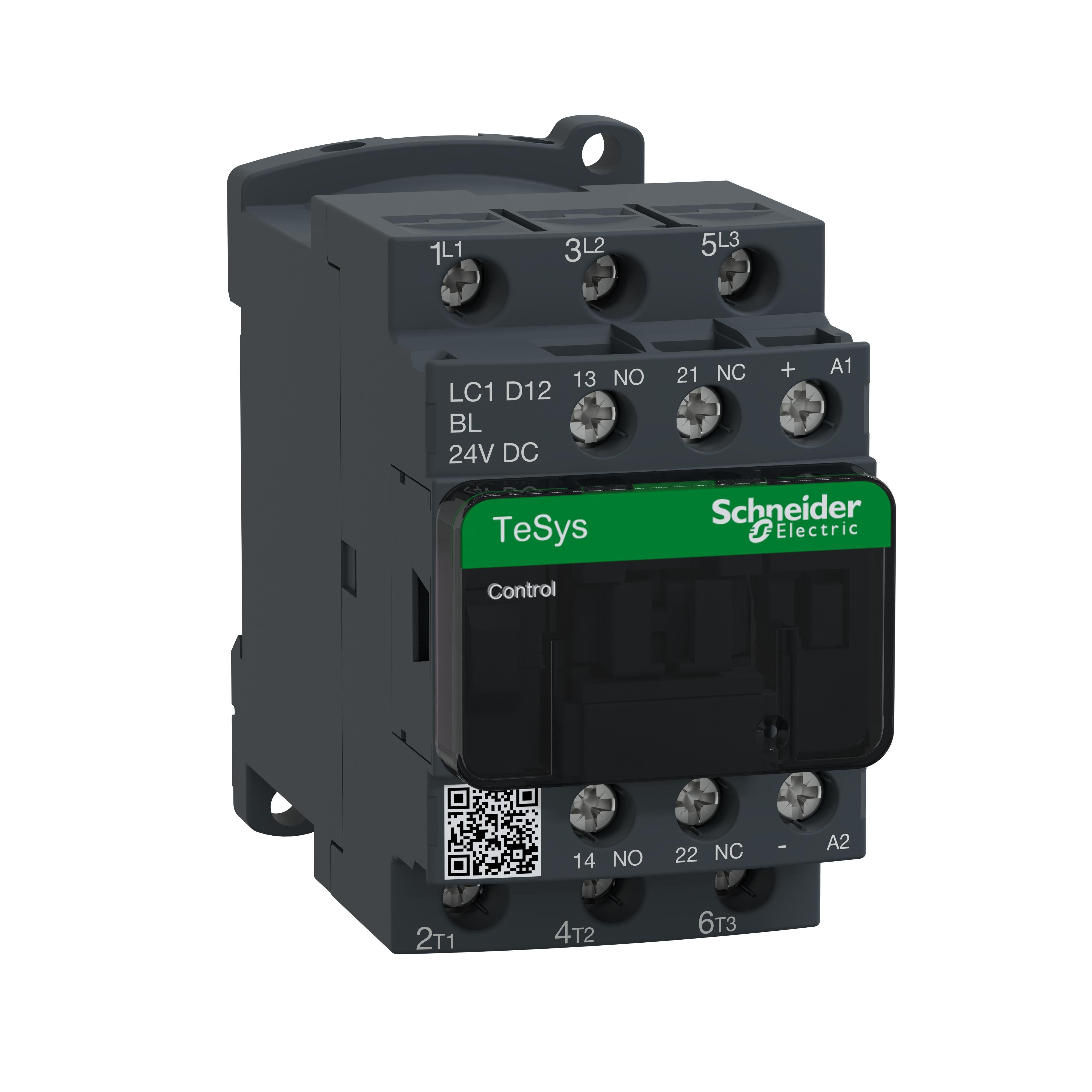

LC1D12BL - IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24 VDC coil
Description
Specifications
1.16
2
3.59
4.41
https://spin.adhq.com/Schneider%20Electric/LC1D12BL/LC1D12BL.spin
New modern look and feel of all machines
8084648
For motor control and resistive loads
Schneider Electric
USA
ID
RoHS
Specification Sheet
Owners/User Manual
Technical Bulletin
3389110361469
03389110361469
8084648
CONTACTOR IEC 24/690VAC 300VDC 12/25A
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Square D TeSys D LC1D12BL Direct On-Line Low Consumption IEC Contactor With Protective Cover, 24/690 V AC, 300 V DC V Coil, 12/25 A, 3NO Contact, 3 Poles ; Schneider Electric ; Schneider Electric ; LC1D12BL ; 785901207344 ; NEMA & IEC Contactors
Schneider Electric
2.0000
IN
4.4100
IN
1
32.4000
cu-in
1.1600
LB
3.5900
IN
LC1D12BL ; 8084648 ; 785901207344 ; 78590120734 ; 03389110361469 ; 3389110361469
https://www.youtube.com/embed/ZspiS_-OK5U
Square D
Coil Power Rating
W
2.4
Maximum Load Current
A
25-Dec
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1NO-1NC
Number Of Poles
3
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-5 to 60/-40 to 70
Series
LC1D
Size
MM
45/77/95
Terminal Type
Screw clamp
Type
Direct On-Line Low Consumption
Coil Voltage
24/690 V AC, 300 V DC
W
0.36/1.56
Connection Type
Screw clamp
Contact Configuration
3NO
Contact Rating
25/60 A at 600 V AC, 10/60 A at 600 V AC
Contact Type
Non-reversing
Dimensions
45 mm W x 95 mm D x 77 mm H
Enclosure Type
IP2x
Frequency Rating
HZ
50/60
