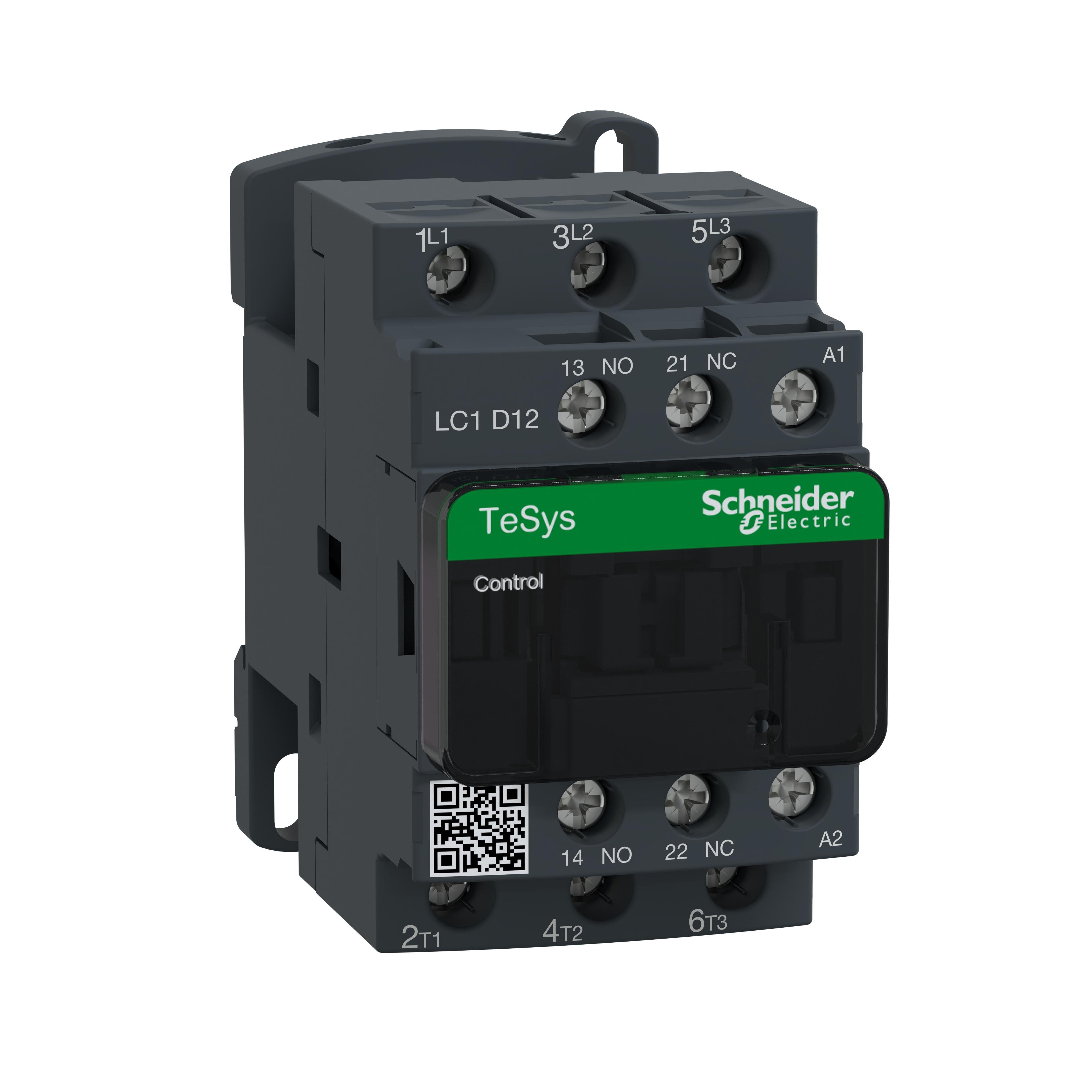

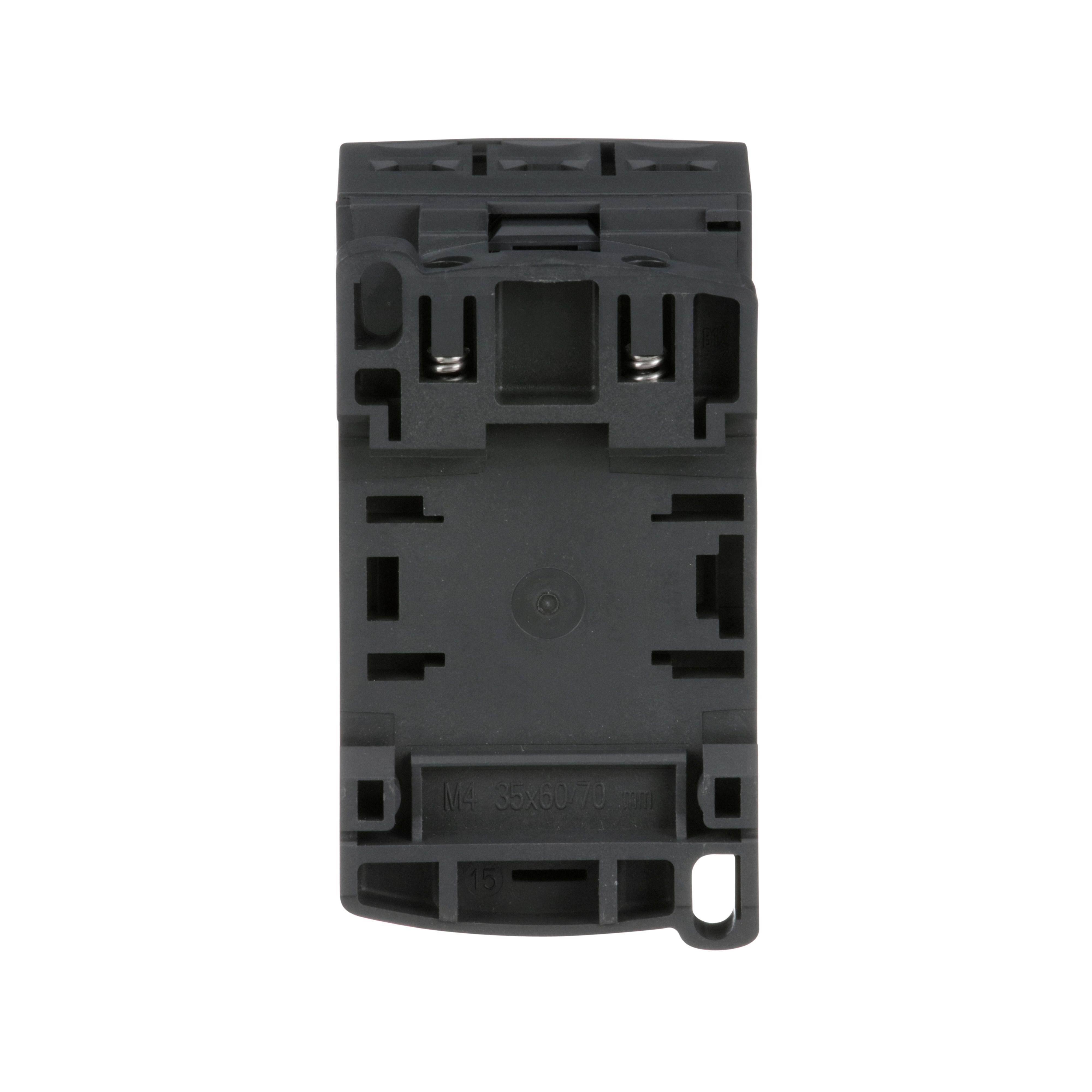

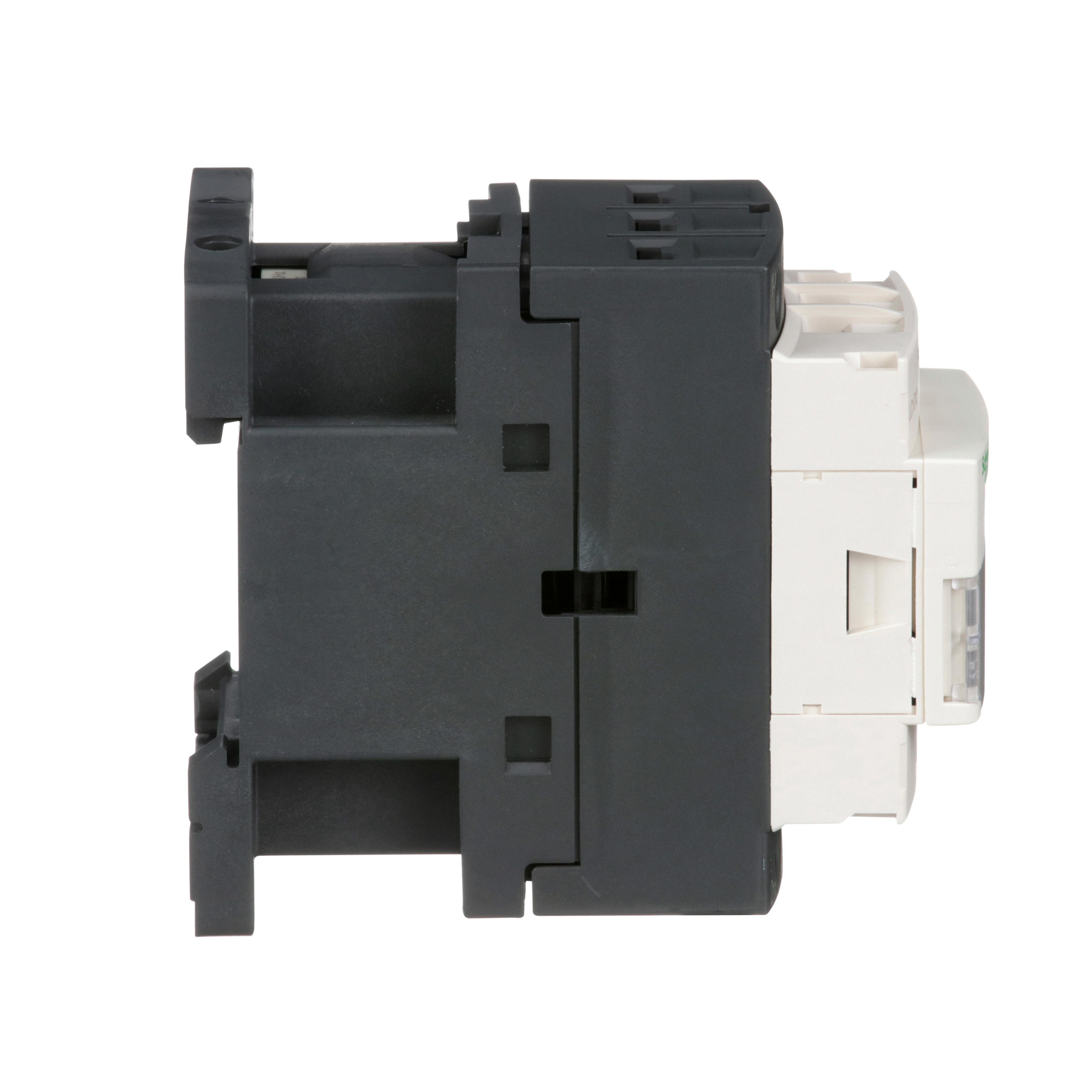

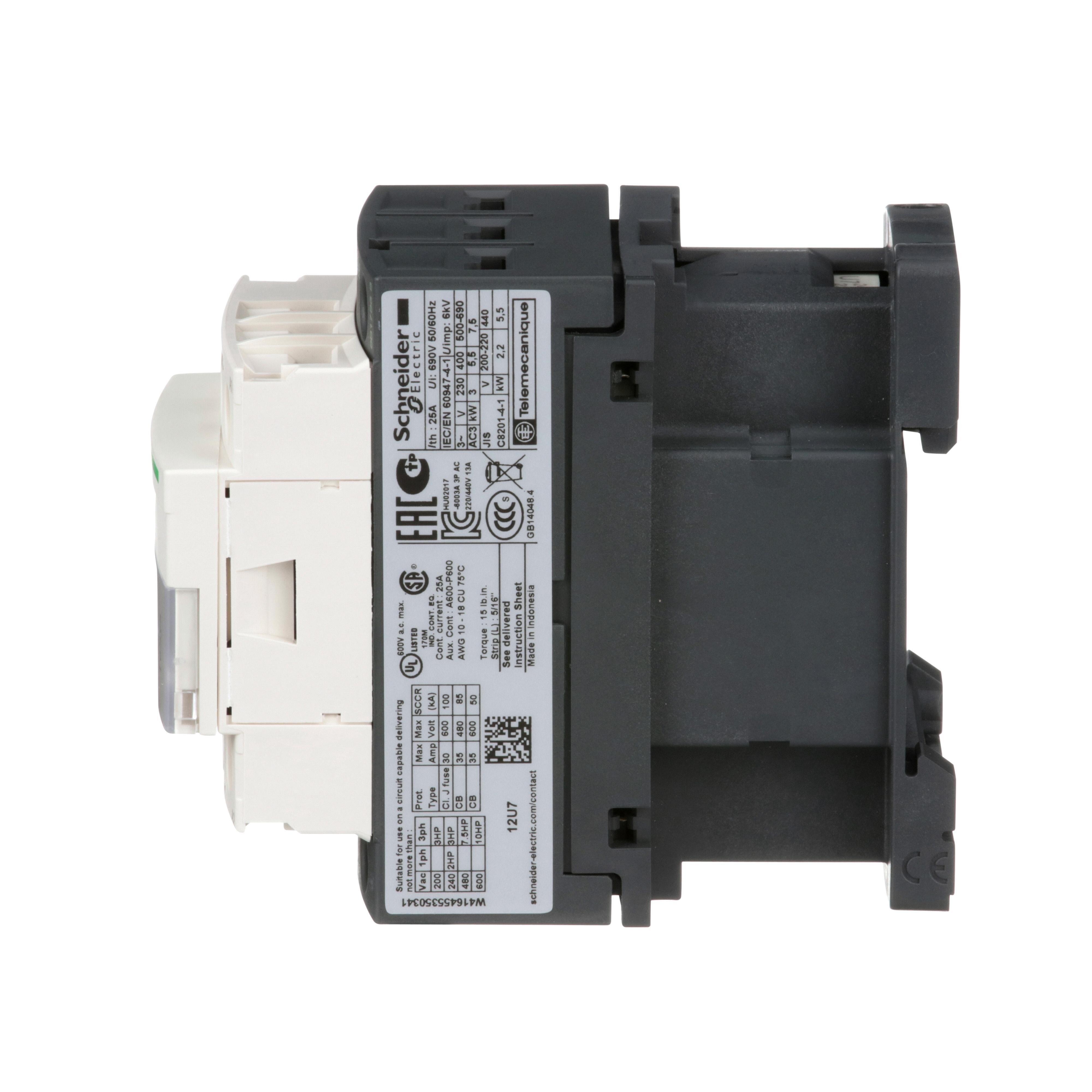

LC1D12U7 - IEC contactor, TeSys Deca, nonreversing, 12A, 7.5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 240VAC 50/60Hz coil, open
Description
Specifications
0.78
3.67
4.49
New modern look and feel of all machines
Industry, Infrastructure, Building, Resistive Load and Motor Control Applications
Schneider Electric
USA
US
CONTACTOR IEC 240/690VAC 300VDC 3 3NO
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Schneider Electric
IN
4.4900
IN
1
0.7800
LB
3.6700
IN
Square D
IEC Contactors
Coil Power Rating
VA
7.5/7.7
Maximum Load Current
A
25-Dec
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1NO-1NC
Number Of Poles
3
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-5 to 60/-40 to 70
Series
LC1D
Size
MM
45/77/86
Terminal Type
Screw clamp
Type
Direct On-Line
Coil Voltage
240/690 V AC, 300 V DC
W
0.36/1.56
Connection Type
Screw clamp
Contact Configuration
3NO
Contact Rating
25/60 A at 600 V AC, 10/60 A at 600 V AC
Contact Type
Non-reversing
Dimensions
45 mm W x 84 mm D x 77 mm H
Enclosure Type
Open
Frequency Rating
HZ
50/60
