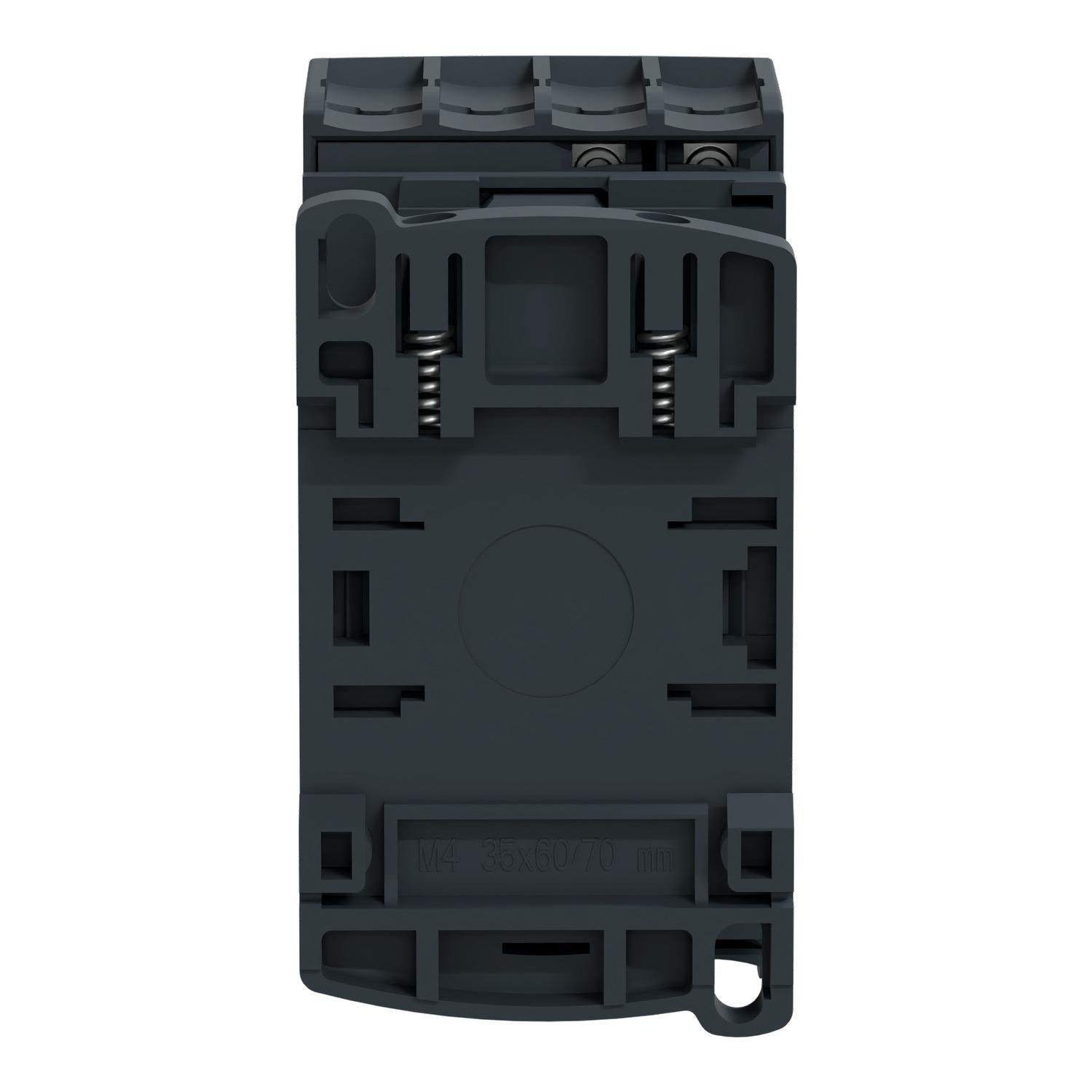

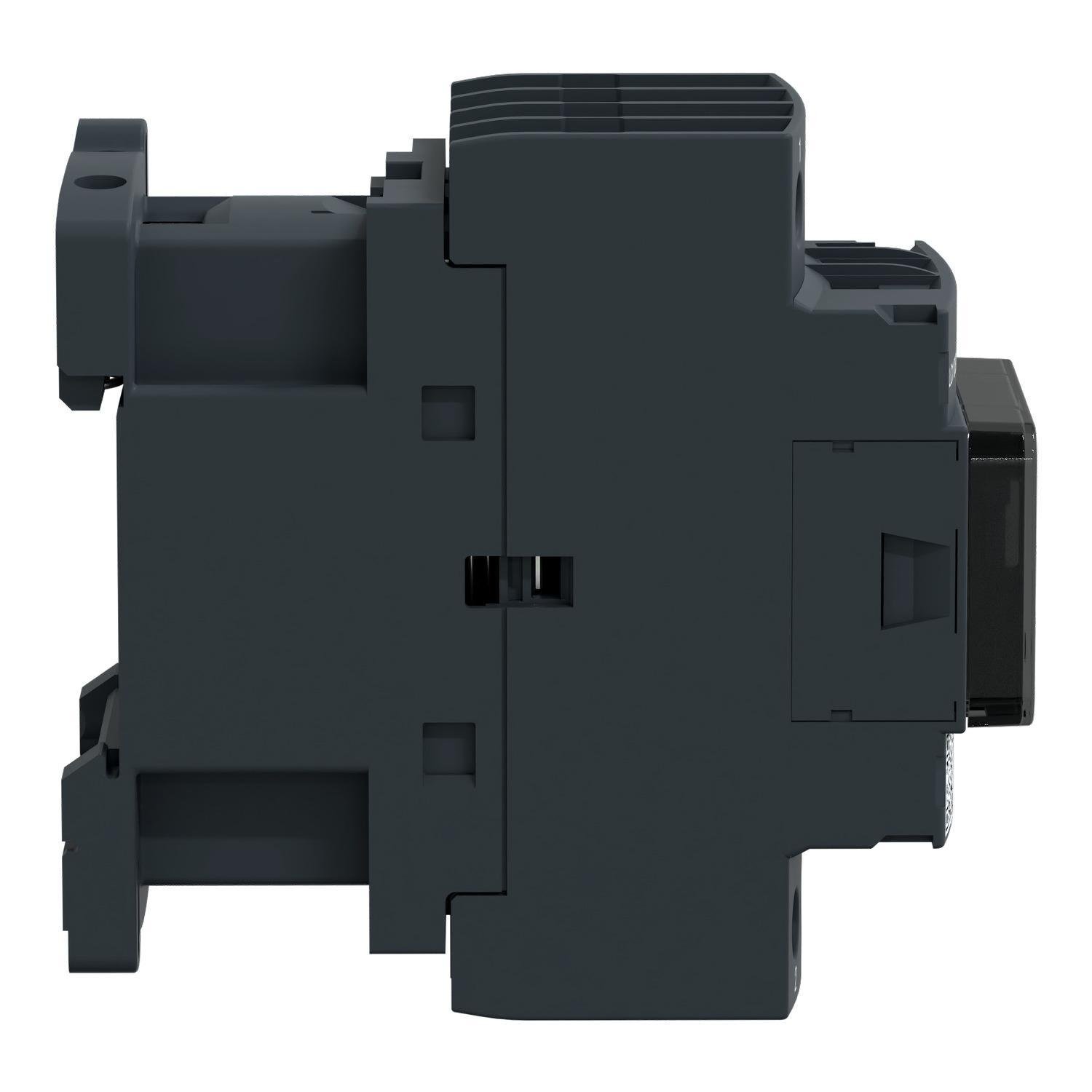

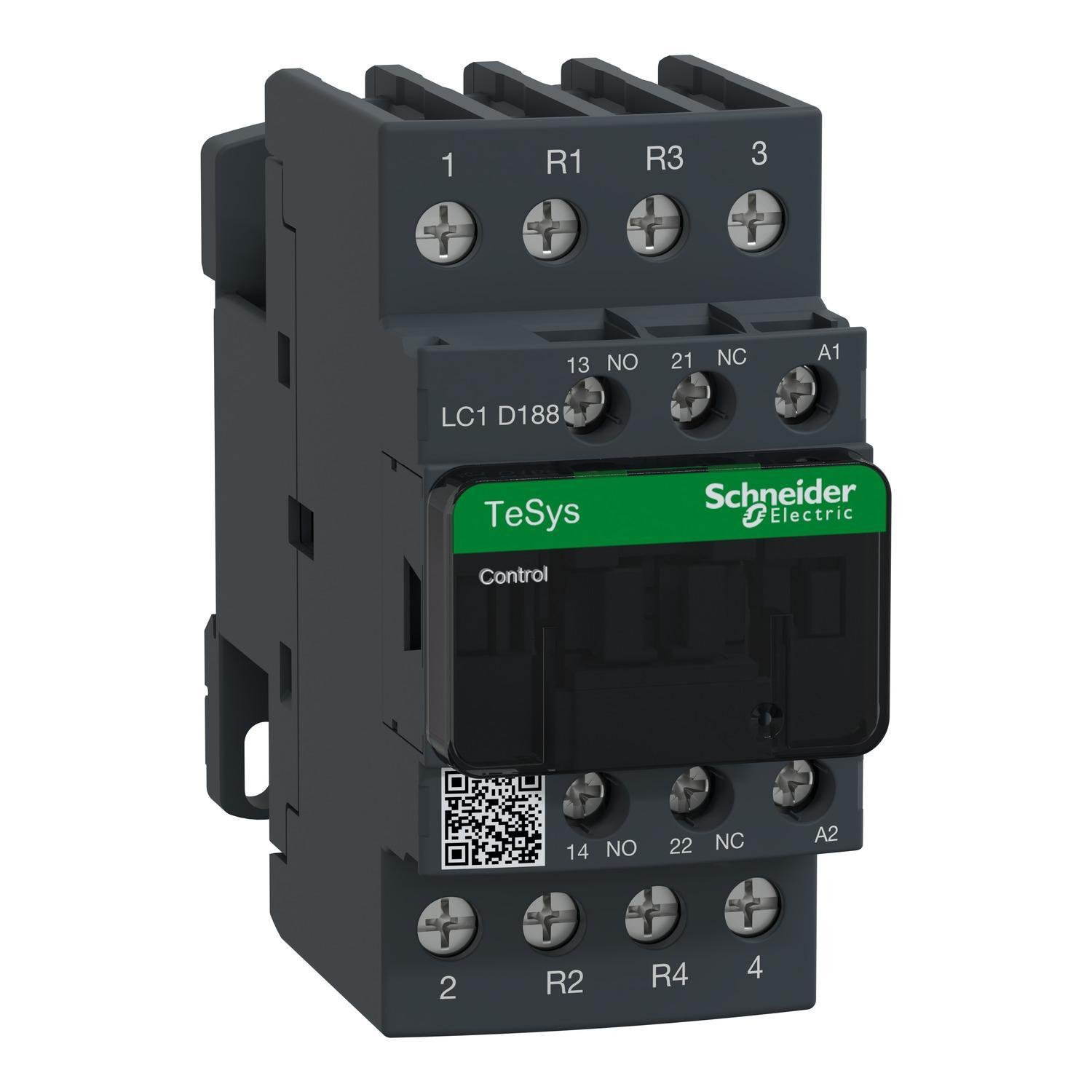

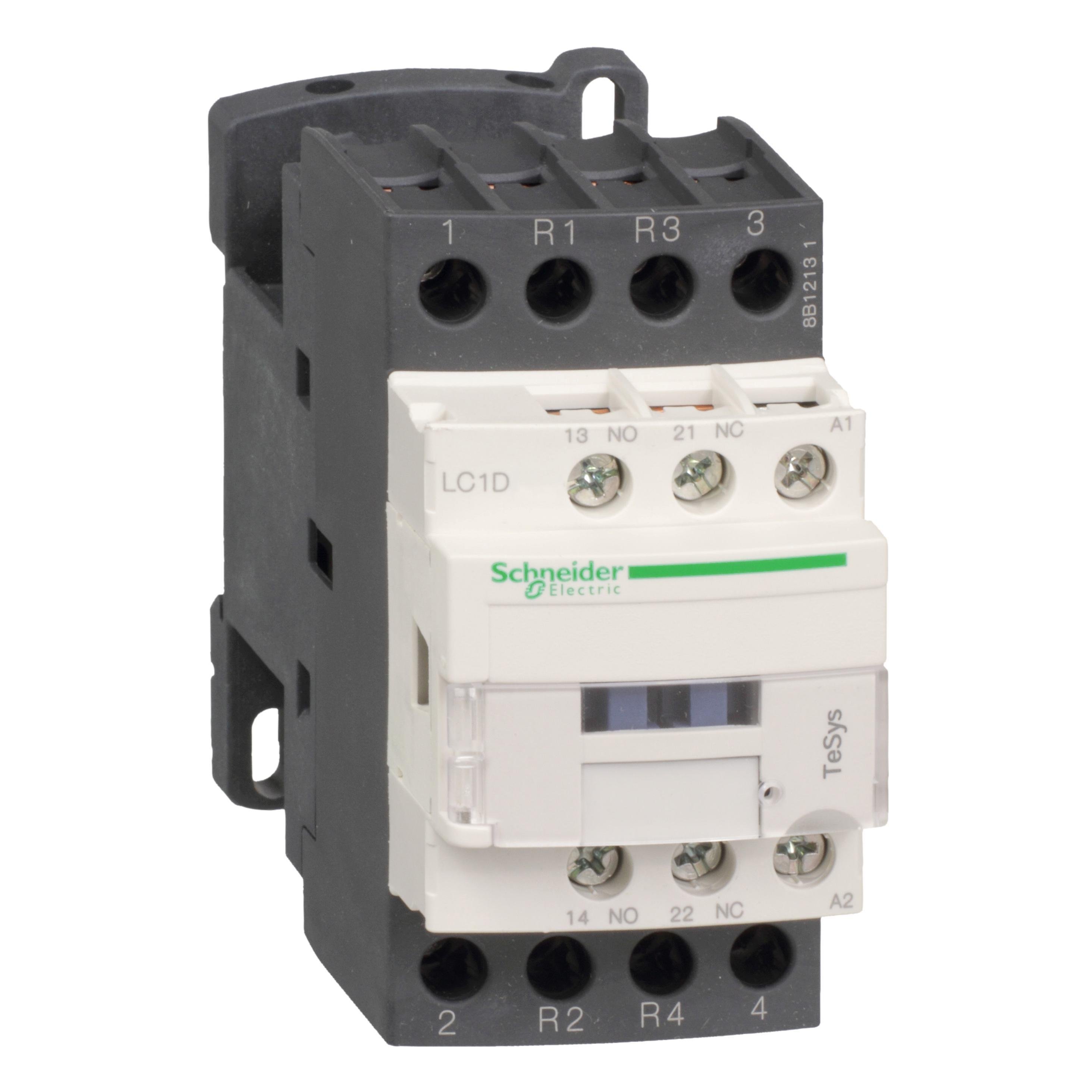

LC1D188G7 - IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style, open style
Description
Specifications
1.05
3.8
3.71
4.6
New modern look and feel of all machines
Resistive Load Application
Schneider Electric
USA
MX
CONTACTOR IEC 120VAC 32A 2NO-2NC 4 IP2X
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Schneider Electric
3.8000
IN
4.6000
IN
1
43.3400
cu-in
1.0500
LB
3.7100
IN
https://www.youtube.com/embed/vlEODblcQoo
Square D
IEC Contactors
Coil Power Rating
70 VA Inrush, 7/7.5 VA Hold-In
Maximum Load Current
A
32
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1 NO-1 NC
Number Of Poles
4
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-4 to 70
Power Factor
0.75 Inrush, 0.3 Hold-In
Series
D-Line LC1D
Terminal Type
Screw clamp
Type
Standard
Coil Voltage
120/690 V AC, 300 V DC
Connection Type
Screw clamp
Contact Configuration
2NO-2NC
Contact Rating
32 A at 600 V AC
Contact Type
Non-reversing
Dimensions
45 mm W x 99 mm D x 105 mm H
Enclosure Type
IP2x
Frequency Rating
HZ
50/60
