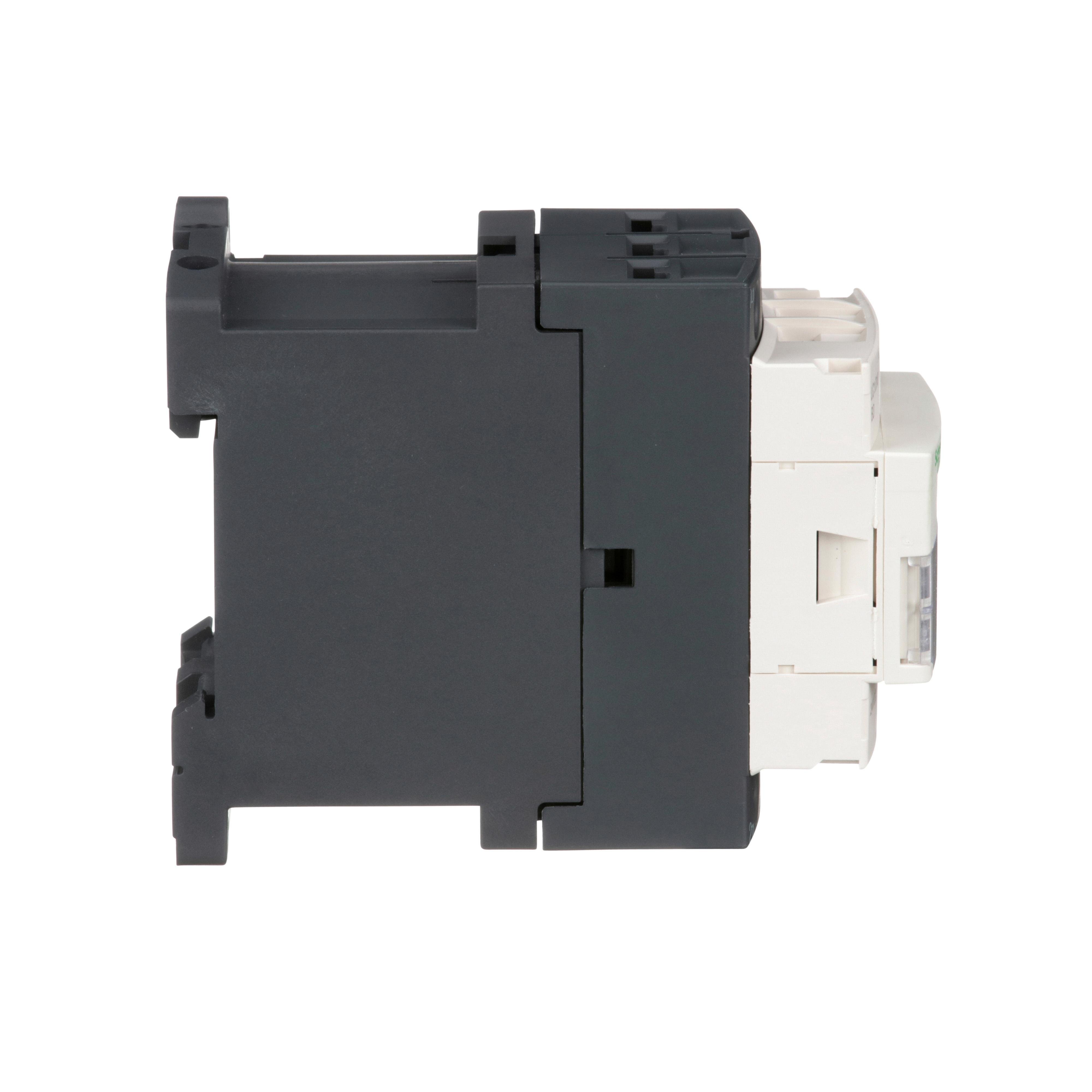

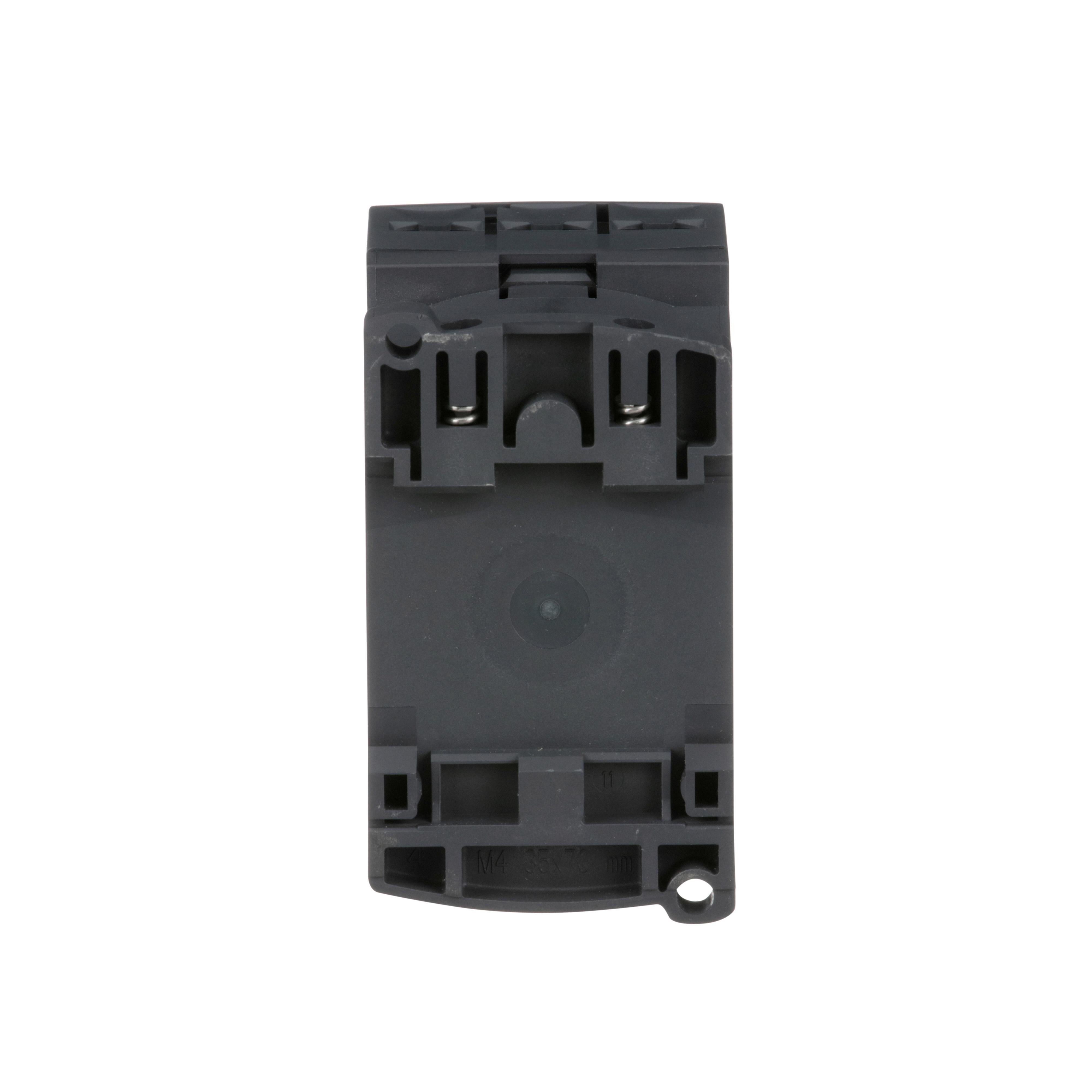

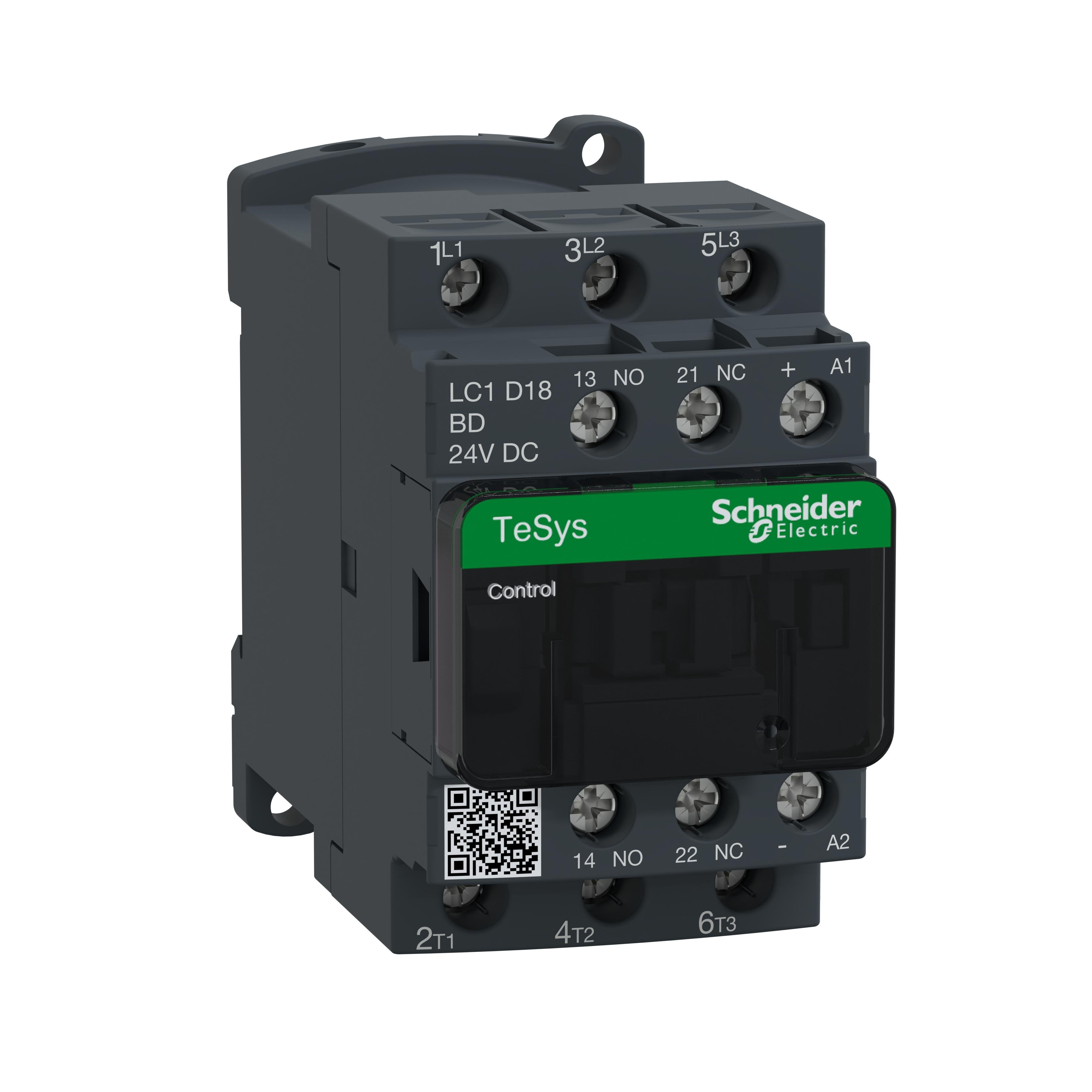

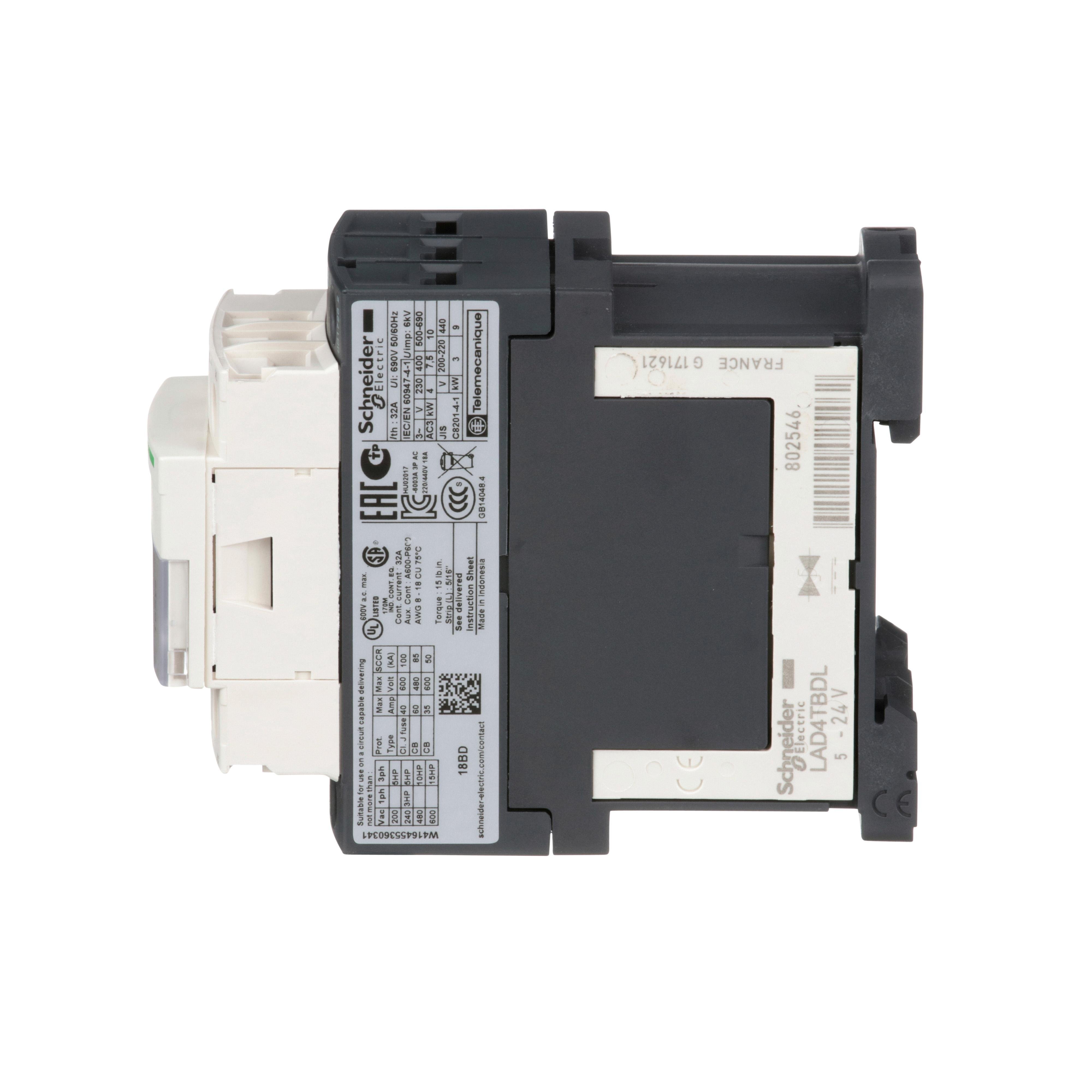

LC1D18BD - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open

Category IEC Contactors
Picture of LC1D18BD - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open
Schneider Electric

LC1D18BD - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open

Item Code: 1481461
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D18BD

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.08 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Weight

1.15lb

Height

2.1mm

Width

3.51mm

Length

4.29mm

Depth

95mm

Brand

Schneider Electric

Category

IEC Contactors

Coil Power Rating

5.4 W

Coil Voltage

690 V AC, 24/300 V DC

Connection Type

Screw clamp

Contact Configuration

3NO

Contact Rating

60/60 A at 600 V AC, 32/60 A at 600 V AC

Contact Type

Non-reversing

Dimensions

45 mm W x 95 mm D x 77 mm H

Enclosure Type

IP2x

Frequency Rating

50/60 Hz

Maximum Load Current

18/32 A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60/-40 to 70 deg C

Series

LC1D

Size

45/77/95 mm

Terminal Type

Screw clamp

Type

Direct On-Line Standard

Wattage

0.8/2.5 W
