LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Category IEC Contactors

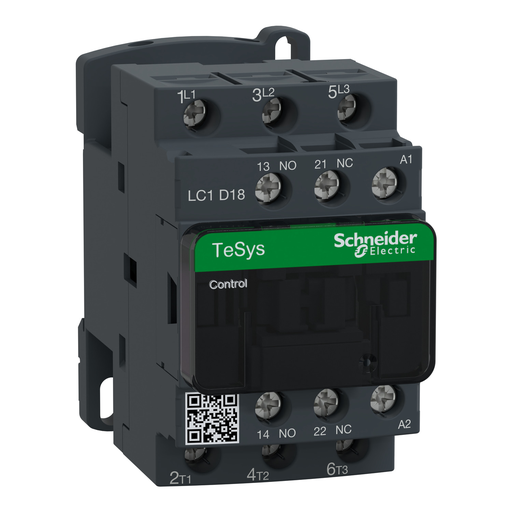

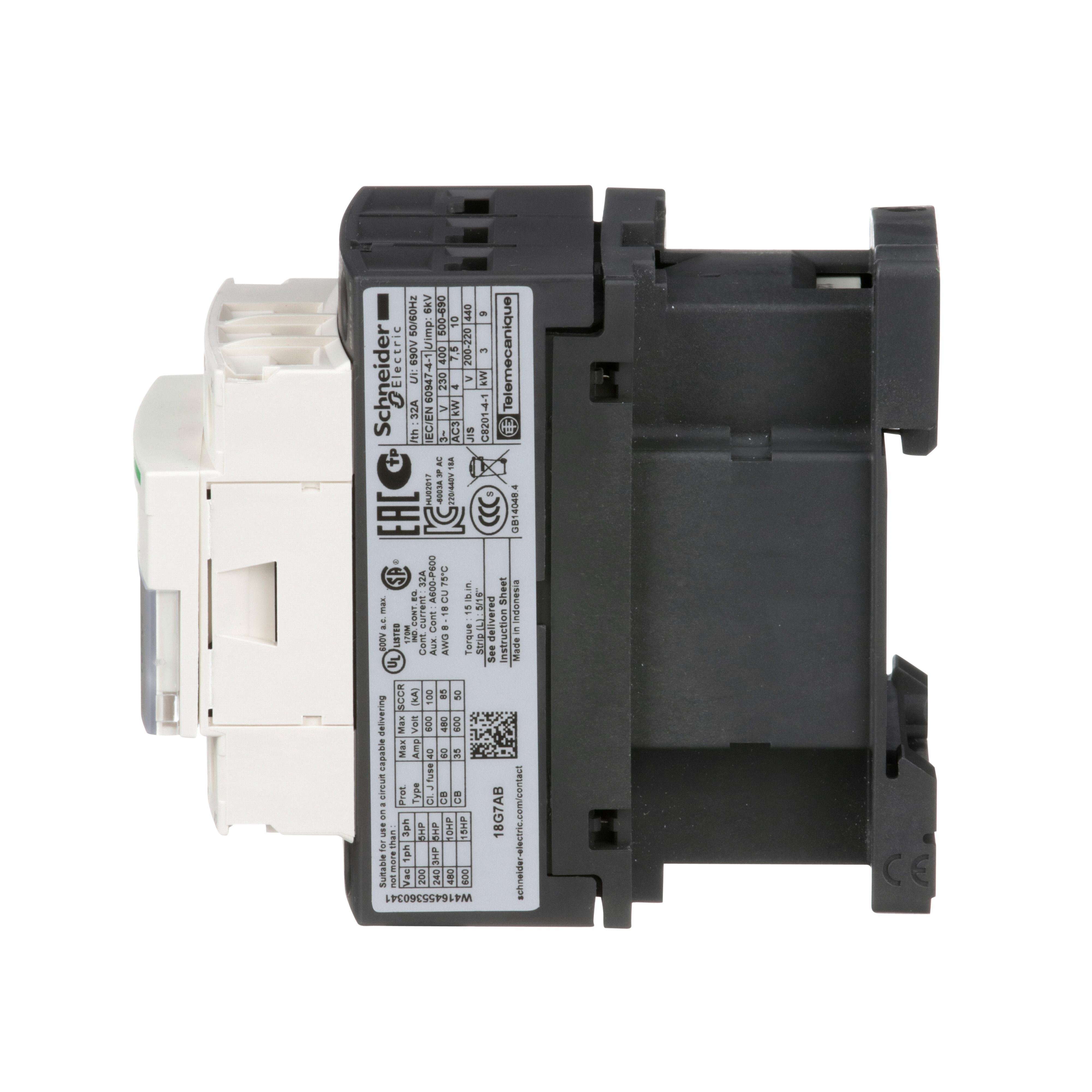

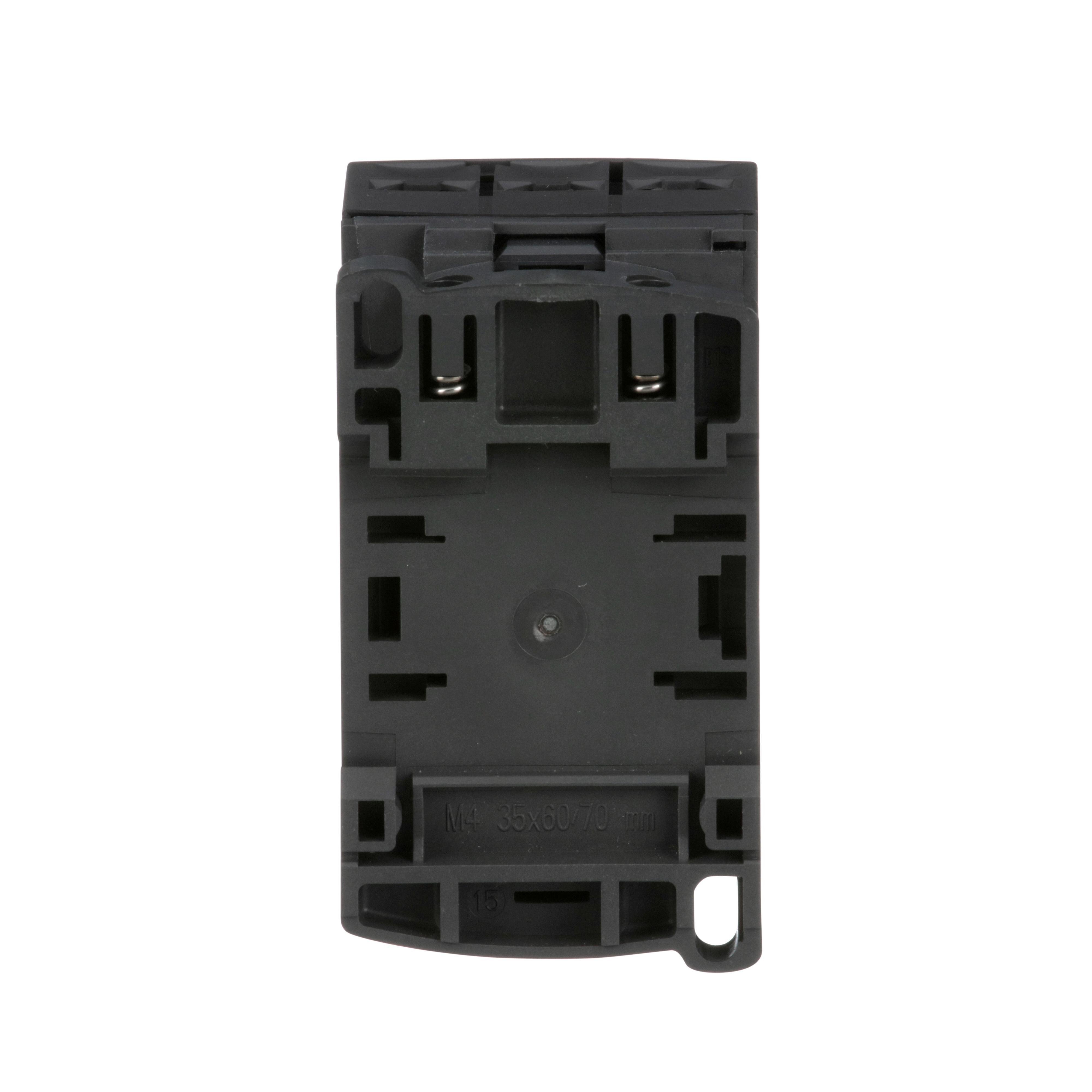

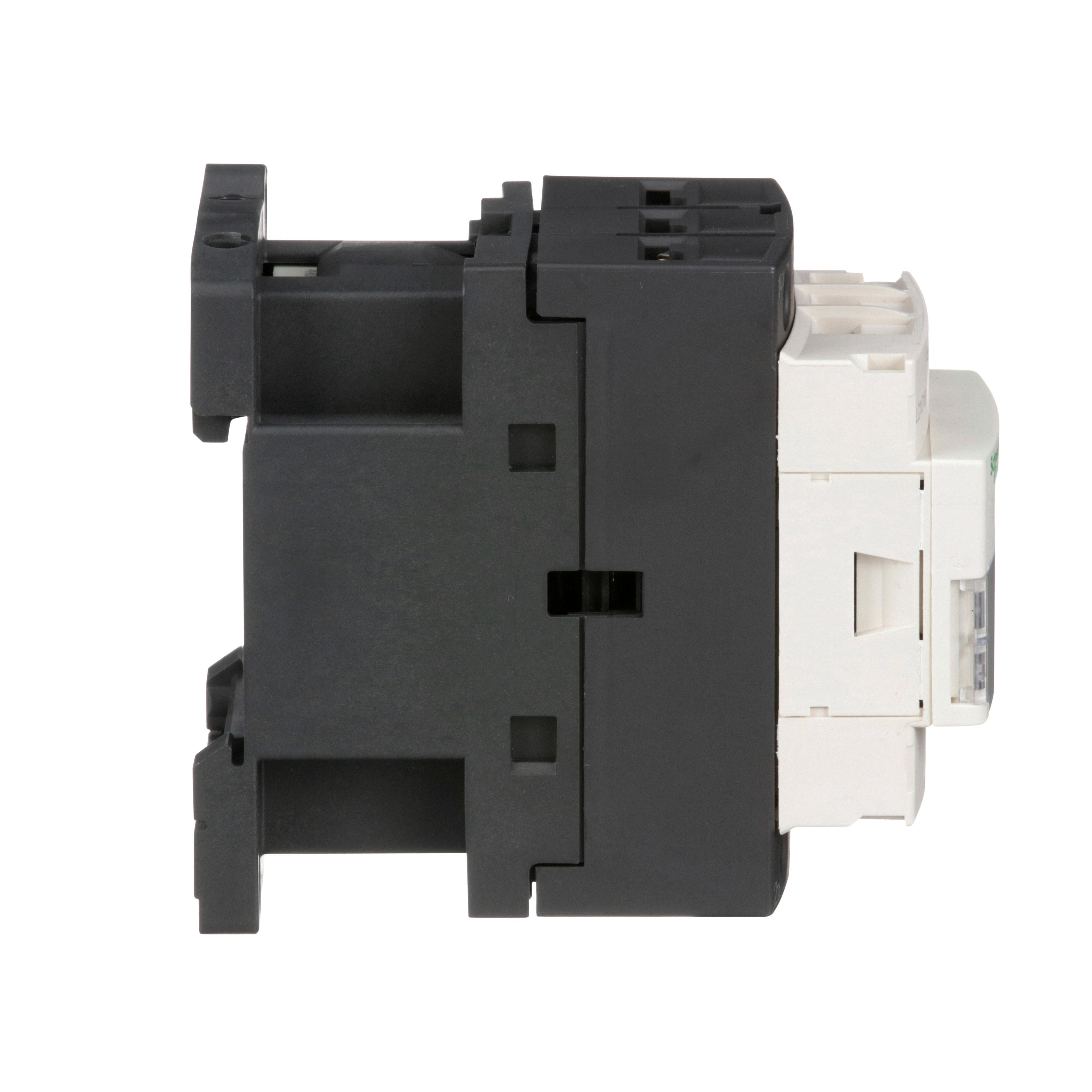

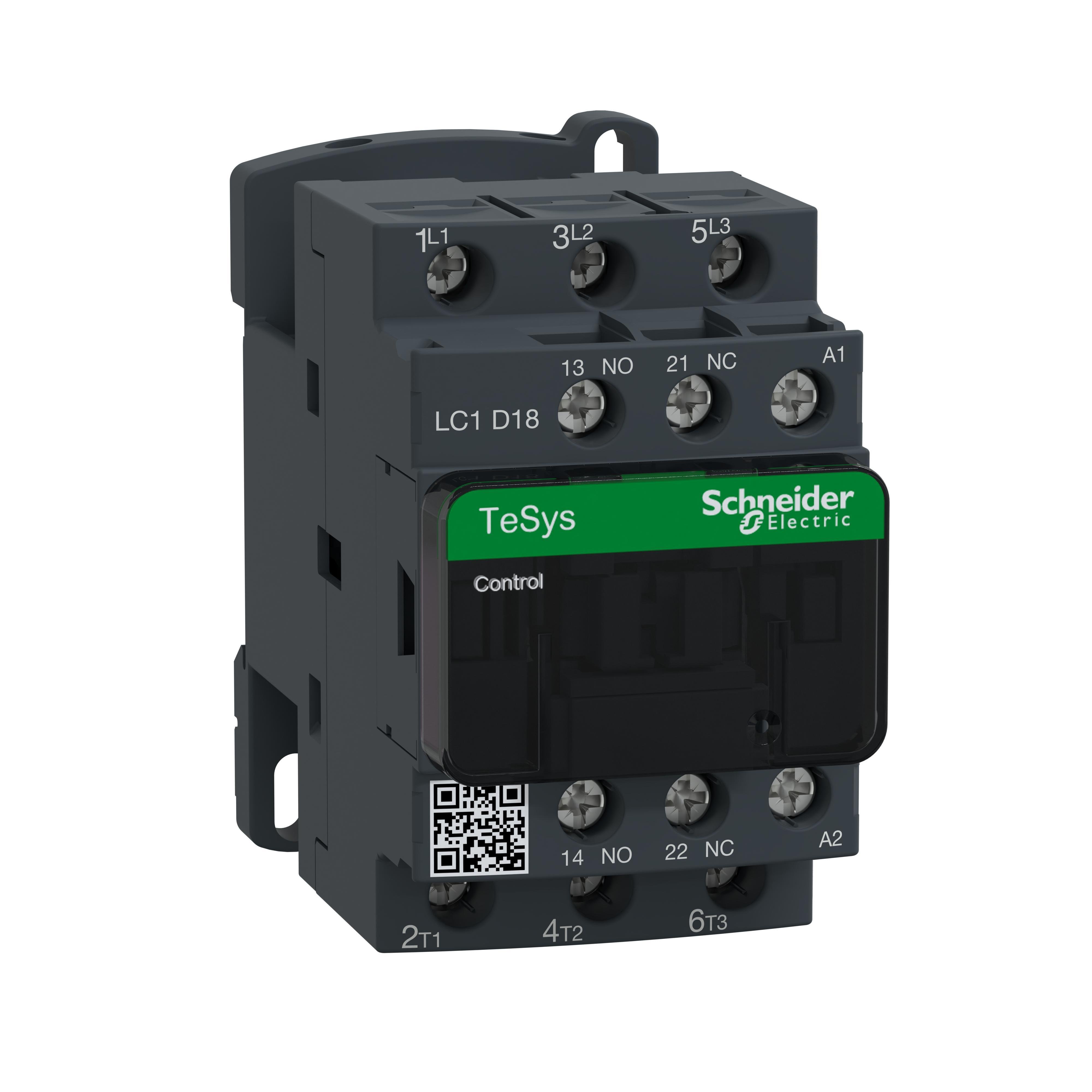

Picture of LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Schneider Electric

LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Item Code: 18294
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D18G7

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.73 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Weight

0.8lb

Height

4.6mm

Width

3.71mm

Length

4.68mm

Depth

86mm

Brand

Square D

Category

IEC Contactors

Coil Power Rating

7.5/7.7 VA

Coil Voltage

120/690 V DC, 300 V DC

Connection Type

Screw clamp

Contact Configuration

3NO

Contact Rating

60/60 A at 600 V AC, 32/60 A at 600 V AC

Contact Type

Mechanically Linked/Mirror/Non-Reversing

Dimensions

45 mm W x 84 mm D x 77 mm H

Enclosure Type

IP20

Frequency Rating

50/60 Hz

Maximum Load Current

18/32 A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60/-40 to 70 deg C

Power Factor

0.75 Inrush, 0.3 Hold-In

Series

LC1D

Size

45/77/86 mm

Terminal Type

Screw clamp

Type

D-LINE

Wattage

0.8/2.5 W

Schneider Electric

LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Category IEC Contactors
Picture of LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Schneider Electric

LC1D18G7 - IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Item Code: 18294
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D18G7

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.73 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Weight

0.8lb

Height

4.6mm

Width

3.71mm

Length

4.68mm

Depth

86mm

Brand

Square D

Category

IEC Contactors

Coil Power Rating

7.5/7.7 VA

Coil Voltage

120/690 V DC, 300 V DC

Connection Type

Screw clamp

Contact Configuration

3NO

Contact Rating

60/60 A at 600 V AC, 32/60 A at 600 V AC

Contact Type

Mechanically Linked/Mirror/Non-Reversing

Dimensions

45 mm W x 84 mm D x 77 mm H

Enclosure Type

IP20

Frequency Rating

50/60 Hz

Maximum Load Current

18/32 A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60/-40 to 70 deg C

Power Factor

0.75 Inrush, 0.3 Hold-In

Series

LC1D

Size

45/77/86 mm

Terminal Type

Screw clamp

Type

D-LINE

Wattage

0.8/2.5 W
