LC1D25B7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open

Category IEC Contactors

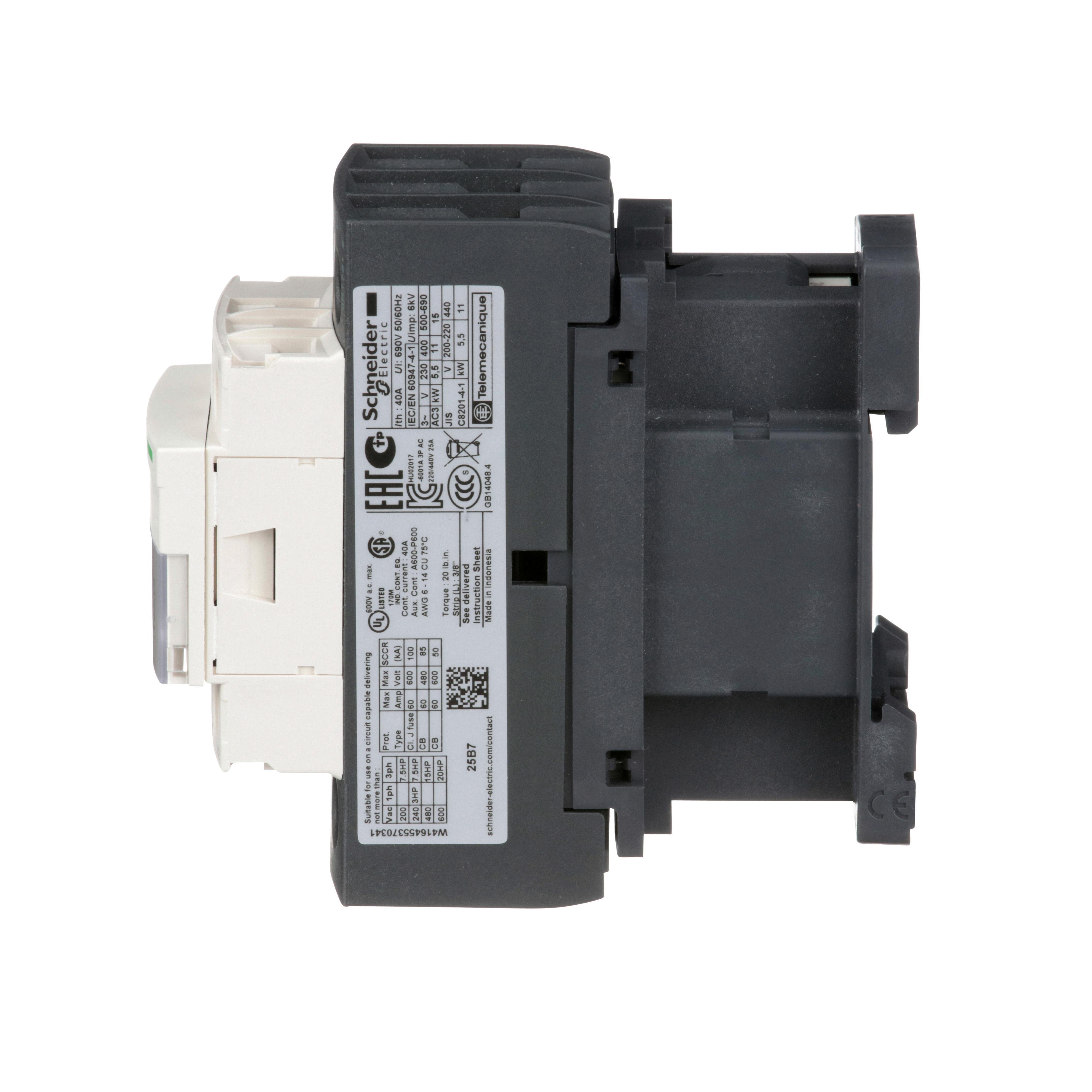

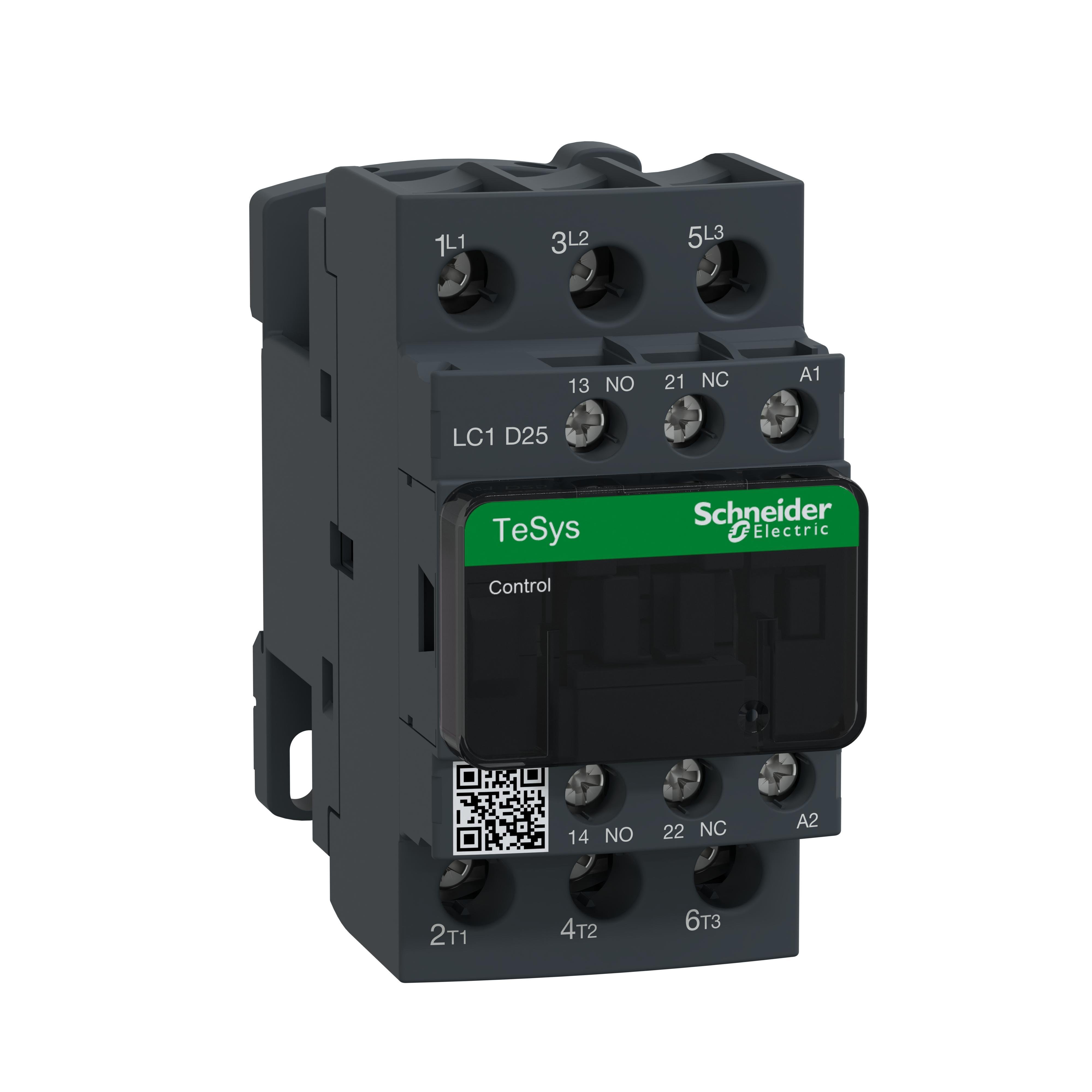

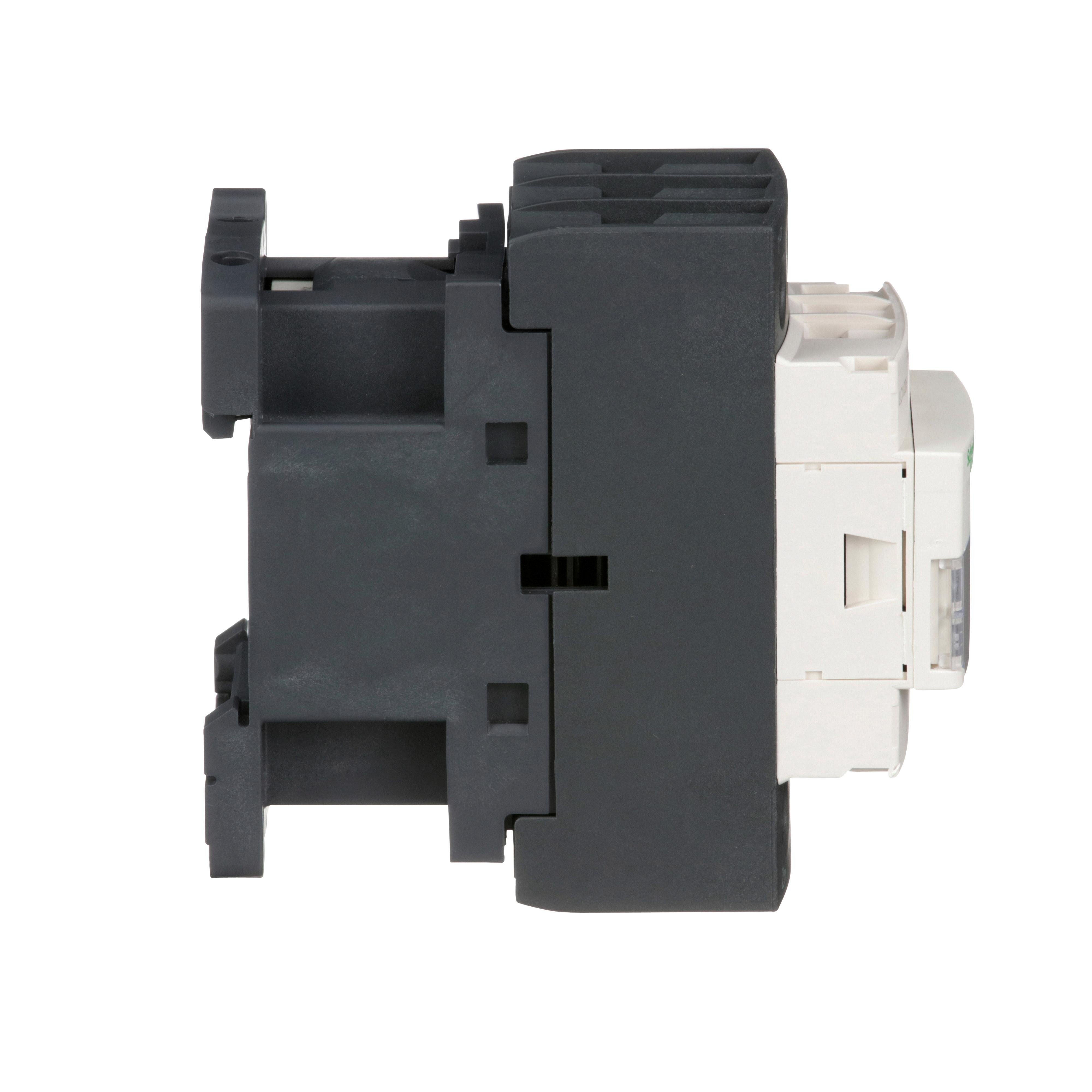

Picture of LC1D25B7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open
Schneider Electric

LC1D25B7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VAC 50/60Hz coil, open

Item Code: 599483
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D25B7

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Weight

0.93lb

Height

2.2mm

Width

3.51mm

Length

4.29mm

Depth

92mm

Brand

Square D

Category

IEC Contactors

Coil Power Rating

7.5/7.7 VA

Coil Voltage

24/690 V AC, 300 V DC

Connection Type

Screw clamp

Contact Configuration

3NO

Contact Rating

10/60 A at 600 V AC, 40/60 at 600 V AC

Contact Type

Non-reversing

Dimensions

45 mm W x 92 mm D x 85 mm H

Enclosure Type

IP2x

Frequency Rating

50/60 Hz

Maximum Load Current

25/40 A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60/-40 to 70 deg C

Series

LC1D

Size

45/85/92 mm

Terminal Type

Screw clamp

Type

Direct On-Line

Wattage

1.25/3.2 W
