Schneider Electric

LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Category IEC Contactors

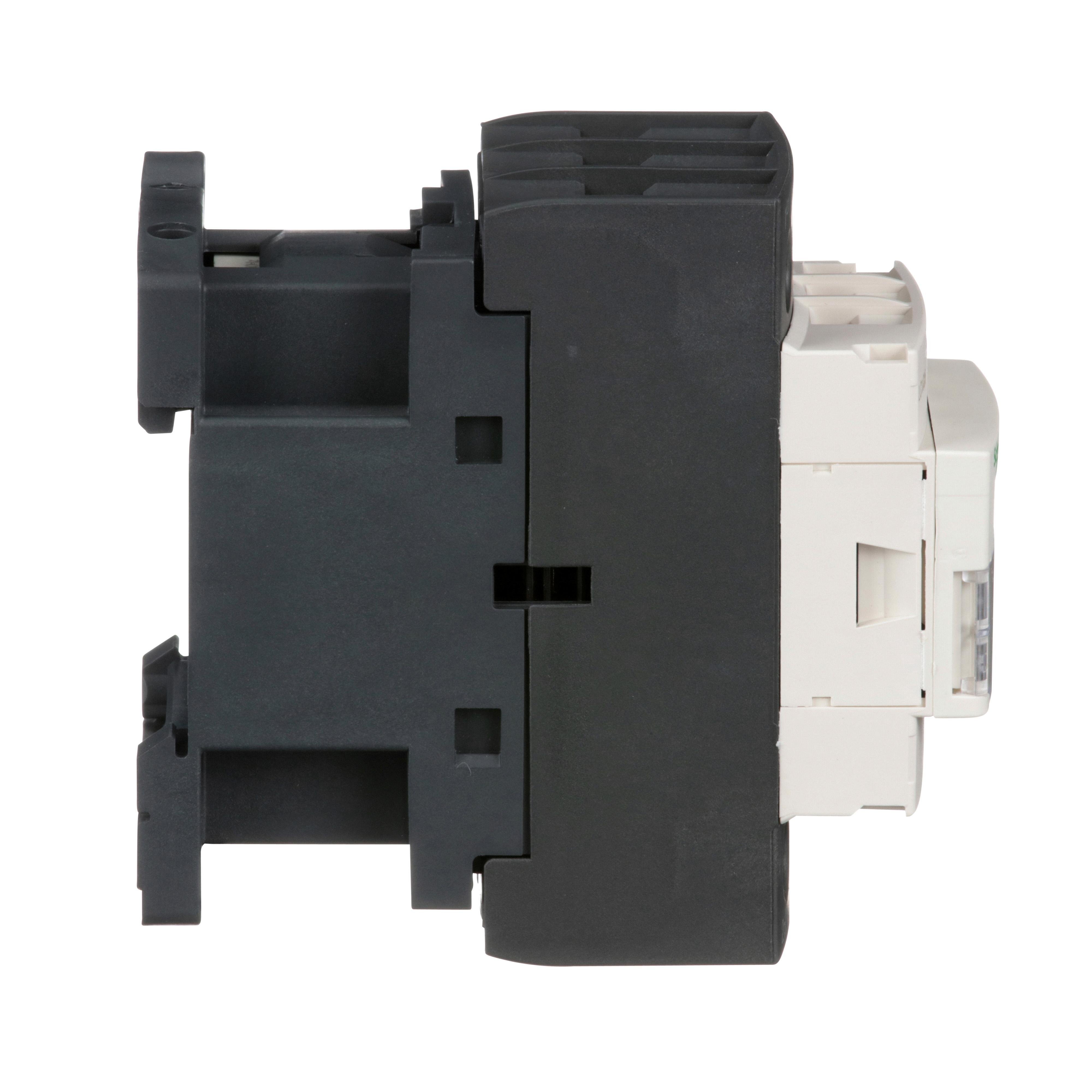

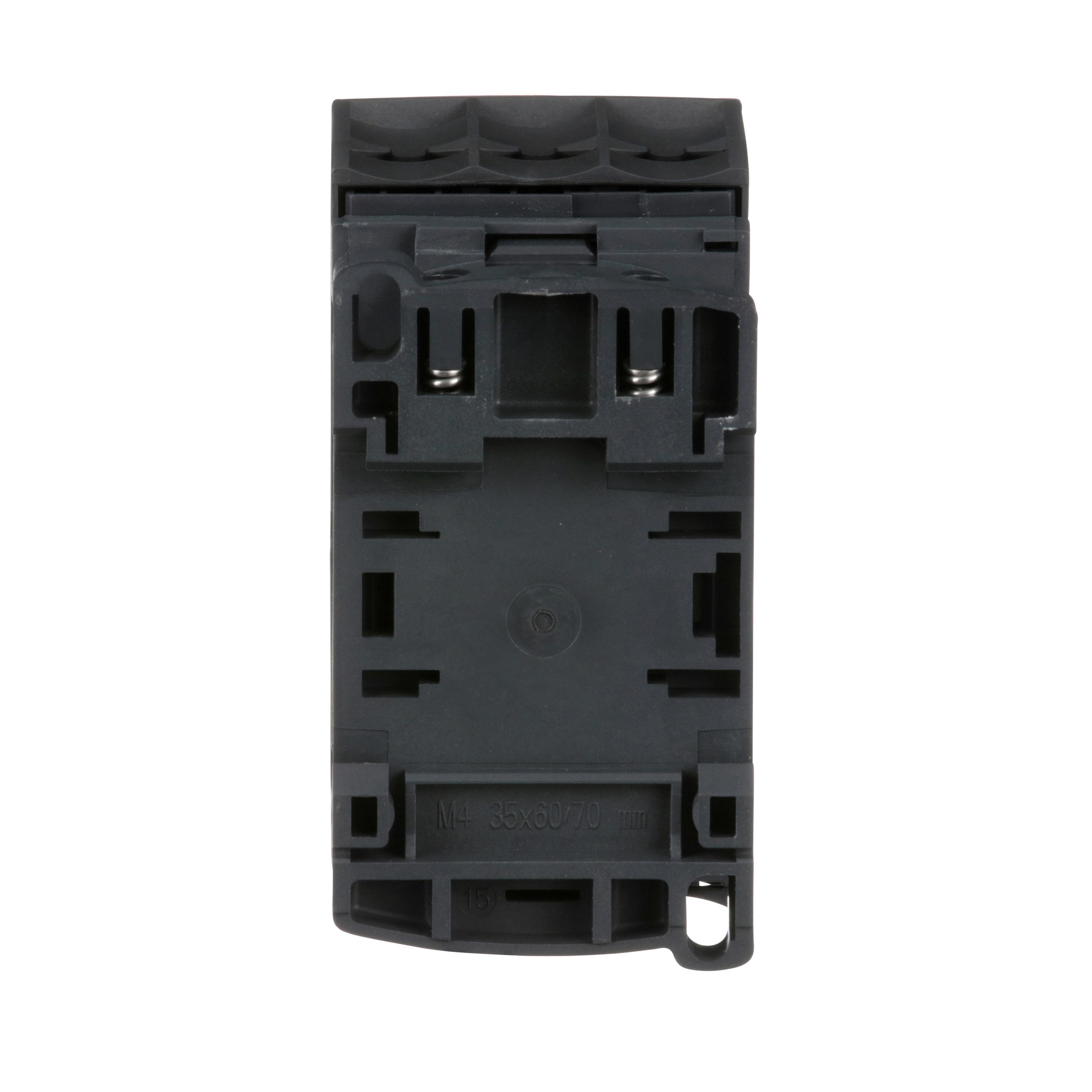

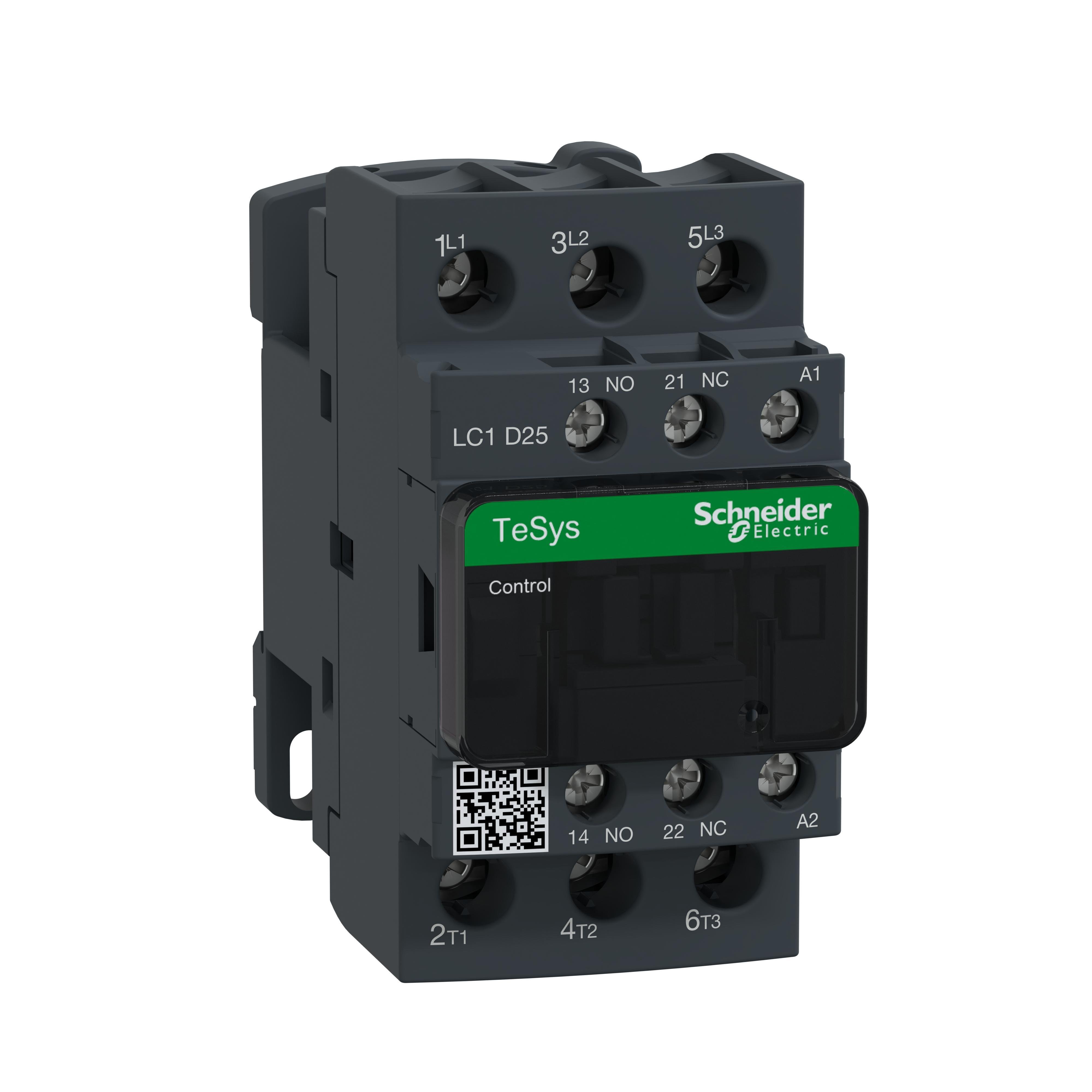

Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Schneider Electric

LC1D25G7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Item Code: 18299
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D25G7

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Weight

0.91lb

Height

2.2mm

Width

3.71mm

Length

4.49mm

Depth

92mm

AD All Features

New modern look and feel of all machines

AD Application

For motor control and resistive loads

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONTACTOR IEC 120/690VDC 300VDC 3 3NO

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

4.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.9100

AD Package Weight UOM

LB

AD Package Width

3.7100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

7.5/7.7

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

25/40

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Rail/Surface

Spec 12 Attribute

Number of Auxiliary Contacts

Spec 12 Attribute Value

1NO-1NC

Spec 13 Attribute

Number Of Poles

Spec 13 Attribute Value

3

Spec 14 Attribute

Operating Cycles

Spec 14 Attribute UOM

Cycles/hr

Spec 14 Attribute Value

3600

Spec 15 Attribute

Operating Temperature

Spec 15 Attribute UOM

deg C

Spec 15 Attribute Value

-5 to 60/-40 to 70

Spec 16 Attribute

Power Factor

Spec 16 Attribute Value

0.75 Inrush, 0.3 Hold-In

Spec 17 Attribute

Series

Spec 17 Attribute Value

LC1D

Spec 18 Attribute

Size

Spec 18 Attribute UOM

MM

Spec 18 Attribute Value

45/85/92

Spec 19 Attribute

Terminal Type

Spec 19 Attribute Value

Screw clamp

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

120/690 V DC, 300 V DC

Spec 20 Attribute Value

Direct On-Line

Spec 21 Attribute

Wattage

Spec 21 Attribute UOM

W

Spec 21 Attribute Value

1.25/3.2

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

10/60 A at 600 V AC, 40/60 at 600 V AC

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Mechanically Linked/Mirror/Non-Reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

45 mm W x 92 mm D x 85 mm H

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

IP20

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
