Schneider Electric

LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil

Category IEC Contactors

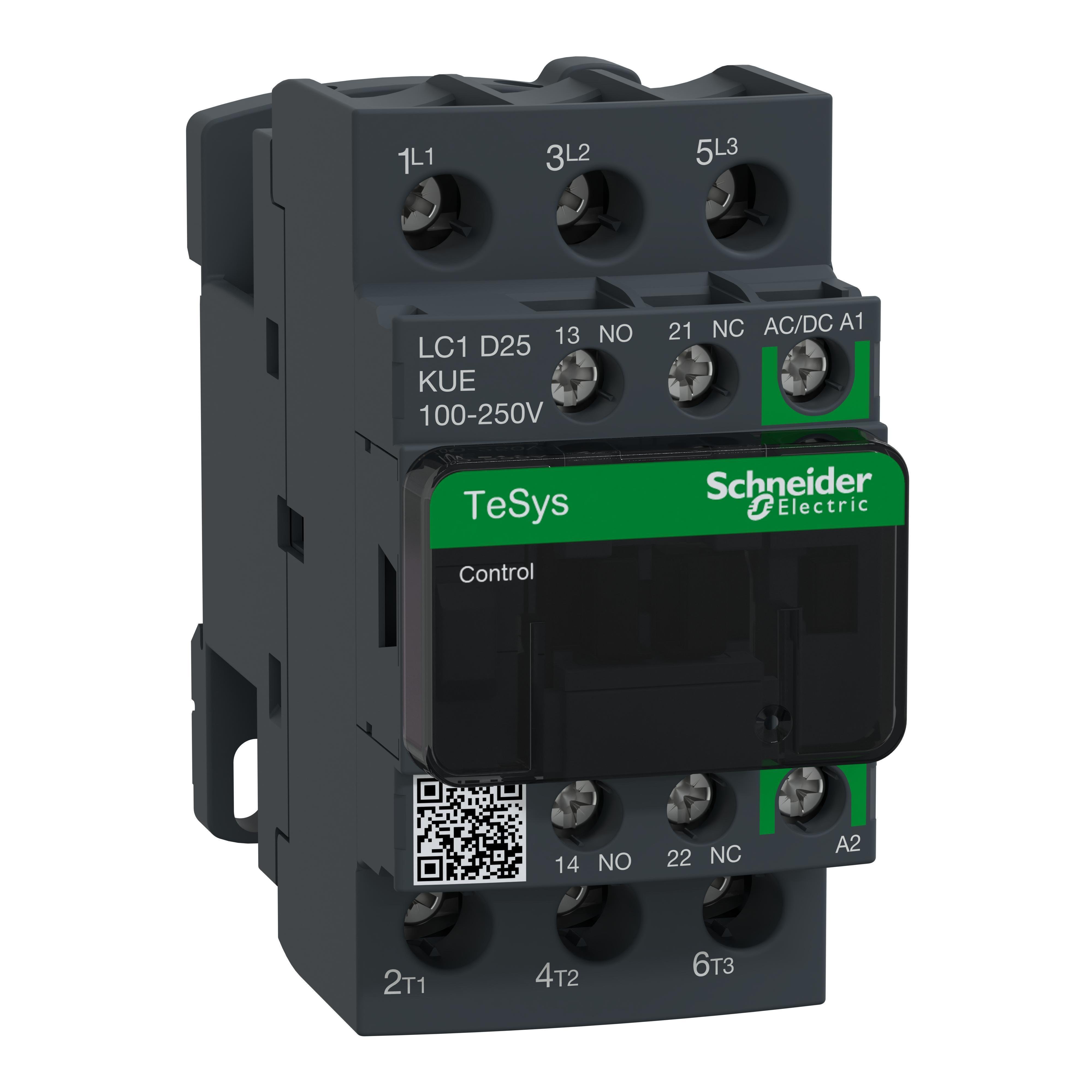

Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil
Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil
Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil
Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil Picture of LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil
Schneider Electric

LC1D25KUE - IEC contactor, TeSys Deca Advanced, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil

Item Code: 1021580
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D25KUE

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a low sealed consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 100-250V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.95 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Specifications

Weight

1lb

Height

85mm

Width

3.71mm

Length

4.6mm

Depth

92mm

AD All Features

Ultra low consumption coil for maximized energy efficiency to meet sustainability needs

AD Application

For motor control and resistive load

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONTACTOR 100 TO 250VAC 40A 3NO 3 1.6VA

AD Item Features 01

Ultra low consumption coil for maximized energy efficiency to meet sustainability needs

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0000

AD Package Weight UOM

LB

AD Package Width

3.7100

AD Package Width UOM

IN

AD Video Links

https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

1.6

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number of Auxiliary Contacts

Spec 11 Attribute Value

1NO-1NC

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles

Spec 13 Attribute Value

3600

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-25 To 60

Spec 15 Attribute

Series

Spec 15 Attribute Value

LC1D

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Screw clamp

Spec 17 Attribute

Wattage

Spec 17 Attribute UOM

W

Spec 17 Attribute Value

1.25

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

100 to 250

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute UOM

A

Spec 5 Attribute Value

25/40

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

45 mm W x 92 mm D x 85 mm H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP20

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

25 to 400

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

40
