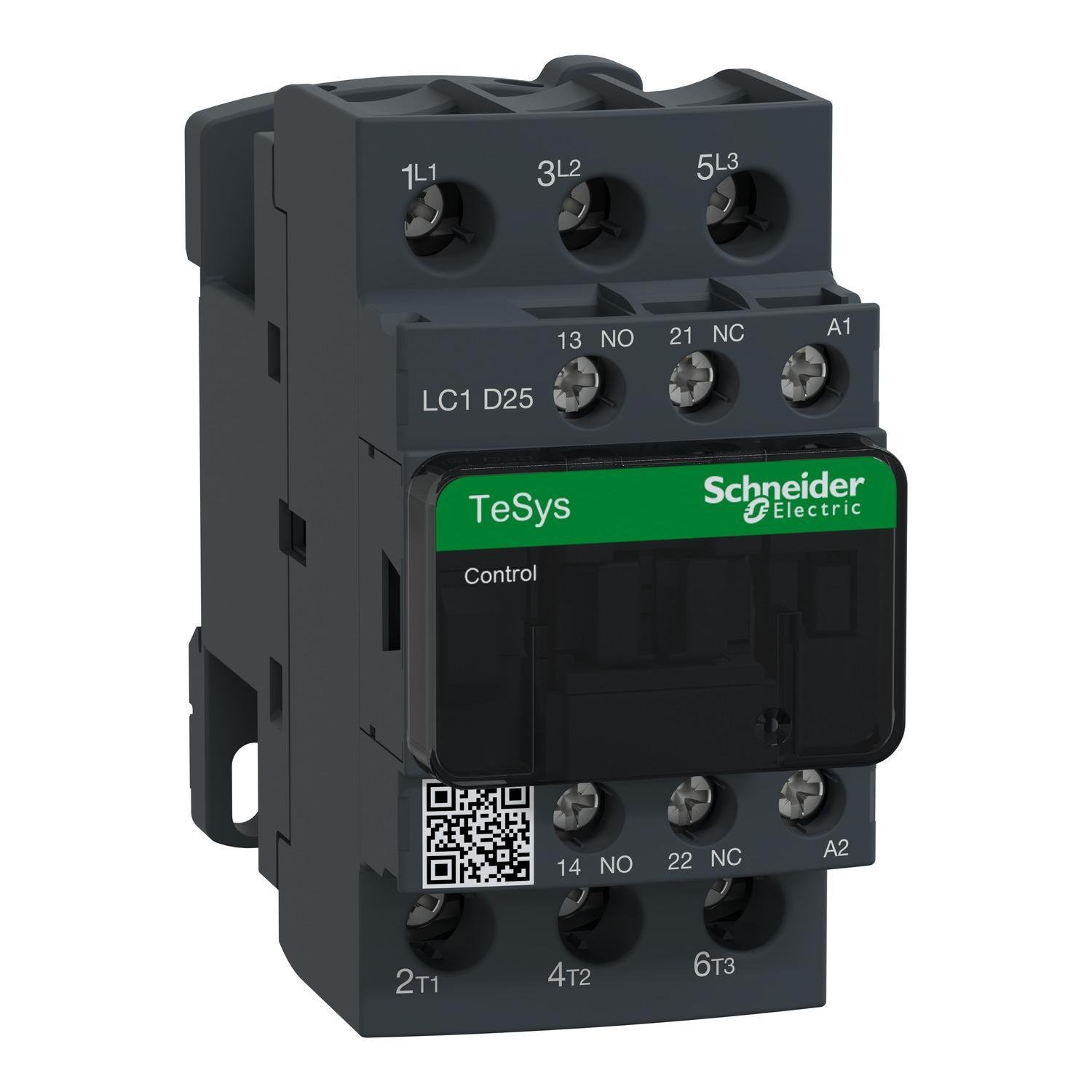

LC1D25T7 - IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 50/60Hz coil, open
Description
Specifications
0.94
4.6
3.67
4.68
New modern look and feel of all machines
Motor Control and Resistive Load Application
Schneider Electric
USA
MX
CONTACTOR IEC 480VAC 40A 3NO 3 50/60HZ
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Schneider Electric
4.6000
IN
4.6800
IN
1
36.5200
cu-in
0.9400
LB
3.6700
IN
https://www.youtube.com/embed/kW01lFljKgE
Square D
IEC Contactors
Coil Power Rating
70 VA Inrush, 7/7.5 VA Hold-In
Maximum Load Current
A
25/40
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1 NO-1 NC
Number Of Poles
3
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-4 to 70
Power Factor
0.75 Inrush, 0.3 Hold-In
Series
D-Line LC1D
Terminal Type
Screw clamp
Type
Standard
Coil Voltage
480/690 V AC, 300 V DC
KW
11
Connection Type
Screw clamp
Contact Configuration
3NO
Contact Rating
25 A at 600 V AC
Contact Type
Non-reversing
Dimensions
45 mm W x 92 mm D x 85 mm H
Enclosure Type
IP2x
Frequency Rating
HZ
50/60
