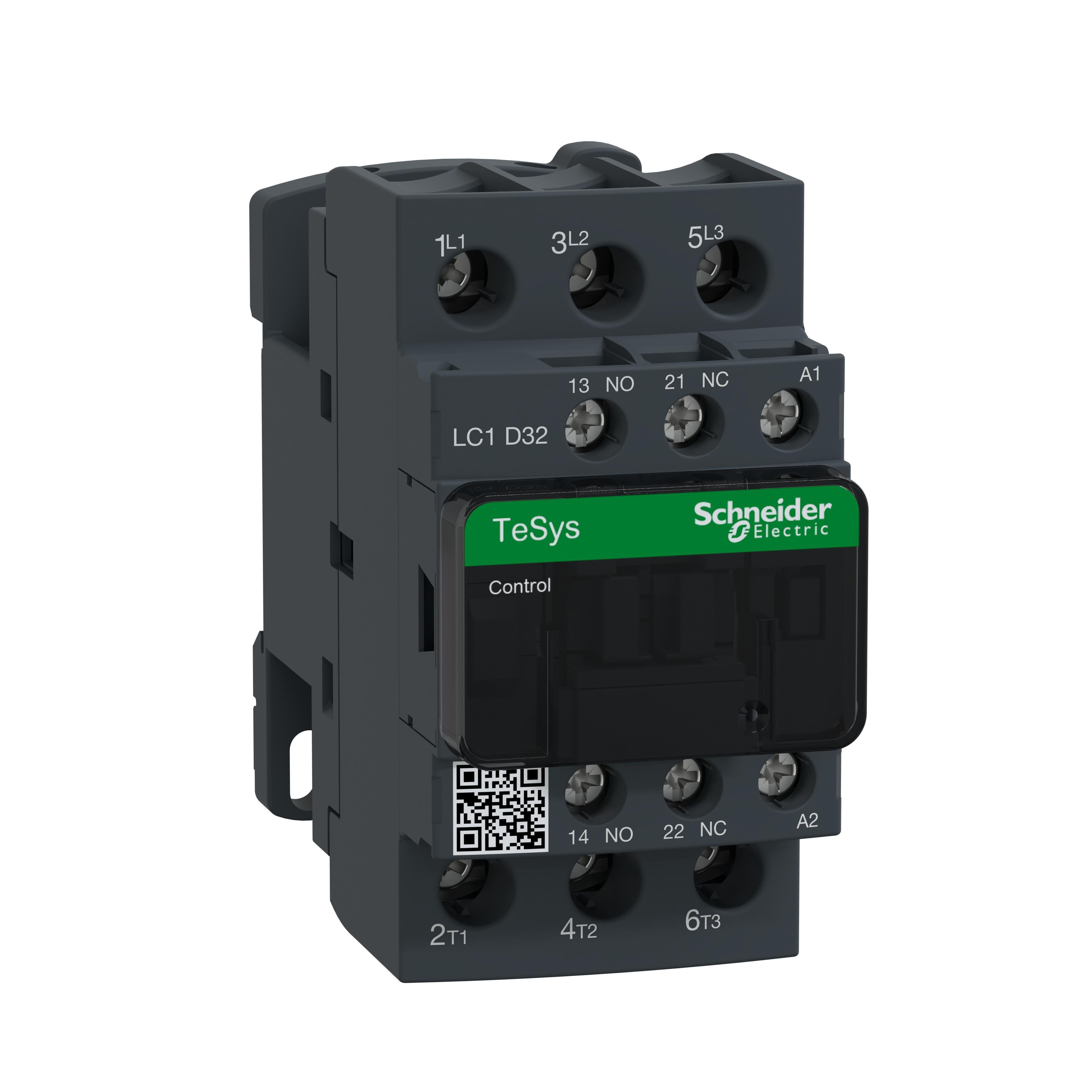

LC1D32LE7 - IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 208VAC 50/60Hz coil, open
Description
Specifications
0.91
2
3.59
4.41
New modern look and feel of all machines
Motor Control and Resistive Load Application
Schneider Electric
USA
US
Protective Cover
CONTACTOR IEC 208VAC 32A 3NO 3 50/60HZ 2
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Schneider Electric
2.0000
IN
4.4100
IN
1
34.9600
cu-in
0.9100
LB
3.5900
IN
https://www.youtube.com/embed/COFeQr6wcKc
Square D
IEC Contactors
Coil Power Rating
70 VA Inrush, 7/7.5 VA Hold-In
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1 NO-1 NC
Number Of Poles
3
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-4 to 70
Power Factor
0.75 Inrush, 0.3 Hold-In
Series
LC1D
Terminal Type
Screw clamp
Type
Standard
Wattage
KW
15
Coil Voltage
208/609 V AC, 300 V DC
Connection Type
Screw clamp
Contact Configuration
3NO
Contact Type
Non-reversing
Dimensions
45 mm W x 92 mm D x 85 mm H
Enclosure Type
IP2x
Frequency Rating
HZ
50/60
Maximum Load Current
A
32/50
