LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil

Category IEC Contactors

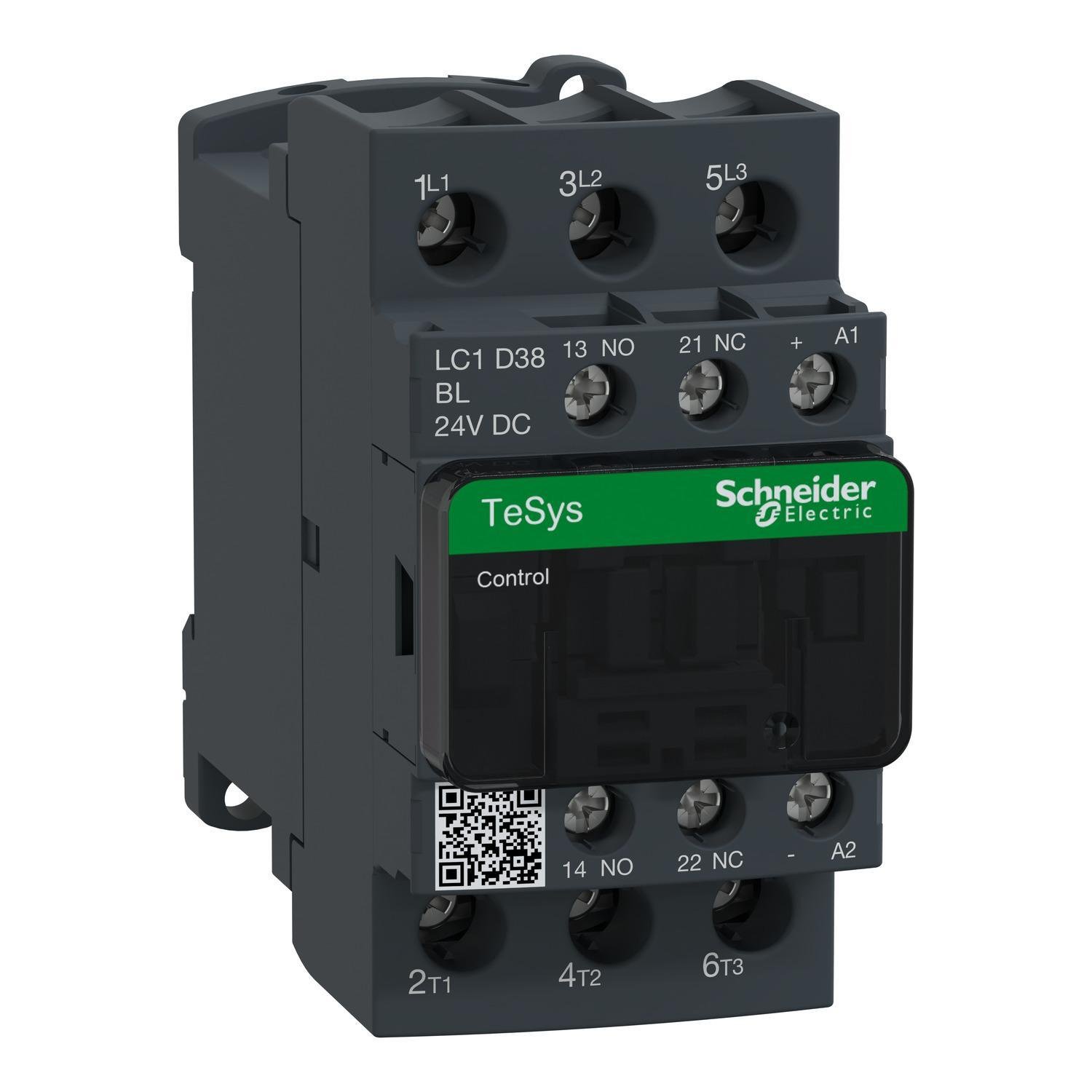

Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil
Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil
Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil
Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil Picture of LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil

LC1D38BL - IEC contactor, TeSys Deca, nonreversing, 38A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, low consumption 24VDC coil

Item Code: 759708
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D38BL
Call for Availability
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a low consumption 24V DC coil with transient suppressor mo

Specifications

Weight

1.31

Width

3.59

Length

4.37

Brand

Square D

Category

IEC Contactors

Coil Power Rating

25 hp at 600 VAC

Coil Voltage

24 V DC

Contact Configuration

3NO

Dimensions

85 mm H x 45 mm W x 101 mm D

Enclosure Type

Open

Frequency Rating

25 to 400 Hz

Maximum Load Current

38/50 A

Mounting Type

Plate/Rail

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

3

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60 deg c

Series

TeSys™ D LC1D

Terminal Type

Screw clamp

Type

Non-reversing
