Schneider Electric

LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Category IEC Contactors

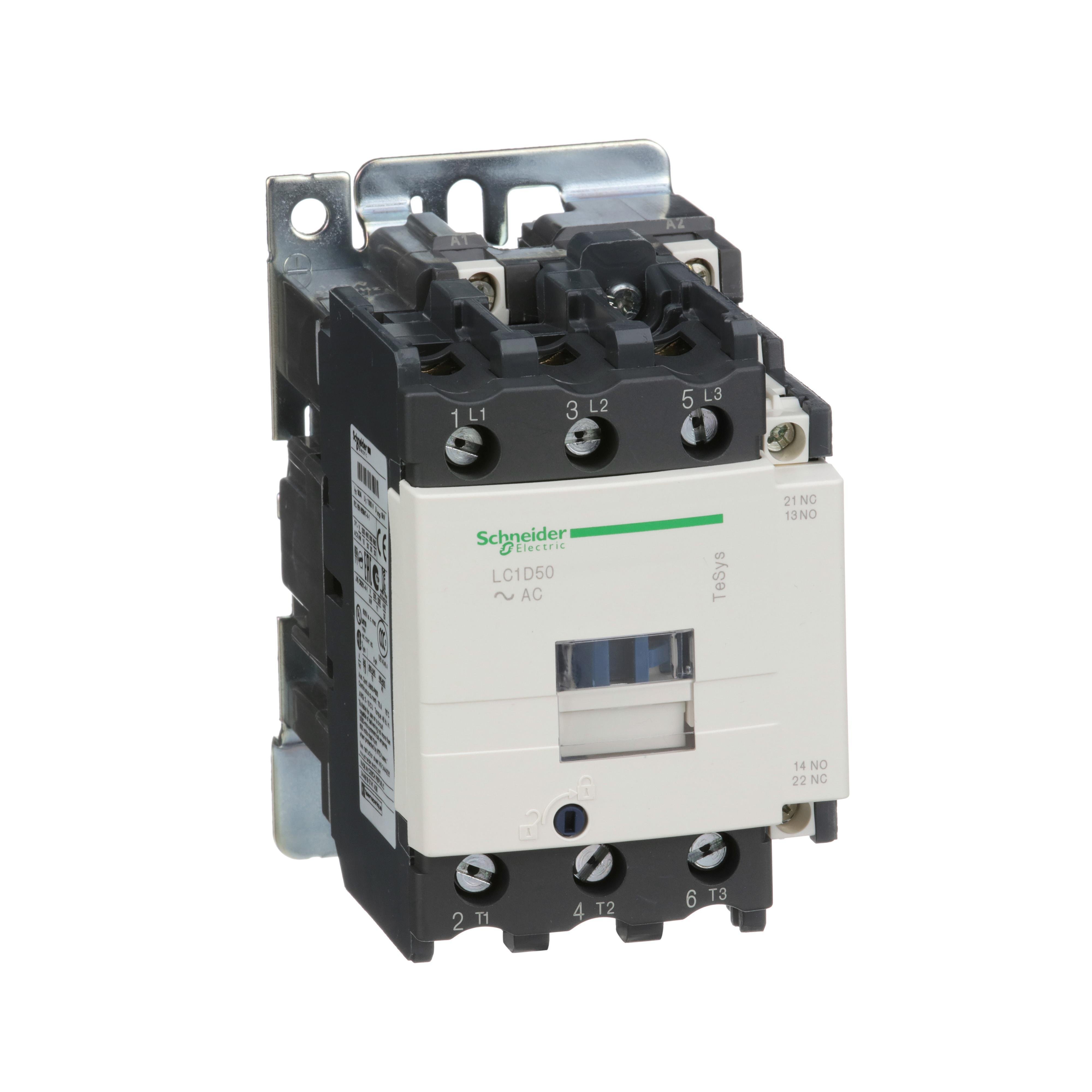

Picture of LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Picture of LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open Picture of LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Schneider Electric

LC1D50G7 - IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open

Item Code: 60497
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1D50G7

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Specifications

Weight

3.18

Height

5.7

Width

5.15

Length

3.71

AD All Features

New modern look and feel of all machines

AD Application

Motor Control and Resistive Load Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

CONTACTOR IEC 120VAC 50/80A 3NO 3 2 IP2X

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.7000

AD Package Height UOM

IN

AD Package Length

3.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

113.8900

AD Package Volume UOM

cu-in

AD Package Weight

3.1800

AD Package Weight UOM

LB

AD Package Width

5.1500

AD Package Width UOM

IN

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

VA

Spec 1 Attribute Value

13/15

Spec 10 Attribute

Number of Auxiliary Contacts

Spec 10 Attribute Value

2

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Operating Cycles

Spec 12 Attribute UOM

Cycles/hr

Spec 12 Attribute Value

3600

Spec 13 Attribute

Operating Temperature

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-5 To 60

Spec 14 Attribute

Series

Spec 14 Attribute Value

TeSys™ D LC1D

Spec 15 Attribute

Size

Spec 15 Attribute Value

4.69

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Screw clamp

Spec 17 Attribute

Type

Spec 17 Attribute Value

D-LINE

Spec 18 Attribute

Wattage

Spec 18 Attribute UOM

KW

Spec 18 Attribute Value

3.7/3 to 9.6

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

3NO

Spec 4 Attribute

Contact Type

Spec 4 Attribute Value

Non-reversing

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

122 mm H x 55 mm W x 119 mm D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP2x

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Maximum Load Current

Spec 8 Attribute UOM

A

Spec 8 Attribute Value

50/80

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Plate/Rail/Surface
