LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style

Category IEC Contactors

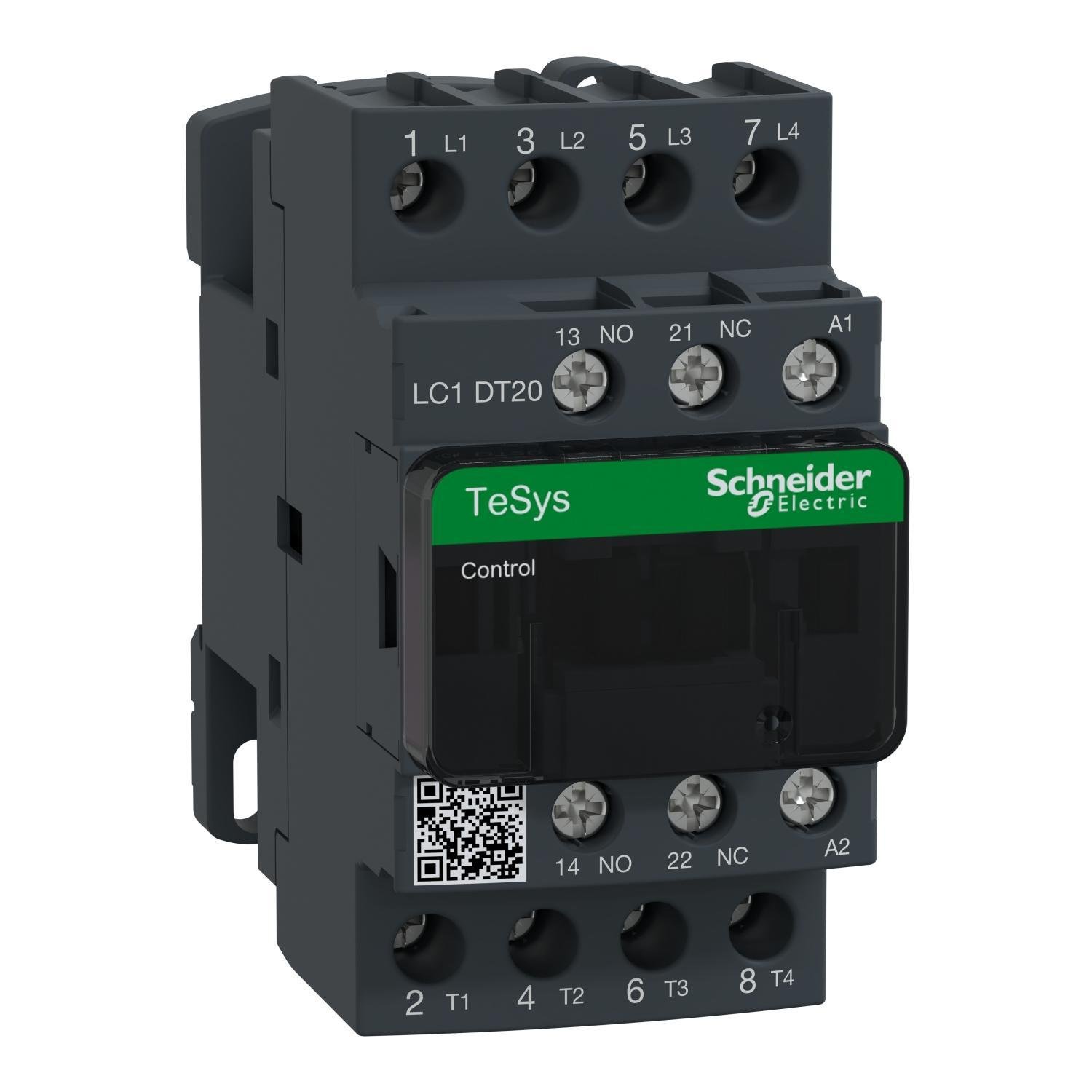

Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style Picture of LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style

LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style

Item Code: 549338
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1DT20B7
Call for Availability
Compare

Description

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 20A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror

Specifications

Weight

0.87

Width

3.63

Length

4.56

Brand

Square D

Category

IEC Contactors

Coil Power Rating

7.5/7.7 VA

Coil Voltage

24/690 V AC, 300 V DC

Connection Type

Screw clamp

Contact Configuration

4NO

Contact Rating

10/60 A at 600 V AC, 10/20 A at 600 V AC

Contact Type

Non-reversing

Dimensions

45 mm W x 92 mm D x 85 mm H

Enclosure Type

Open

Frequency Rating

50/60 Hz

Maximum Load Current

20/60 A

Mounting Type

Rail/Surface

Number of Auxiliary Contacts

1NO-1NC

Number Of Poles

4

Operating Cycles

3600 Cycles/hr

Operating Temperature

-5 to 60/-40 to 70 deg C

Series

LC1D

Size

45/85/92 mm

Terminal Type

Screw clamp

Wattage

1.56 W

LC1DT20B7 - IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style
